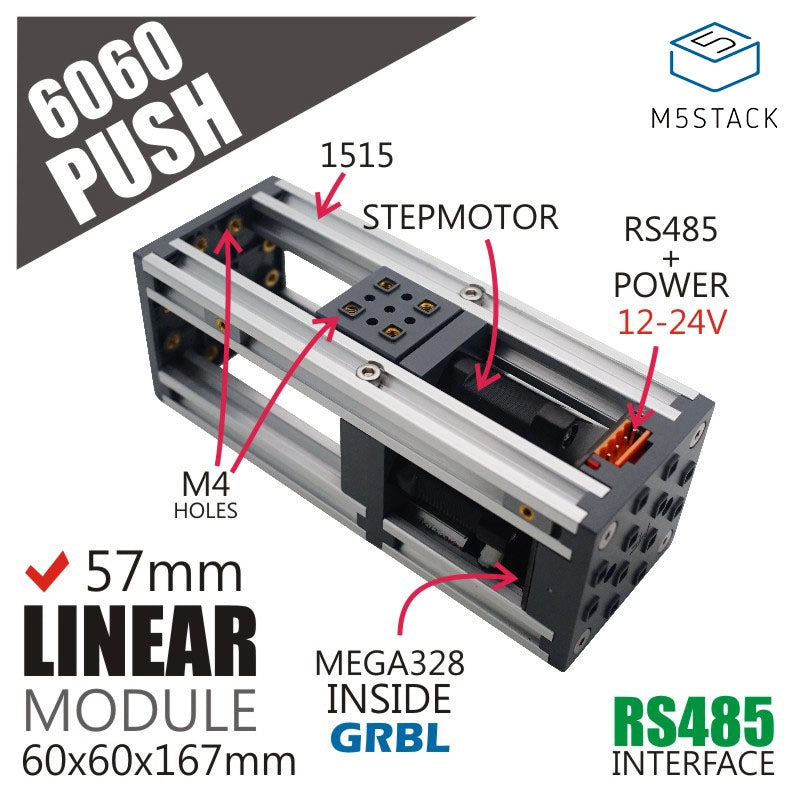

M5Stack 6060-PUSH Linear Motion Control

SKU:K028

Regular price $29.90

Out Of Stock

Shipping calculated at checkout.

Description

This an application-level module, which implements a motion & robotic control and it is totally customizable with different length. Packed with Stepper motor, Mega328 microprocessor, RS485 serial bus, 1515 framework. It realized a linear motion control, you can program the stepper motor to move a certain length with high precision. This type of module can be applied to 3D print, linear push and etc.

Product Features

  • Mega328 inside: GRBL
  • Customizable: length & distance
  • RS485
  • 1515 Aluminium Profile frame
  • 48 stepper motor: 2 phase 4 lines
  • Itinerary: 57mm
  • Input voltage: 12-24V
  • Motor power: 10W

Include

  • 1x 6060 module

Applications

  • 3D printer
  • Linear motion

Specification

Resources Parameter
Net weight 569g
Gross weight 600g
Product Size 166*60*60mm
Package Size 166*60*60mm

LEARN AND DOCUMENTS

  • DOCUMENTS
  • M5Stick-C with Stepper and IMU M5Stick-C with Stepper and IMU M5Stick-C with Stepper and IMU This uses the stepper driven 6060 push and rs485. The movement is based on the tilt of the M5stick which is measured with the built-in IMU. AI Powered Garbage Sorting Demo AI Powered Garbage Sorting Demo AI Powered Garbage Sorting Demo AI camera that automatically sorting out the garbage. PUSH6060 ATOM RS485 Test PUSH6060 ATOM RS485 Test PUSH6060 ATOM RS485 Test Pilot a Push6060 with ATOM and Tail485 with IUFLOW
