Description
PaperS3 is a uniquely designed low-power touch-enabled e-ink screen main control device launched by M5Stack. The controller uses the ESP32-S3. The front of the device is embedded with a 960 x 540 @ 4.7" (touch and screen integrated) e-ink display, supporting 16-level grayscale display. Paired with the GT911 capacitive touch panel, it supports two-point touch and various gesture operations. Compared to previous products, PaperS3 adopts a full-screen structure. Compared to ordinary LCD screens, e-ink screens not only provide users with a better text reading experience but also offer advantages such as low power consumption and image retention when powered off.
In terms of functional configuration, it integrates a gyroscope sensor, onboard buzzer, and physical buttons, enabling interactive operations such as wake-up on lift and power on/off operations. For data storage, PaperS3 is equipped with a microSD interface, and the ESP32-S3R8 chip comes with 8MB of PSRAM. Additionally, it has an external 16MB flash memory chip for expanded storage, ensuring higher storage capacity and faster data access speeds.
It comes with a built-in 1800mAh lithium battery and charging functionality, combined with the internal RTC (BM8563), enabling sleep and wake-up functions, providing the device with strong battery life. At the same time, the onboard battery detection circuit can monitor the battery status in real-time, ensuring battery health management.

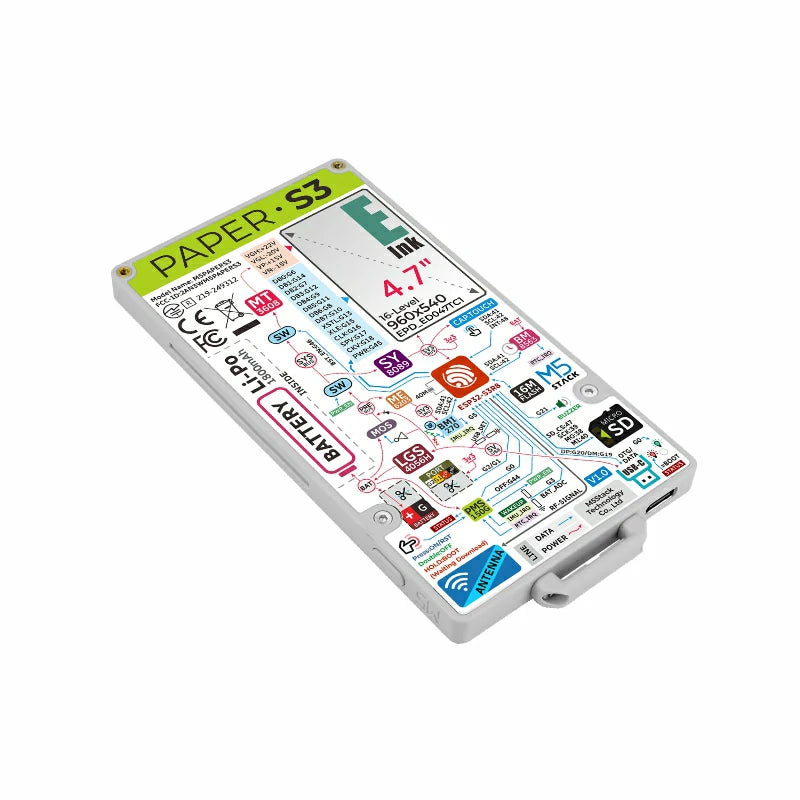

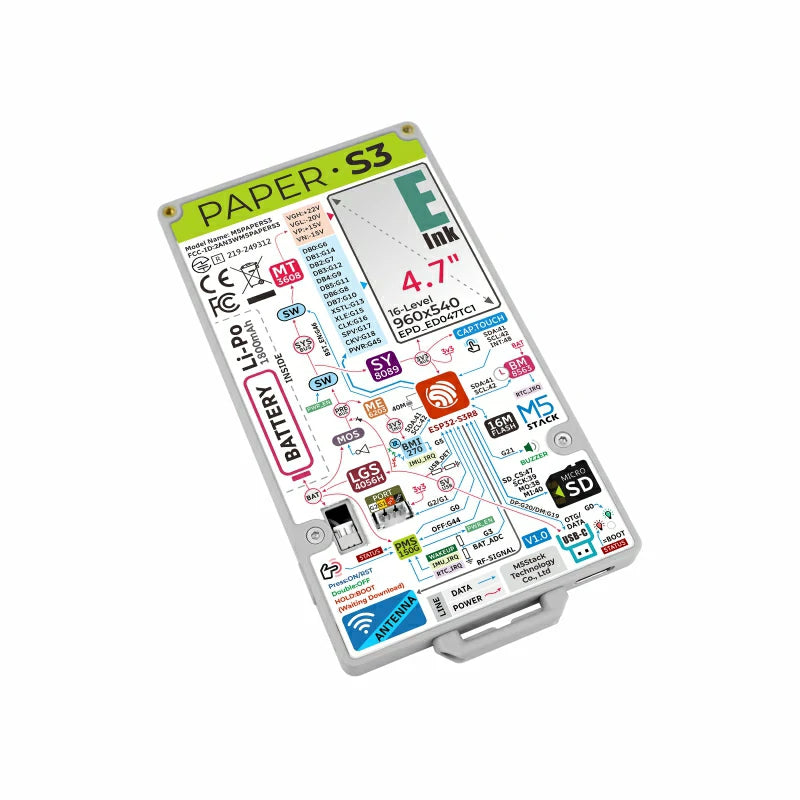

The back of the device features an open HC1.25-4PLT peripheral interface, which can be used to expand various sensor devices, offering endless possibilities for subsequent application development. It also supports OTG functionality, providing more options for connecting external devices and data exchange.
In terms of performance optimization, compared to previous products, PaperS3 has enhanced antenna performance, resulting in better wireless performance and signal stability. In design, it features a hanging ear design, making it convenient for users to carry and hang, enhancing the product's convenience and practicality, and the overall device is thinner. Additionally, PaperS3 has a magnetic function, allowing users to fix the device on metal surfaces, further enhancing the convenience and flexibility of device usage.
PaperS3 is suitable for various low-power display and interactive application scenarios such as IoT monitoring, smart home control, environmental monitoring, health monitoring, electronic labels, and data logging.
Note

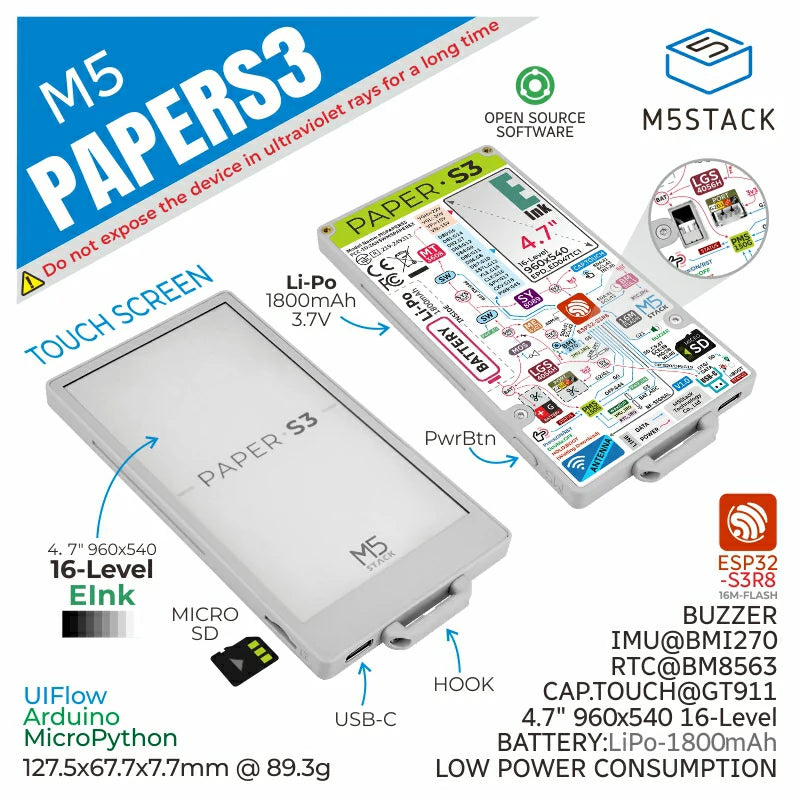

Features
- ESP32-S3R8 SoC
- Built-in gyroscope, buzzer, physical buttons
- 8MB PSRAM, 16MB external flash
- 4.7" touch e-ink screen 960×540 resolution
- Back magnetic attachment
- 1800mAh lithium battery
- RTC chip sleep wake-up
- Low power consumption
- Development platforms:
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO
Includes
- 1 x PaperS3
Applications

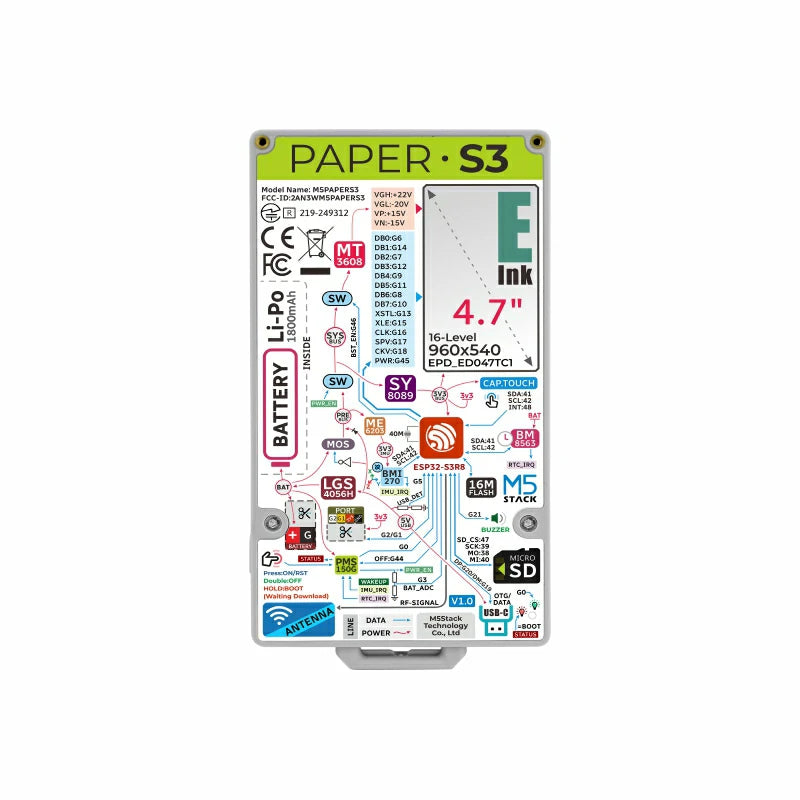

Specifications
| Specification | Parameter |
|---|---|
| SoC | ESP32S3R8@Xtensa 32-bit LX7 Dual-Core Processor, Main Frequency 240MHz |
| Flash | 16MB |
| PSRAM | 8MB |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Storage | Supports microSD card expansion |
| Display | 4.7" touch e-ink screen (full screen) @EPD_ED047TC1 Resolution: 960x540 pixels 16-level grayscale display |
| Touch Function | Supports two-point touch and various gesture operations (GT911 capacitive touch panel) |
| Sensor | Built-in gyroscope sensor BMI270 @ communication address: 0x68 |
| USB Function | OTG/CDC/MSC/Firmware Flashing |
| Power Input | 5V@500mA |
| Peripheral Interface | HC1.25-4PLT (3v3+GND+2xGPIO) peripheral interface (for expanding sensors and devices) |
| Battery | 3.7V@1800mAh lithium battery @ charging chip: LGS4056H |
| Battery Interface | HY1.25-2P |
| Charging Current | DC 5V@331.5mA |
| Power Management | PMS150G (power on/off and program download control) Built-in BM8563 RTC chip (supports sleep and wake-up functions) @ communication address: 0x51 |
| Button | 1x physical button (for device control, power on/off, reset, download mode) |
| Buzzer | Onboard passive buzzer |
| Wi-Fi | Communication distance 111 meters (open area, antenna perpendicular to the ground at 90°) |
| Power Consumption | Low power mode: DC4.2V/9.28uA (main power off, gyroscope in low power mode) Standby mode: DC4.2V/949.58uA (main power off, gyroscope on) Operating mode: DC4.2V/154.02mA (main power on) |
| Operating Temperature | 0 ~ 40°C |

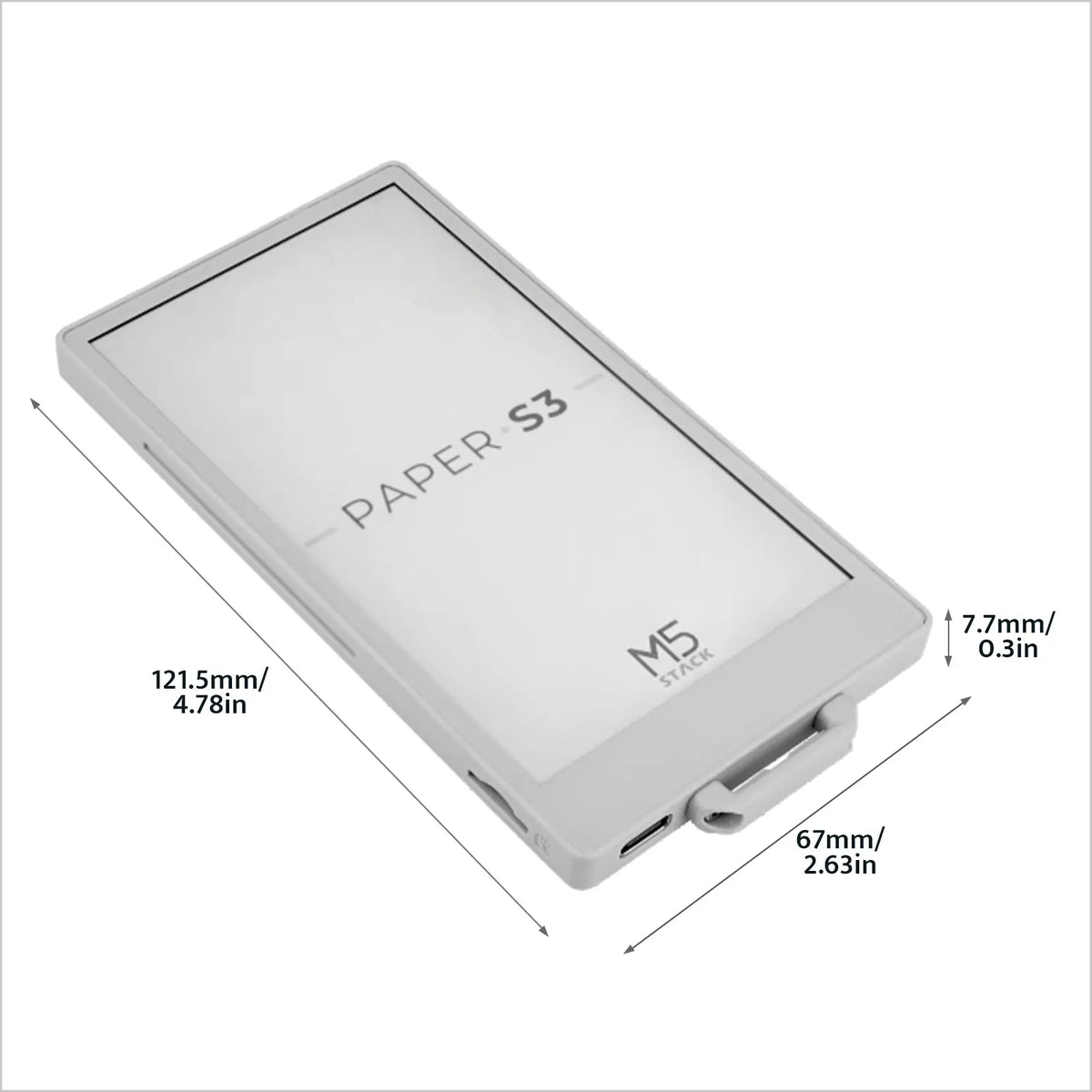

| Product Size | 121.5 x 67.0 x 7.7mm |
| Product Weight | 89.0g |
| Packaging Dimensions | 132.2 x 77.4 x 19.7mm |
| Gross Weight | 111.7g |
