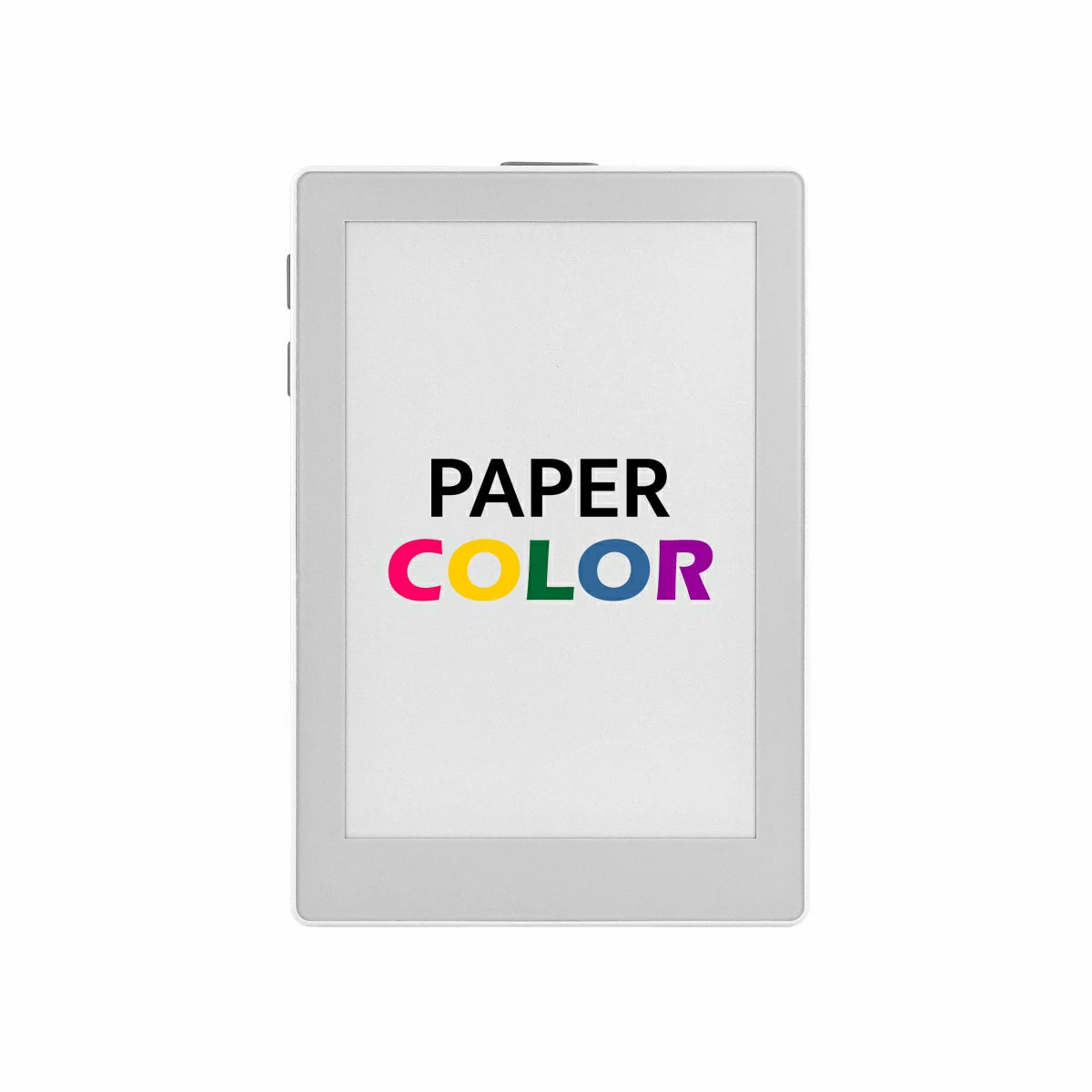

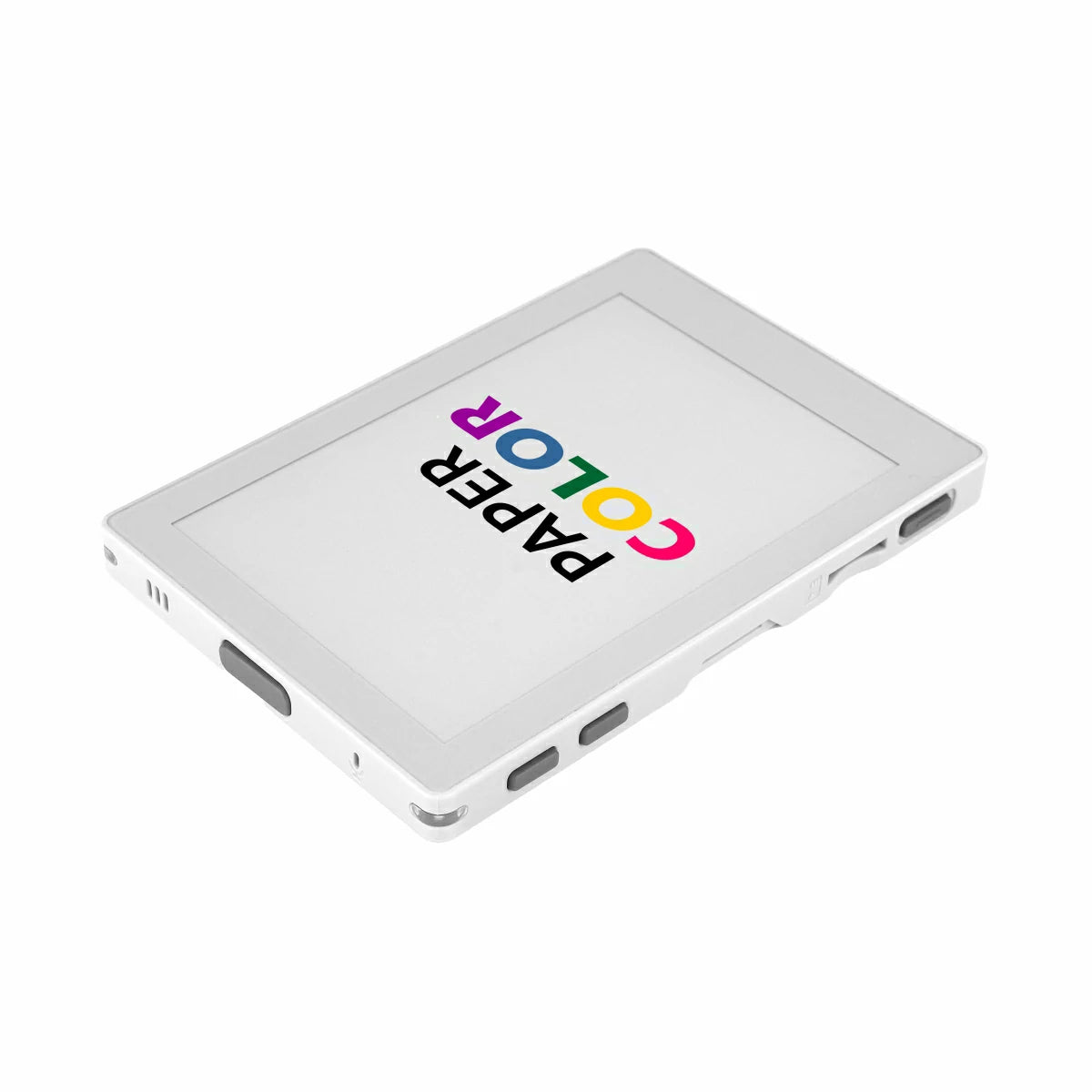

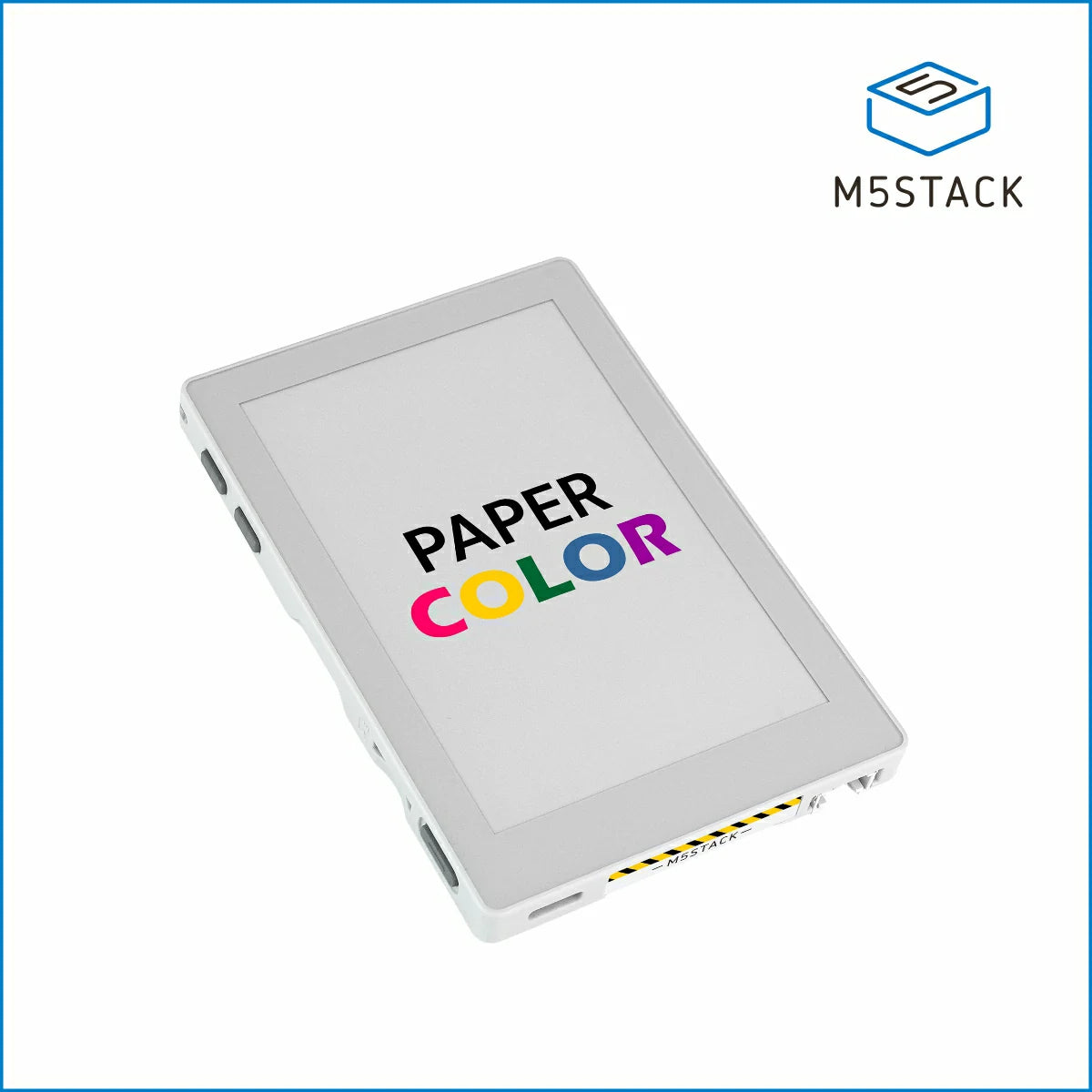

M5Paper Color ESP32S3 Dev Kit (600x400, 4" SPECTRA 6 eInk Display)

Description

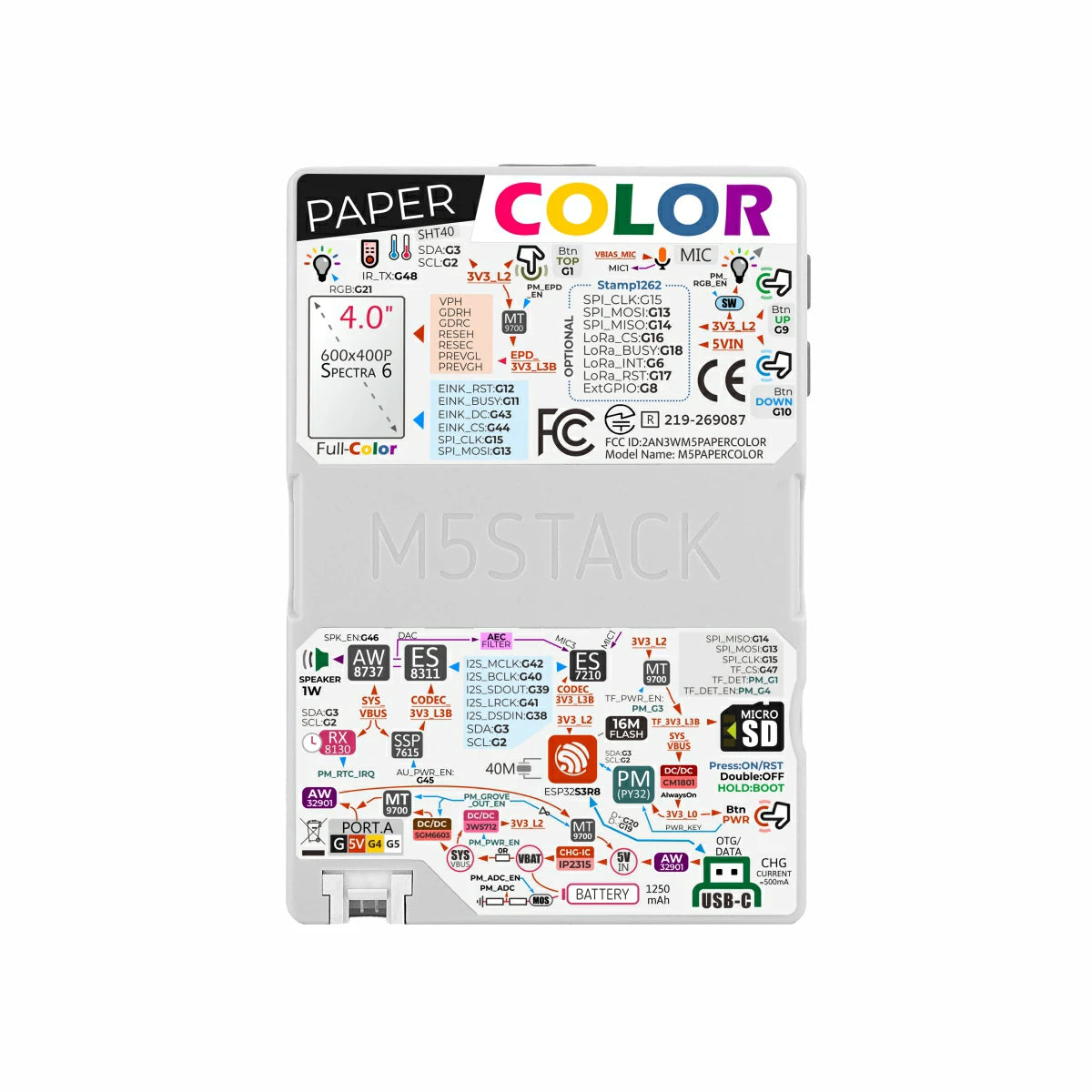

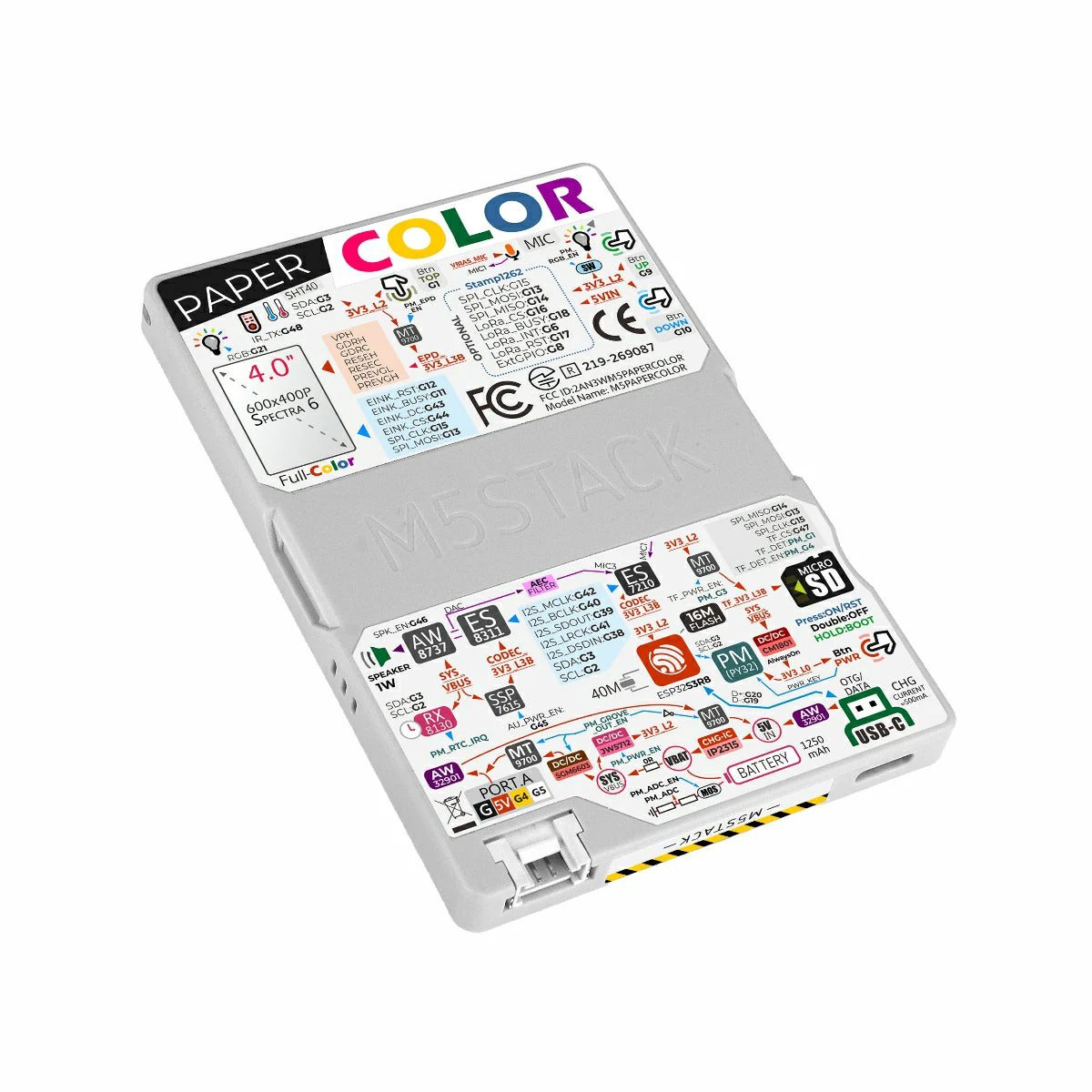

PaperColor is a development board featuring a 4-inch E Ink Spectra 6 full-color e-paper display with a resolution of 400x600, offering both low power consumption and high visibility. It is built around an integrated ESP32-S3R8 core with 16MB Flash and 8MB PSRAM, and supports 2.4 GHz Wi-Fi wireless communication. The board incorporates a complete human-machine interaction system, including three programmable buttons, an audio system based on the ES8311 audio codec, a MEMS microphone with AEC echo cancellation, and a speaker driven by an AW8737A amplifier — enabling high-quality voice capture and audio playback. In terms of expanded functionality, the board integrates an SHT40 temperature and humidity sensor, RX8130CE real-time clock, microSD card slot, infrared emitter, two RGB LEDs, and an HY2.0-4P expansion interface. Combined with the M5PM1 multi-stage power management system and a 1250mAh battery, it enables long-lasting, low-power operation. Suitable for IoT and embedded applications such as electronic signage, voice interaction terminals, environmental monitoring instruments, and art display installations.

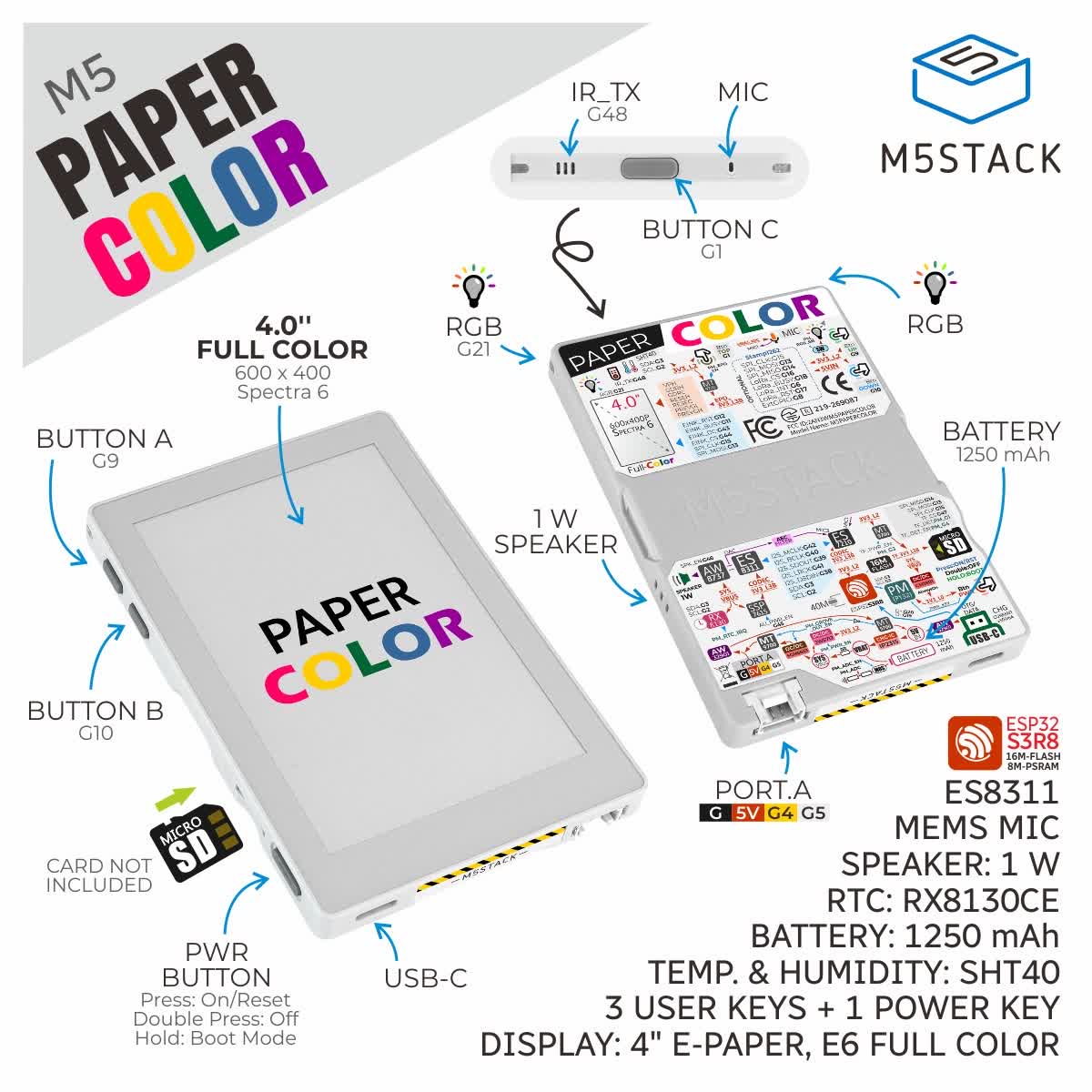

Features

• ESP32-S3R8 Core:
  • 16MB Flash + 8MB PSRAM
  • 2.4 GHz Wi-Fi

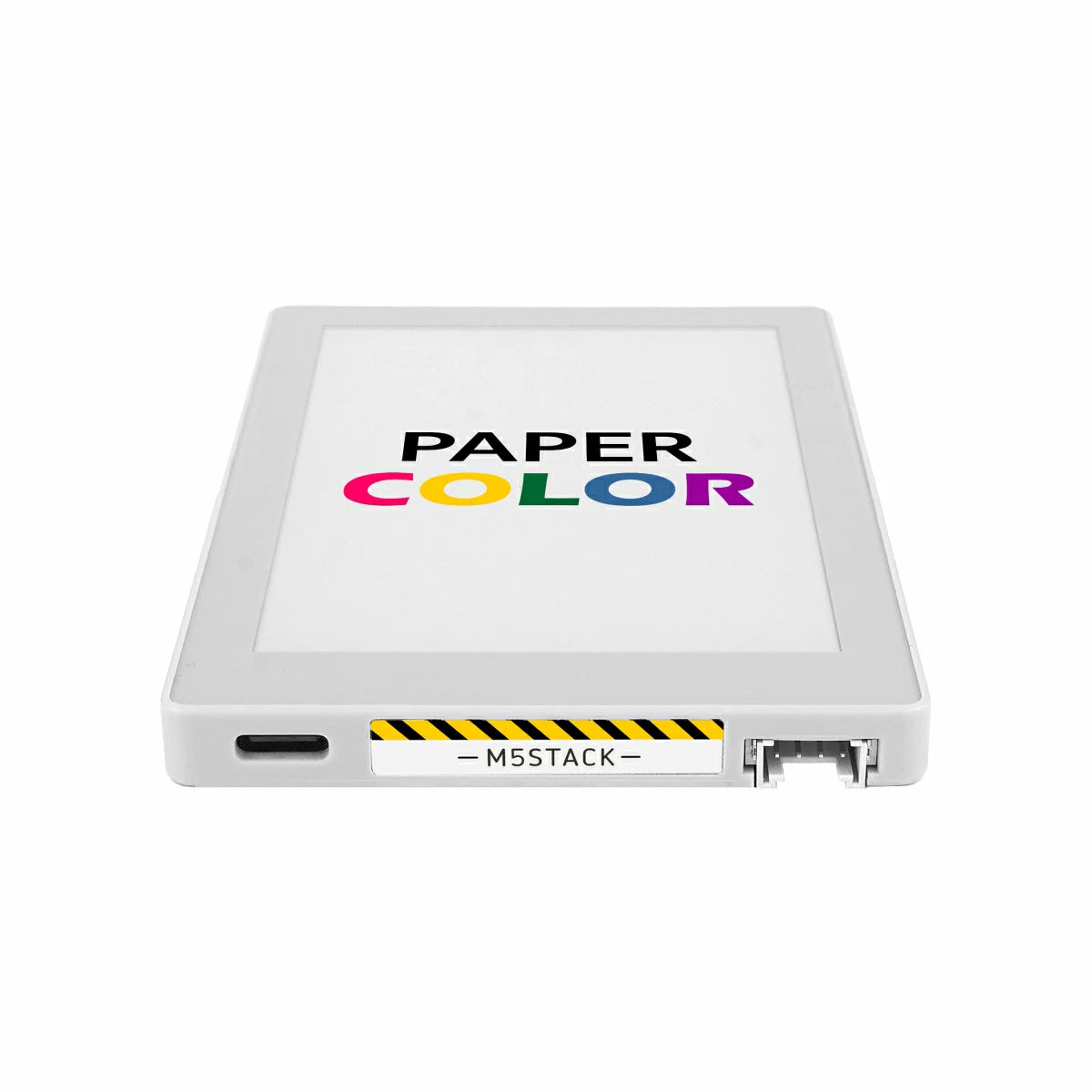

• 4-inch E Ink Spectra 6 Full-Color E-Paper Display
• Built-in 1250mAh Battery
• microSD Card Slot
• Audio Interaction:
  • ES8311 Audio Codec
  • 1W Speaker + MEMS Microphone
• Human-Machine Interaction:

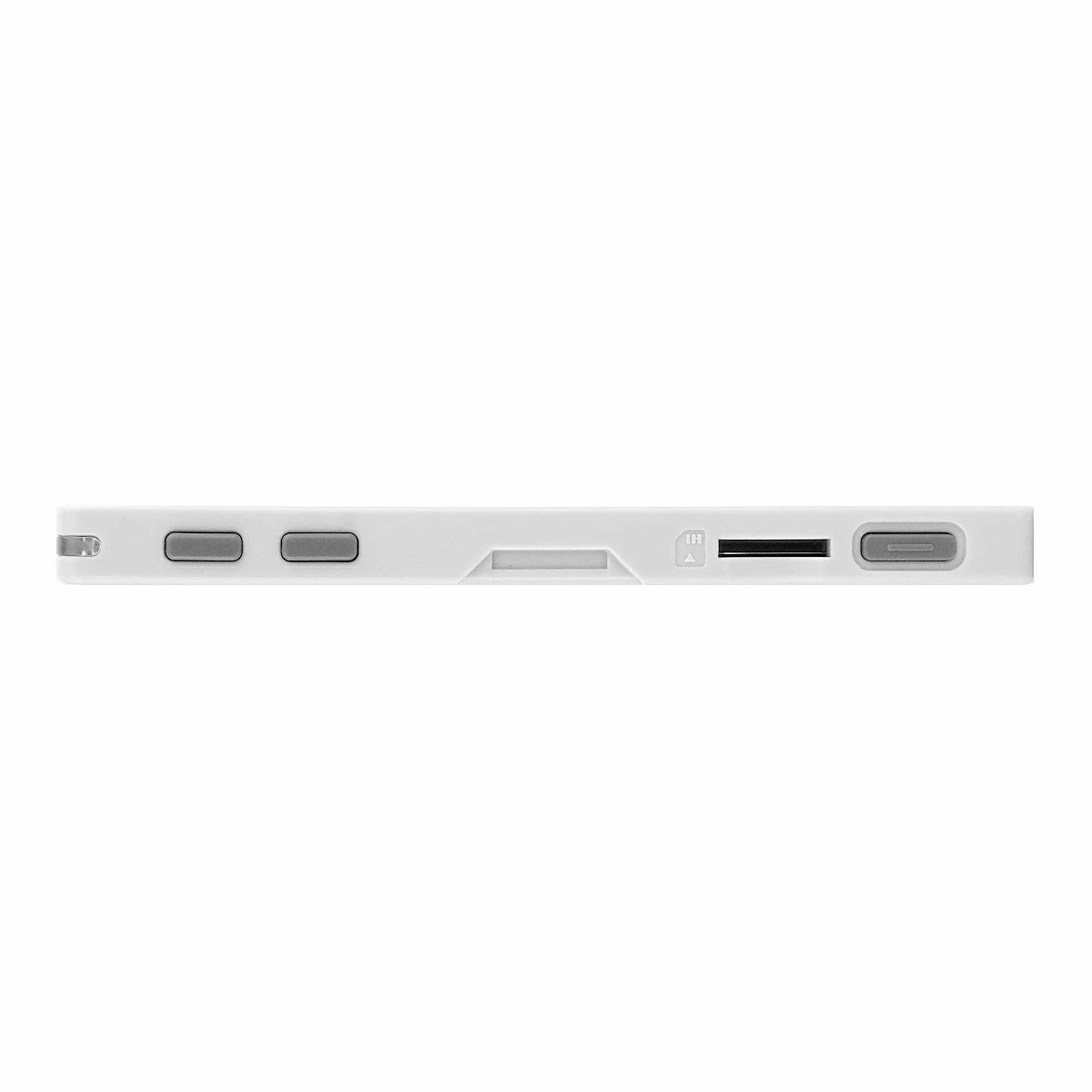

  • 3x User Buttons + 1x Power Button
  • Infrared Emitter
  • 2x RGB LED
• Onboard SHT40 Temperature & Humidity Sensor
• RX8130CE Real-Time Clock

Includes

• 1 x PaperColor

Applications

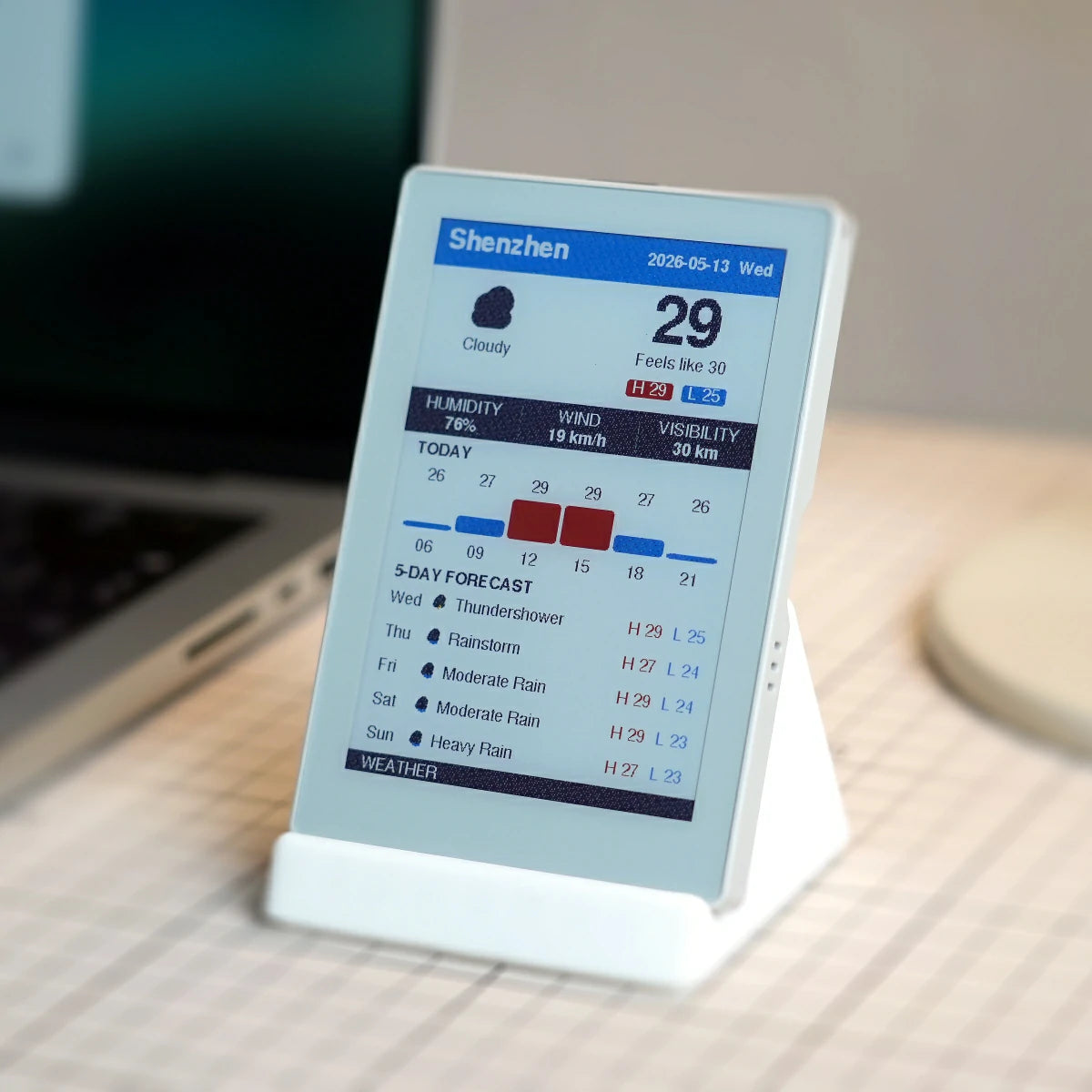

• Smart Digital Photo Frame
• Data Display Panel
• Electronic Signage
