M5Stack M5GO IoT Starter Kit V2.7

Description

M5GO IoT Kit v2.7 is a high cost-performance entry-level IoT development kit. The kit includes a Core Controller M5GO plus 6 expansion units with different functions (sensors / actuators / splitter). The core controller M5GO adopts the Espressif ESP32 chip, equipped with two low-power Xtensa® 32-bit LX6 microprocessors, with a main frequency of up to 240MHz. It features an onboard 16MB Flash large-capacity memory, capable of accommodating larger program sizes. While boasting powerful hardware performance, this MCU also supports Wi-Fi, enabling the development of applications such as smart wearables and smart home solutions.

Features

• ESP32-based development
• 16MB Flash
• Integrated full-color high-definition IPS display panel and multiple hardware peripherals
• Rich I/O interfaces, compatible with the M5Stack stacking module and sensor ecosystem, offering excellent scalability
• Base shell openings compatible with 8 mm LEGO bricks for fun structural building
• Microsoft Azure Certified Device
• Development Platform
  • UiFlow1
  • UiFlow2
  • Arduino IDE
  • ESP-IDF
  • PlatformIO

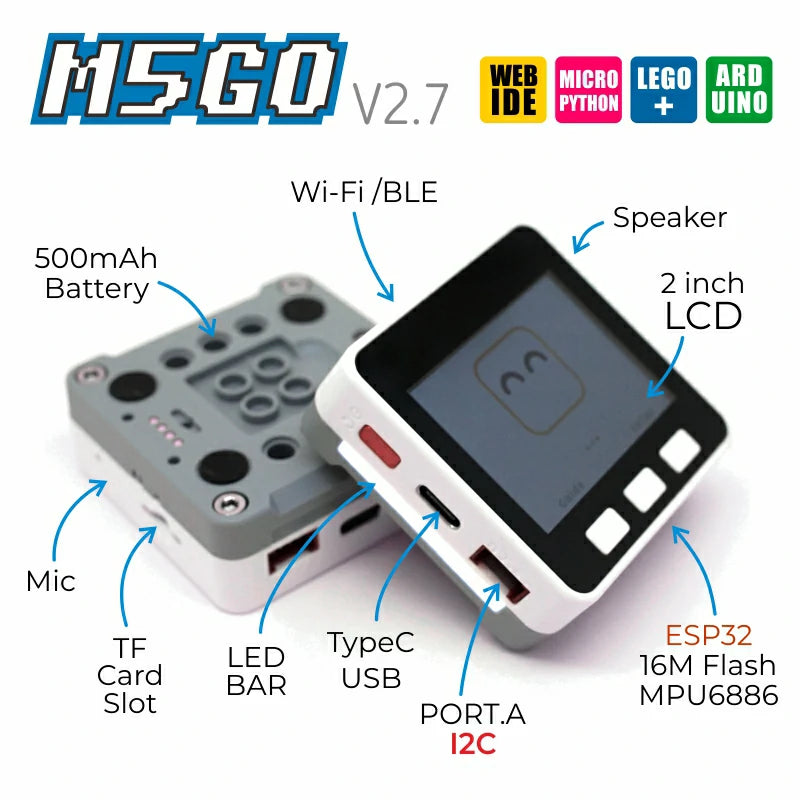

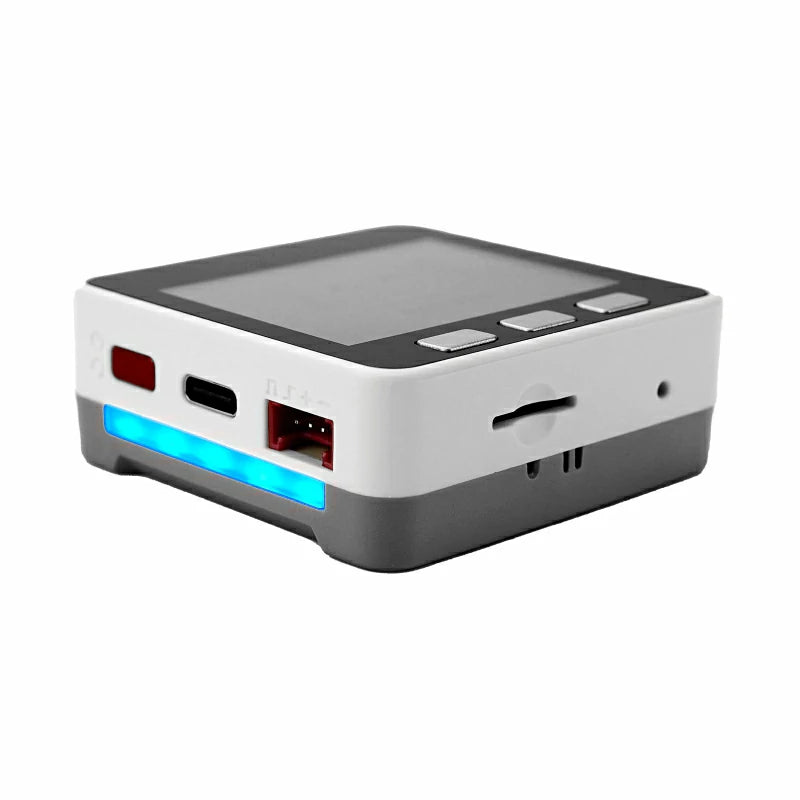

M5GO IoT Controller

• Low-code development:
  • Supports UIFlow graphical programming, scripting, compilation-free workflow, and cloud pushing
  • Fully compatible with Arduino, ESP32-IDF and other mainstream development platforms
  • Supports FreeRTOS; dual-core and multitasking mechanisms help organize task logic efficiently and optimize program performance
• High integration:

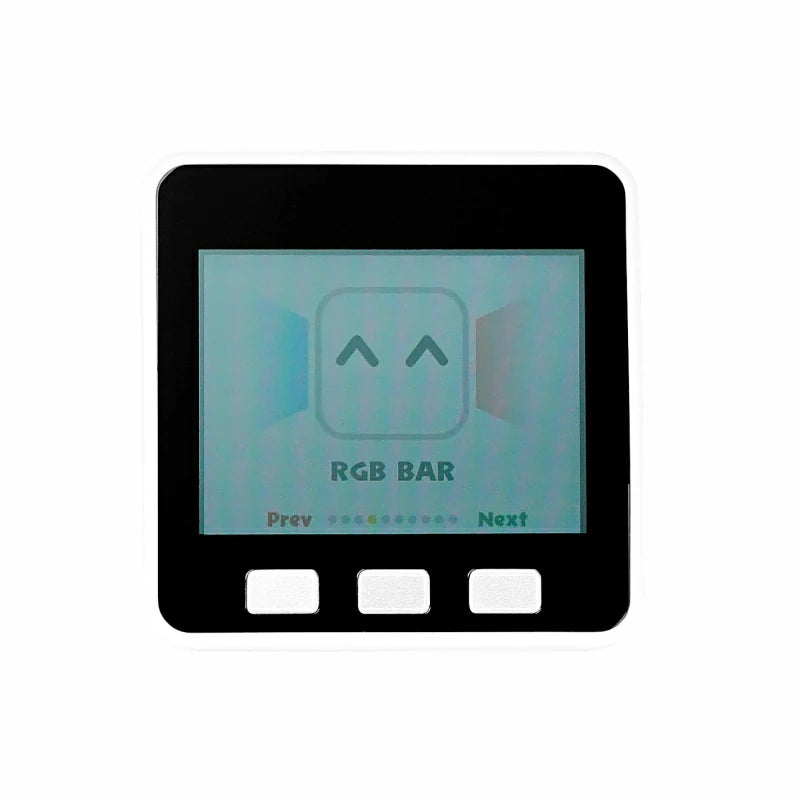

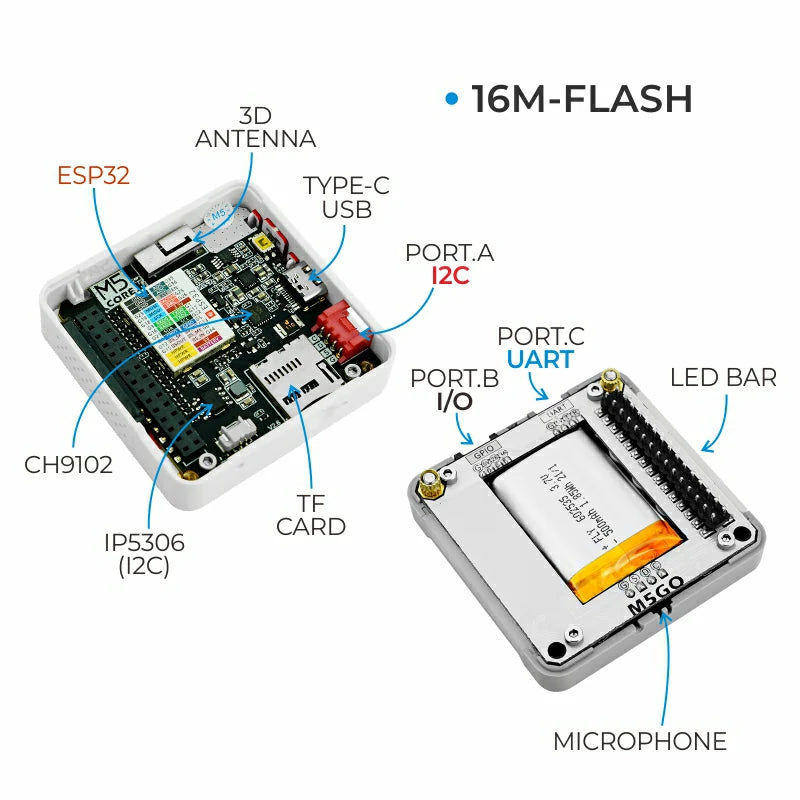

  • 2.0-inch IPS display, 6-axis IMU, programmable RGB LEDs ×10, microphone, speaker, and 3 customizable buttons
  • Built-in Li-ion battery, integrated power-management chip, power supply via Type-C and POGO PIN interfaces
  • Professionally tuned RF circuit for stable and reliable wireless communication
• Great expandability:

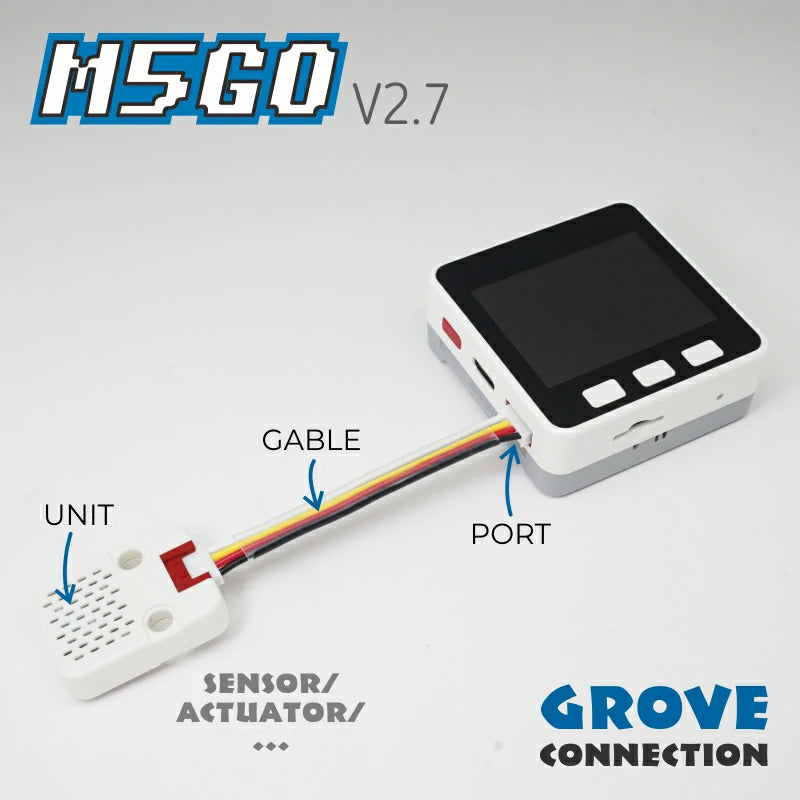

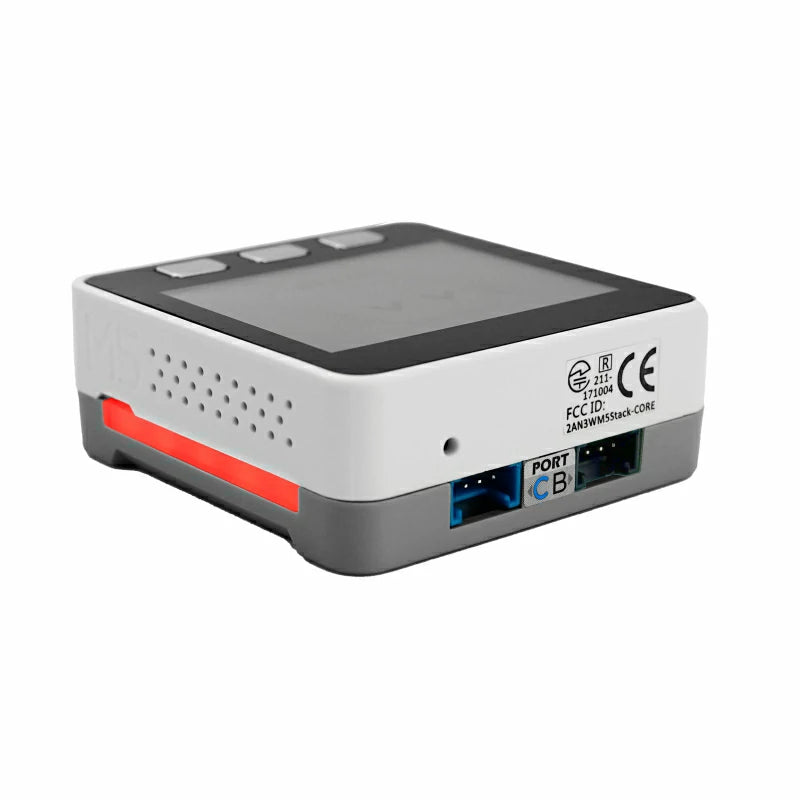

  • GROVE expansion ports ×3 (I2C, GPIO, UART)
  • Easily connect to the M5Stack software and hardware ecosystem, stackable module design, plug-and-play sensor expansion

6× Expansion Units

• Unit ENV-III: Temperature, humidity & barometric pressure sensor using I2C interface to quickly collect environmental data
• Unit PIR: Human body sensor, passive infrared principle for body detection, digital signal output
• Unit Angle: Rotary potentiometer, analog input for music/light adjustment
• Unit IR: Integrated infrared emitter & receiver, freely programmable for IR transmission and reception
• Unit RGB: 3× programmable RGB LEDs, support arbitrary color control via programming
• Unit Hub: I2C splitter, expands one I2C bus into three, allowing devices with different I2C addresses to be connected

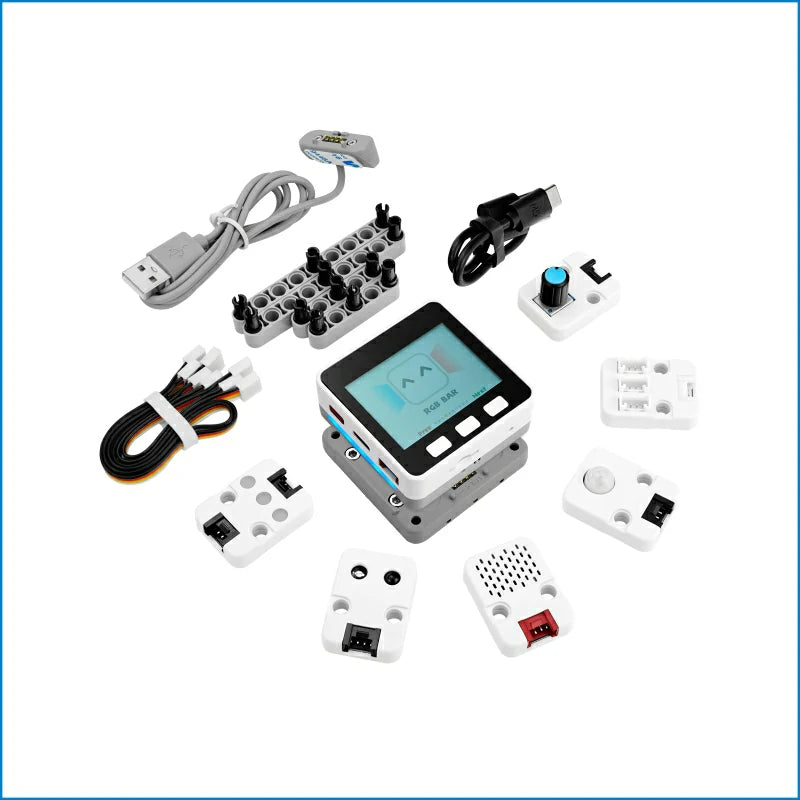

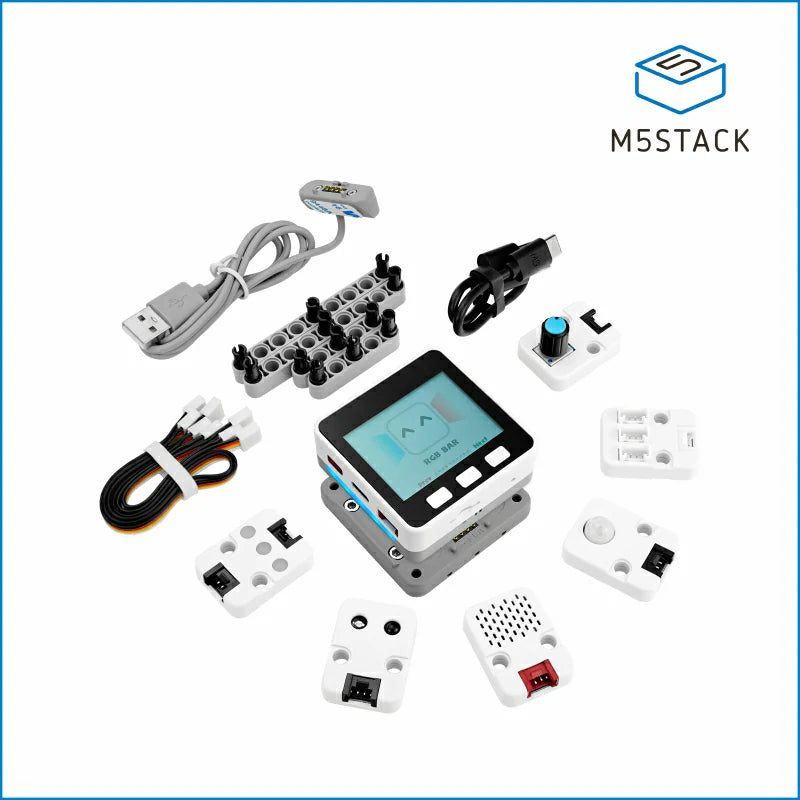

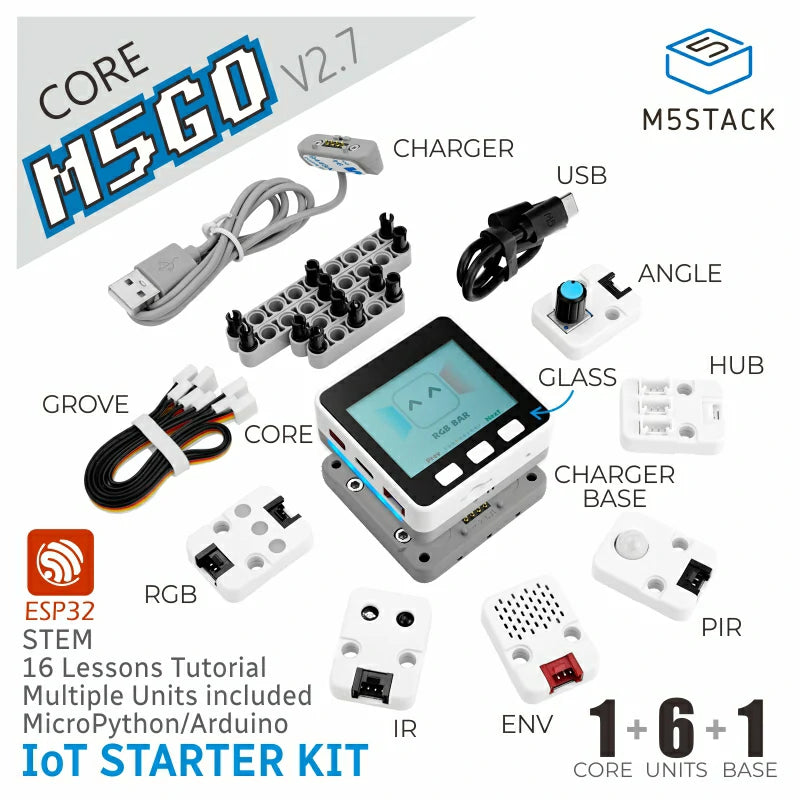

Includes

• 1 × M5GO-CORE1 V2.7 main host

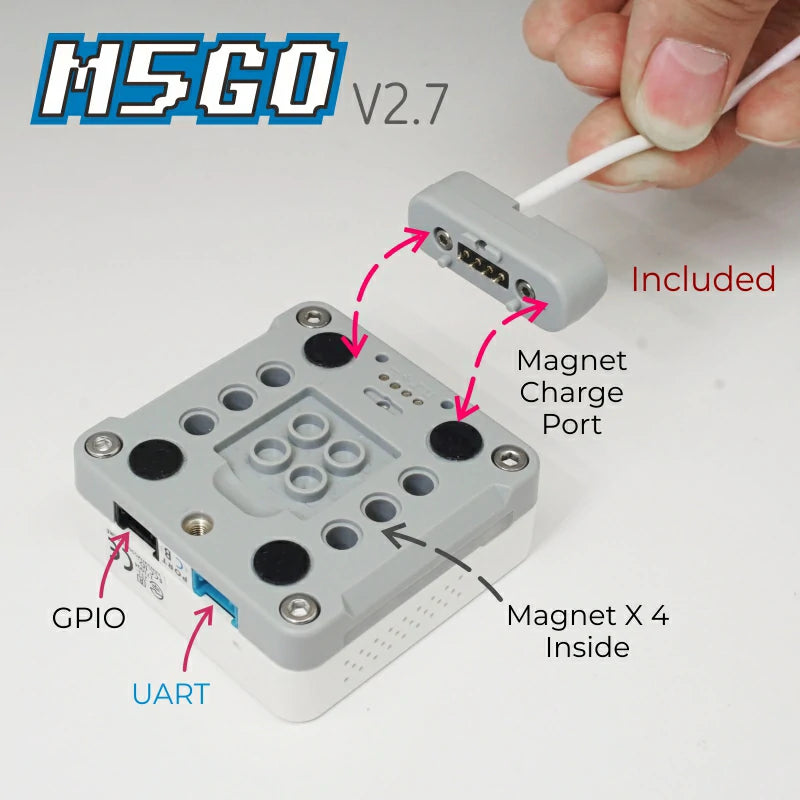

• 1 × M5GO BASE (charging dock)

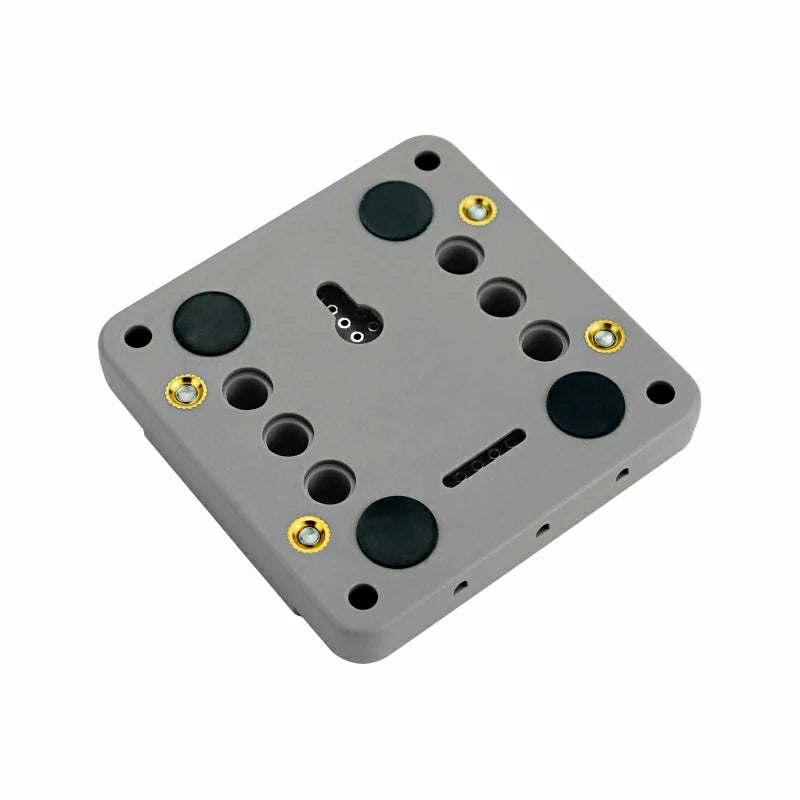

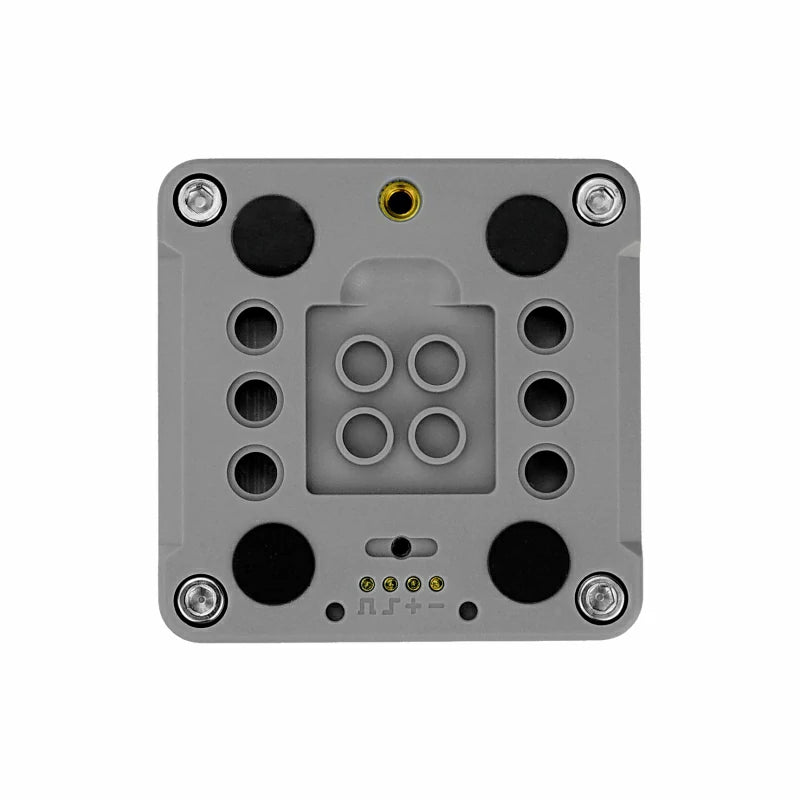

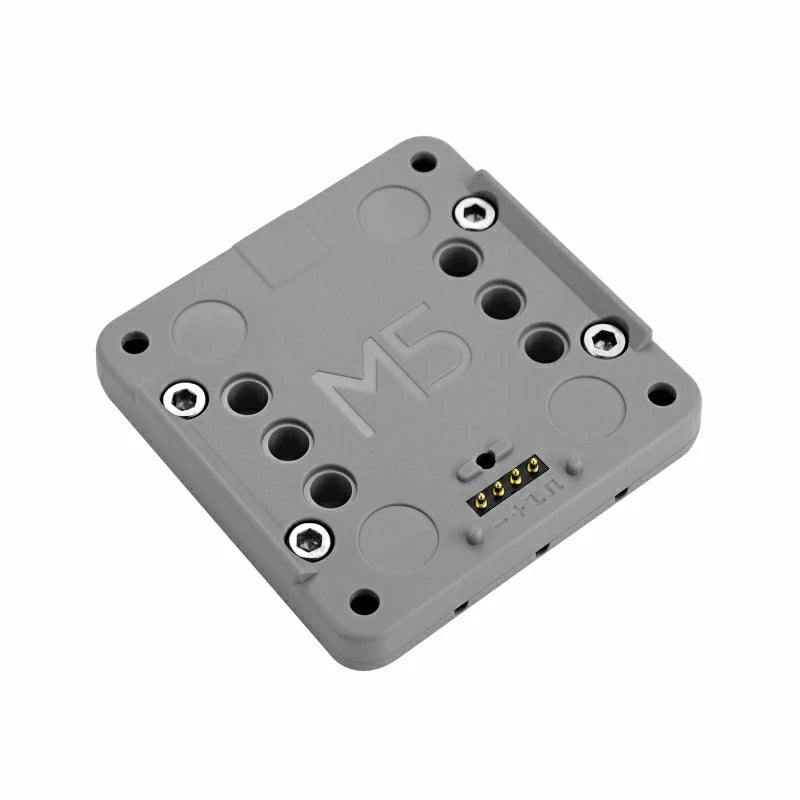

• 1 × M5GO battery base
• 1 × M5GO charger
• 6 × Units (Unit ENV-III, Unit PIR, Unit Angle, Unit IR, Unit RGB, Unit Hub)
• 2 × LEGO nine-hole long plastic bricks
• 2 × LEGO five-hole long plastic bricks
• 12 × LEGO friction pins
• 2 × HY2.0-4P Grove Cables (20 cm)
• 2 × HY2.0-4P Grove Cables (10 cm)
• 1 × USB Type-C Cable (20 cm)
• 1 × M2 × 12 mm machine screw
• 1 × Hex Key L-Shape 1.5 mm (For M2 Screw)
• 1 × Quick Start Guide

Applications

• STEM education
• IoT controller
• Smart home
• Smart weather station

Specifications
