Description

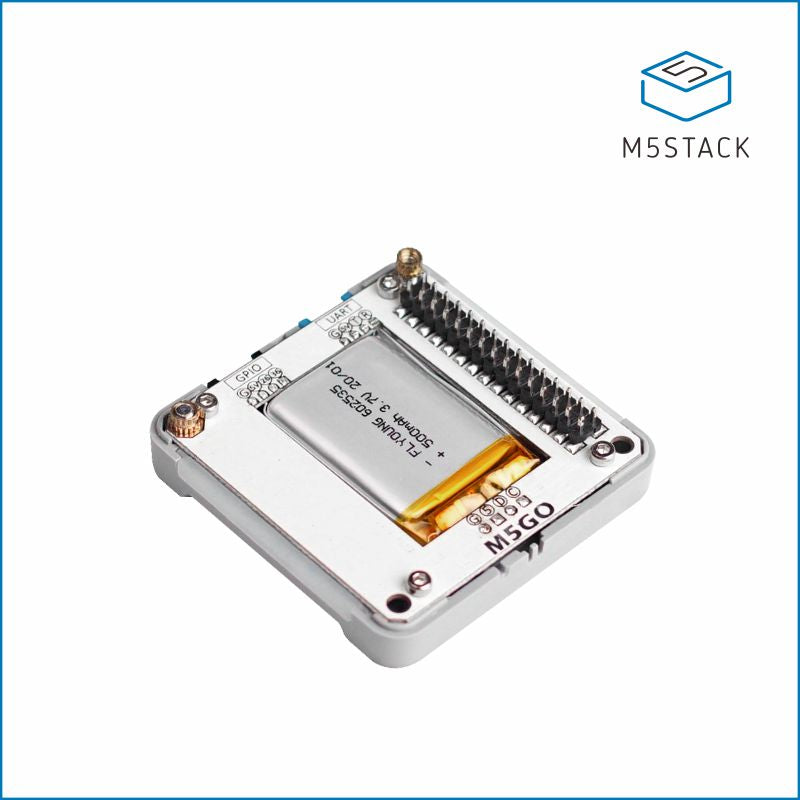

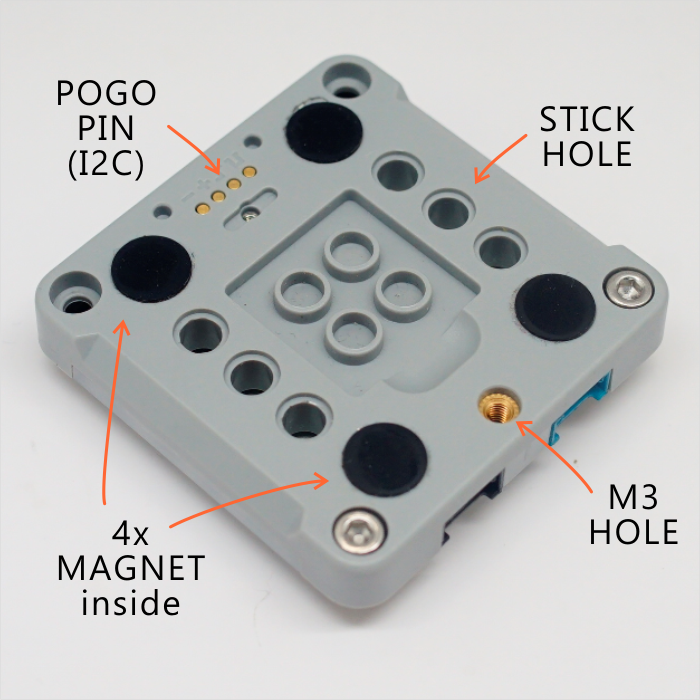

Base M5GO Bottom is an enhanced universal base for Core series, compatible with all Core models. Compared to the basic Core Bottom, the enhanced base comes with a larger capacity lithium battery (500 mAh), integrates a microphone, LED light strip, infrared LED, and expands with two HY2.0-4P ports (PORT.B/PORT.C). The backside is LEGO-compatible and features pogo pins for connecting supported I2C devices (such as BALA) or a magnetic charging base.
Features
- Compatible with Core
- Integrated Mic / LED light strip / HY2.0-4P ports
- LEGO bricks compatible
- Supports configurable magnetic charging base
- Built-in 10 RGB LEDs in the base
Includes
- 1 x Base M5GO Bottom
- 2 x M3x16 Screws
Specifications
| Specification | Parameter |
|---|---|
| Product Size | 54.0 x 54.0 x 15.0mm |
| Product Weight | 32.7g |
| Package Size | 132 x 95 x 16mm |
| Gross Weight | 50.6g |
Product Comparison
| Product Compare | Base M5GO Bottom
|
Base M5GO Bottom2
|
Base M5GO Bottom3
|
|---|---|---|---|
| Core | Basic (Core) | Core2 | CoreS3 |
| RGB | 10*SK6812 | 10*SK6812 | 10*WS2812 |
| IMU | / | MPU6886 | / |
| IR | IR | / | IR |
| BATTERY | 500mAh | 500mAh | 500mAh |
| MIC | SPQ2410 | LMD4737 | / |
