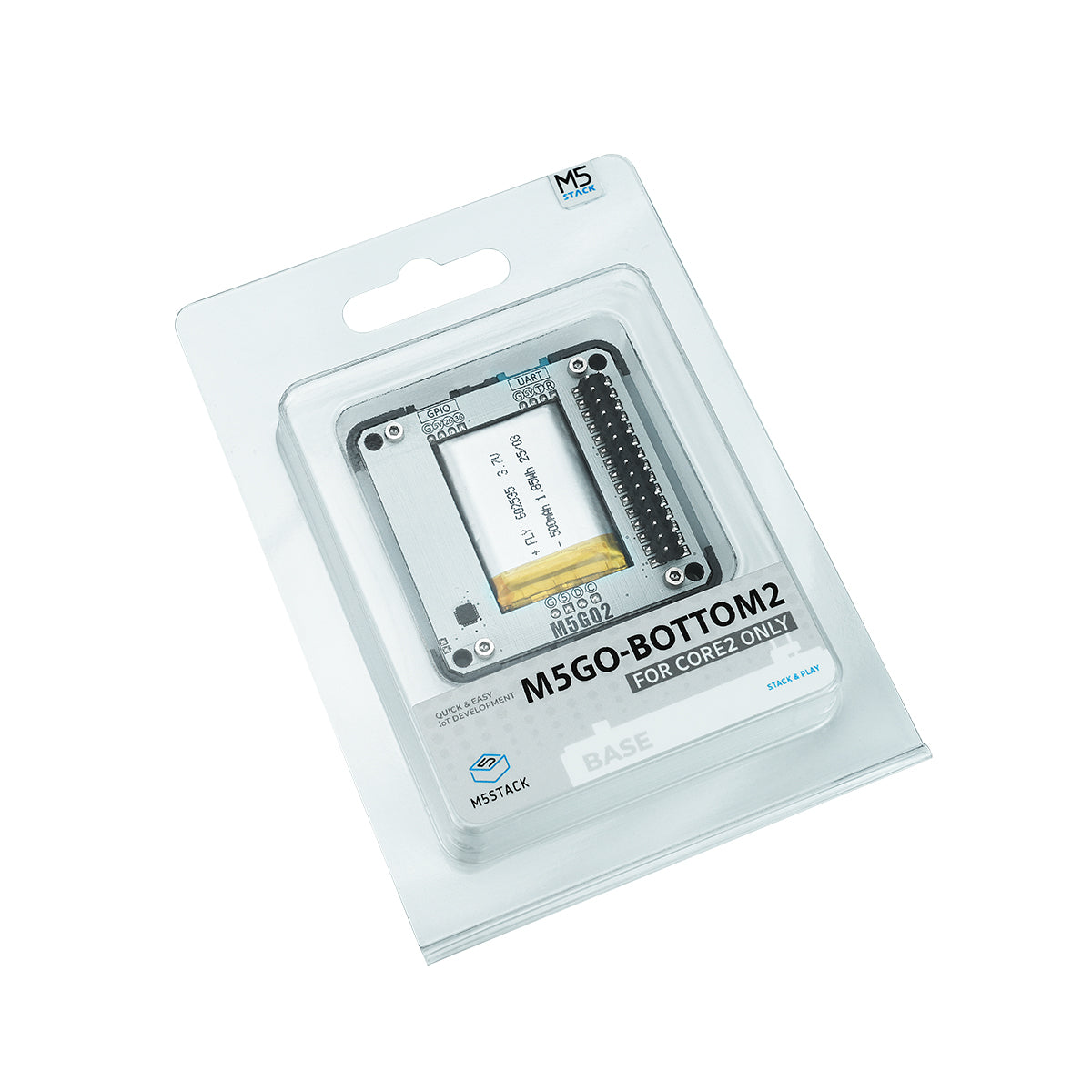

M5GO Battery Bottom2 (for Core2 only)

SKU:A014-C

Regular price $13.50

10+ In Stock

Shipping calculated at checkout.

Description

Base M5GO Bottom2 is an expansion base designed specifically for the M5Core2. The base integrates an MPU6886 six-axis motion sensor, a digital microphone (SPM1423), and a 500 mAh lithium battery. Two HY2.0-4P expansion interfaces bring out commonly used ADC/DAC/UART pins, allowing for the connection of various types of sensors. On both sides of the base, there are 10 programmable RGB LEDs (SK6812), which, combined with a frosted light-transmitting material, provide a soft and comfortable lighting effect. The bottom features a pogo pin magnetic charging interface. When attached to the charging base, current flows safely into the internal battery through the built-in TP4057 charging chip. In addition to the charging function, the pogo pin interface also brings out the main control I2C bus, allowing for external expansion via magnetic attachment. The built-in magnets and LEGO-compatible hole design on the back enable seamless integration with other LEGO structures.

Features

  • Compatible with M5Core2
  • Digital microphone
  • Programmable LED light strip
  • 500mAh lithium battery
  • HY2.0-4P expansion interface
  • LEGO-compatible structure
  • Compatible with magnetic charging base

Includes

  • 1 x Base M5GO Bottom2
  • 2 x M3*16 screws
  • 2 x M3*18 screws

Applications

  • CORE2 expansion

Specifications

Specification Parameter
Microphone SPM1423
LED SK6812 x 10
IMU MPU6886
Product Size 54.0 x 54.0 x 15.0mm
Product Weight 30.0g
Package Size 132.0 x 95.0 x 16.0 mm
Gross Weight 47.4g
