Description

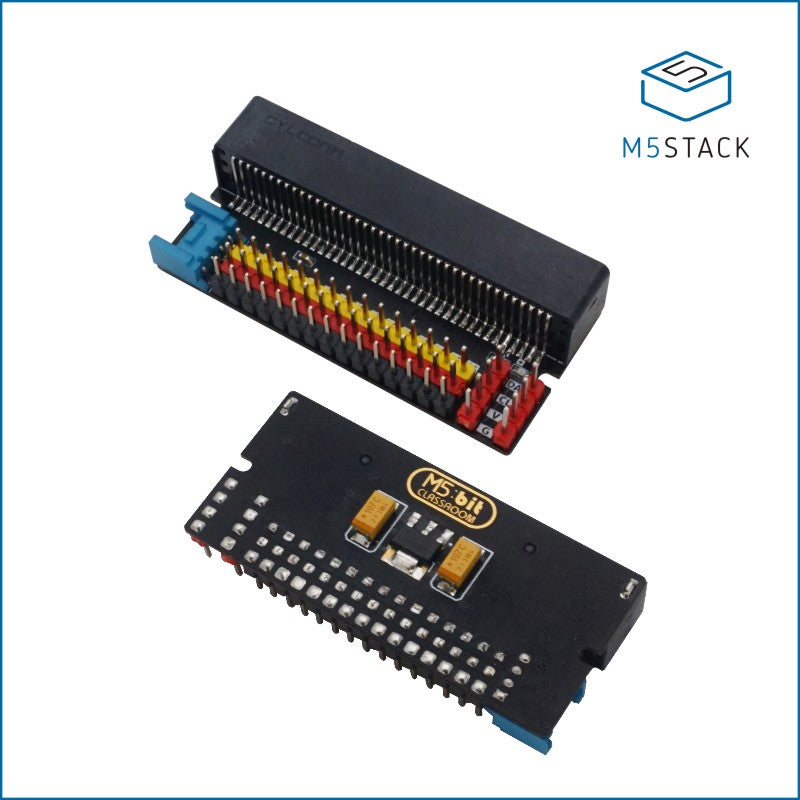

M5:bit is an M5Core-to-Microbit serial communication converter/adapter board.

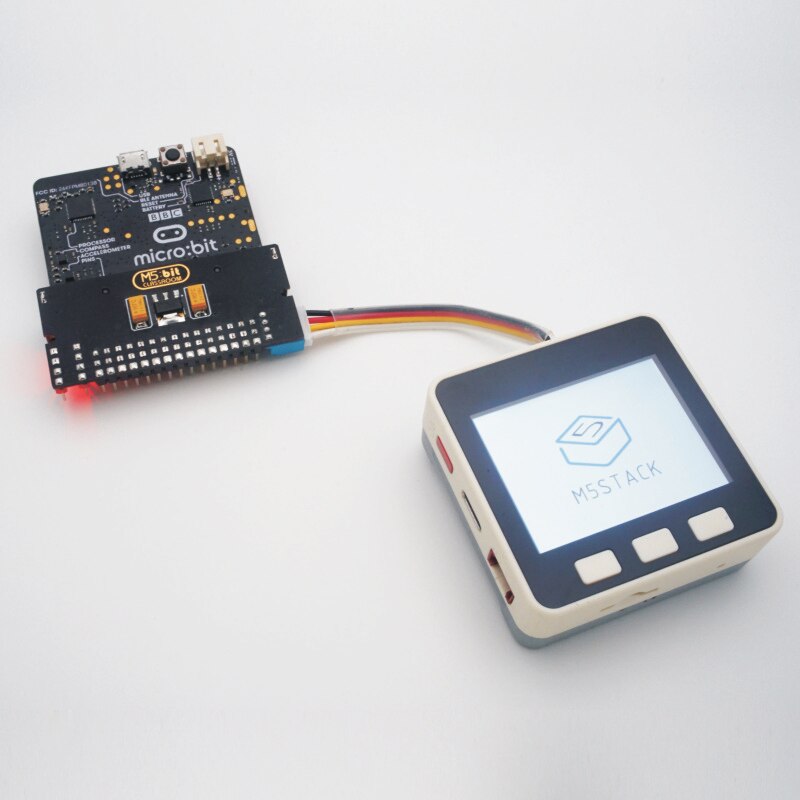

The adapter board connects the Microbit UART port and the GROVE port on the M5core device which enables it the function of serial communication between M5Core and Microbit.

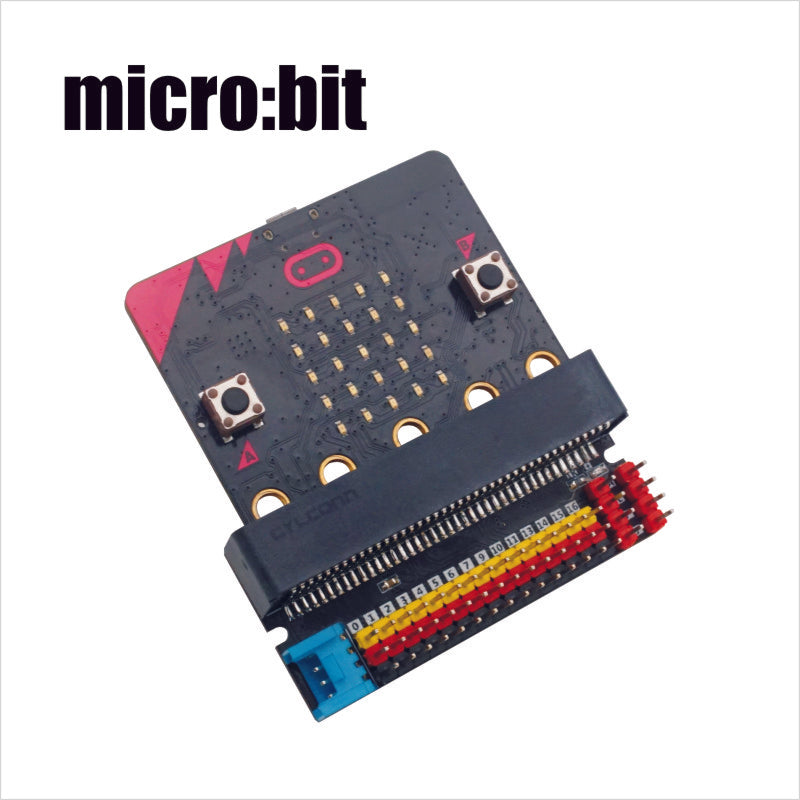

Extra IO pins are extended, you can used DuPont Cable to connect other hardware.

Note：

By default, the Microbit pins P8 (TX) and P12 (RX) are connected to the GROVE interface.

Product Features

• Serial communication
• Pin expansion

Include

• 1x M5:bit

Specification
