PRODUCT DETAILS
Description

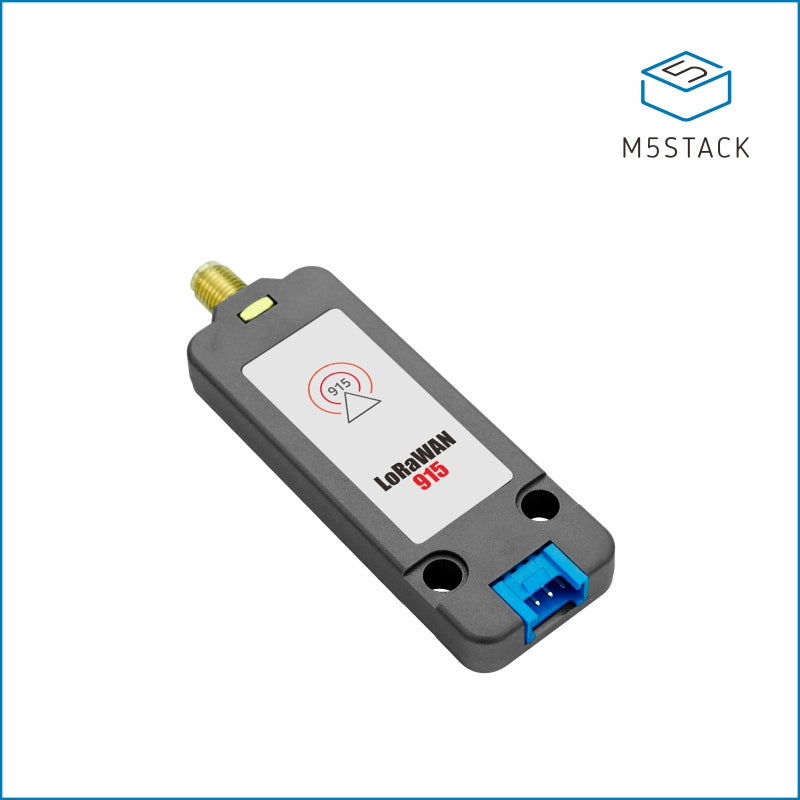

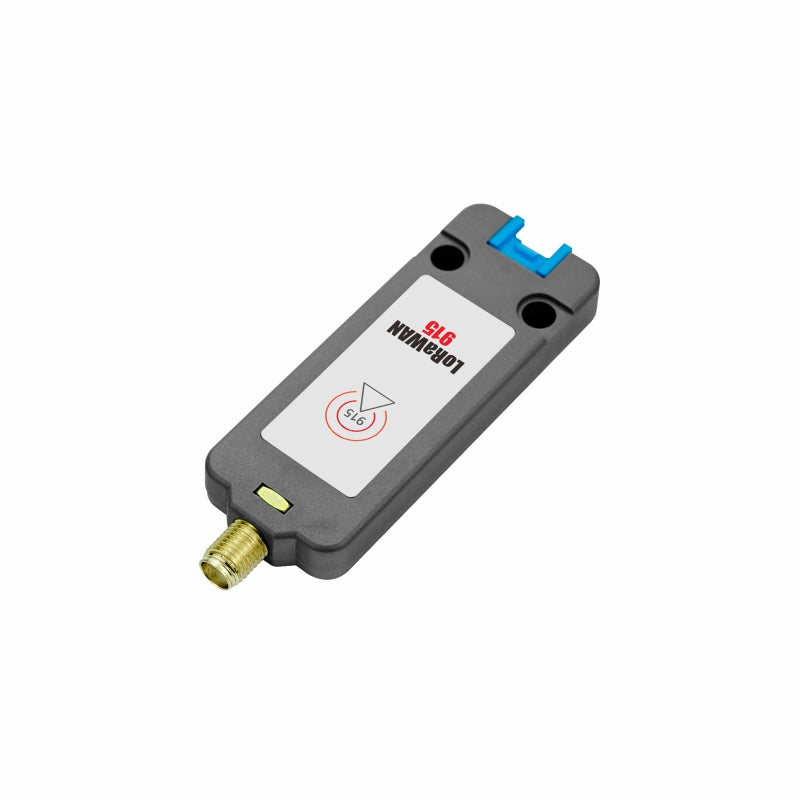

LoRaWAN915 Unit is a LoRaWAN communication module designed for the 915MHz frequency range. It is developed by M5Stack and provides long-distance communication capabilities using the LoRaWAN protocol.
The module utilizes the ASR6501 scheme, which offers a combination of ultra-low power consumption and high sensitivity. This makes it ideal for applications that require long-range communication while operating on minimal power. The LoRaWAN915 Unit integrates the LoRaWAN protocol stack, simplifying the implementation of LoRaWAN communication.
The module features a serial communication interface and can be controlled using the AT command set. This interface allows for easy integration with other devices and provides a convenient means of configuring and controlling the module's functions.
When deployed, the LoRaWAN915 Unit can act as a collection node, connecting to multiple gateways for data collection and management. This enables the module to efficiently gather and transmit data from various sensors or devices to a centralized system.
LoRaWAN915 Unit is well-suited for long-distance, low-power IoT communication applications. Examples include the deployment of environmental monitoring nodes, where the module can transmit sensor data over long distances while operating on low power. This makes it a reliable choice for IoT applications that require efficient and long-range communication.
Note:
This module supports US915
band plan only. NOT supports AU915
.
Product Features
- ASR6501
- Supported US915
- SMA antenna

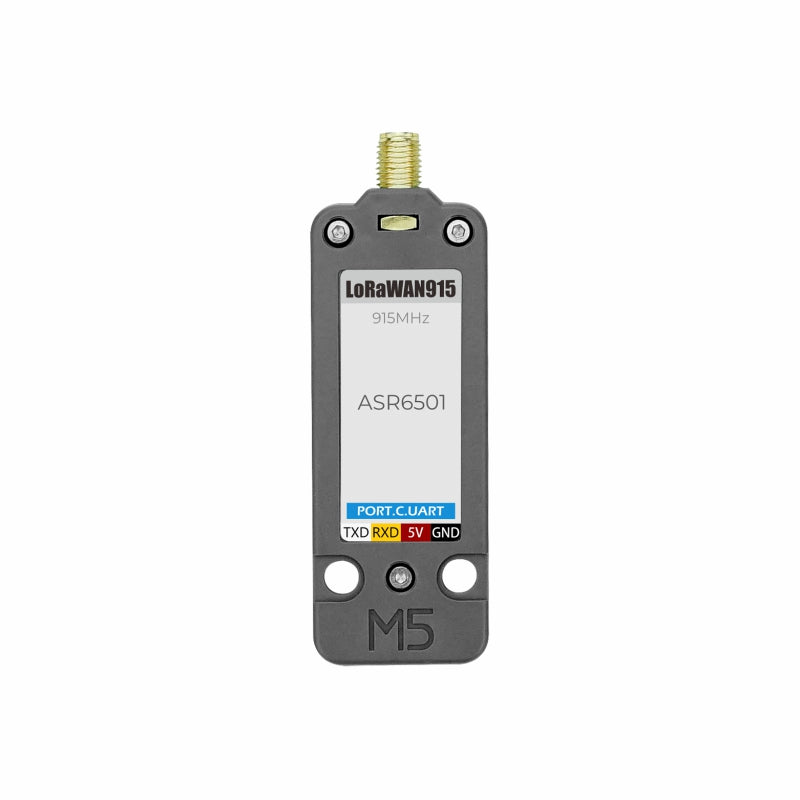

- Communication interface: UART
- Command protocol: AT command

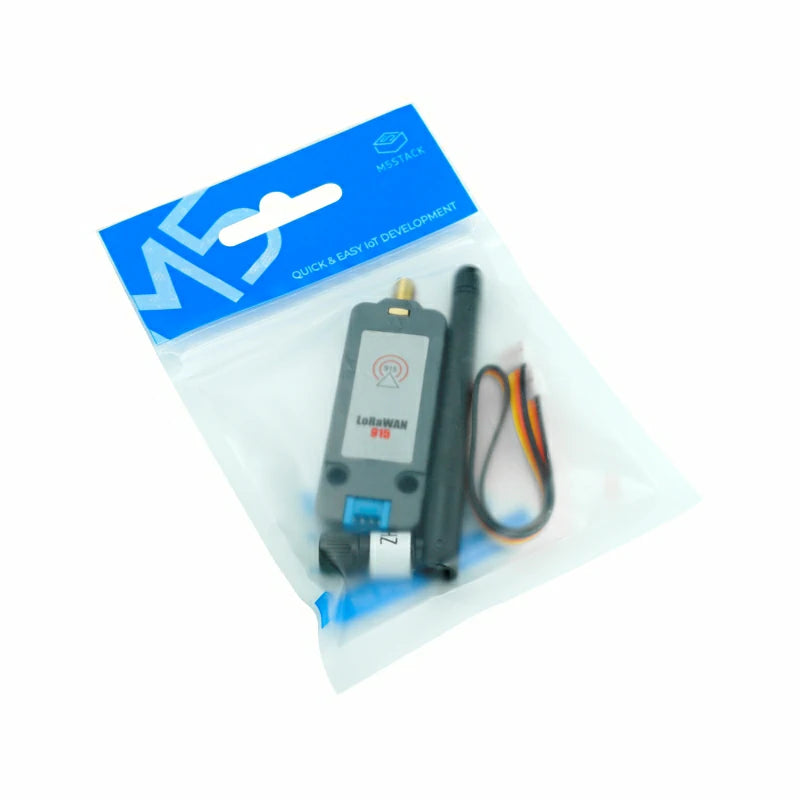

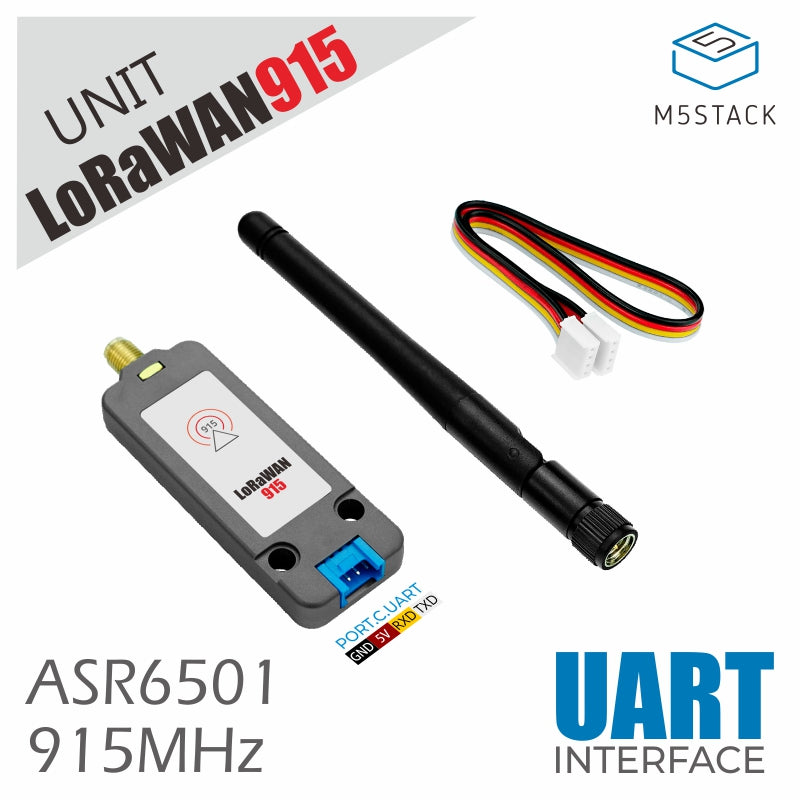

Includes
- 1x Unit LoRaWAN915
- 1x SMA antenna
Application
- Automatic remote meter reading
- Intelligent traffic intelligent parking lot
- Remote irrigation and environmental monitoring
Specifications
Specifications | Parameters |
---|---|
Communication chip | ASR6501 |
Operating Frequency | 915MHz |
LoRaWAN Version | v1.0.1 |
Minimum Receive Sensitivity | -137dBm (SF=12/BW=125KHz) |
Maximum transmit power | +21dBm |
Communication | UART 115200bps |
Net Weight | 12.8g |
Gross Weight | 45g |

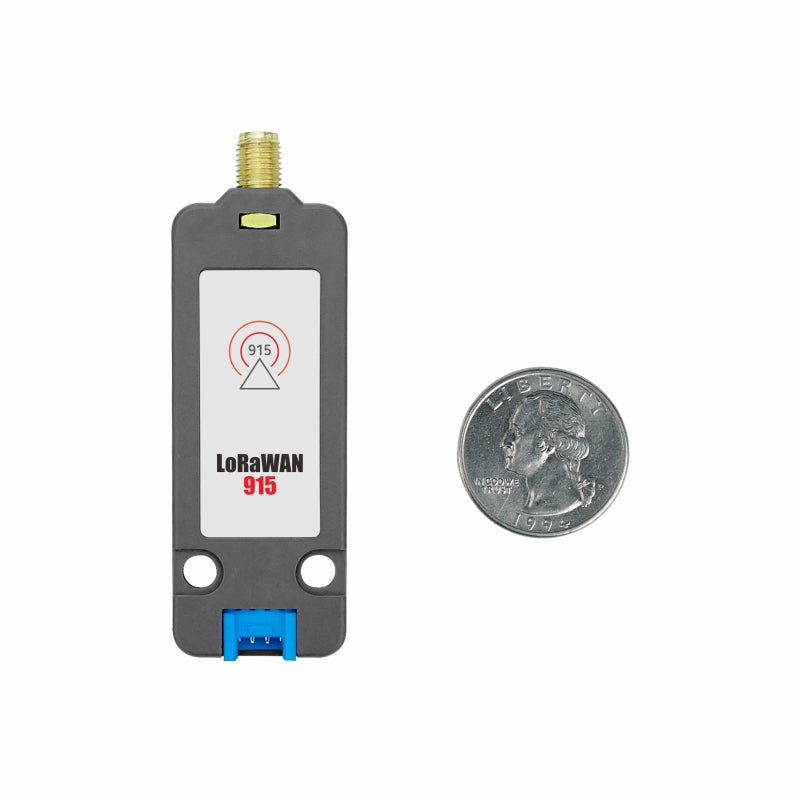

Product size | 71.5 * 24 * 8mm |
Packing Size | 95 * 65 * 25mm |
