Description

Description

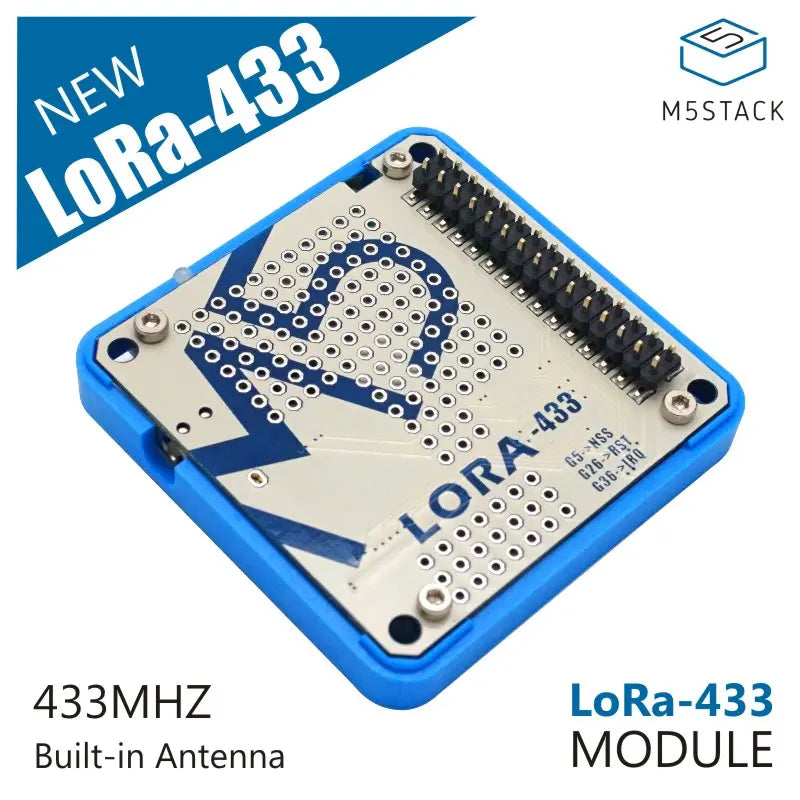

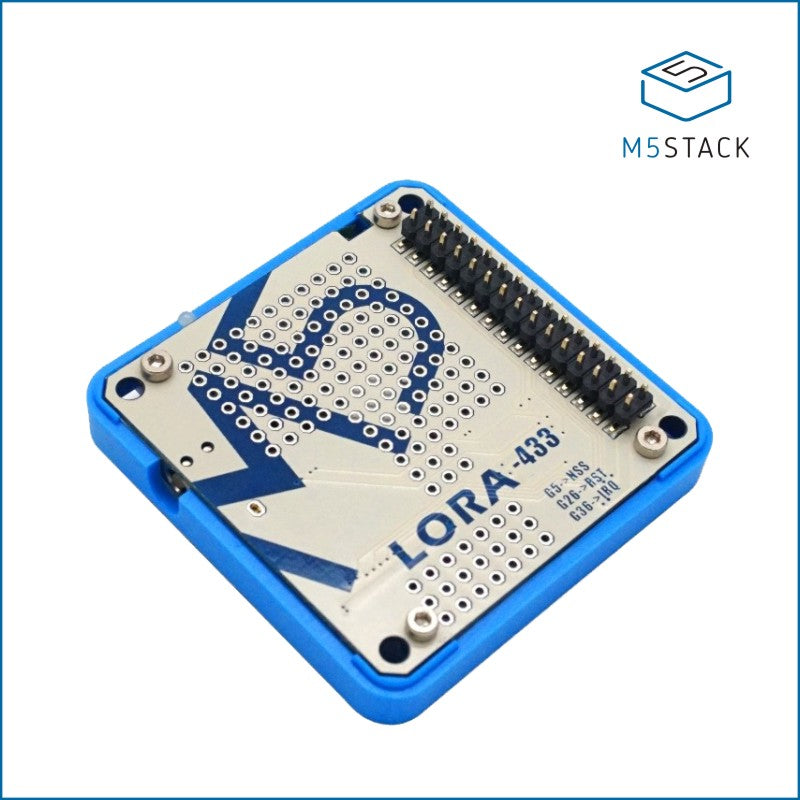

LoRa (433MHz) is a LoRa communication module in the M5Stack stack module series (working frequency is 433MHz). A certain expansion space is reserved on the module, which defeats you for more functional design. For wireless communication or projects with more customized elements, the LoRa (433MHz) module will be a suitable choice.

Product Features

• LoRa (433MHz) Module: Ra-02 (by Ai-Thinker)
• Series Communication Protocol: SPI
• Universal Perboard
• Working Frequency: 433 MHz
• Supports FSK, GFSK, MSK, GMSK, LoRa ™ and OOK modulation modes
• Receive sensitivity: lowest to -141 dBm
• Programmable bit rate up to 300Kbps

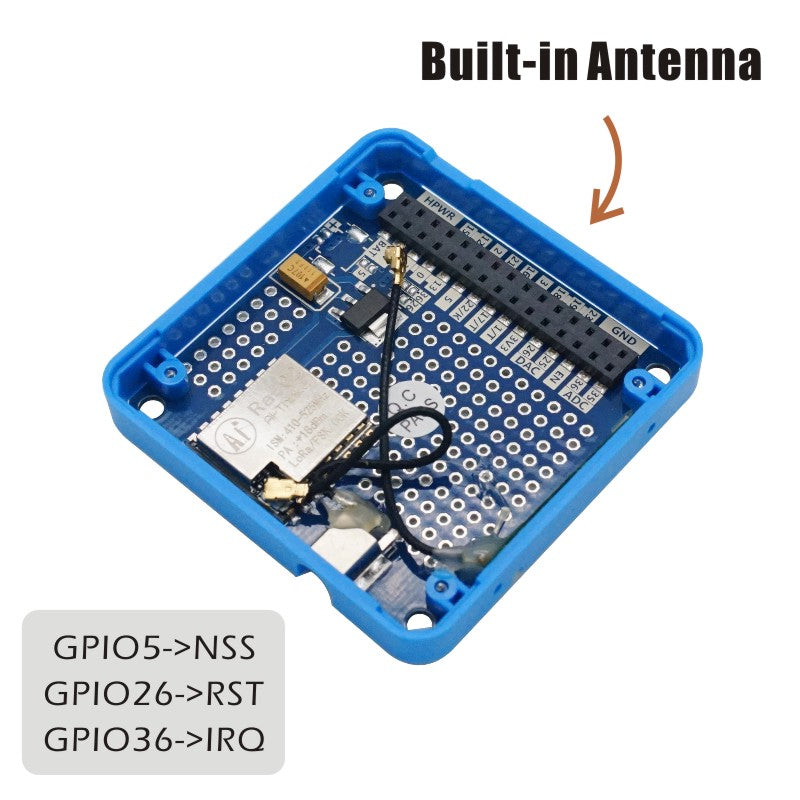

• Build-in PCB Antenna
• External Antenna port
• Program platform: Arduino, MicroPython, UIFlow (Blockly)

Include

• 1x M5Stack LoRa Module

Applications

• Automatic meter reading
• Home building automation
• Remote irrigation system
