[EOL] 4 Channels DC Encoder Motor driver module

SKU:M021

Regular price $12.95

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

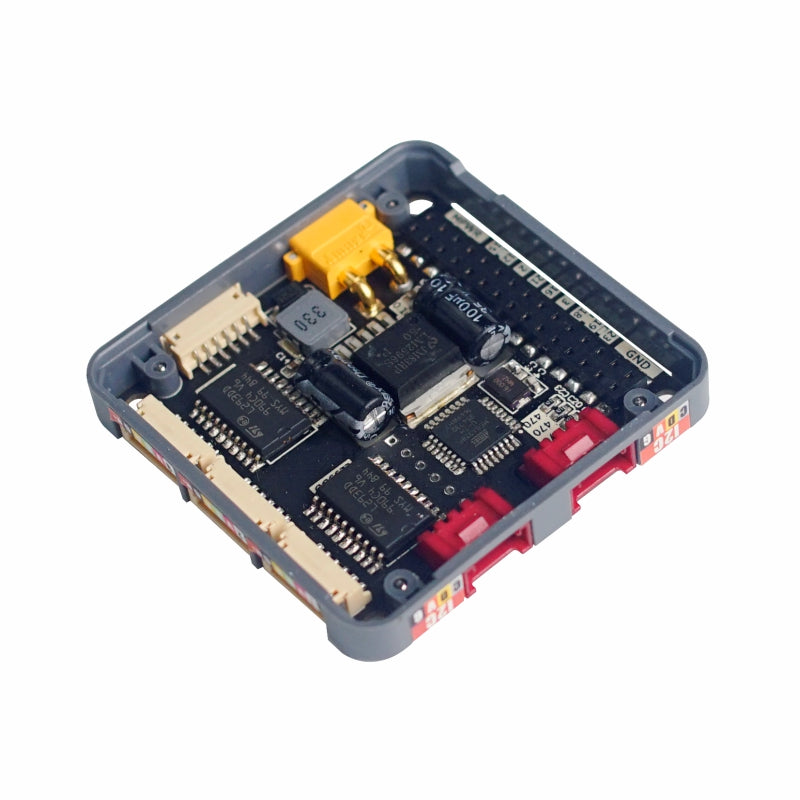

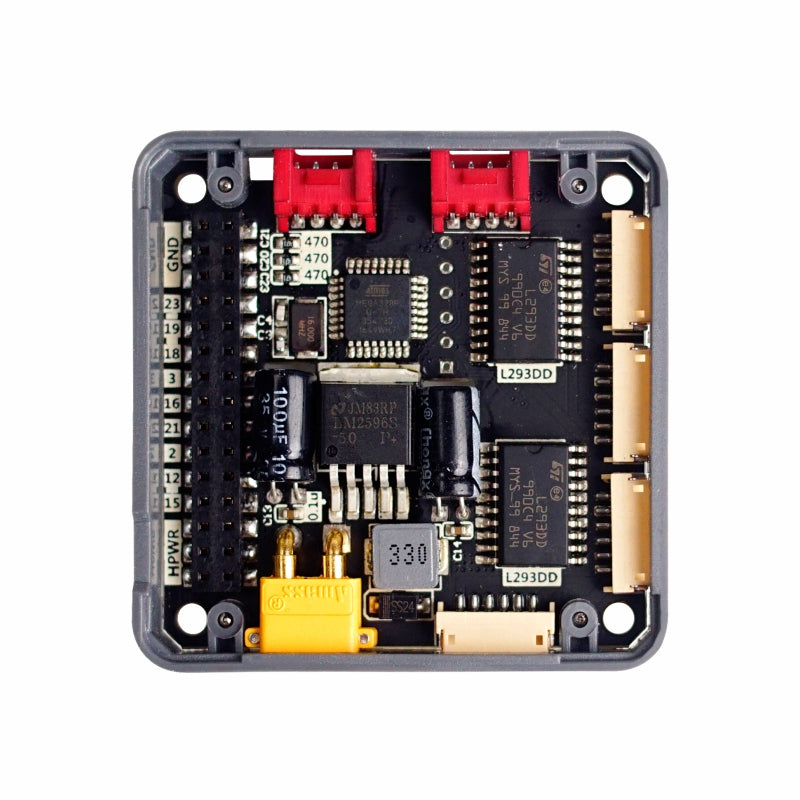

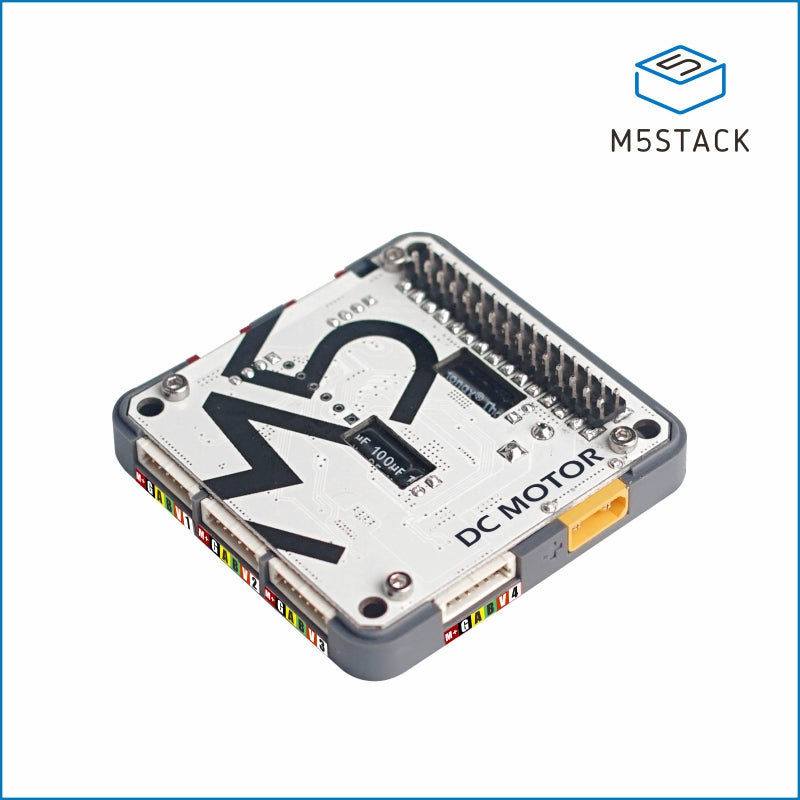

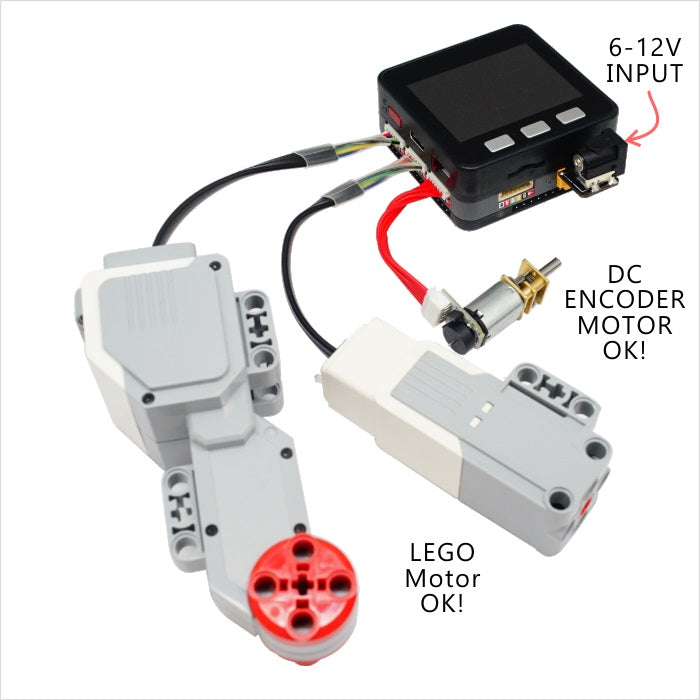

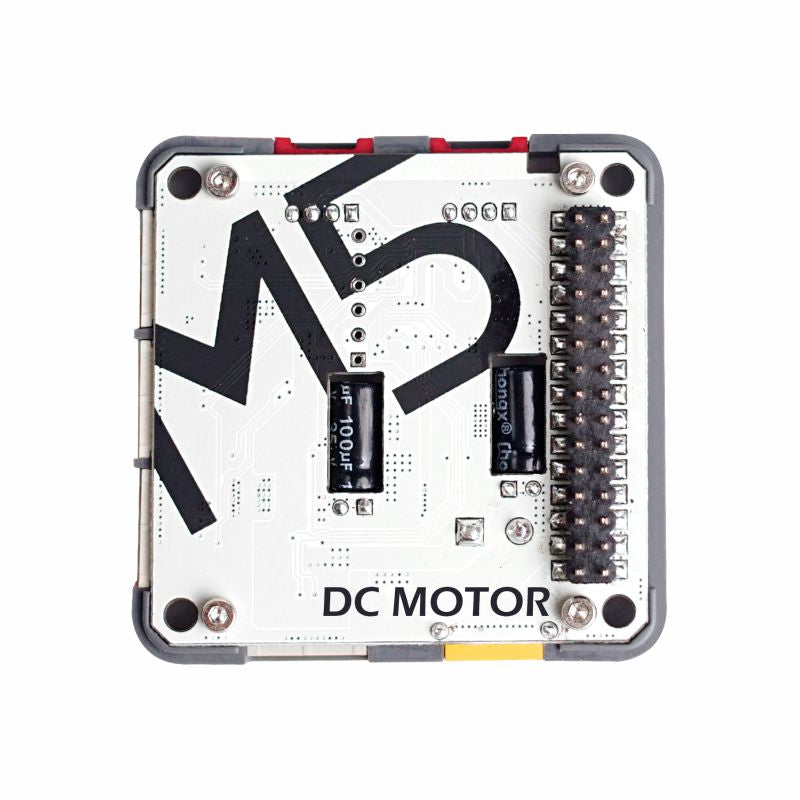

DC MOTOR is built with MEGA328 and L293DD micro controllers, implemented 4 driver channels. A DC power input is designed for power supplement. Through M-BUS the DC in can automatically power the M5 core at top. DC motor module can drive RJ12 interface encoder-motor easily and quickly, such as LEGO ev3 Motor.(This product is not affiliated with or endorsed by LEGO. LEGO is a trademark of the LEGO Group of companies)

Series Communication: I2C (0x56).

Product Features

  • Communication Protocol: I2C (Address: 0x56)
  • DC input: 6-12V
  • DC connector type: XT30 (female)
  • 4x motor drive channels (for LEGO EV3-RJ12 port coding motors)
  • 2x I2C HY2.0-4P interface (expanded by A port of M5Core)

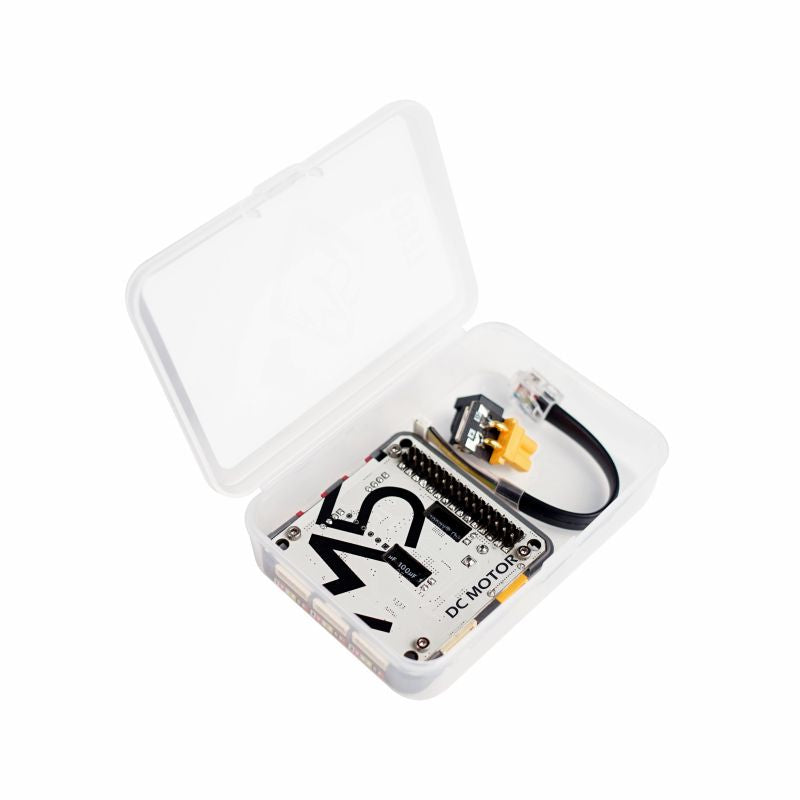

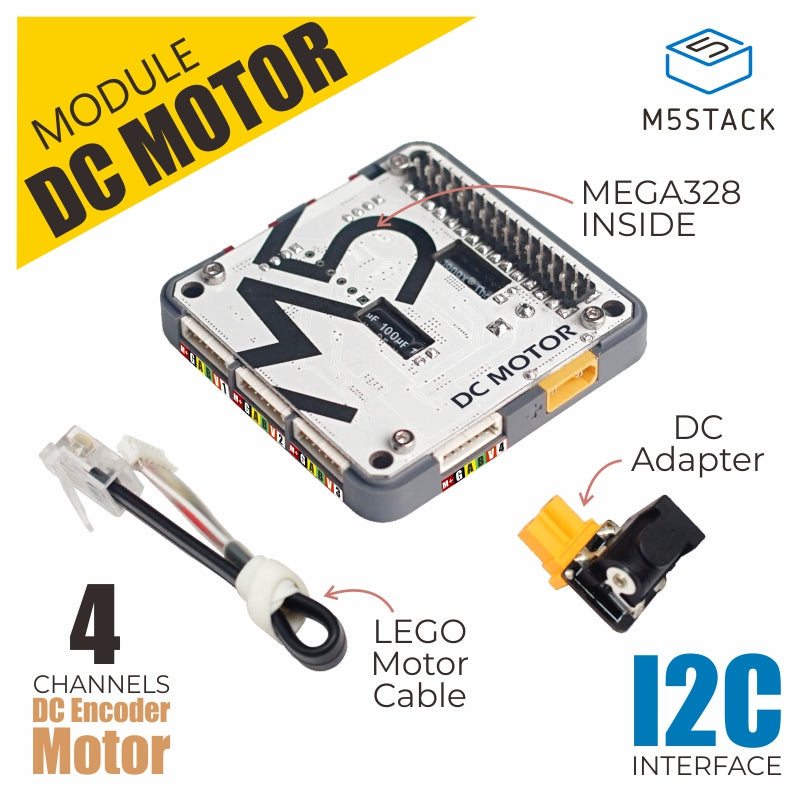

Include

  • 1x DC MOTOR module
  • 1x 10cm motor cable
  • 1x DC connector

Specification

Specifications Parameters
Communication Protocol I2C (Address: 0x56)
Motor driver chip L293DD
Power input voltage DC: 6-12V
Power Connector Specifications XT30 (female)
Motor interface specification ZH1.5-6P
Net Weight 17g
Gross Weight 48g
Product size 54 * 54 * 12mm
Packing Size 95 * 65 * 25mm
Shell Material Plastic ( PC )
