LAN Module with W5500

SKU:K012-B

Regular price $26.90

Out Of Stock

Shipping calculated at checkout.

Description

Although M5 core is ESP32-based, having Wi-Fi and Bluetooth intergrated, it doesn't stop you enable the Ethernet function. This LAN is a M5 Base that having a W5500 chip, which is a Hardwired TCP/IP embedded Ethernet controller that provides easier Internet connection to embedded systems. This Base is speciffically design for industrial application scenarioes, comes with couple of HT3.96 connectors, 485 metal rail and magnet discs for easy installation and fixation.The 6 pin of HT3.96 connector are dangling, you can wired them up with the M-BUS and other circuit as you like.

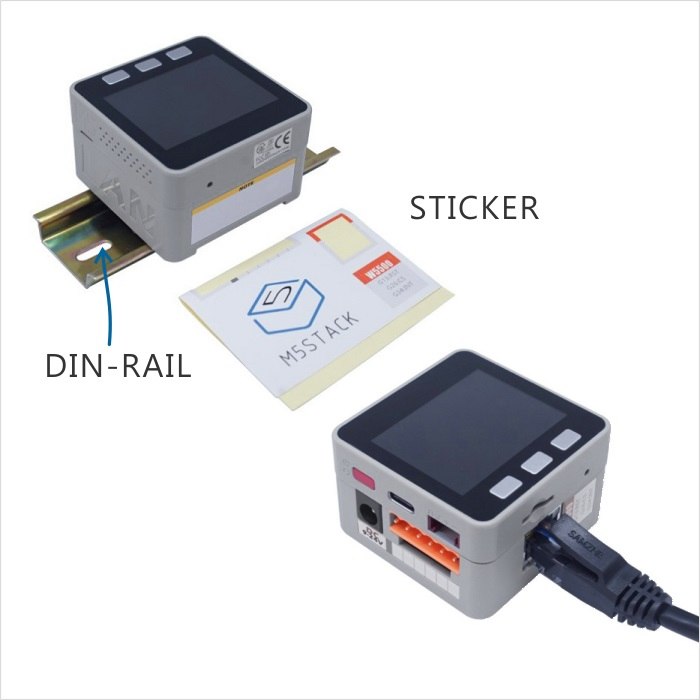

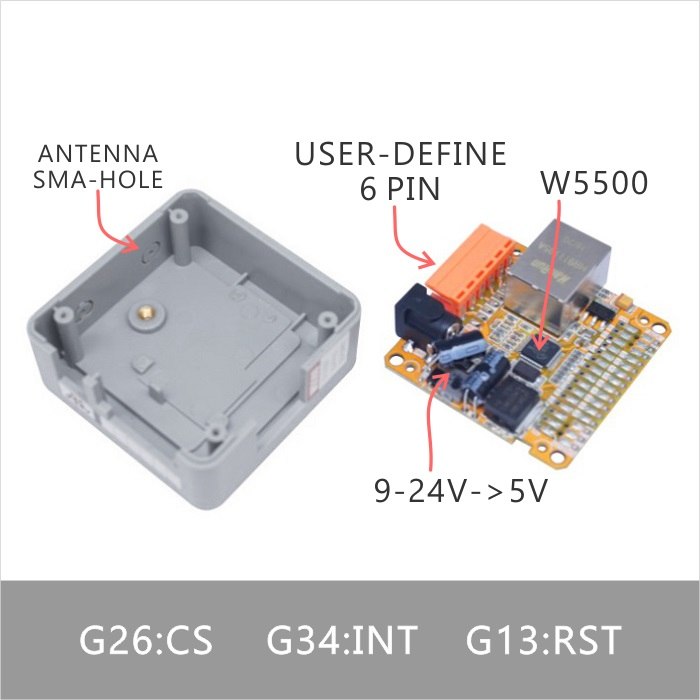

The figure below shows the inner of LAN

If you need to add RS485 interface, soldering the RS485 board onto the mian board pin correspondingly.

TTL-to-RS485 adapter board and LAN base

The figure below tells you how the TTL-to-RS485 adapter board connected onto LAN backplane

The serial port pins on the RS485 board will be connected to the GPIO16 and GPIO17 of the LAN backplane.

Notice

Note: When using the CORE2 or CORE2-FOR-AWS main control to drive the module, please use the DC power input of the base and set the power mode to input mode (refer to the code below), otherwise it will not start normally

//mbus_mode_t:
//kMBusModeOutput: Use USB or battery power
//kMBusModeInput: Use external power supply 5V, or DC interface

M5.begin(true, true, true, false, kMBusModeInput);

//Initialize Serial according to the actual connected pins
Serial2.begin(115200, SERIAL_8N1, 13, 14);

Product Features

  • Input Supply Voltage: 9-24V
  • HT3.96 port for supporting RS485
  • Support RS485 communication
  • Easy to fixed on the wall

Include

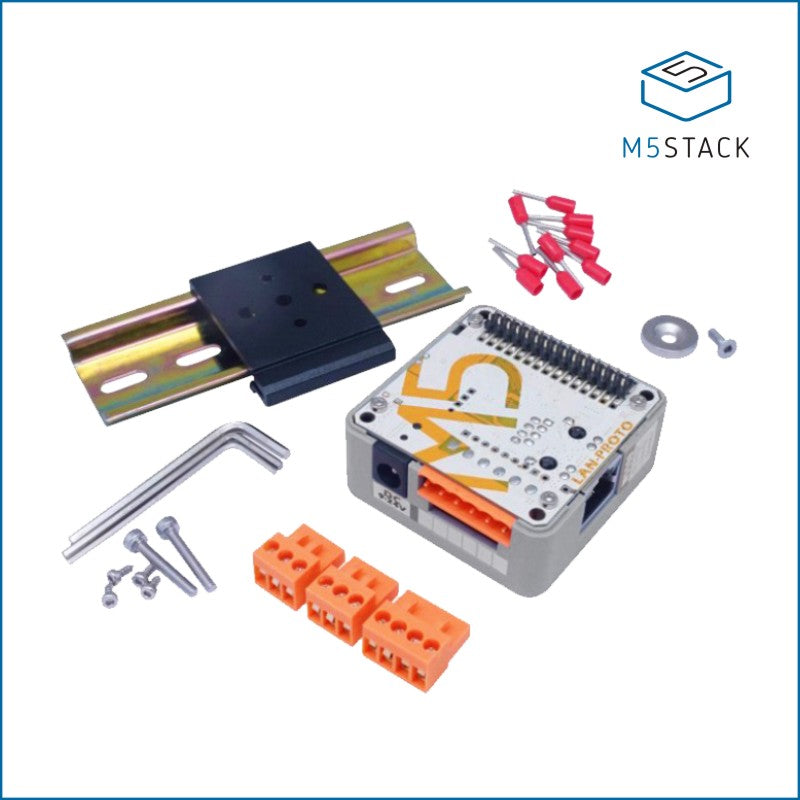

  • 1x LAN Base
  • 1x TTL-to-RS485 adapter board
  • 1x pin header 20pin
  • 1x metal rails and magnet discs
  • 3x HT3.96 terminal
  • 2x 3pin
  • 1x 4pin
  • 10x cold crimp terminal(red Copper Lugs)
  • 3x HEX KEY   - 1x 1.5mm   - 1x 2mm   - 1x 2.5mm
  • 2x hexagon socket head cap screws M3x28
  • 4x hexagon socket tapping screw KA2x4
  • 1x countersunk head screw M3x8

Applications

  • M5Core + LAN implementing a conveyor controller
  • PC transmits video to Core via cable

EasyLoader

download EasyLoader

  1. EasyLoader is a simple and fast program burner. Every product page in EasyLoader provides a product-related case program. This can be burned to the M5 device through simple steps, and a series of function verifications can be performed.

After downloading the software, double-click to run the application, connect the M5 device to the computer through the data cable, select the port parameters, click "Burn" to burn the program (For M5StickC, set the baud rate to 115200 or 750000)

3.The CP210X (USB driver) needs to be installed before the EasyLoader is burned. Click here to view the driver installation tutorial

Specification

Resources Parameter
Net weight 32g
Gross weight 132g
Product Size 54*54*28mm
Package Size 105*65*40mm
