JoyC (W/O M5StickC) Omni-directional Controller

SKU:U079

Regular price $19.95

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

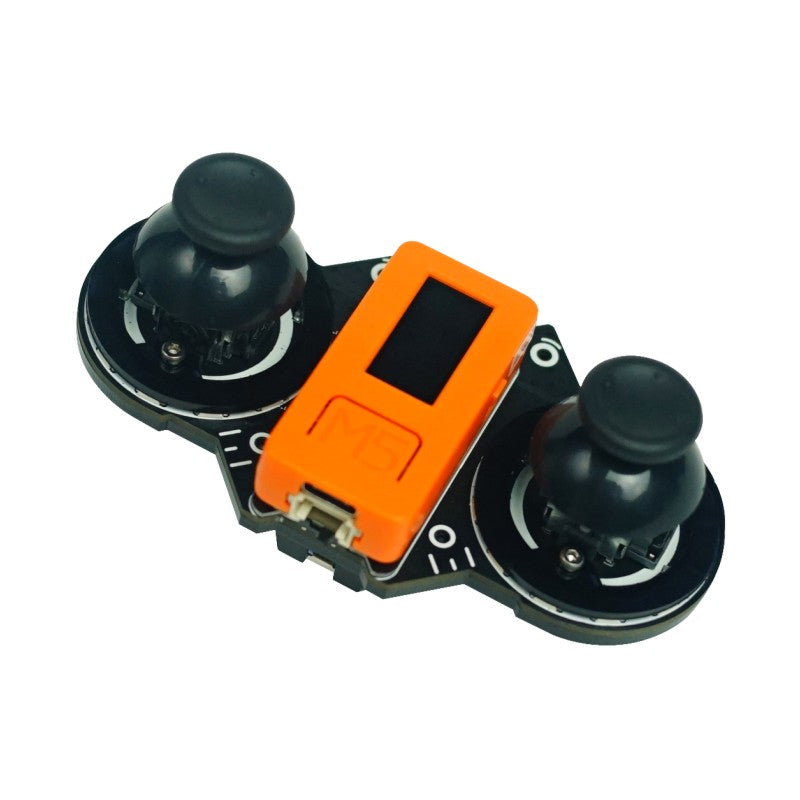

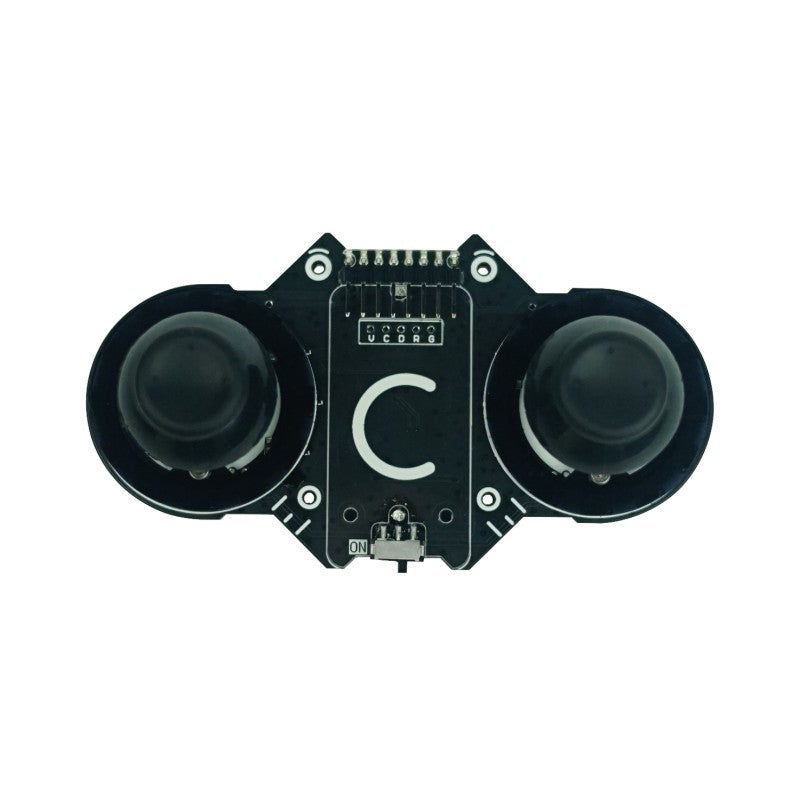

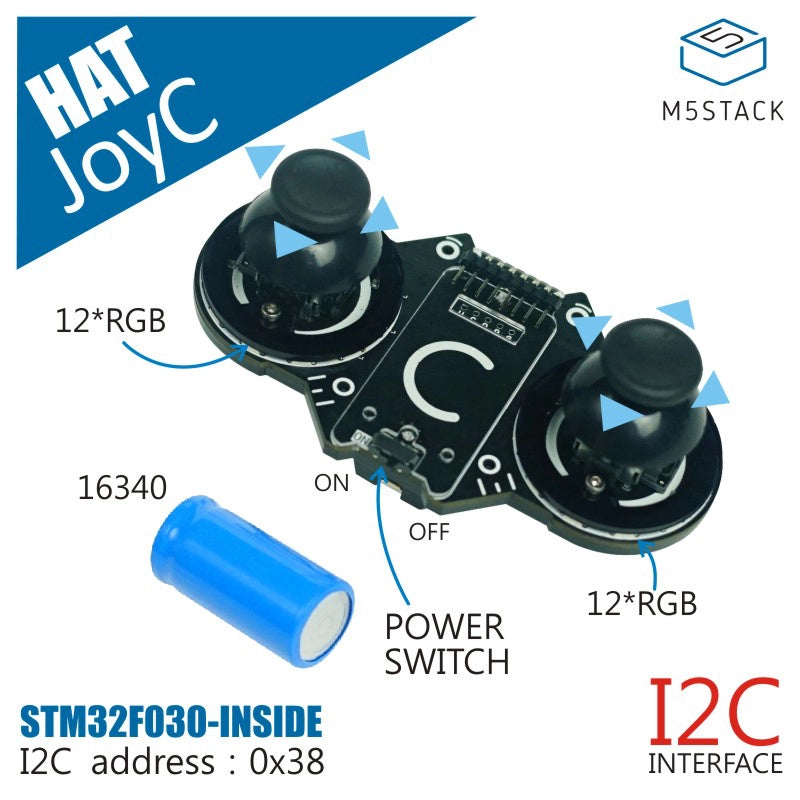

JoyC is a joystick module designed specifically for the M5StickC, allowing for dual-handed operation. It is embedded with an STM32F030F4 microcontroller chip and communicates with M5StickC via the I2C communication protocol. The joystick has a range of 0 to 200, and each side of the joystick is equipped with 12 RGB LEDs.

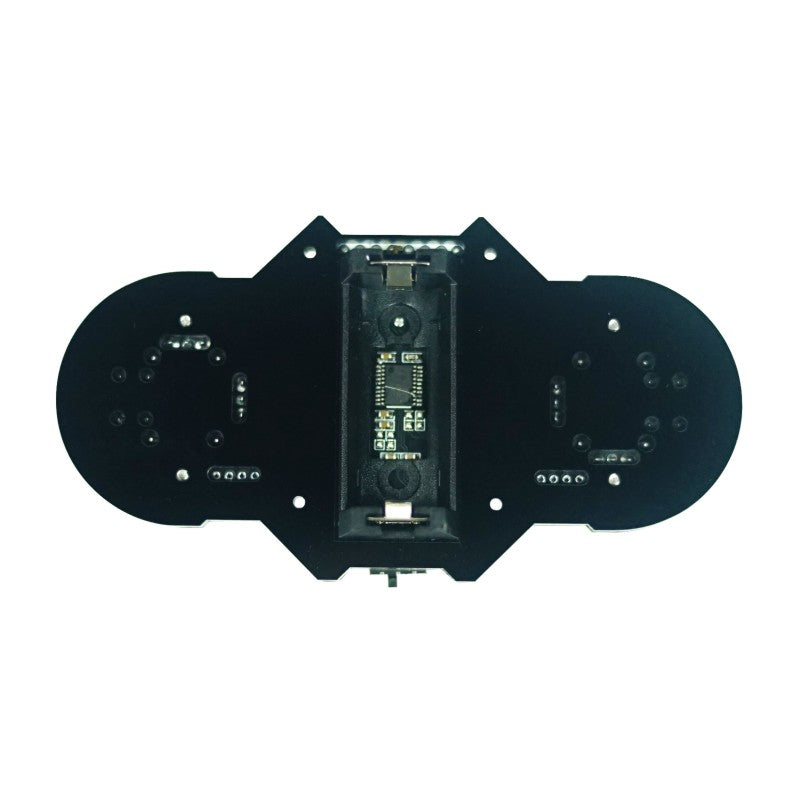

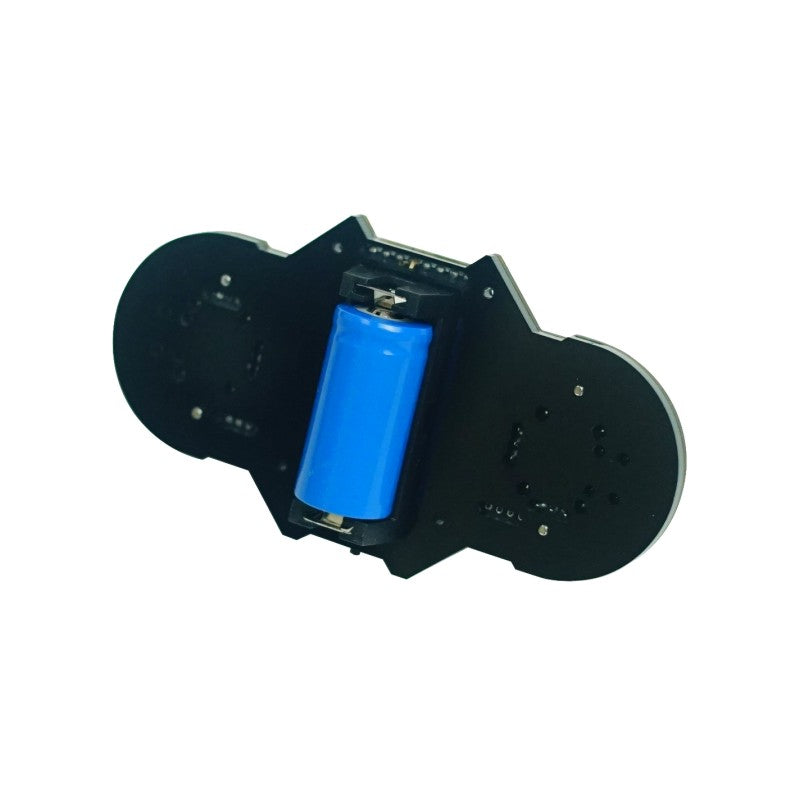

At the bottom of the joystick, there is a 16340 battery base, providing long-lasting battery life. This joystick supports full-angle offset and center pressing, allowing for output of angle offset data and switch digital signals.

Product Features

  • STM32F030F4 inside
  • communication protocol: I2C (address: 0x38)
  • support omni-directional movement/button press

Include

  • 1x JoyC
  • 1x 16340 700mAh Battery

Applications

  • Game Handle
  • Wireless Joystick Device

Specification

Resources Parameter
Communication protocol I2C:0x38
Net weight 81g
Gross weight 117g
Product Size 200*55*50mm
Package Size 119*89*65mm

LEARN AND DOCUMENTS

  • DOCUMENTS
  • Using M5StickC on RoverC and JoyC with M5Atom attached to display direction of the RoverC.
