Description

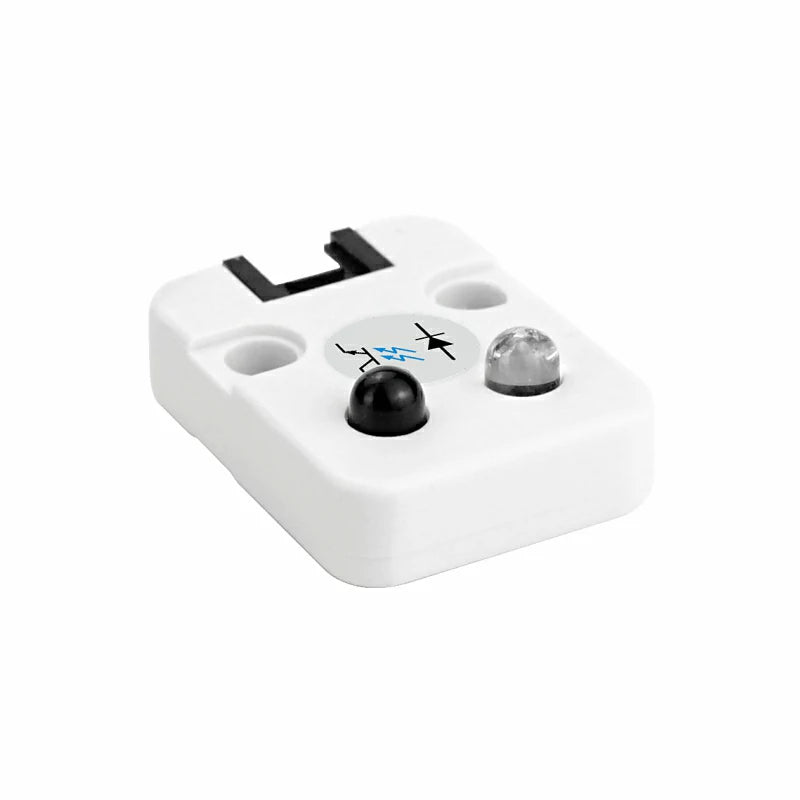

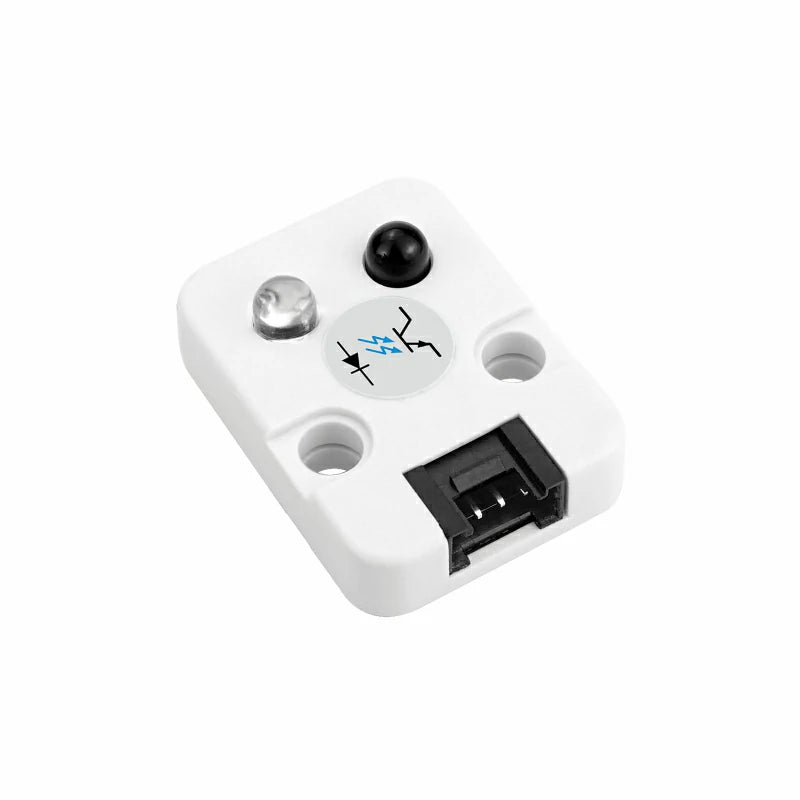

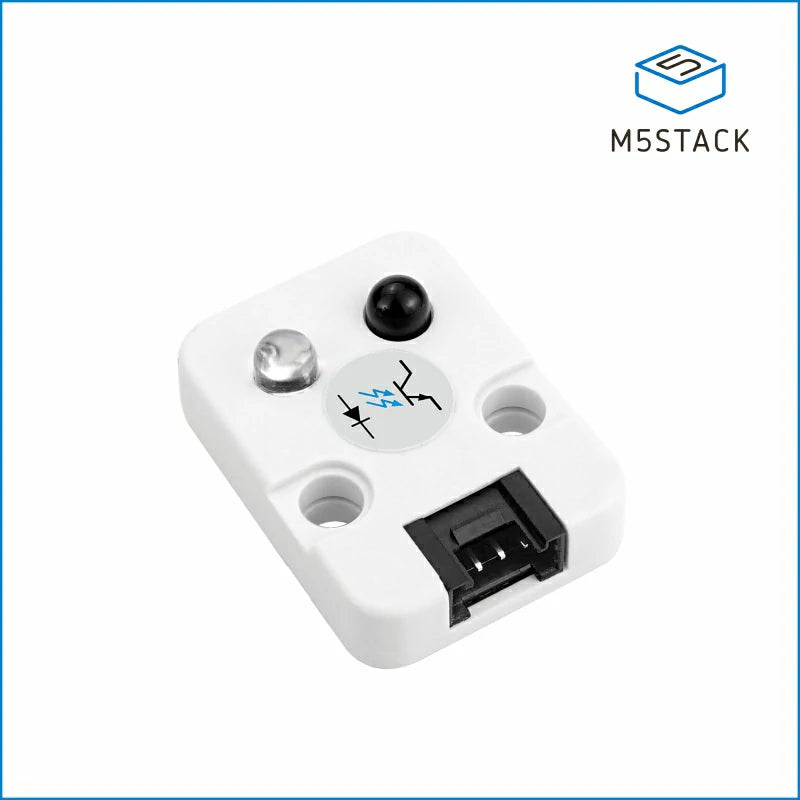

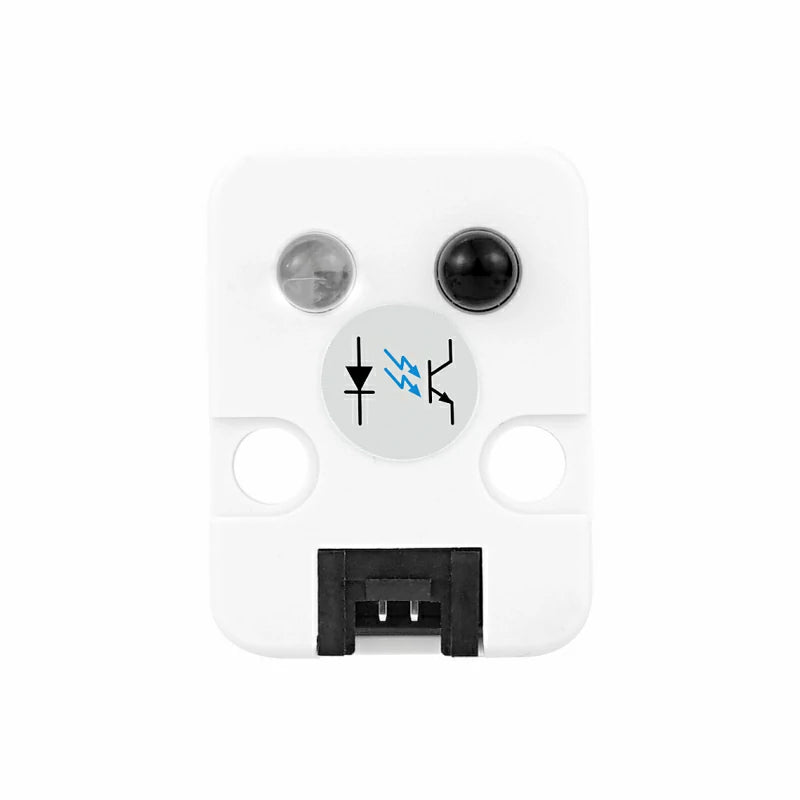

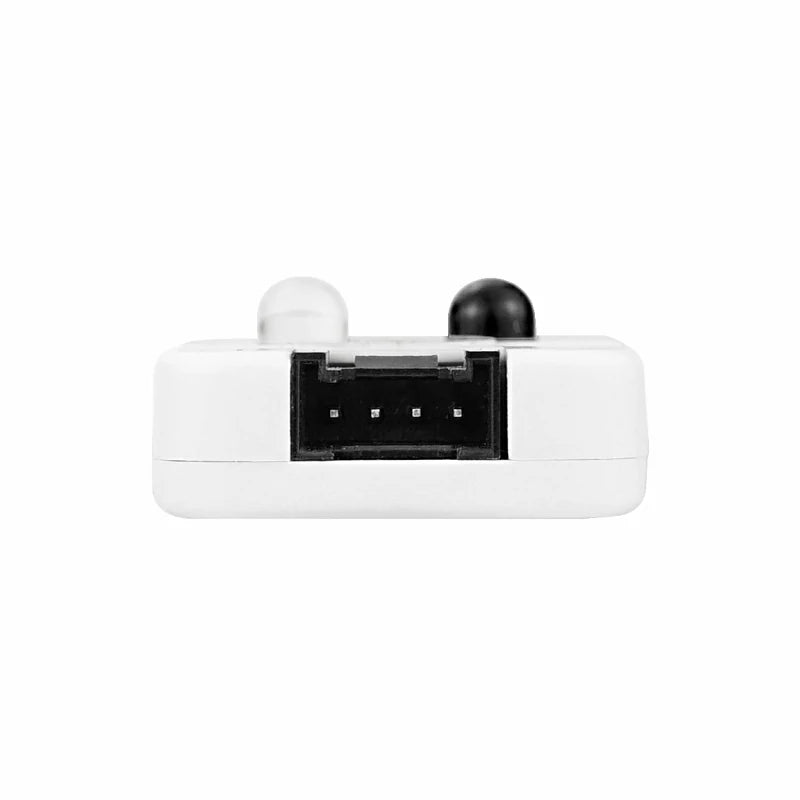

Unit Reflective IR is a self-emitting and receiving infrared sensor unit, mainly used to detect the reflected infrared light of a target object, and outputs detection status via both analog and digital signals. Its unique design incorporates an onboard adjustable potentiometer for tuning the sensitivity of the digital output, allowing users to adjust the sensor's parameters as needed for increased flexibility and precision. This product is suitable for applications such as object detection, line tracking, distance measurement, and automation systems.

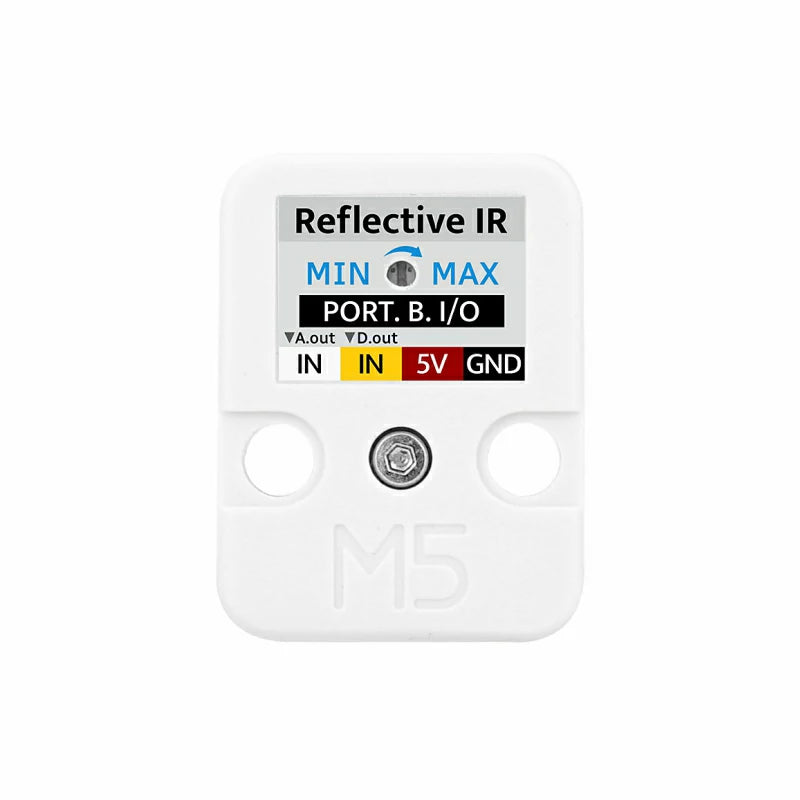

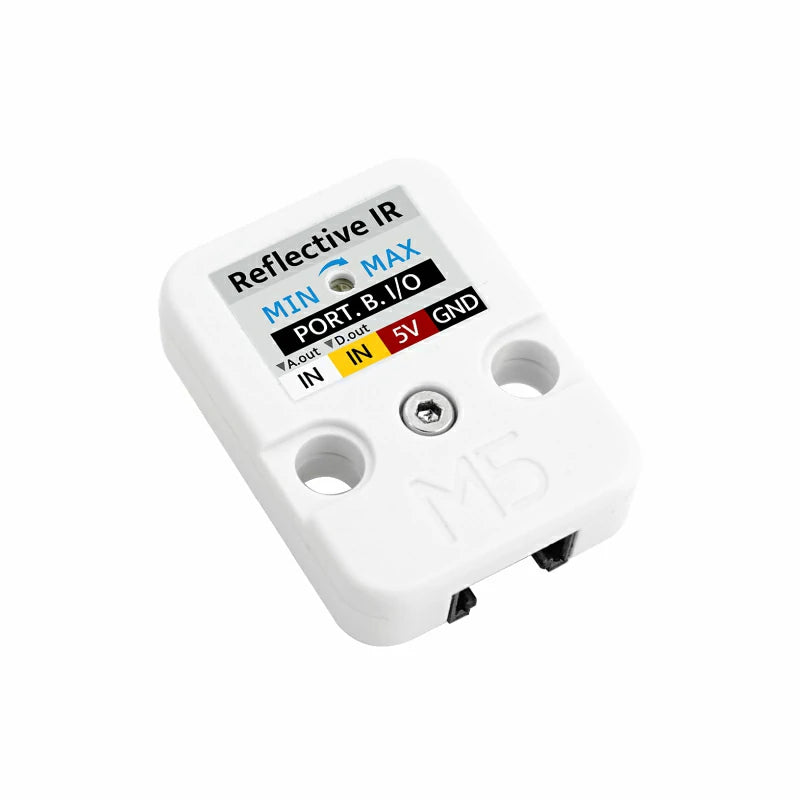

Note: The rear potentiometer adjusts detection distance (sensitivity). It is pre-set at the factory to a comparator threshold voltage of 1.65V. Do not adjust the potentiometer unless necessary. Valid voltage range: 0.3V ≥ 1.65V ≤ 2.15V. Beyond this range — when > 2.15V, the red LED will stay on; when < 0.3V, the red LED will stay off, causing detection failure. (The potentiometer voltage can be measured at the comparator LM393 inverting terminal according to the schematic.)
Features
- Infrared sensing technology: Utilizes infrared sensing to efficiently and accurately detect reflected IR light from target objects.
- Analog signal output: The IR receiver and 10k resistor divider generate a voltage corresponding to the intensity of the reflected IR signal from the obstacle.
- Digital signal output: Integrated LM393 comparator converts the analog signal into a reliable digital signal for easy processing in digital systems.
- LED indicator: Digital output controls the LED indicator, visually indicating detection status for quick user feedback.
- Adjustable potentiometer: Equipped with a 10k adjustable potentiometer to fine-tune sensitivity and threshold, optimizing performance for different environments and applications.
- Development platforms: Arduino, UIFlow, etc.

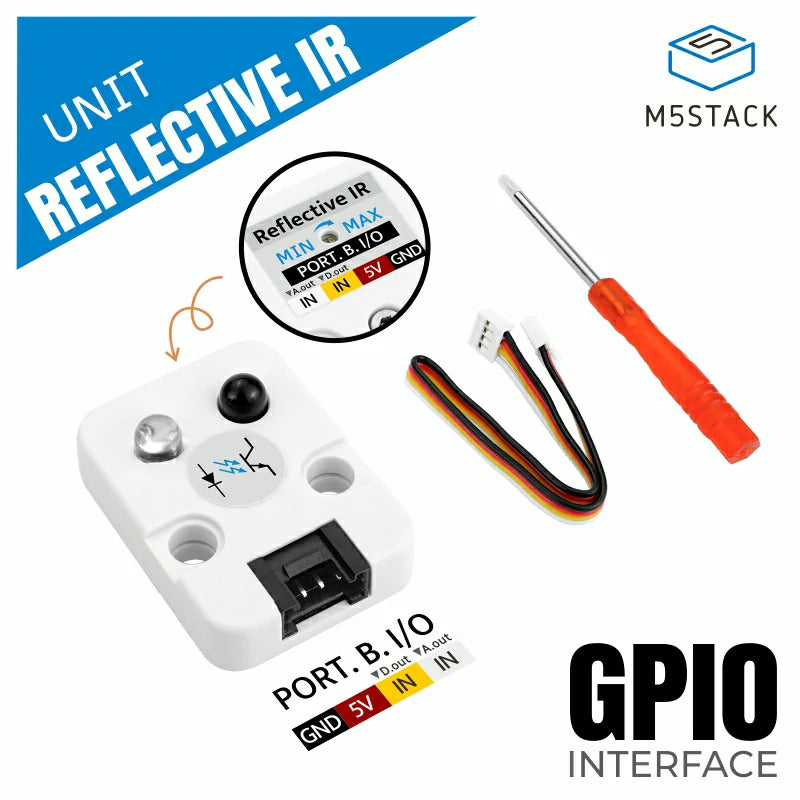

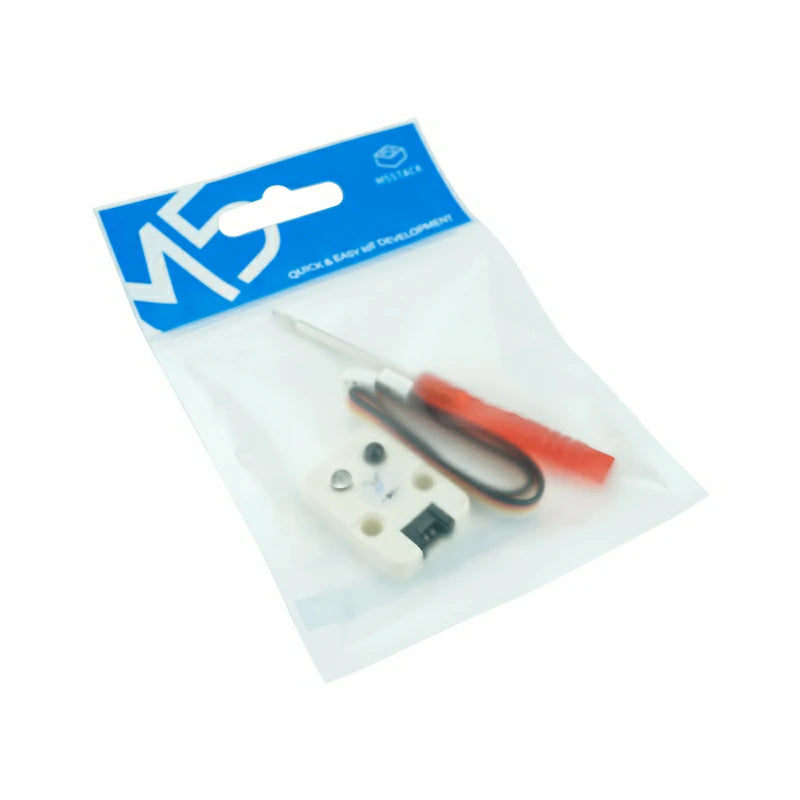

Includes
- 1 x Unit Reflective IR
- 1 x HY2.0-4P Grove Cable (20cm)
- 1 x Potentiometer screwdriver
Applications
- Object detection
- Distance measurement
- Automation systems
- Security systems
- Line tracking
Specifications
| Specification | Parameter |
|---|---|
| Analog Output Range | 0-4096 (ESP32@12bit) |
| Digital Output | TTL |
| Operating Voltage | 5V |
| Operating Temp. | 0 ~ 40°C |
| Product Size | 32.0 x 24.0 x 12.0mm |
| Product Weight | 4.6g |
| Package Size | 138.0 x 93.0 x 13.0mm |
| Gross Weight | 14.6g |
Learn
Detection Range
| Threshold Voltage: 1.65V (factory default, potentiometer centered) | Threshold Voltage: 2.15V | |
|---|---|---|
| Black object max range | 0cm (Test object: 100% black printed A4 paper) | 6.5cm (Test object: 100% black printed A4 paper) |
| White object max range | 13cm (Test object: white A4 paper) | 28cm (Test object: white A4 paper) |
| Color object max range | 14cm (Test object: magazine cover, blue/green/yellow) | 25.5cm (Test object: magazine cover, blue/green/yellow) |
| Glossy object max range | 31cm (Test object: glossy metal mesh) | 43cm (Test object: glossy metal mesh) |
