[EOL] IIoT Dual-Switch Kit with core

SKU:A072

Regular price $44.90

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

IIoT Dual-Switch Kit with core is a functional-orientated module specifically built around BASE26. Mainly implemented a dual-relay control. As is known that BASE26 is created for industrial purpose, where may have plenty of relay-controlled application scenarios, add up the highly-customized features of BASE26, makes it a powerful and full-function node for IIoT. For example, you can stack an IoT module such as LoRa, GSM, LTE, etc, in between the M5 Core and BASE26 to make an IoT node with wireless control.

This product is EOL now, we've released the updated version ATOM HUB AC/DC Remote Control Switch Kit which is fully compatible with this product.

This product is EOL now.

Product Features

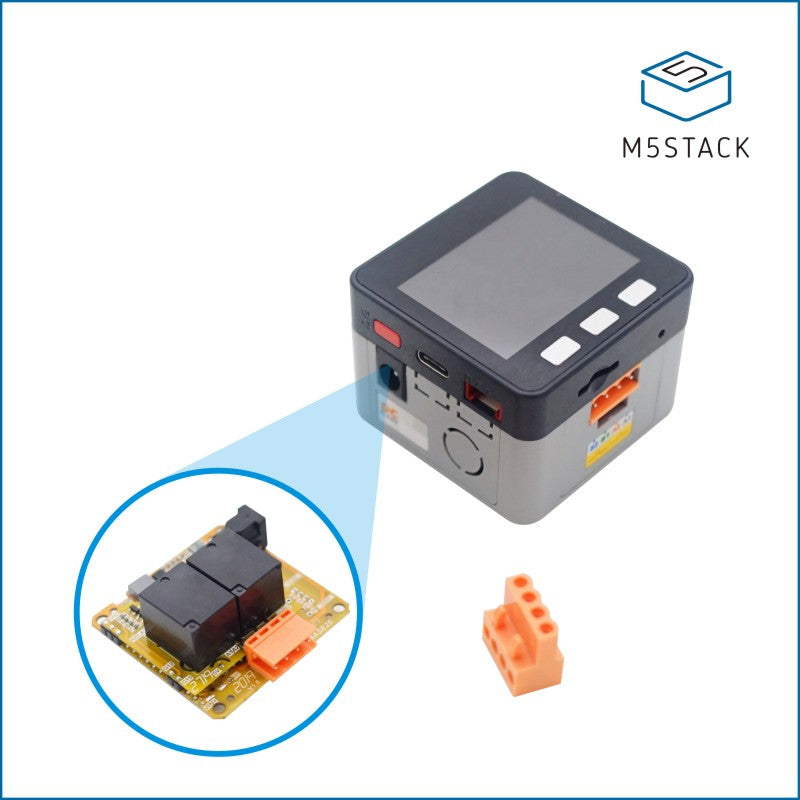

  • Two relays inside
  • Relay allows on/off current/voltage:      - AC :10A @ 250V      - DC :10A @ 24V
  • DC power input: 9 ~ 24V
  • Inherited all feature from BASE26 such as highly-customizable.
  • 4 pin HT3.96 terminal connectors
  • G15-Relay A/G12-Relay B

Application

  • IIoT node
  • Industrial switch

Include

  • 1x IIoT Dual-Switch Kit with core
  • 1x 4 pin HT3.96 terminal connectors

Specification

Resources Parameter
Gross weight 25g
Package Size 555530mm

LEARN AND DOCUMENTS

  • DOCUMENTS
  • Customer Reviews

    Based on 2 reviews
    50%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    50%
    (1)
    B
    Bruce Kusens

    IIoT Dual-Switch Kit with core

    A
    Alberto
    Unable to find any library / documentation

    Unfortunately, there is no documentation about how to use the 2 relay module.

    https://docs.m5stack.com/#/en/base/iiot_dual_switch_kit_with_core
    You can check the document here.
