Description

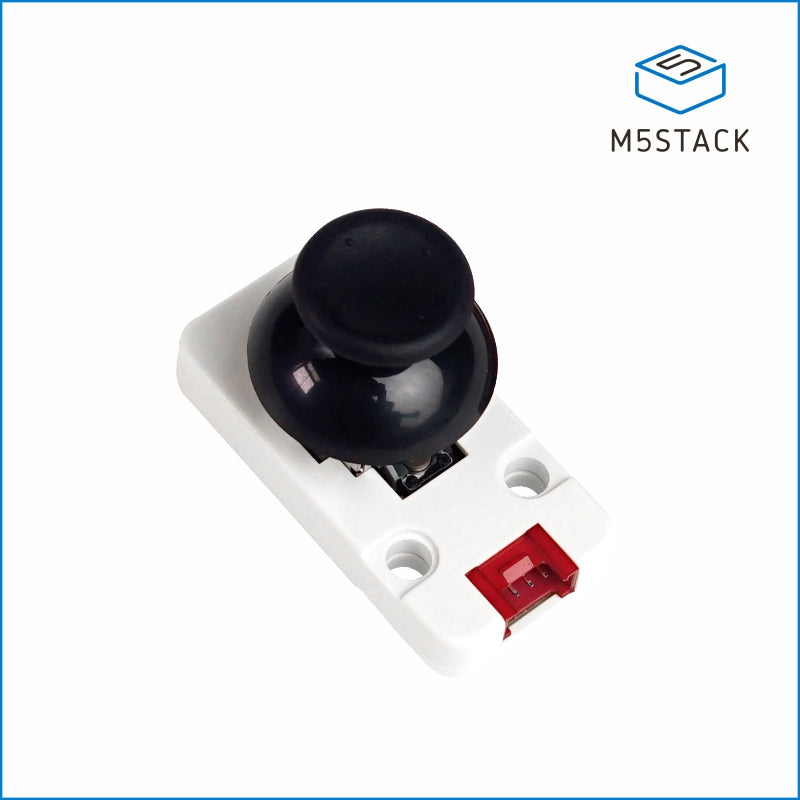

Joystick is a joystick control input unit, adopts I2C communication interface, supports three-axis control signal input (X/Y-axis offset analog input, Z-axis key digital input). Suitable for application scenarios such as games/robot control.
Product Features
- Three-axis input:
- X/Y axis offset analog input
- Z-axis key digital input
- 2x LEGO compatible holes
- Development platform: Arduino, UIFlow(Blockly, Python)
Include

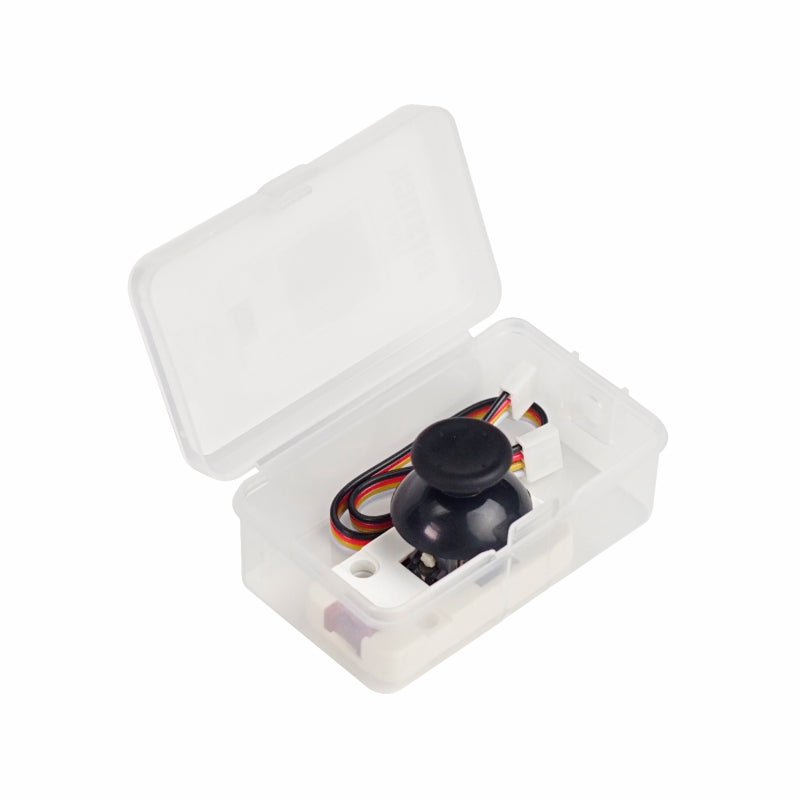

- 1x Joystick Unit
- 1x HY2.0-4P cable
Applications
- Game Controller
- Robot remote control
Specification
| Specifications | Parameters |
|---|---|

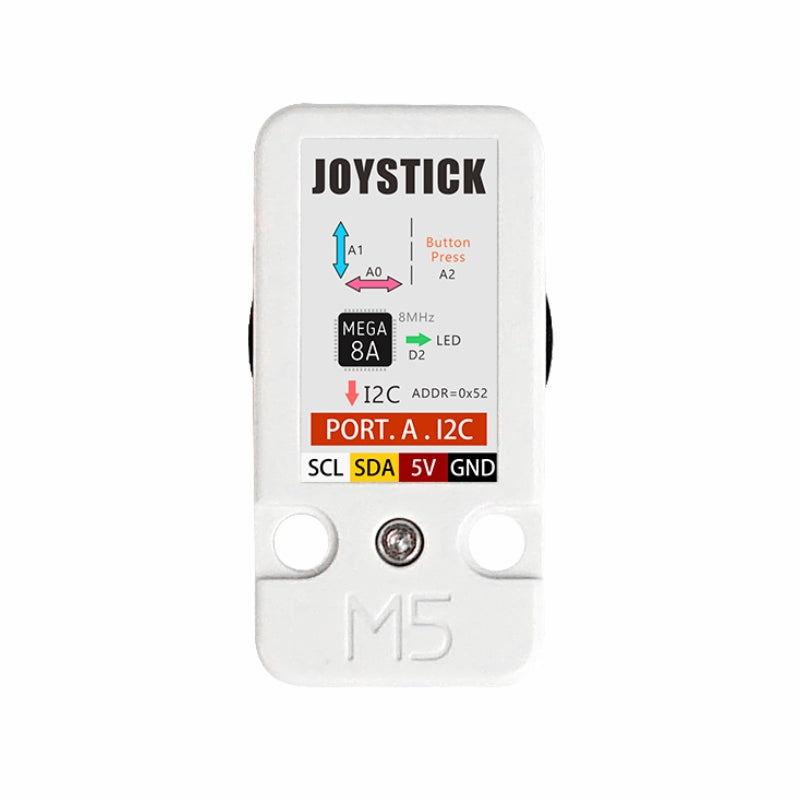

| MCU | MEGA8A |
| Communication protocol | I2C: 0x52 |
| X, Y axis offset output value | 0-255 |
| Z axis button output value | 0/1 |
| Net weight | 11g |
| Gross weight | 27g |
| Product size | 48 * 24 * 32mm |
| Packing size | 75 * 45 * 30mm |
