I/O Hub 1 to 6 Expansion Unit (STM32F0)

SKU:U041-B

Regular price $7.95

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

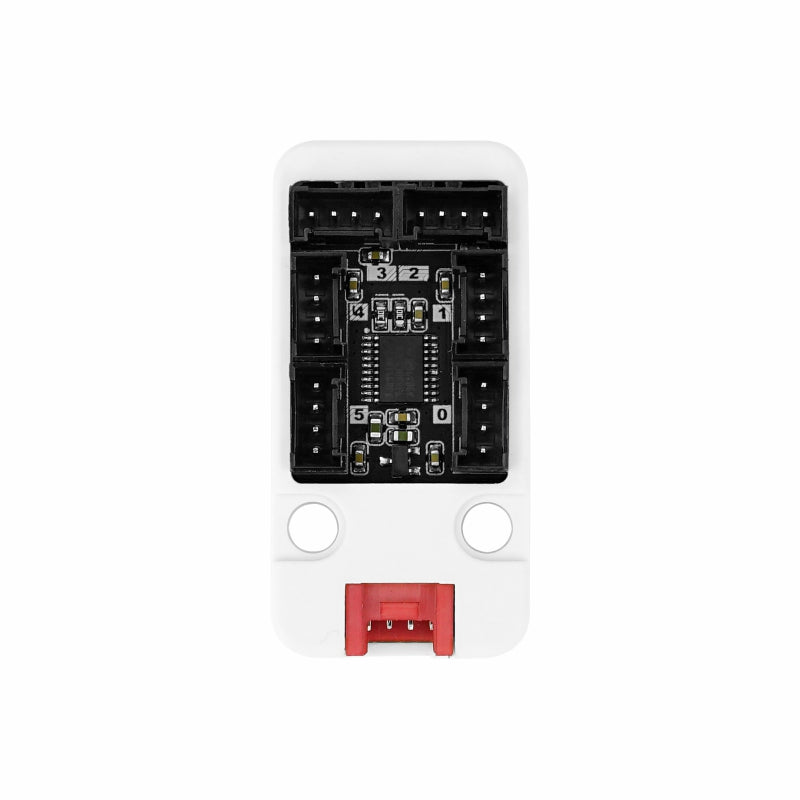

PbHUB Unit is a versatile 6-channel expansion unit that allows for easy expansion and control of various functionalities. With I2C control, it seamlessly integrates with compatible devices and systems, providing a convenient and efficient solution for expanding capabilities.

Each Port B interface of PbHUB Unit offers a range of versatile functions, including GPIO (General Purpose Input/Output) for digital signal control, PWM (Pulse Width Modulation) for precise control of analog signals, Servo control for controlling servo motors, ADC (Analog-to-Digital Conversion) sampling for analog signal measurement, RGB light control for managing RGB LEDs, and other customizable functions.

To ensure smooth and reliable control, PbHUB Unit utilizes the STM32F030 microcontroller for internal control operations. This powerful microcontroller facilitates efficient communication and coordination between the expansion unit and connected devices.

PbHUB Unit's flexibility and wide range of functions make it suitable for various applications. Whether used in robotics, home automation, IoT projects, or other electronic systems, this expansion unit provides a convenient and versatile solution for expanding and controlling multiple functionalities. With its I2C control and STM32F030 microcontroller, PbHUB Unit offers seamless integration and reliable performance.

Product Features

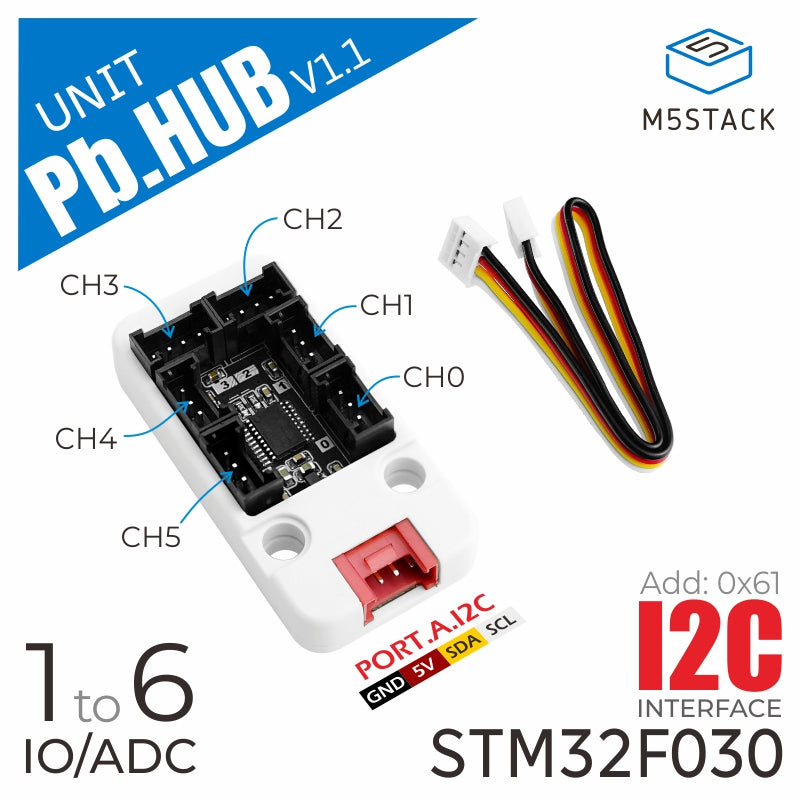

  • 6 x GPIO Ports Expansion
  • 1 x I2C Input
  • Internal STM32F030 control
  • 2 x Brick holes

Include

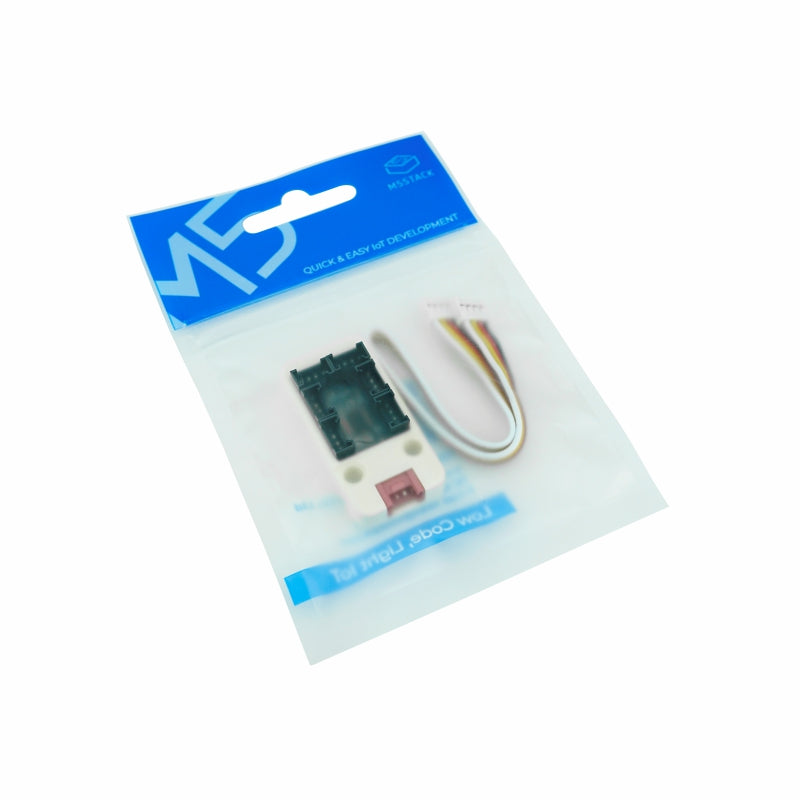

  • 1x PbHUB Unit
  • 1x HY2.0-4P cable (20cm)

Specification

Spec Parameter

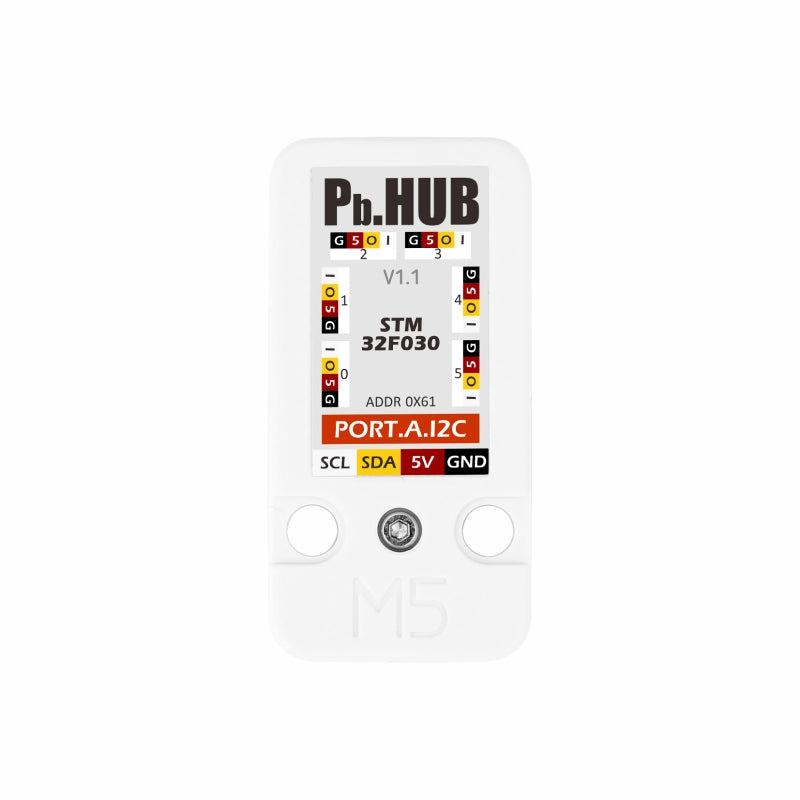

Communication protocol I2C:0x61(Modified by register)
Net weight 6.7g
Gross weight 11.8g
Product Size 48*24*12mm
Package Size 13.6*9.1*12mm

LEARN AND DOCUMENTS

  • DOCUMENTS
  • Customer Reviews

    Based on 2 reviews
    50%
    (1)
    50%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    A
    Ante Bradvica

    Great...

    F
    Felix
    I/O Hub 1 to 6 Expansion Unit (STM32F0)

    Works almost as advertised. As I understand the description in RGB mode the max. number or RGB LEDs is 74. However only the first RGB LED can be addressed and used.
