Description

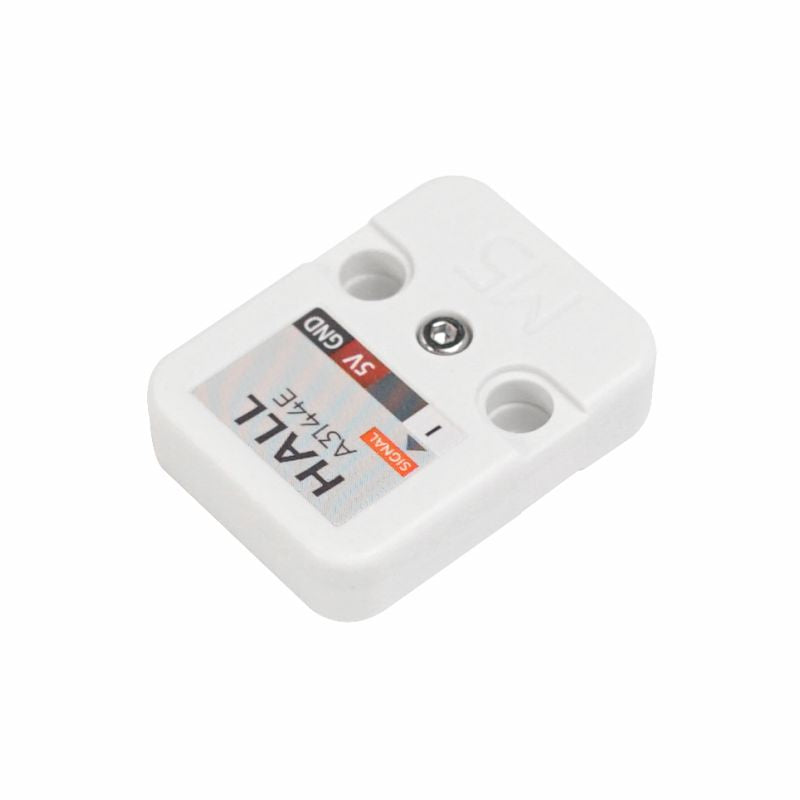

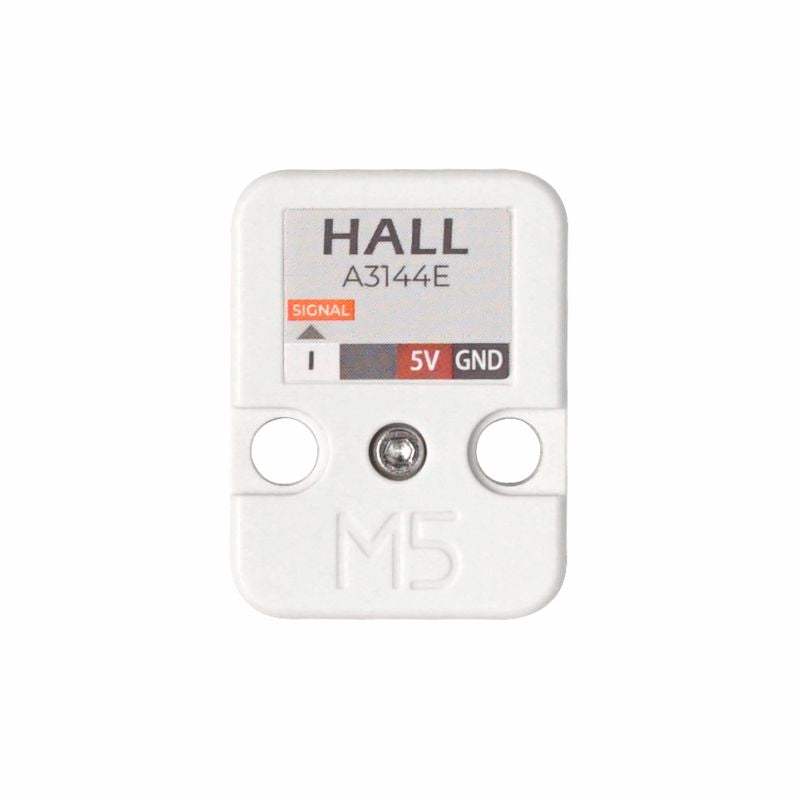

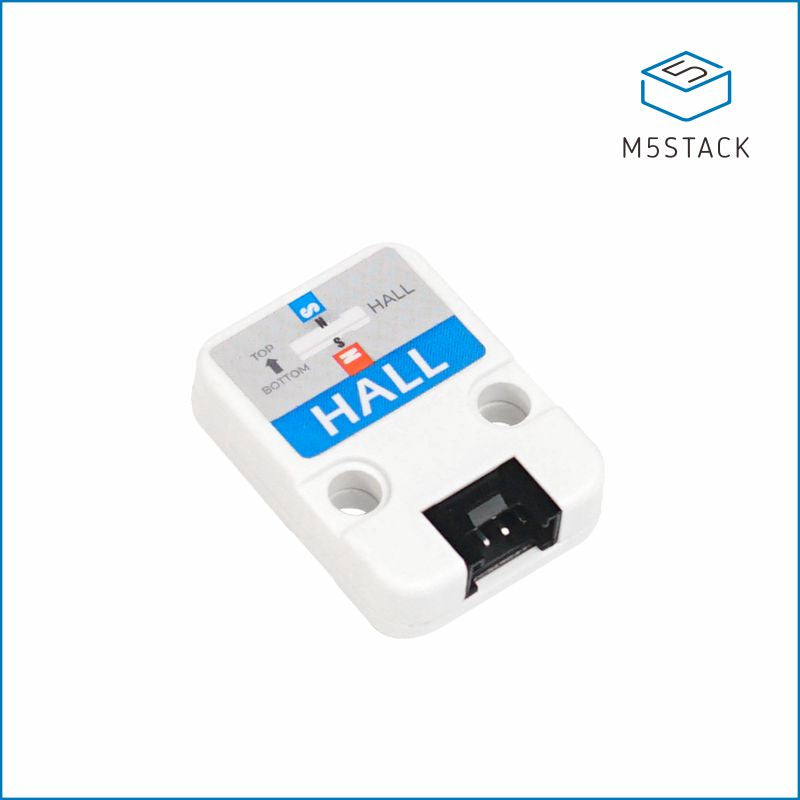

Unit Hall is a Hall sensor. It integrates three A3144E Hall effect switches, with logic processing performed by a 74 series gate integrated circuit. When an S magnetic pole object approaches the front of the hall or an N magnetic pole approaches the back of the hall, it can generate a low-level signal, and the internal LED indicator will light up. Hall sensors are utilized in door magnetic alarms, proximity sensing, speed measurement, and other scenarios.
Features
- Unipolar Hall switch sensing
- Fast response speed, high sensitivity
- With status indicator light
- Low-level output
- Can be used with building blocks

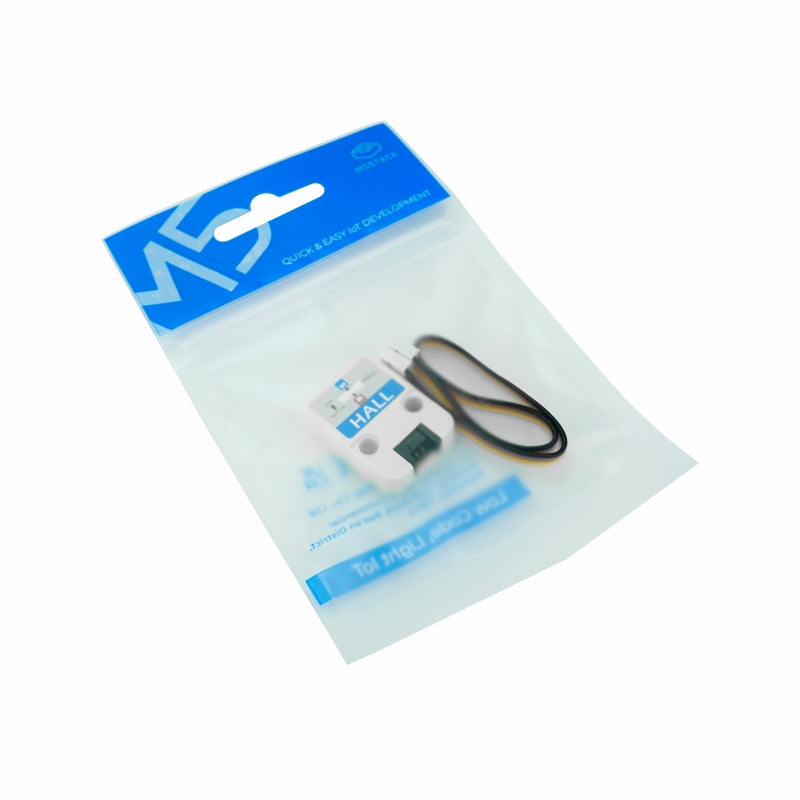

Includes
- 1 x Unit Hall
- 1 x HY2.0-4P Grove connection cable (20cm)
- 1 x Magnet
Applications
- Door magnetic alarm
- Magnetic field proximity sensing
- Speed measurement
Specifications
| Specification | Parameter |
|---|---|
| Hall Sensor | A3144E * 3 |
| Logic IC | 74HC08D |
| Status Indicator | Red LED |
| Output Level | Low-level active |

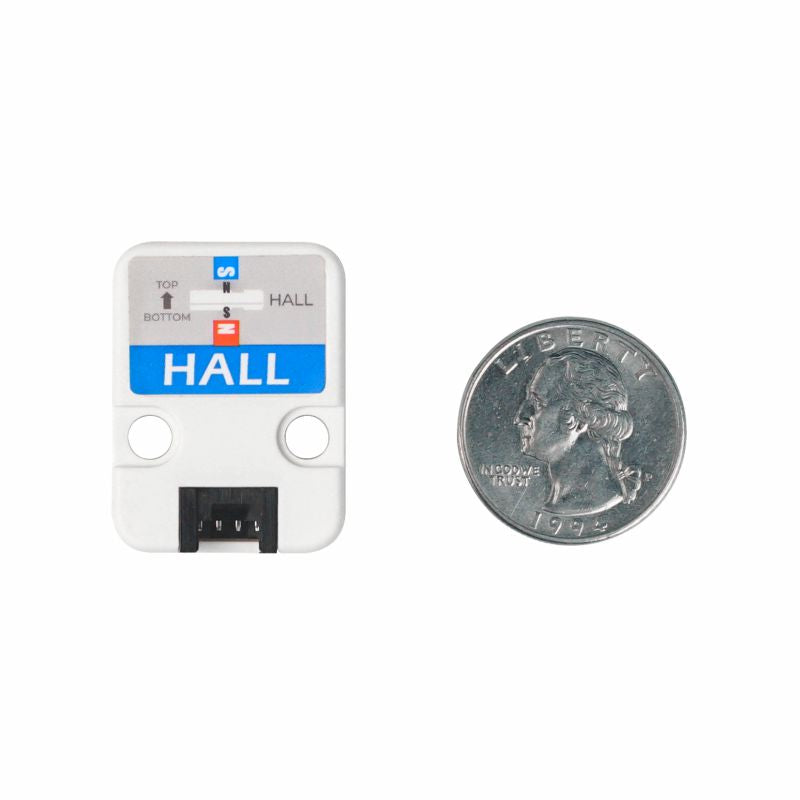

| Product Size | 32.0 x 24.0 x 8.0mm |
| Product Weight | 4.2g |
| Package Size | 138.0 x 93.0 x 9.0mm |
| Gross Weight | 10.0g |
