Description

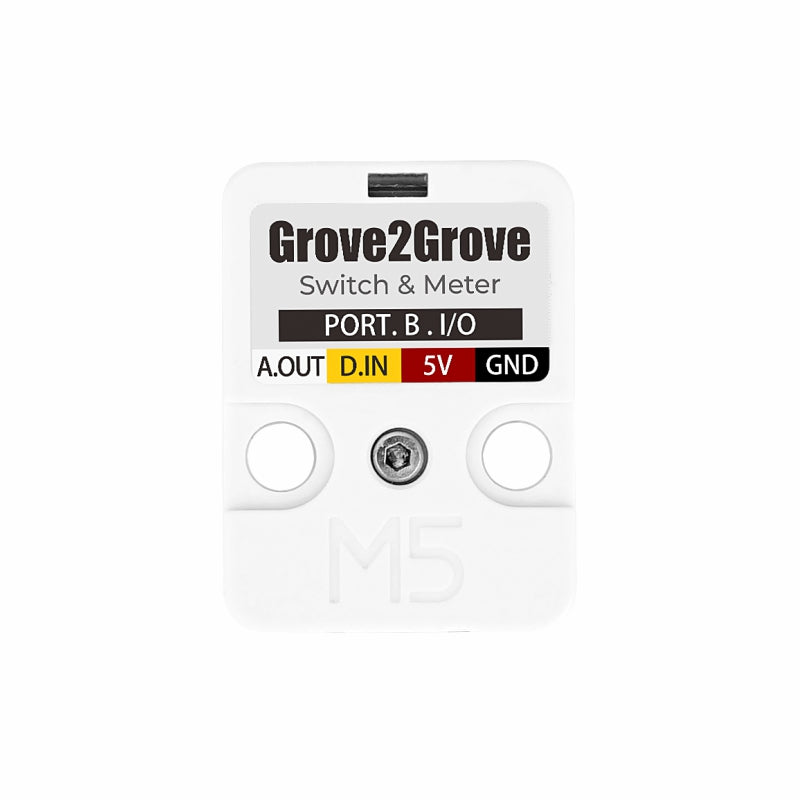

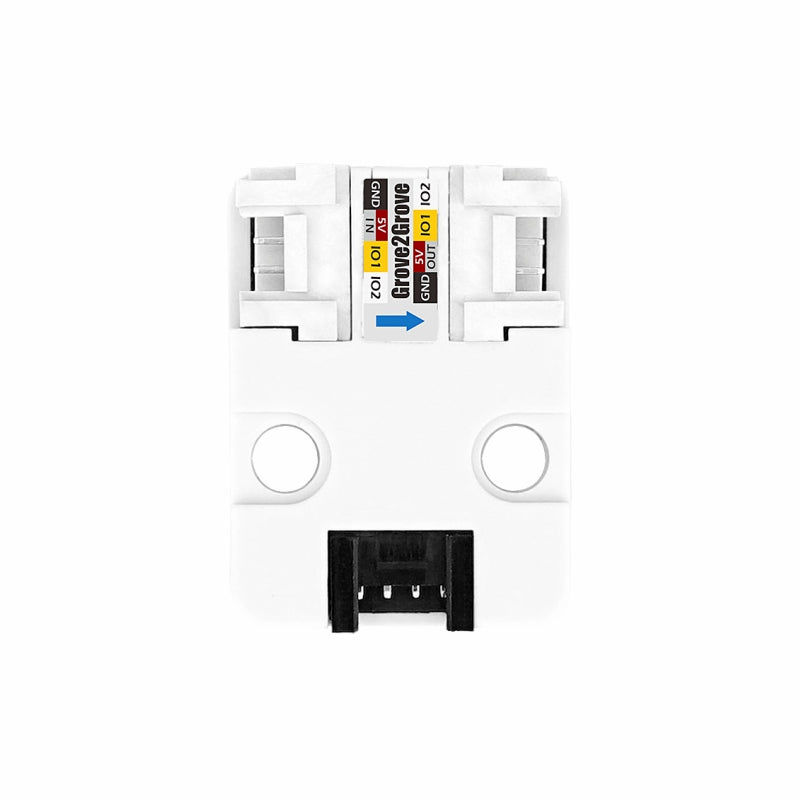

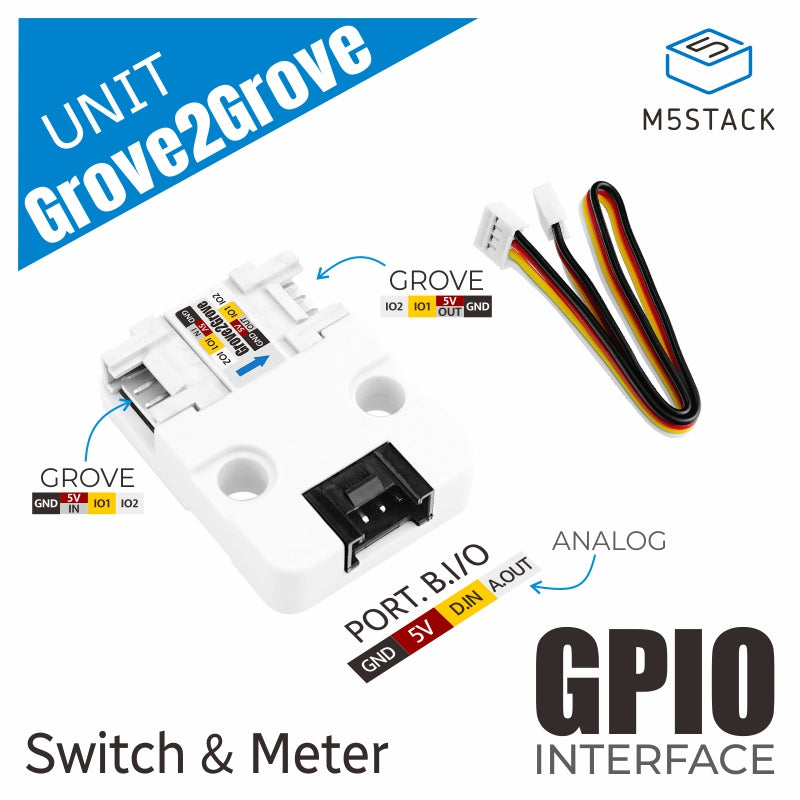

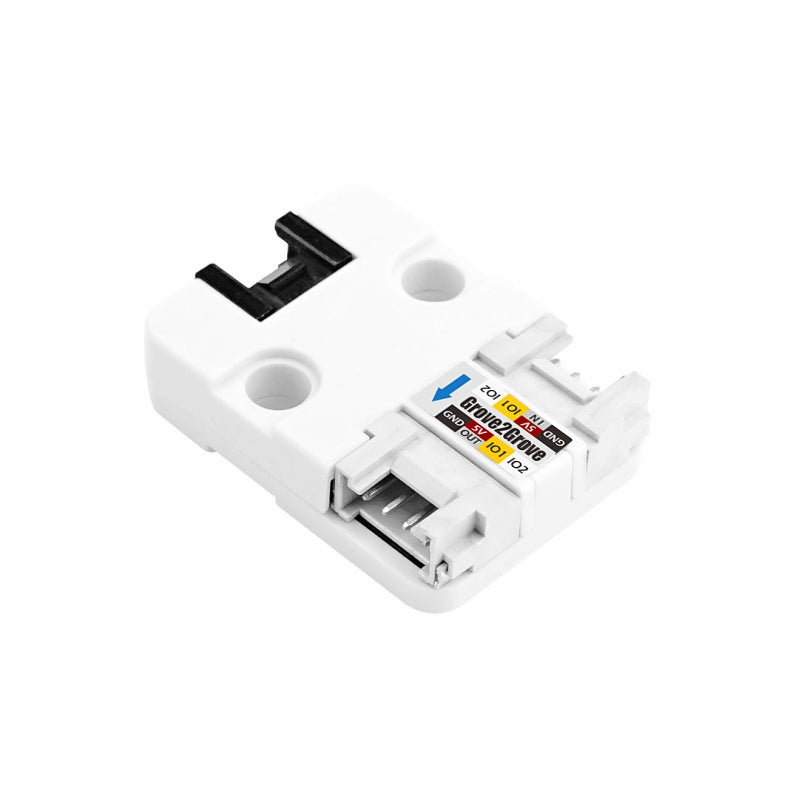

Unit Grove to Grove is a 1-in-1-out GROVE expansion control unit that provides on/off control + current measurement. On/off control is implemented using a digital signal, and current measurement is an analog signal in the range of 0 ~ 1000mA.
Features
- On/off control: 5V/1A
- Current measurement: 0~1000mA

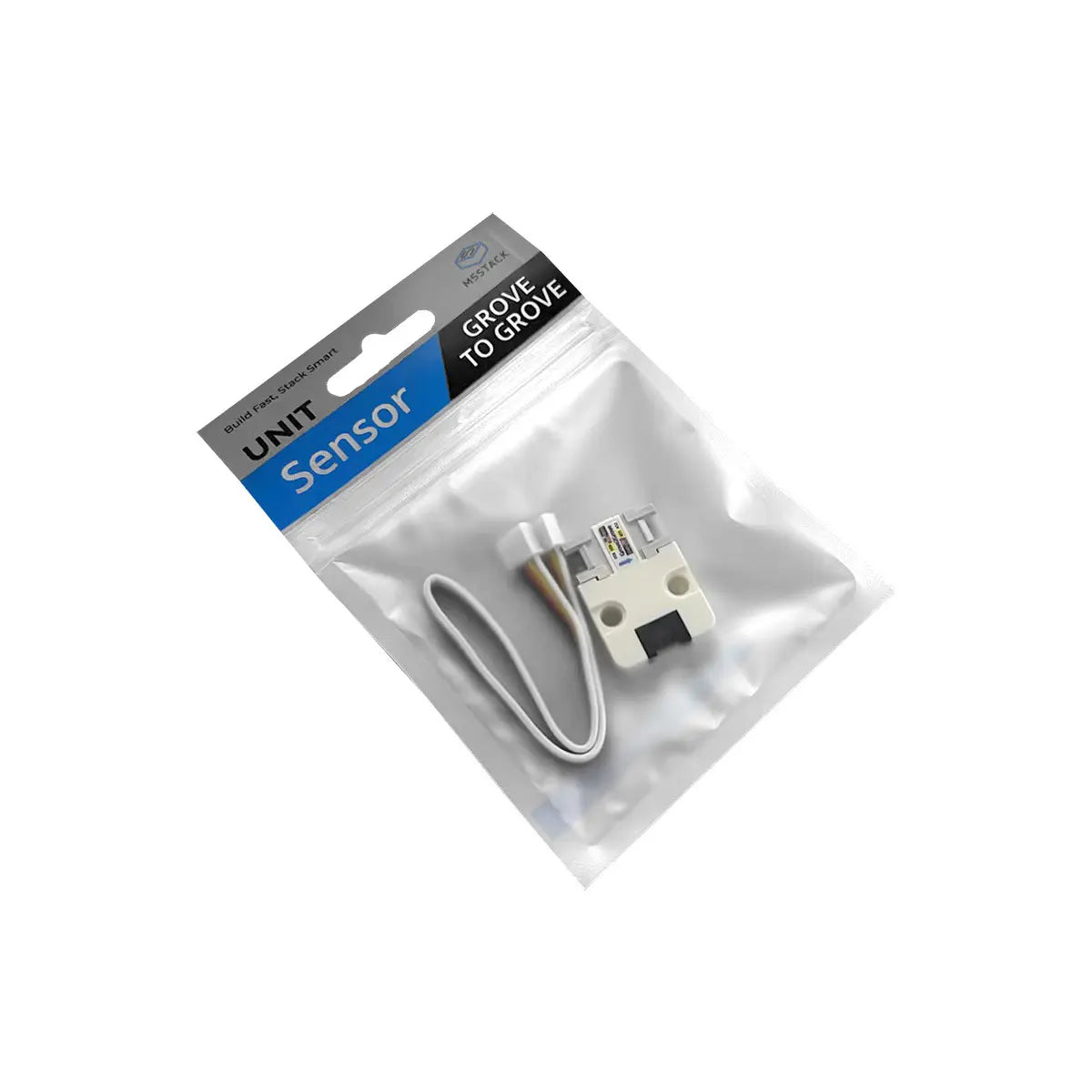

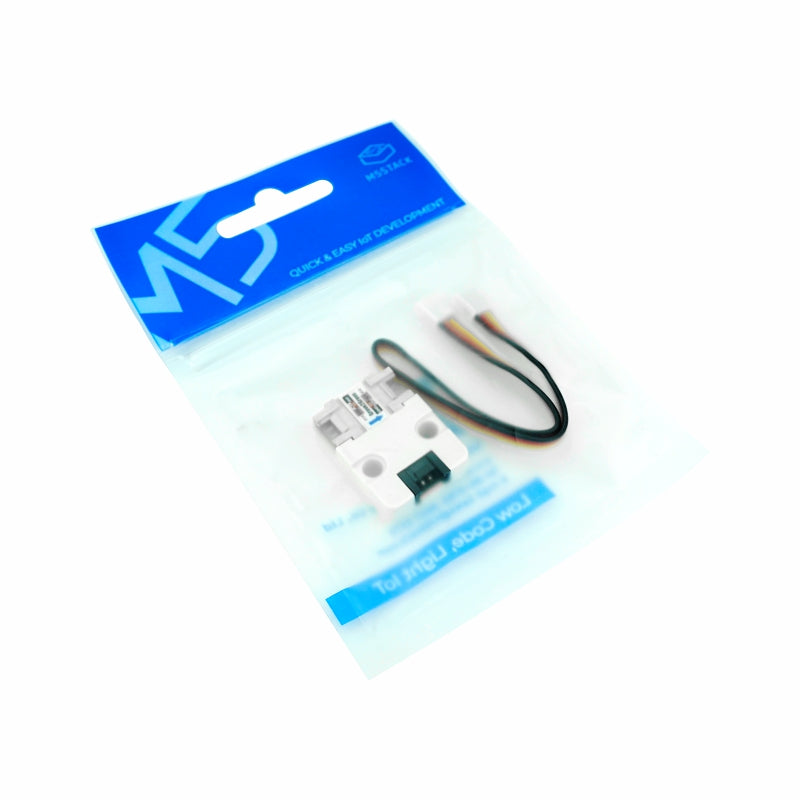

Includes
- 1 x Unit Grove to Grove
- 1 x HY2.0-4P Grove Cable (20cm)
Specifications
| Specification | Parameter |
|---|---|
| Operating Voltage | 5V |
| On/Off Current | 1000mA |
| On/Off Loop Voltage | 5V |
| Current Measurement Range | 0~1000mA |

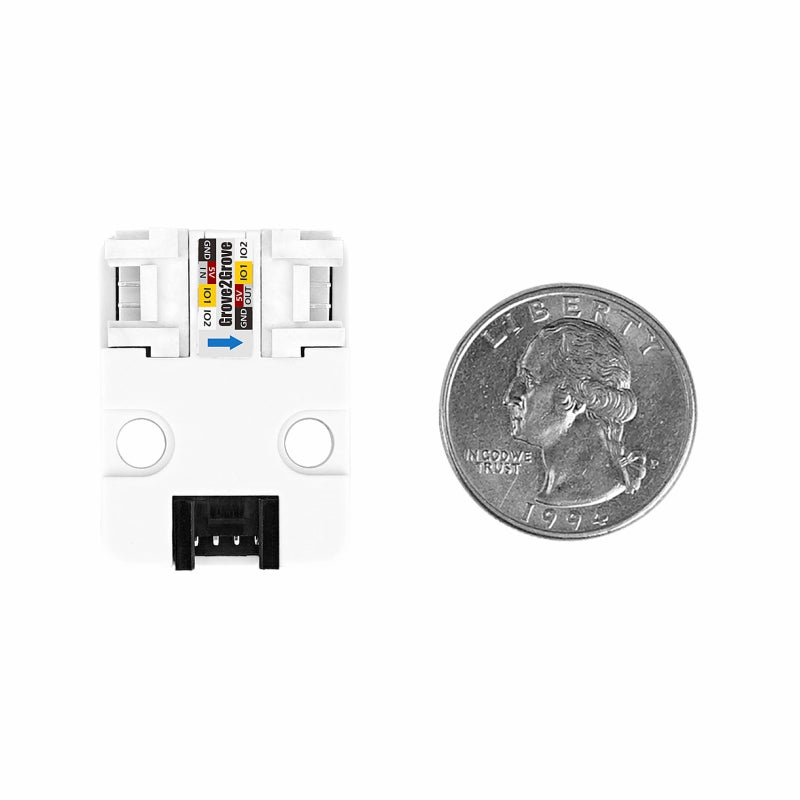

| Product Size | 32.0 x 24.0 x 8.1mm |
| Product Weight | 4.9g |
| Package Size | 138.0 x 93.0 x 9.1mm |
| Gross Weight | 10.0g |
