PRODUCT DETAILS
Description
HY2.0-4P SMD is a 2.0mm-4Pin Grove connector with a locating pin. You can easily apply it to your PCB design so as to get easier and quicker connection to M5Stack Unit system, which will help expand a lot more interesting functions.
NOTE: This product differs from the traditional-used M5Stack connectors in design and specifications, thus recommended for DIY-USE only.
Product Features
- HY2.0-4P
- With Locating Pins
- Suitable for PCB SMD
Include

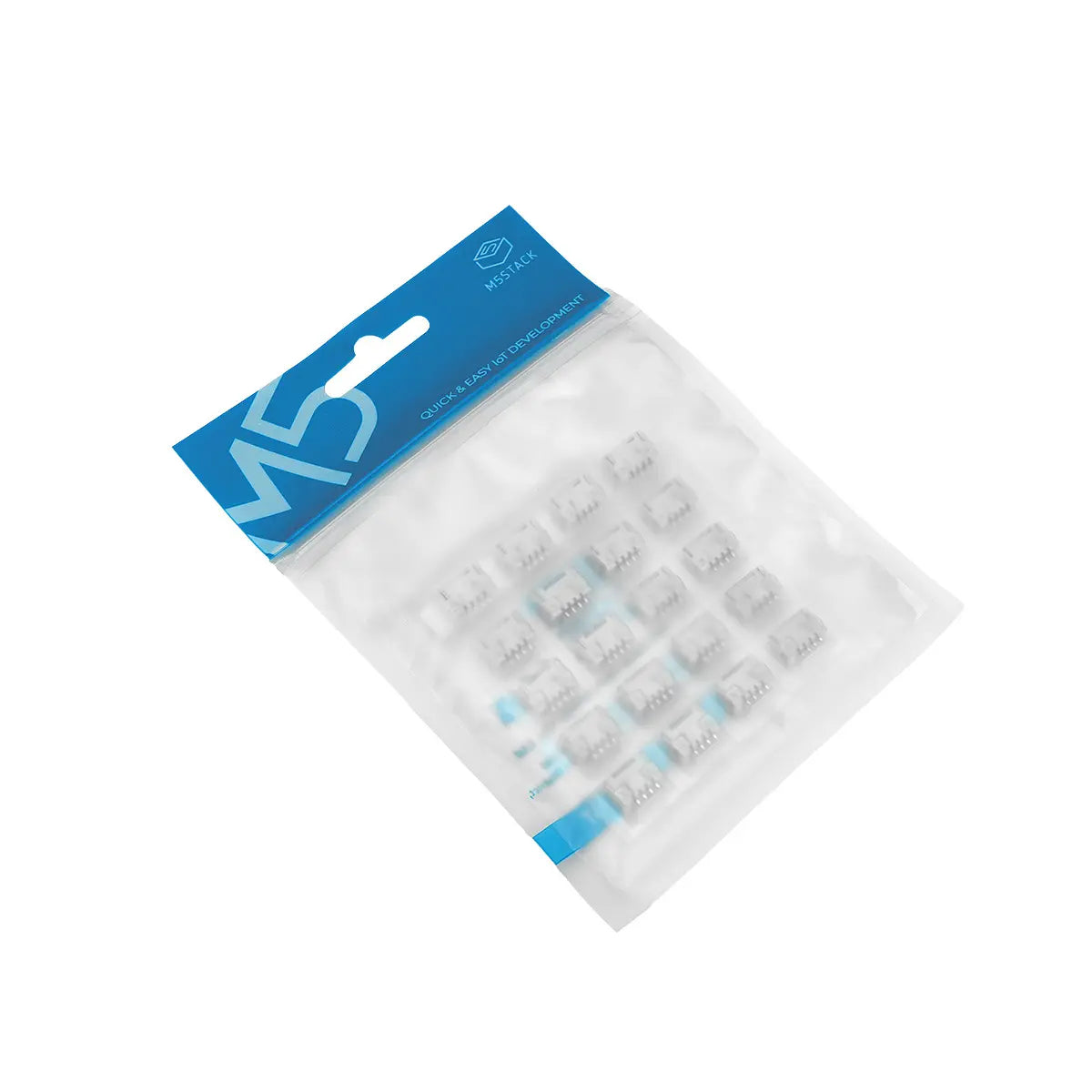

- 20x HY2.0-4P-SMD
Size
![](https://static-cdn.m5stack.com/resource/docs/products/accessory/converter/hy2.0_4p_smd/hy2.0_4p_smd_size_01.webp)
Reflow Profile
![](https://static-cdn.m5stack.com/resource/docs/products/accessory/converter/hy2.0_4p_smd/hy2.0_4p_reflow_profile_01.webp)
Specifications
Specifications | Parameters |
---|---|
Pitch | 2.0mm |
PIN number | 4P |
Appearance | R-90° (with PIN feet) |
Working temperature | -25 ~ 105°C |
Insulation resistance | ≥1000MΩ |
Single net weight | 0.4g |
Set gross weight | 11g |
Product size | 56 * 24 * 9.6 mm |
Packing size | 93 * 138mm |
