PRODUCT DETAILS
Description
GoPlus2 is a stackable multi-functional motor and servo control module. The master control integrates the STM32F030C8T6 chipset. The module is equipped with 2-way DC motor drive interface and 4-way servo drive interface. Three PORT-B interfaces(Analog Input,Digital Output,Digital Input) can be expanded. Built-in 500mAh battery and support infrared (IR) transmission and receive. In order to meet the requirements of multi-channel interface power supply at the same time, a DC power interface is provided for external power supply, battery can be charged through the M5Core with USB-C.
Communication protocol: I2C(0x38)
Note: This module has an I2C address conflict with the touch screen of the CORE2, so it cannot be used together.
Product Features
- 2x DC motor interface
- 4x Servo interface
- IR transmit & receive
- 3x expand PORT B
- STM32F030C8T6
- Built in 500mAh battery
Include

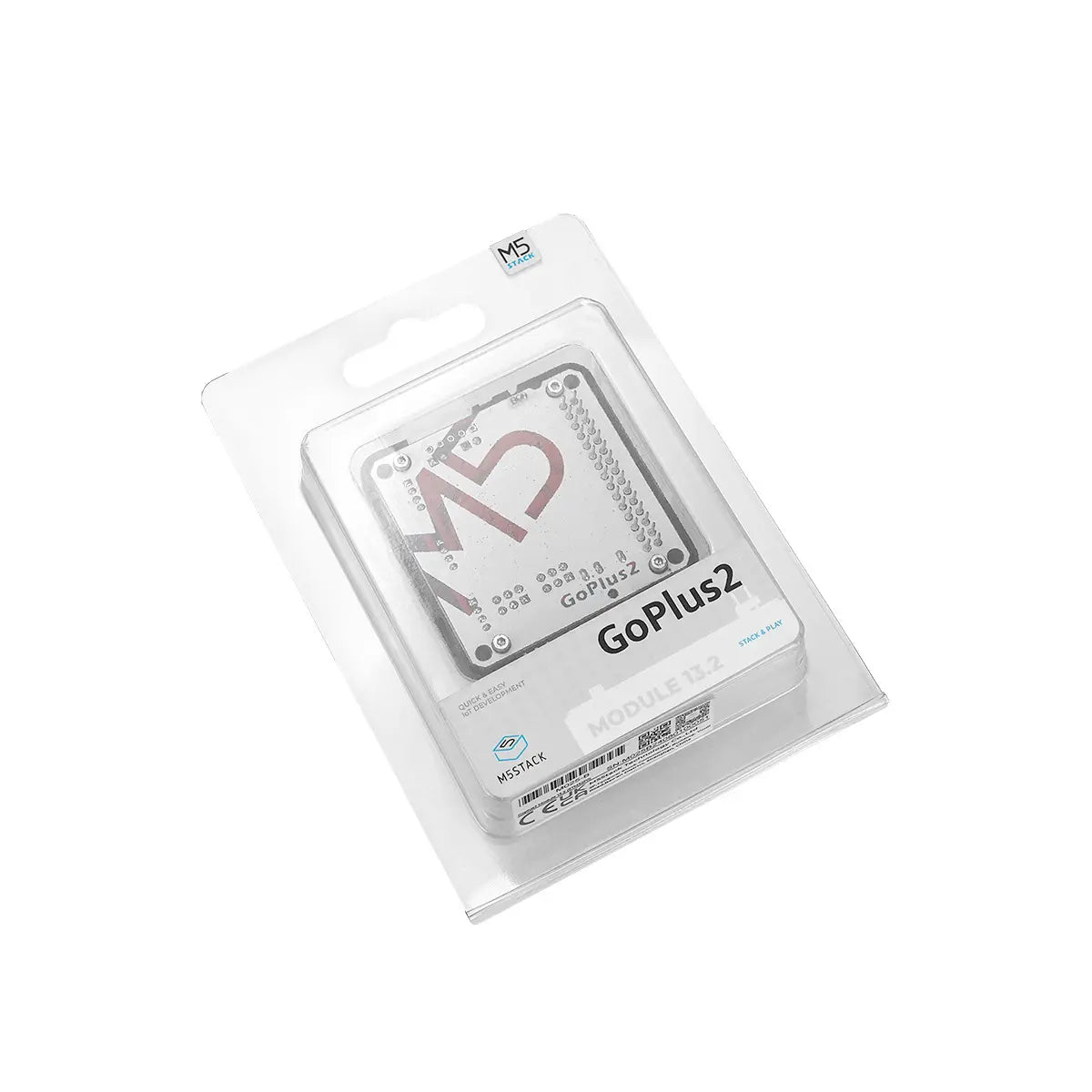

- 1x GoPlus2 Module
- 2x DC Motor Cable
Application
- Actuator / motor driver
- Acquisition and control of multiple input and output signals
- Infrared controller
- DIY Toy base
Specification
Resources | Parameter |
---|---|
Main control chip | STM32F030C8T6 |
Expand interface | DC Motor x 2,PORT-B x 3, Servo x 4 |
motor drive | DRV8833 |
IR | Transmit and Receive |
Battery | 500mAh |
Communication protocol | I2C:0x38 |
Net Weight | 38g |
Gross Weight | 58g |
Product Size | 54*54*13mm |
Package Size | 95*65*25mm |
