[EOL] Finger Print FPC 1020A Panel for M5STACK Face Kit

SKU:A066

Regular price $17.50

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

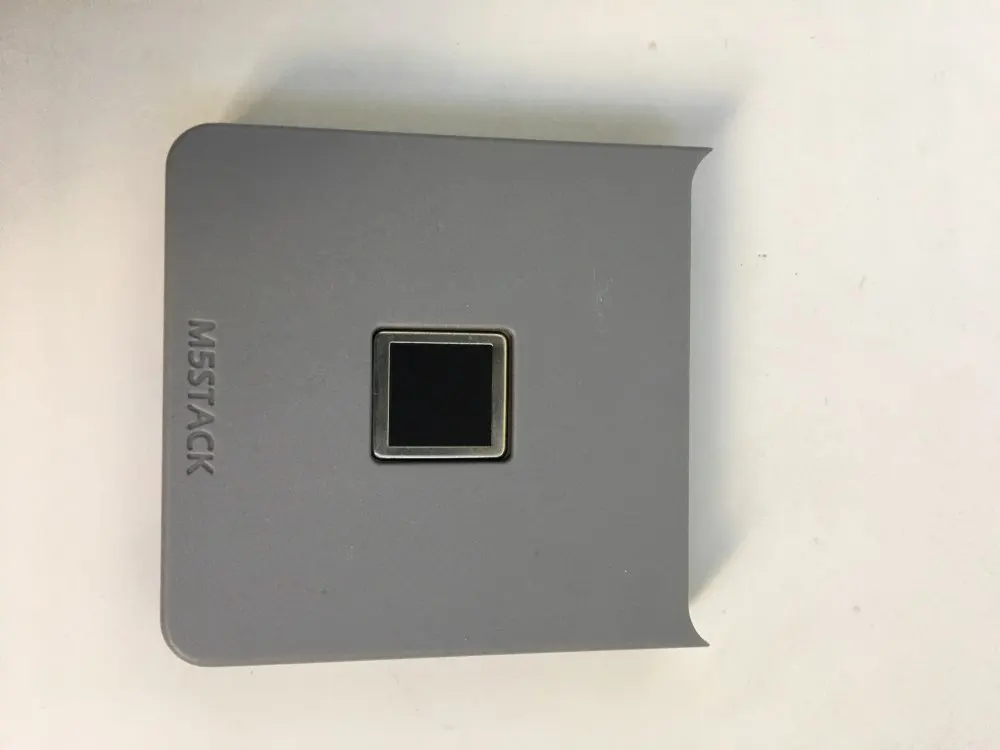

FACE-FINGER is another FACES kit compatible panel, with a built-in finger-print recognition module inside of it. Similar to the FINGER unit, FACE-FINGER integrated the FPC1020A capacitive fingerprint recognition module and Fingerprint recognition algorithm chip.
It can identify fingerprint information entrance, fingerprint deletion, fingerprint search, feature extraction for multiple people and so on. The unit can configure the fingerprint recognition comparison and security levels. With FACES panel, you can upgrade the level of Fingerprint management machine with a more complete and enclosed pattern.

Communication Protocol: UART.

This product is EOL now.

Product Features

  • FACES bottom compatible

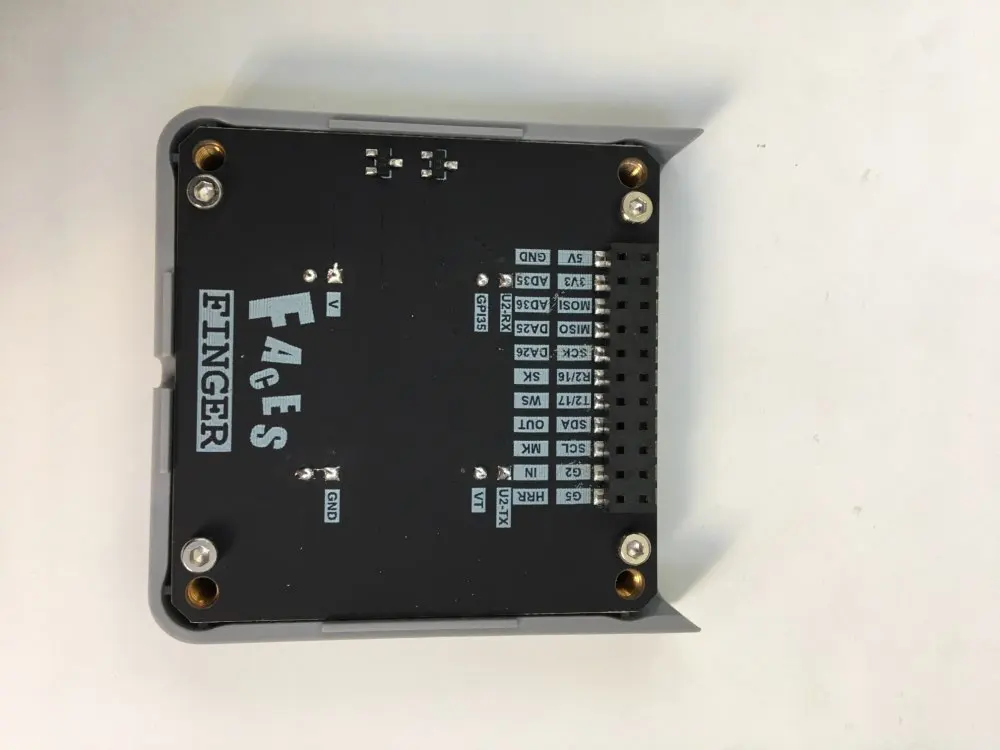

  • Interface Serial: UART2 (16/17)
  • FPC1020A

Include

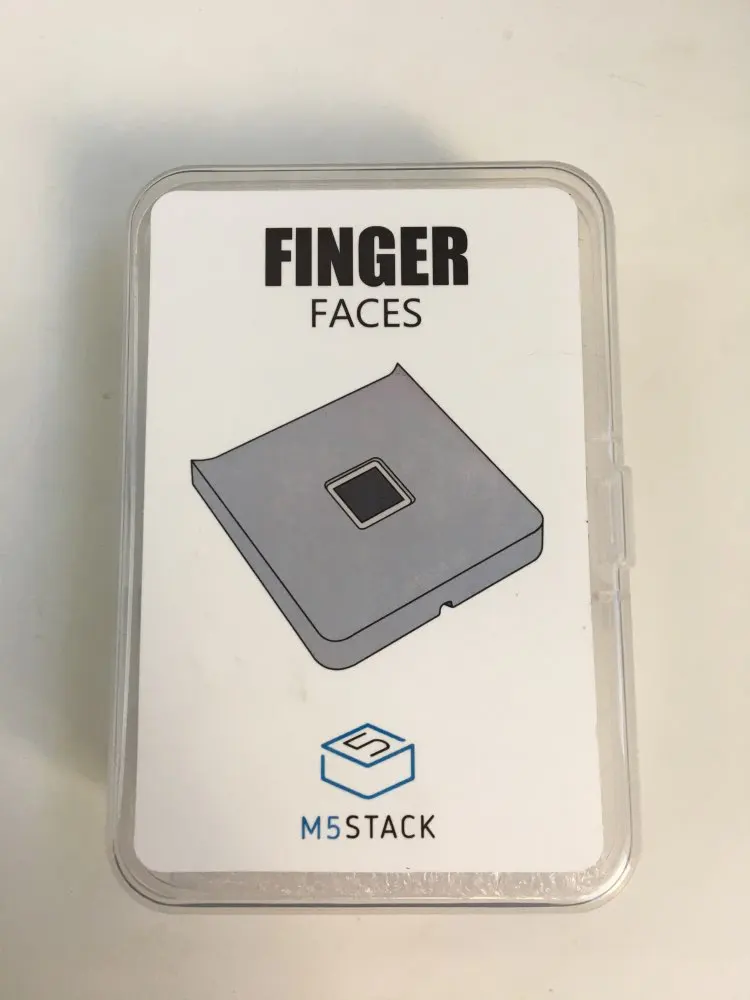

  • 1x FACES-FINGER Panel

Applications

  • Time card punching machine
  • Security

Specification

Resources Parameter
Size sensing array 160*160 Pixel
Pixel resolution 256 gray scale levels (8 Bit)
Appropriately adjustable security level 0-9, default level 5
Resolution 508DPI
Net weight 20g
Gross weight 43g
Product Size 58.2*54.2*10mm
Package Size 95*65*25mm
Material Plastic ( PC )
