[EOL] FAN Module for Stepmotor

SKU:M013

Regular price $5.95

EOL

Shipping calculated at checkout.
PRODUCT DETAILS

Description

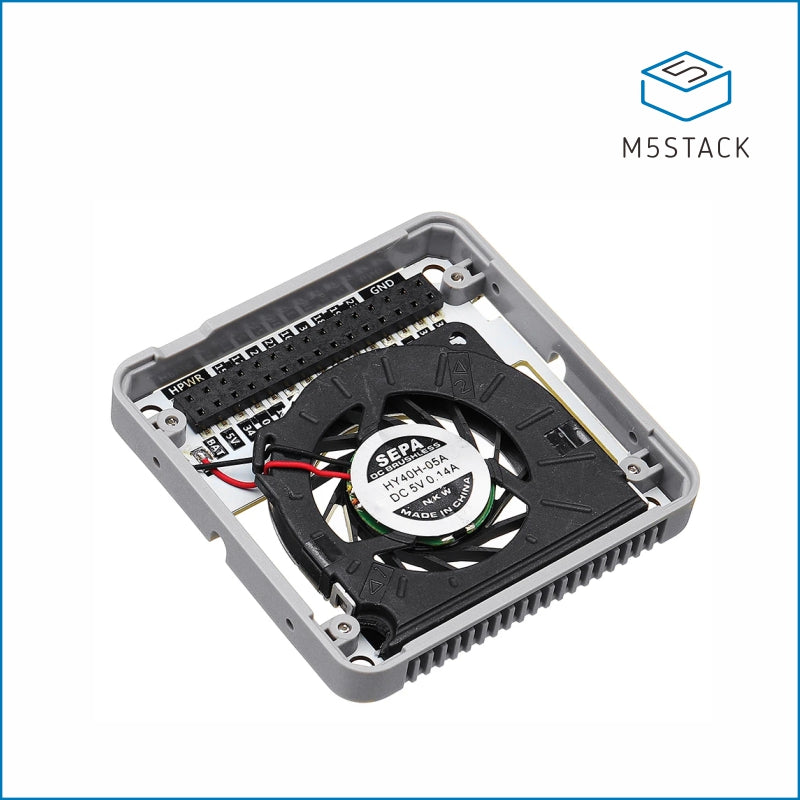

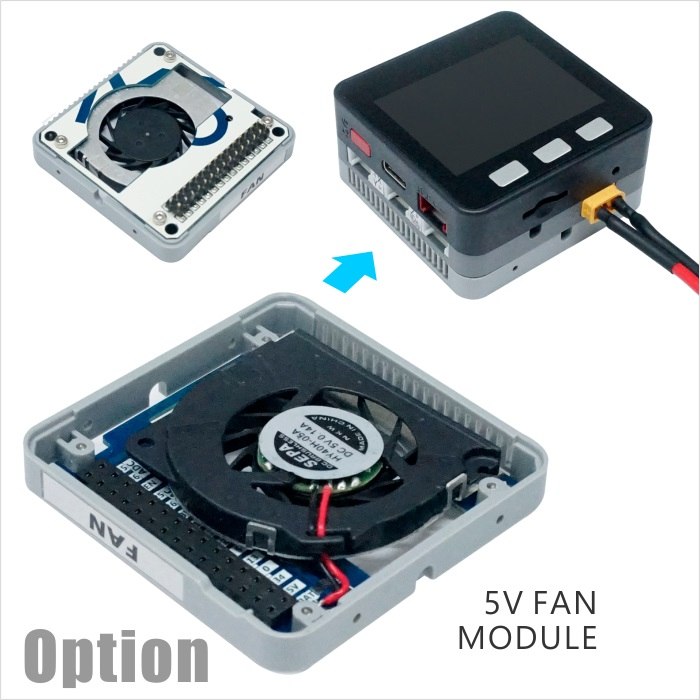

FAN is one of the M5Stack stacking module series. The fan cooling module can effectively cool the device itself, so that other hardware components can work in a stable and efficient way. The fan on the module is connected to the power pin by default, and can be stacked as well on other M5 Core devices.

This product is EOL now.

Product Features

  • Rated voltage: DC 5V
  • Rated current: 0.14 A
  • Power consumption: 0.7W
  • Speed: 7500 ± 10% RPM
  • Noise: 30DBA
  • Bearing: Hydraulic bearing
  • Wiring: red line positive, black line negative

Include

  • 1x M5Stack FAN Module

Specification

Resources Parameter
Net weight 15.5g
Gross weight 25g
Product Size 54*54*13mm
Package Size 60*57*17mm
