PRODUCT DETAILS
Description

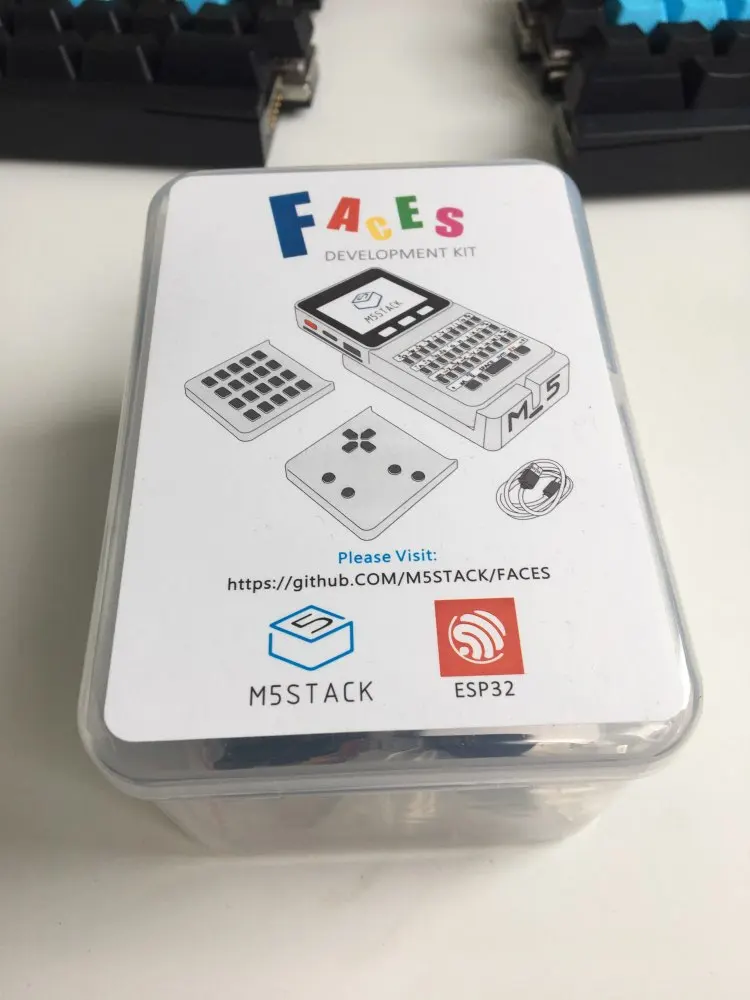

FACES Kit is a series of functional panels integration containing three most commonly used panels integration containing three most commonly used panels 'GameBoy','Calculator' and 'QWERTY'. With MEGA328 processor built inside, it works under slave mode through I2C communication protocol. With these 3 different panels, it will be very easy to support keyboard interaction with your M5Core.
Power on/off:
Power on: click the red power button on the left
Power off: Quickly double-click the red power button on the left
Note: By default, when USB is powered, it cannot be shut down**
This product is EOL now.
Product Features
- ESP32-based
- Built in 6-axis IMU
- Speaker, 3 Buttons, LCD
- TF card slot (16G Maximum size)
- Battery Socket & lithium polymer Battery
- Replaceable multifunction panel
- Extendable Pins & Holes
- M-Bus Socket & Pins
- Compatible with multi-platform development:
Include
- 1x GRAY
- 1x FACES Charger table
- 1x FACES sling
- 1x panel sticker
- 3x FACES Keyboard(GameBoy, Calculator, QWERTY)
- 10x Female-male dupont
- 6x M3x12 screw
- 1x hexagon screw key
- 1x Type-C USB(100cm)
Applications
- Gameboy
- Calculator
- Input peripherals
- Internet of things terminal controller
- DIY creation
Specification
| Resources | Parameter |
| ESP32 | 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi |
| Flash Memory | 16MB |
| Power Input | 5V @ 500mA |
| Port | TypeC x 1, GROVE(I2C+I/0+UART) x 1 |
| IPS Screen | 2 inch, 320x240 Colorful TFT LCD, ILI9342C, max brightness 853nit |
| Speaker | 1W-0928 |
| Button | Custom button x 1 |
| Core bottom port | PIN (G1,G2,G3,G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36) |
| MEMS | BMM150 + MPU6886 |
| Battery | 600 mAh @ 3.7V |
| Antenna | 2.4G 3D Antenna |
| Operating Temperature | 0°C to 60°C |
| Net weight | 94g |
| Gross weight | 264g |
| Product Size | 58.2mm x 54.2mm x 18.7mm |
| Package Size | 120mm x 85mm x 65mm |
| Case Material | Plastic ( PC ) |
