This product is EOL.
Description

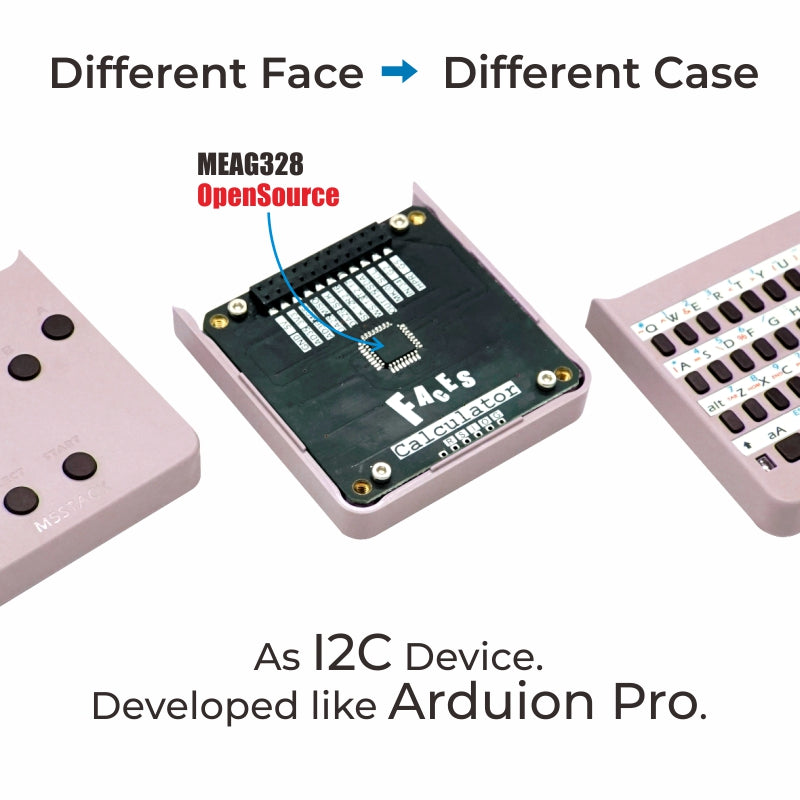

Faces Kit is a collection of functional panels. The kit includes three commonly used panels: "GameBoy (gaming keyboard)", "Calculator (numeric keypad)", and "QWERTY (full keyboard)". A MEGA328 processor is integrated inside, working in slave mode via the I2C communication protocol (0x08). Choose any of these three panels as needed to enable human–machine interaction between the user and M5Core.
Features
- ESP32-based development
- Built-in gyroscope, accelerometer, and magnetometer
- Integrated speaker, buttons, LCD screen, and 1 × power/reset button
- TF-card slot (expandable up to 16 GB)
- M5-Bus female connector

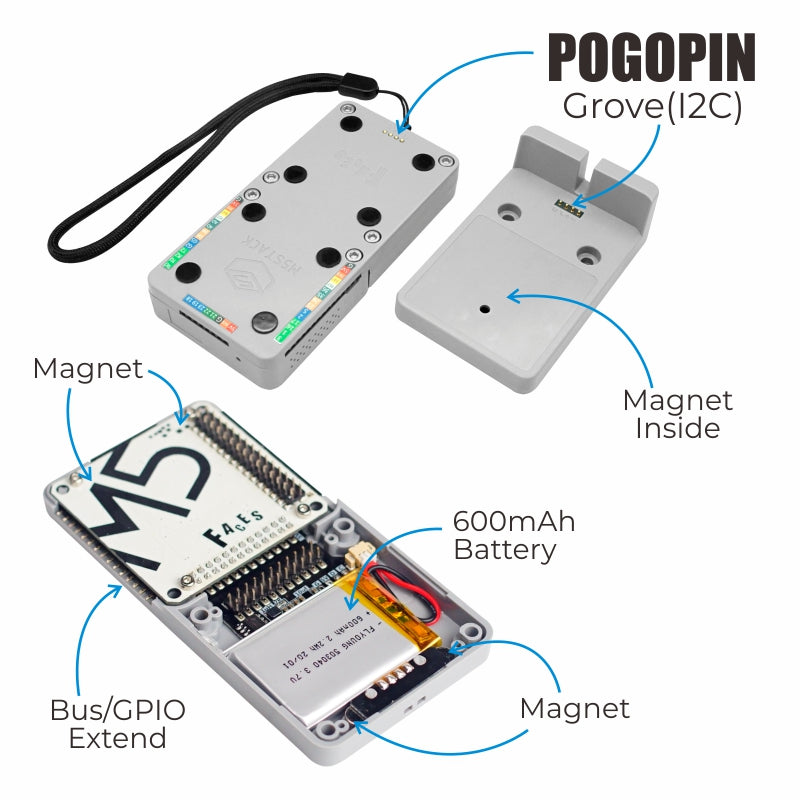

- Magnetic charging design
- Built-in lithium battery
- Extensible pins and interfaces
- Development Platform
- UiFlow1
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO

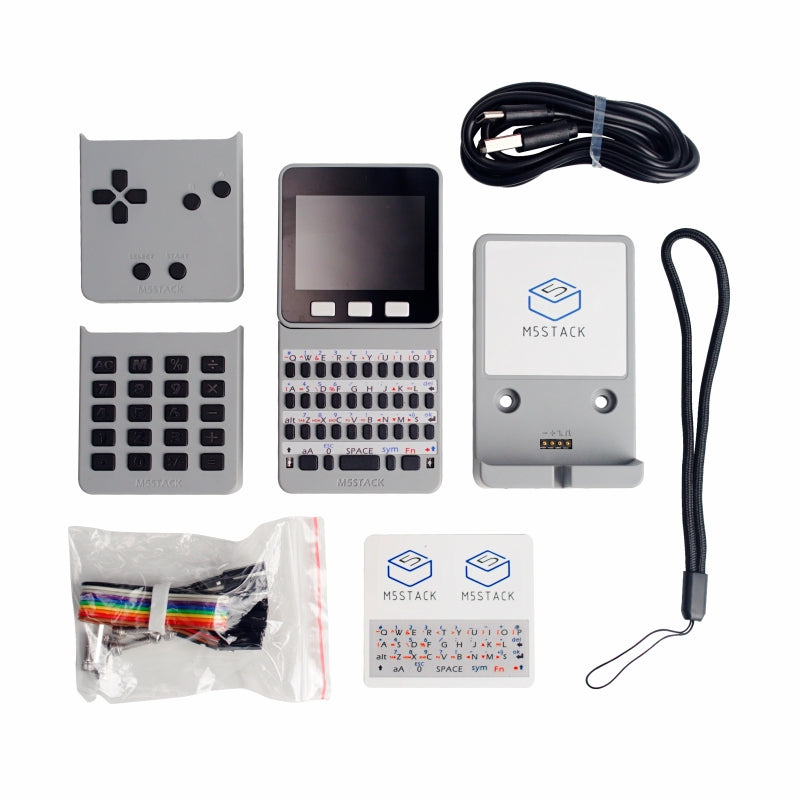

Includes
- 1 × Gray
- 1 × FACES Charging Base
- 1 × FACES Lanyard
- 1 × Panel Sticker

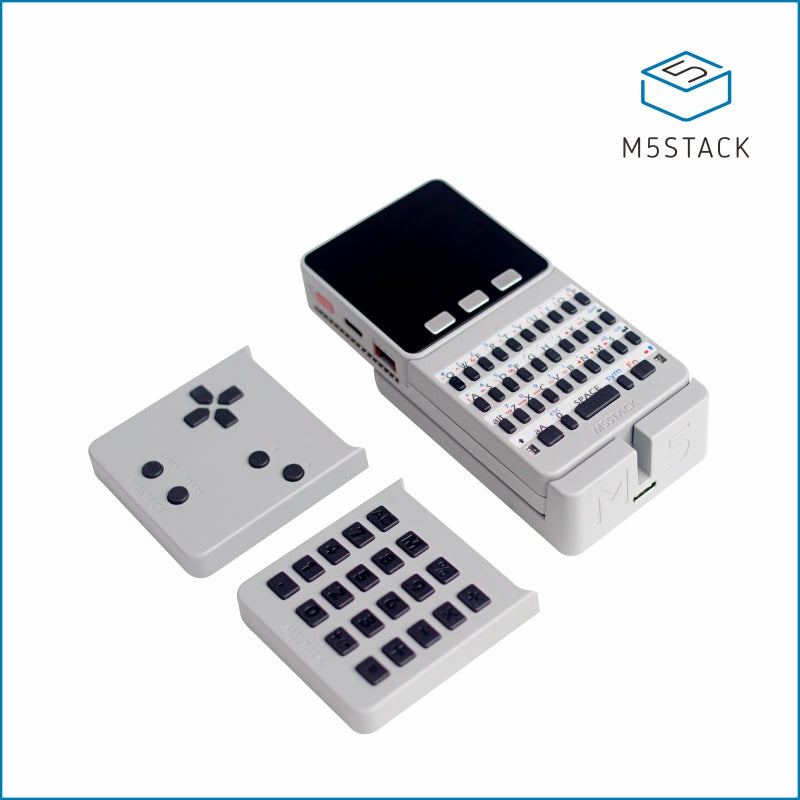

- 3 × FACES Keyboards (GameBoy, Calculator, QWERTY)
- 8 × Dupont Cables
- 6 × M3 × 12 mm Screws
- 1 × Hex Key L-Shape
- 1 × USB Type-C Cable (100 cm)
Applications
- Handheld game console
- Calculator
- Data-entry peripheral
- IoT controller
Specifications
| Main Control Resources | Parameter |
|---|---|
| SoC | ESP32-D0WDQ6@Dual-core processor, Main frequency 240MHz |
| DMIPS | 600 |
| SRAM | 520KB |
| Flash | 16MB (Old version 4MB) |
| Wi-Fi | 2.4 GHz Wi-Fi |
| Input Voltage | 5V@500mA |
| Host Interface | USB Type-C x 1, GROVE (I2C+I/O+UART) x 1 |
| Core Base Interface | PIN (G1, G2, G3, G16, G17, G18, G19, G21, G22, G23, G25, G26, G35, G36) |
| IPS Screen | 2 inch, 320x240 Colorful TFT LCD, ILI9342C, Max brightness 853nit |
| Speaker | 1W-0928 |
| Buttons | Custom buttons x 3 |
| Antenna | 2.4G 3D antenna |
| Lithium Battery | 600mAh@3.7V |
| MEMS | MPU6886+BMM150 |
| 2.4G Antenna | Proant 440 |
| Operating Temperature | 0 ~ 60°C |
| Case Material | Plastic (PC) |
| Product Size | 58.2 x 54.2 x 18.7mm |
| Product Weight | 94.0g |
| Package Size | 120.0 x 85.0 x 65.0mm |
| Gross Weight | 264.0g |
