M5Stack Ext Encoder Unit (STM32F030)

SKU:U161

Regular price $5.95

10+ In Stock

Shipping calculated at checkout.

Description

ExtEncode unit is a versatile acquisition unit designed for external rotary encoders. It seamlessly supports AB/ABZ signal input, allowing for accurate and reliable encoding. Powered by the STM32F030 main control chip, this unit incorporates firmware that enables efficient acquisition and decoding of encoder signals.

Users can easily access the encoded value by performing I2C reading operations, simplifying the integration process. This makes it an ideal solution for various applications, including robot arm position control, automatic cutting in industrial automation, and meter wheel applications.

ExtEncode unit empowers engineers and professionals to achieve precise position control and measurement in their projects. With its robust firmware and compatibility with external rotary encoders, it provides a reliable and efficient solution for acquiring and utilizing encoded data.

Features

  • Supports signal acquisition with external rotary encoders
  • Support AB/ABZ signal input

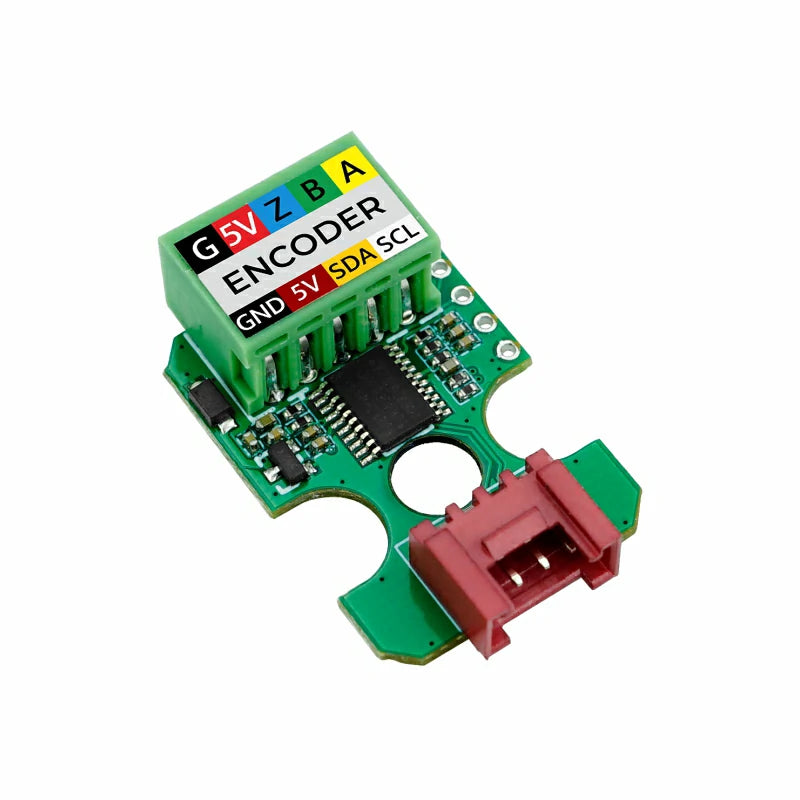

  • Built-in STM32F030 main control, integrated encoder signal acquisition and decoding firmware
  • The encoded value can be obtained directly through the I2C read operation

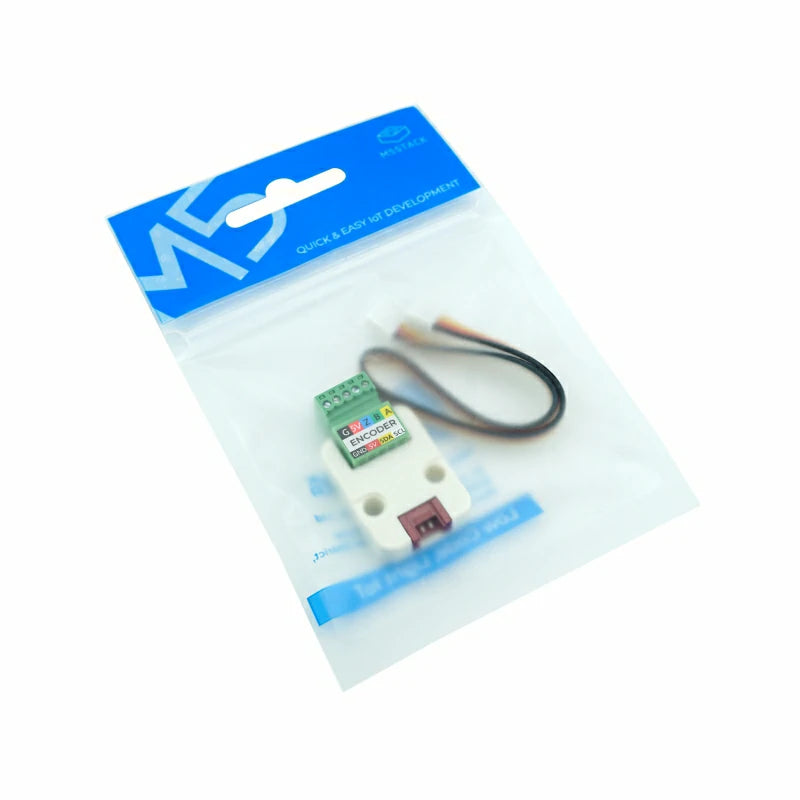

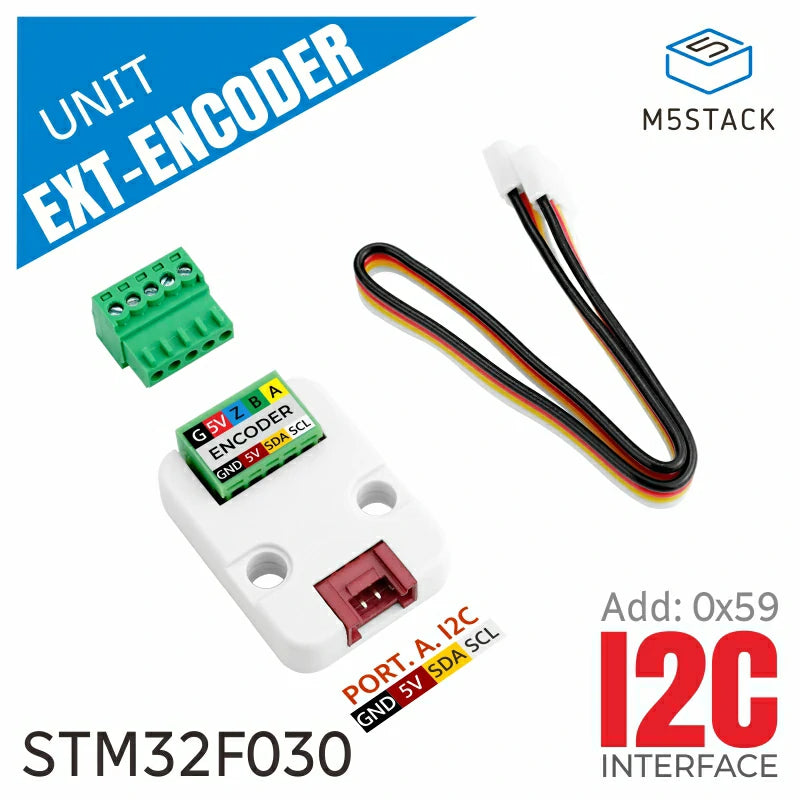

Includes

  • 1x ExtEncode Unit
  • 1x Grove Cable(20cm)
  • 1 × VH2.54-5P

Applications

  • Meter counting applications
  • encoder
  • Automated cutting

Specification

Resources Parameters
Sampling accuracy 12 bit
Signal input type AB/ABZ
I2C Address 0x59

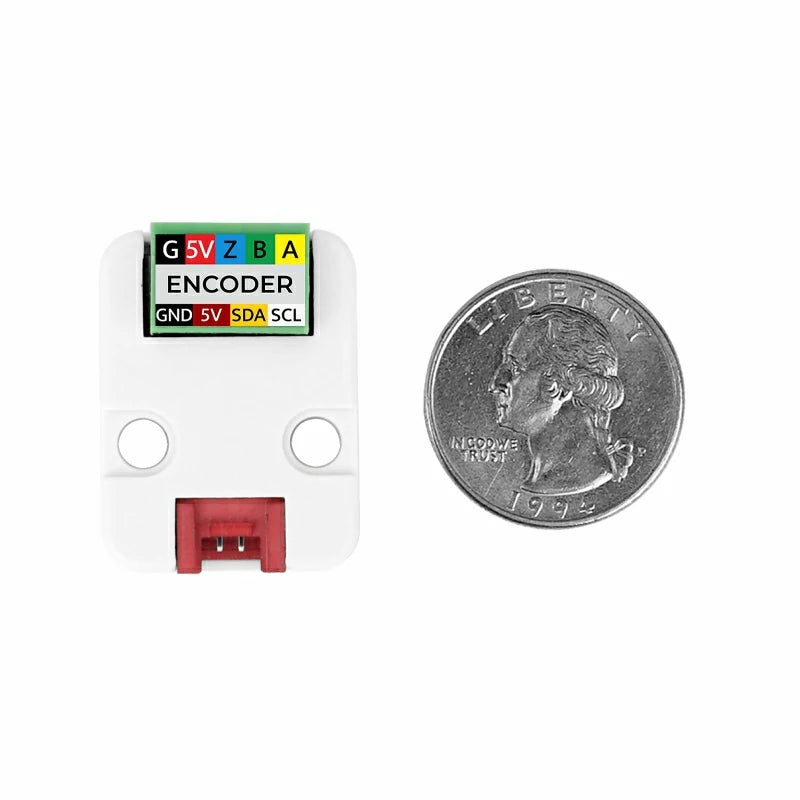

Product Size 40*24*14mm
Package Size 67*53*12mm
Product Weight 8g
Package Weight 21g


Schematic

schematics

Examples

Arduino
