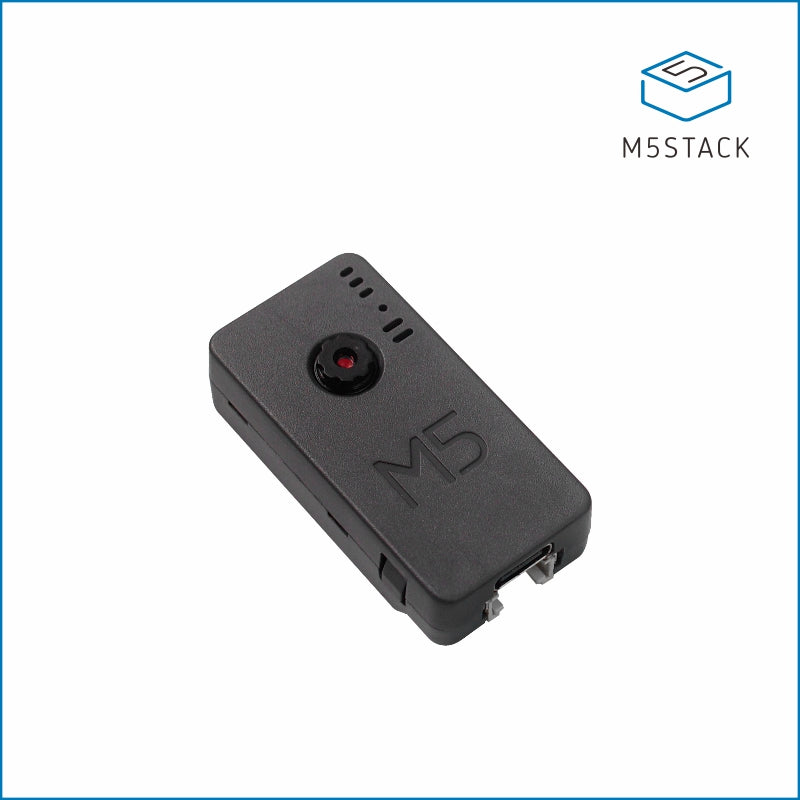

ESP32 PSRAM Timer Camera X (OV3660)

SKU:U082-X

$17.95

10+ In Stock

Shipping calculated at checkout.

Description

 

Timer Camera X is a camera module based on ESP32, integrated with ESP32 chip and 8M-PSRAM. The camera (ov3660) with 3 million pixels , DFOV 66.5 ° and shoot 2048x1536 resolution photo, built-in 140mAh battery and LED status indicator, featuring ultra-low power consumption design. There is a reset button under the LED. Through RTC (BM8563), timing sleep and wake-up can be realized. The standby current is only 2μA. After timing photo taking function(one photo per hour) is turned on, the battery can work continuously for more than one month. The module supports Wi-Fi image transmission and USB port debugging. The bottom HY2.0-4P port output can be connected to other peripherals. Through M5Burner burning firmware, Timer Camera X can be set directly with Camera-Tool, and Timer Camera X data can be processed in UIFlow.

The low-power power management solution adopted by the Timer Camera series is different from the CORE and StickC devices. When in use, the PWR button is used as a power-on button(long press 2s). If you need to shut down the device, you need to use the software API or press the Reset button on the PCB.When using external power supply, the device will remain powered on.

Product Features

  • Design based on esp32
  • Wi-Fi image transmission
  • Timed sleep wake up
  • Status indicator
  • Ultra low power design
  • Built-in 140mAh battery
  • Programming platform:ESP-IDF/Arduino/UIFlow

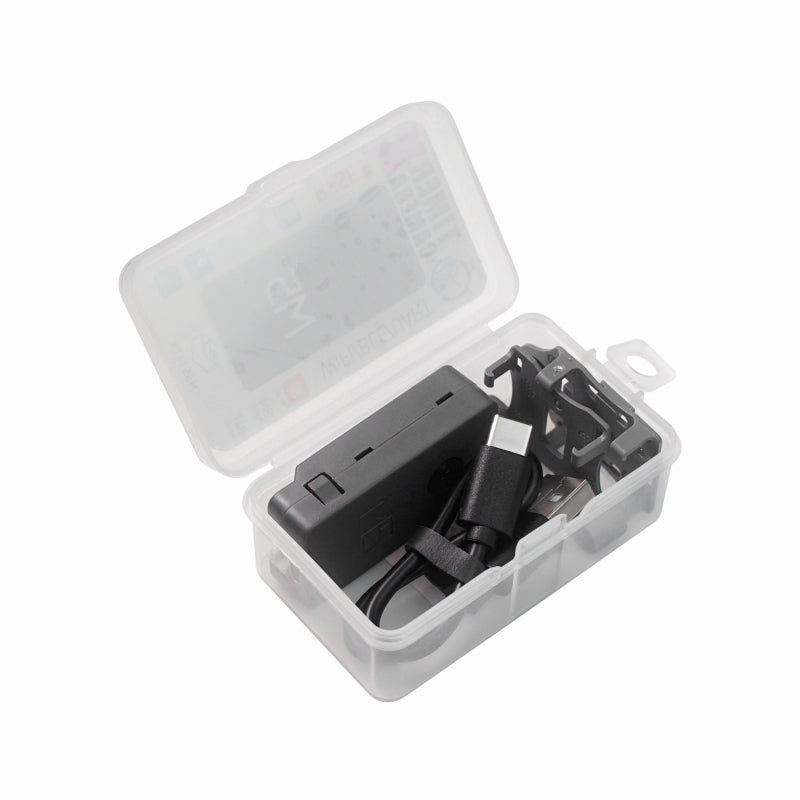

Includes

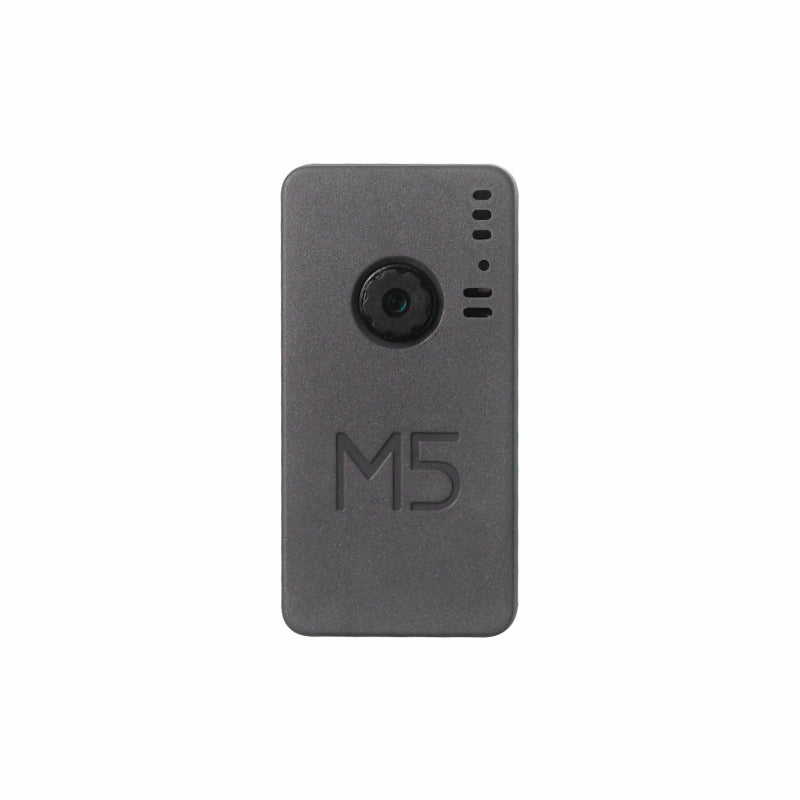

  • 1x Timer Camera X

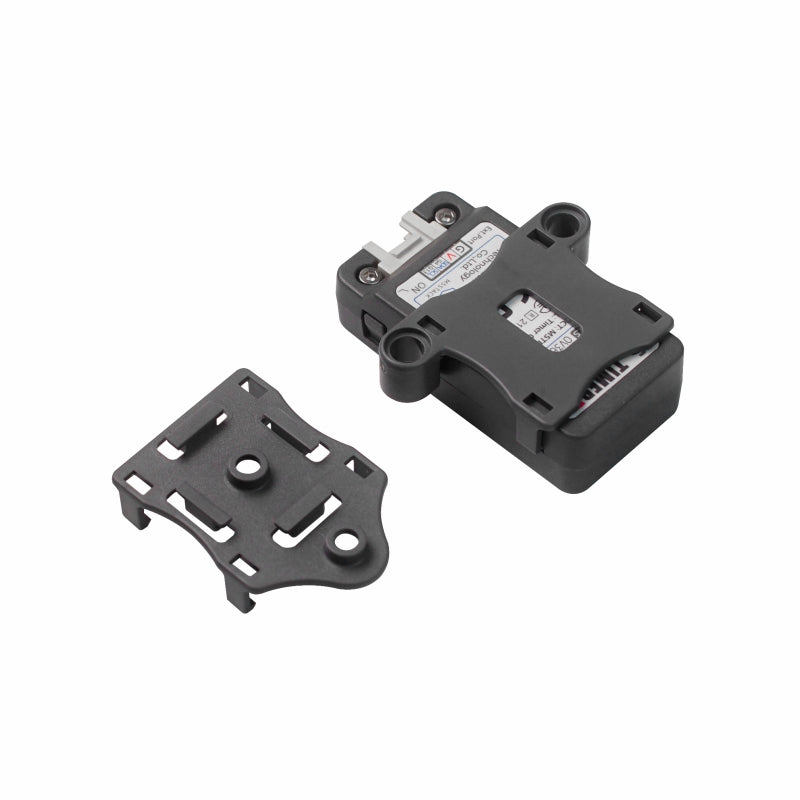

  • 1x LEGO Adapter
  • 1x Wall-1515
  • 1x Type-C USB(20cm)

Applications

  • Take pictures regularly
  • Remote video monitoring

Driver Installation

TimerCAM may not work without drive in some systems. Users can manually install FTDI Driver to fix this problem. Take the win10 environment as an example, download the driver file that matches the operating system, unzip it, and install it through the device manager. (Note: In some system environments, the driver needs to be installed twice for the driver to take effect. The unrecognized device name is usually M5Stack or USB Serial. Windows recommends using the driver file to install directly in the device manager (custom Update), the executable file installation method may not work properly).

Specification

Resources Parameter
PSRAM 8MB
Flash 4M
Image Sensor OV3660
Maximum resolution 3M pixels
Output format 8-/10-Bit RAW, RGB and YCbCr output, compression.
DFOV 66.5°
Battery 140mAh
Net weight 15g
Gross weight 39g
Product Size 48*24*15mm
Package Size 75*45*30mm

LEARN AND DOCUMENTS

  • DOCUMENTS
    • Camera-Tool Camera-Tool Camera-Tool Camera-Tool is suitable for TimerCAM and UnitCAM series products. The GROVE interface needs to be connected to the PC through the TTL-TO-USB adapter board before UnitCAM is used. UIFlow - Media Trans UIFlow - Media Trans UIFlow - Media Trans Use TimerCAM to achieve low-power wake-up shooting function, which requires Wi-Fi connection. The captured pictures will be automatically uploaded to the M5 cloud, and a fixed HTTP interface will be generated through a unique token, and other devices can access through this interface to obtain the latest frame of pictures and the current battery voltage status of the device UIFlow - UART/TIMER UIFlow - UART/TIMER UIFlow - UART/TIMER Use M5CORE type equipment to connect TimerCAM/Unit CAM through GROVE interface to realize command to control the camera UART to transmit images and preview them on the M5CORE screen, or configure the timer shooting upload cloud function (return to fixed HTTP API). TimerFolderPusher TimerFolderPusher TimerFolderPusher This tutorial will show you how to periodically transfer images to a computer shared folder via TimerCAM (based on the SMB file sharing transfer protocol) Arduino Arduino IDE Arduino IDE Arduino IDE environment setup-TimerCAM/UnitCAM Timer Amazon S3 FolderPusher Timer Amazon S3 FolderPusher Timer Amazon S3 FolderPusher This tutorial will show you how to periodically transfer images to Amazon S3 file storage service via TimerCAM M5Camera + Motion sensor M5Camera + Motion sensor M5Camera + Motion sensor M5Camera + Motion sensor. Send image to LINE, Save the image to Google Drive.
