ESP32-H2 Thread/Zigbee Gateway Unit

SKU:U195

Regular price $6.50

10+ In Stock

Shipping calculated at checkout.

Description

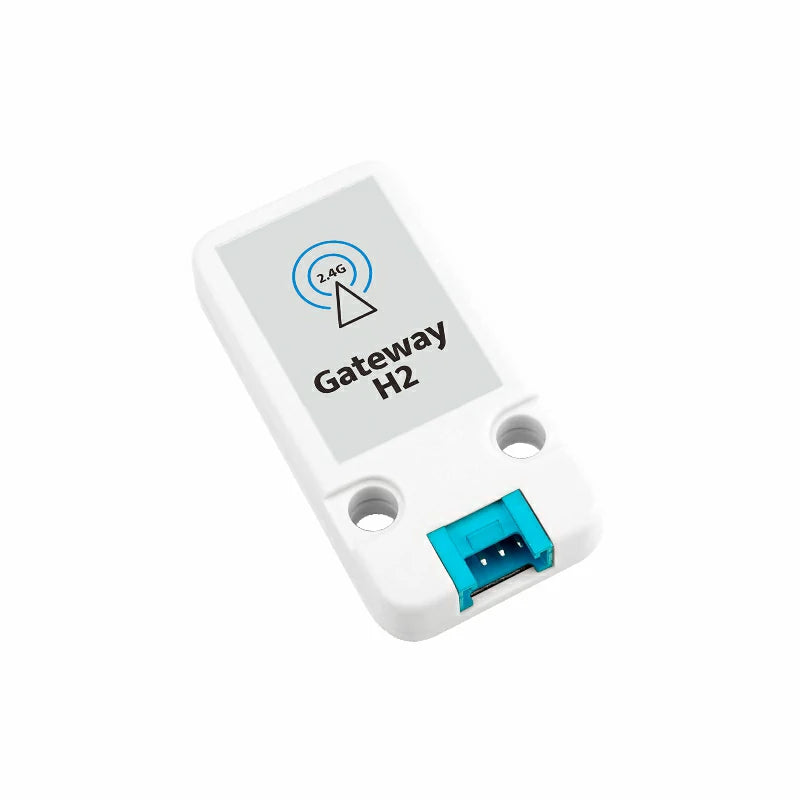

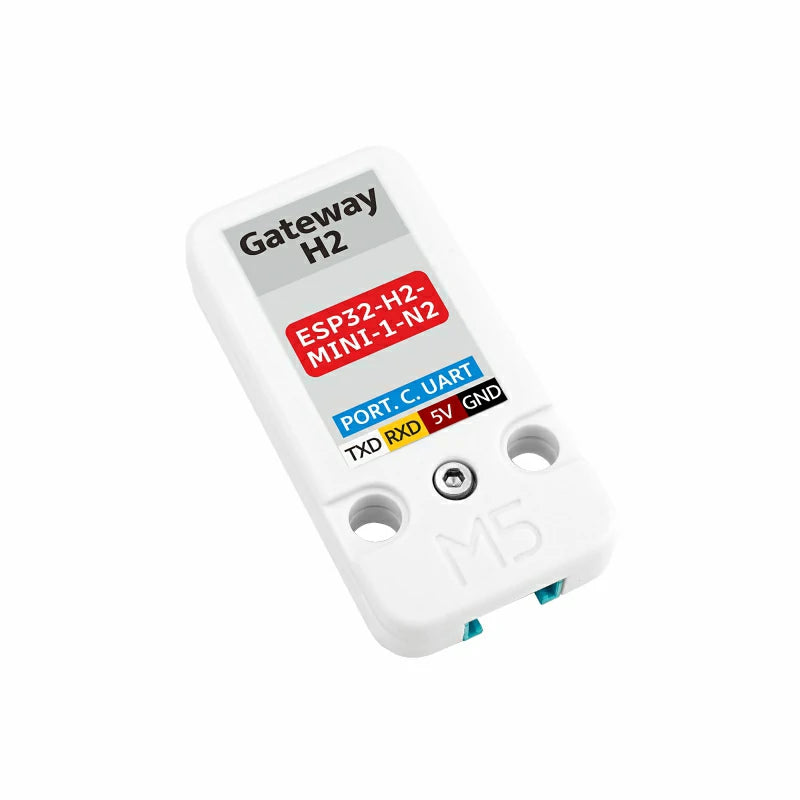

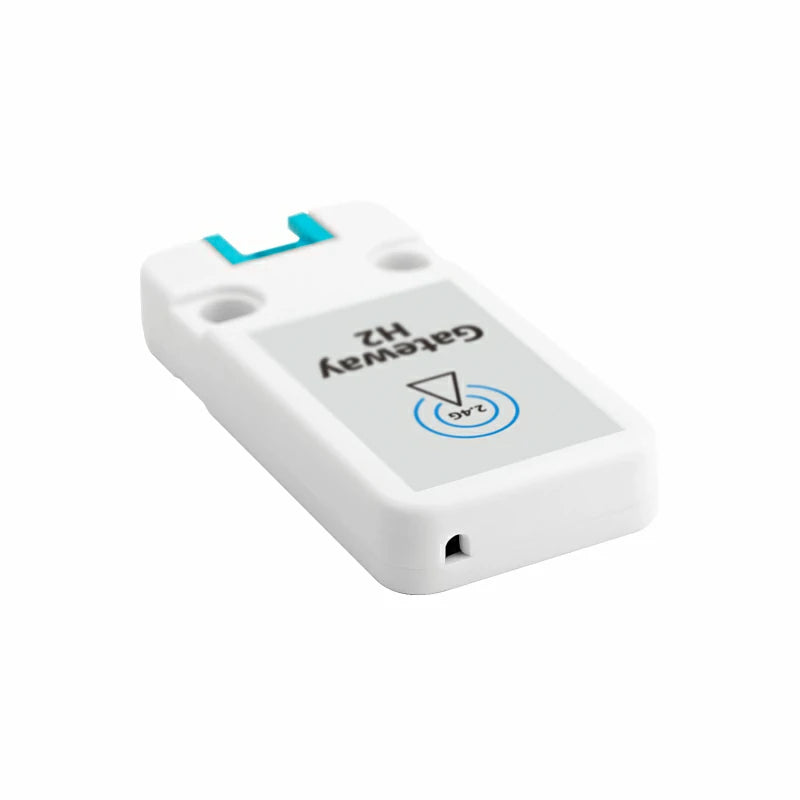

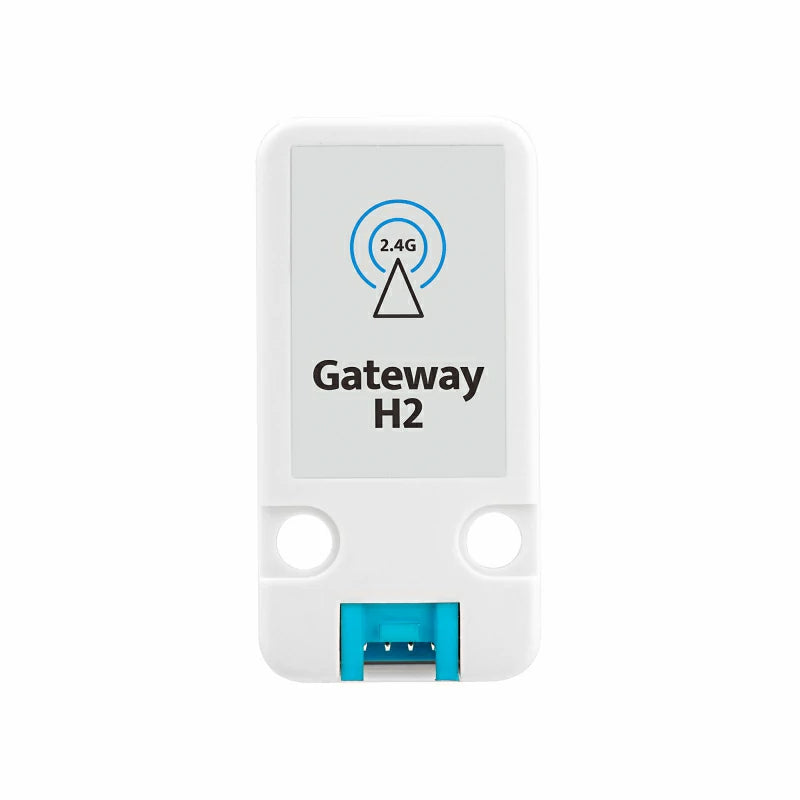

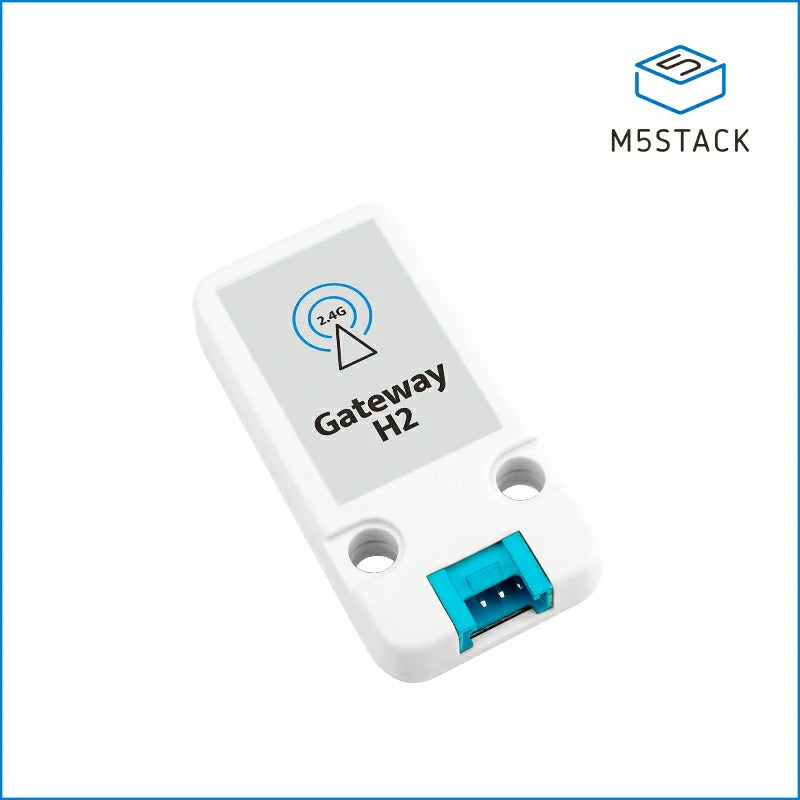

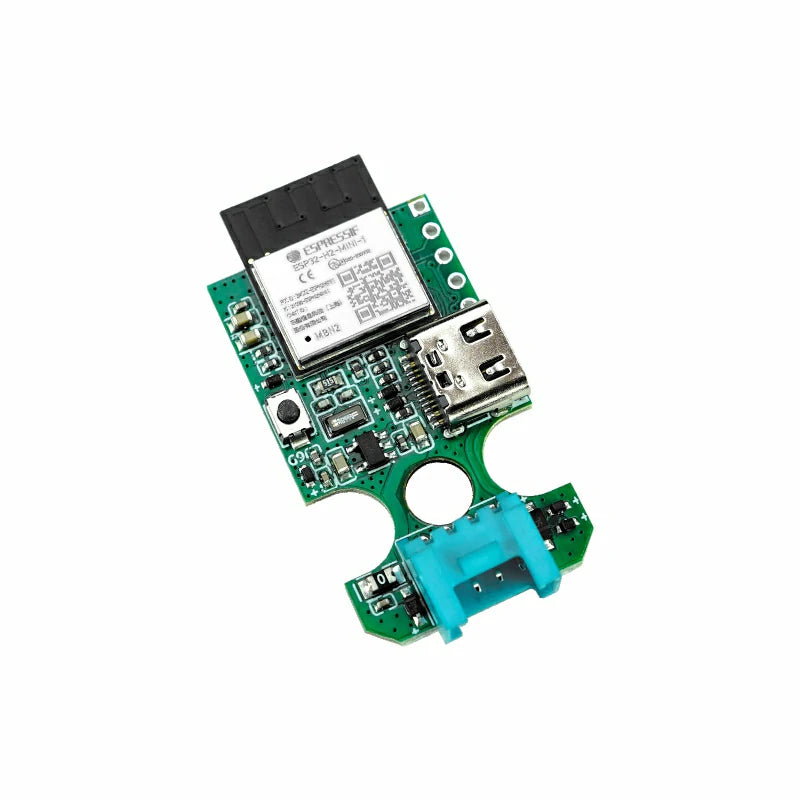

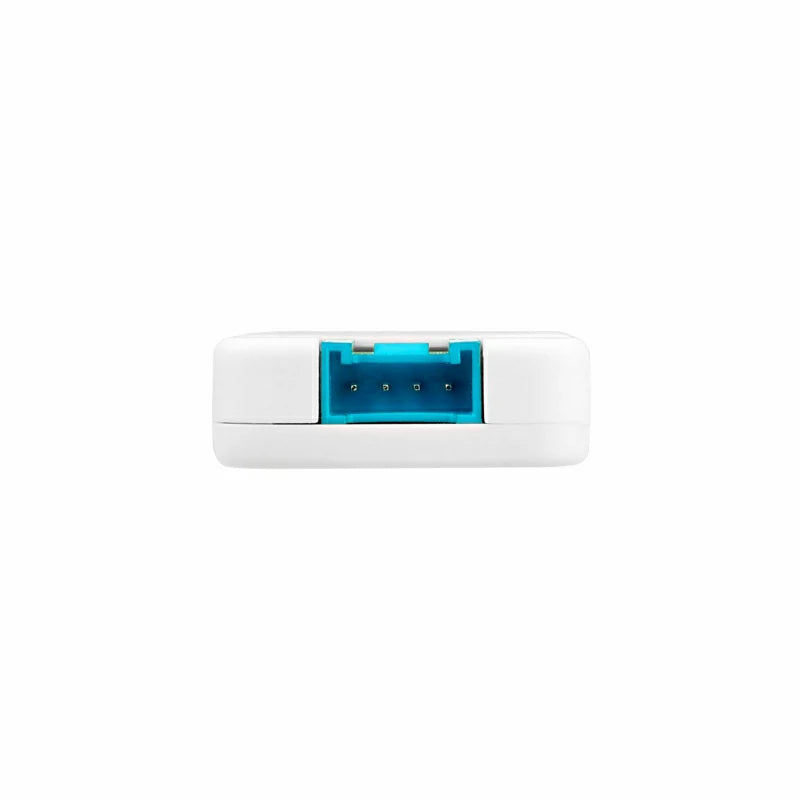

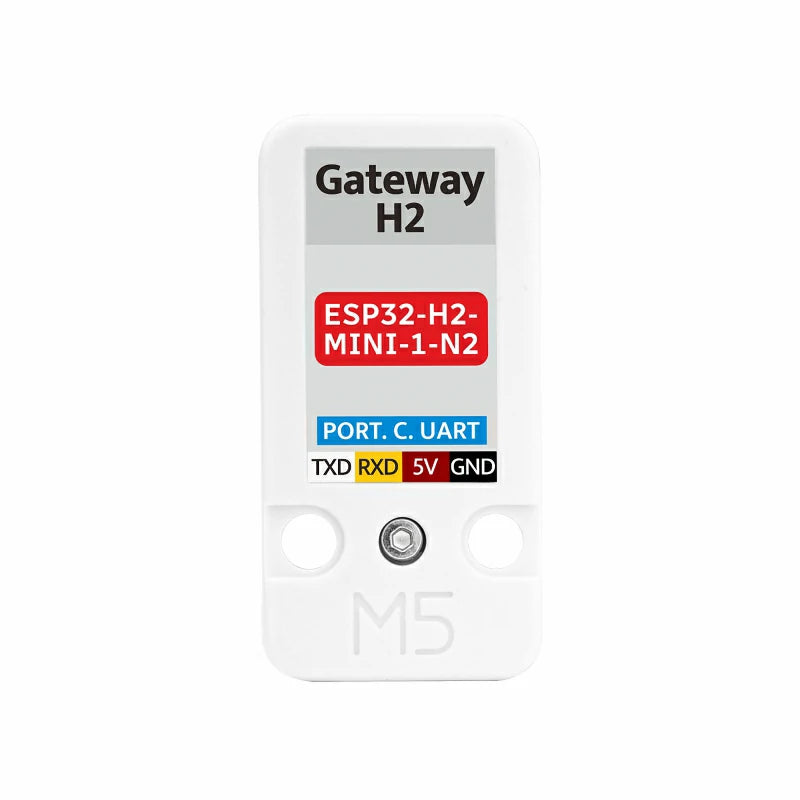

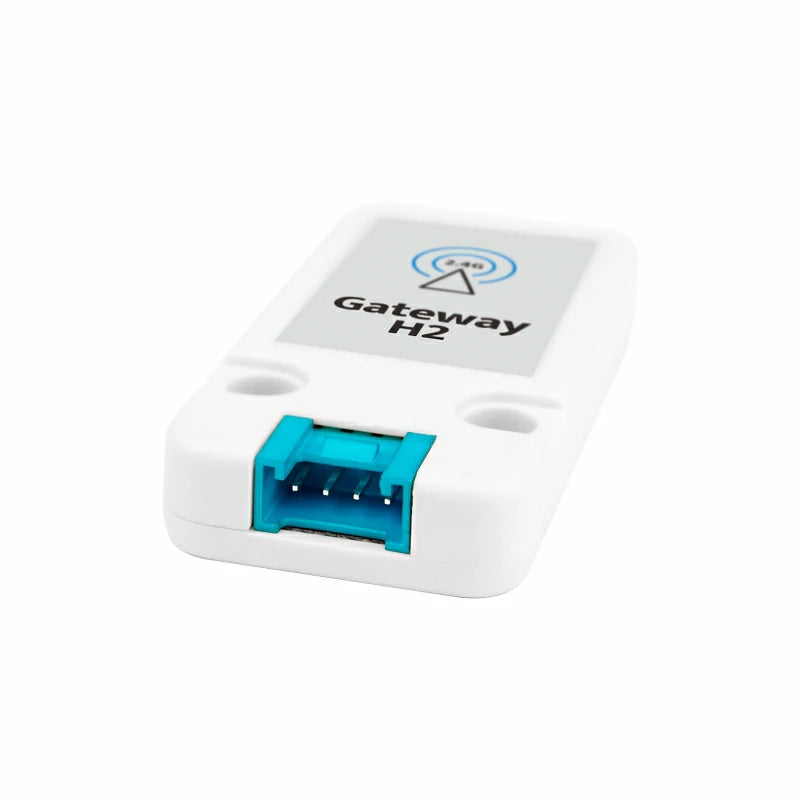

Unit Gateway H2 is an all-new form factor gateway unit built on the ESP32-H2-MINI-1-N2 chip. It features a built-in 32-bit single-core MCU based on the RISC-V architecture and integrates IEEE 802.15.4 wireless communication, supporting ZigBee, Thread, and Thread-based Matter interconnection protocols. In addition, it is equipped with a hardware encryption engine to meet the demands of high-security IoT applications. The product communicates with the M5 series host via serial (UART) through the Grove (Port C) interface to achieve data exchange. Unit Gateway H2 can flexibly serve as a gateway (such as a Thread Border Router) or a terminal device, working with the host to build cross-ecosystem interconnection, or operate independently in IoT applications. Moreover, it reserves a standard program download interface and a Type-C interface for H2 chip firmware burning and debugging. This product is suitable for smart homes, environmental monitoring, sensor networks, and low-power wireless communication nodes in various scenarios.

Features

  • Supports wireless communication protocols such as ZigBee, Thread, and Matter
  • Integrated IEEE 802.15.4 technology
  • UART communication
  • Supports hardware encryption functionality
  • Low power consumption
  • Development platforms:
    • Arduino IDE
    • ESP-IDF

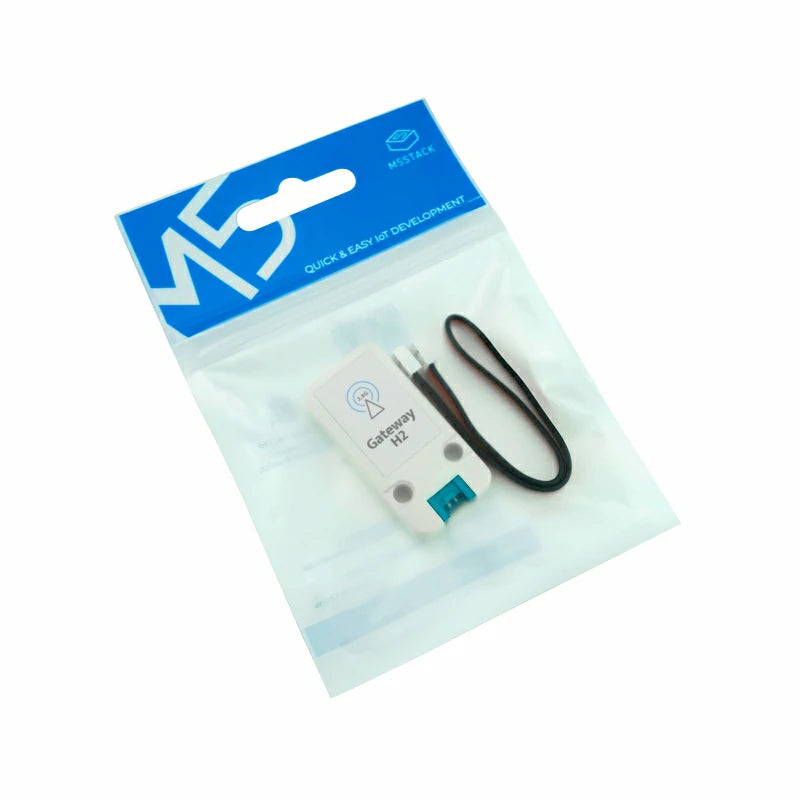

Includes

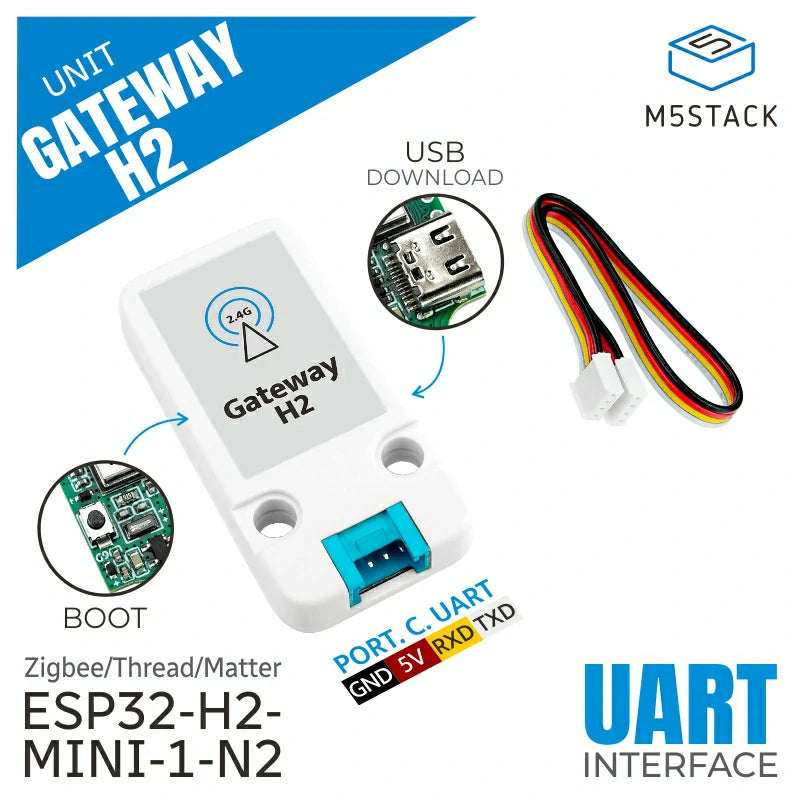

  • 1x Unit Gateway H2
  • 1x HY2.0-4P Grove cable (20cm)

Applications

  • Smart Home
  • Industrial Automation
  • Healthcare
  • Consumer Electronics
  • Smart Agriculture

Specifications

Specification Parameter
SoC Built-in ESP32-H2 chip, RISC-V 32-bit single-core processor, clock up to 96 MHz @IEEE 802.15.4
Flash 2MB
Antenna Module onboard PCB antenna
Supported Protocol IEEE 802.15.4 (including ZigBee 3.0, Thread 1.3, Matter)
Power Consumption Operating current: (Thread networking) DC-5V@26.08mA
Standby current: DC-5V@16.16mA
Sleep current: (powered by Grove interface) DC-5V@92.7uA
Operating Temp. 0-40°C
Product Size 48.0 x 24.0 x 8.0mm
Product Weight 6.9g
Package Size 138.0 x 93.0 x 9.0mm
Package Weight 12.3g
