ESP32-H2 Thread/Zigbee Gateway Module

SKU:M141

Regular price $6.50

Out Of Stock

Shipping calculated at checkout.

Description

Module Gateway H2 is a stackable development module based on the ESP32-H2-MINI-1 module, designed specifically for the M5 series hosts. It features an integrated low-power, 32-bit single-core MCU based on RISC-V and supports wireless communication protocols including Zigbee, Thread, and Matter (based on Thread). The module integrates IEEE 802.15.4 wireless communication functionality, enabling it to work in conjunction with the M5 host to build Matter over Thread endpoint devices and achieve interconnectivity across multiple ecosystems.
In addition, the Module Gateway H2 comes with a built-in hardware encryption engine to meet the high data security requirements of IoT applications. The module is equipped with a DIP switch that allows users to flexibly switch between communication interface modes, and it also provides a standard programming download interface for easy firmware flashing and debugging. With support for multi-module stacking, it is ideal for applications in smart homes, environmental monitoring, sensor networks, and low-power wireless communication nodes, helping developers quickly prototype and develop products.

Product Features

  • Support for wireless communication protocols such as Zigbee, Thread, and Matter
  • Integrated IEEE 802.15.4 technology
  • DIP switch configuration
  • Supports hardware encryption functionality
  • Stackable expansion
  • Low power consumption
  • Development Platforms:
    • UIFlow 2.0
    • Arduino IDE

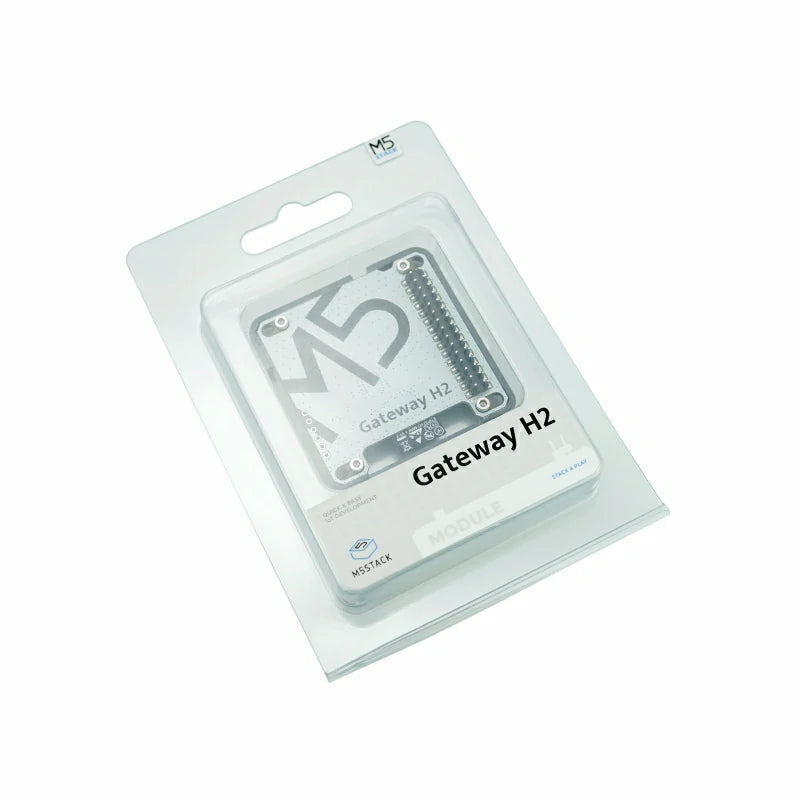

Includes

  • 1x Module Gateway H2

Applications

  • Smart Home
  • Industrial Automation
  • Healthcare
  • Consumer Electronics
  • Smart Agriculture

Specifications

Specification Parameter
SoC Built-in ESP32-H2 chip, 32-bit single-core RISC-V processor, clock speed up to 96 MHz @IEEE 802.15.4
Flash 2MB
Antenna On-board PCB antenna
Supported Protocols IEEE 802.15.4 (including Zigbee 3.0, Thread 1.3, Matter)
Power Consumption Standby current: DC 3.3V/8.55mA
Working current (Thread networking): DC 3.3V/18.35mA
DIP Switch 8-position DIP switch for interface switching (UART/SPI) and wireless function control
Operating Temperature 0-40°C

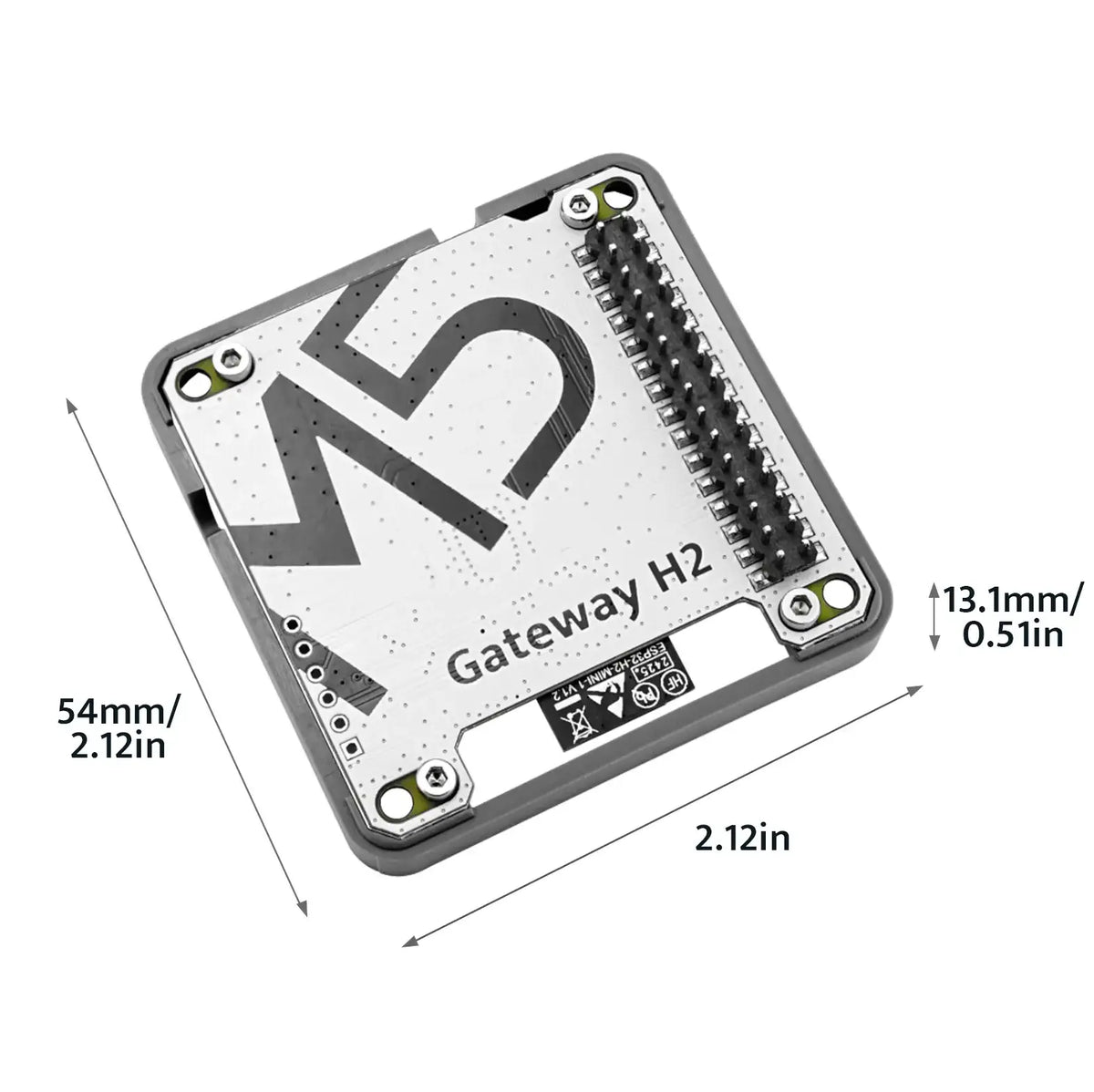

Product Size 54.0 x 54.0 x 13.1mm
Product Weight 11.8g
Package Size 133.0 x 95.0 x 16.0mm
Package Weight 25.1g
