ESP32 Basic Core loT Development Kit V2.7

SKU:K001-V27

Regular price $39.90

10+ In Stock

Shipping calculated at checkout.

Description

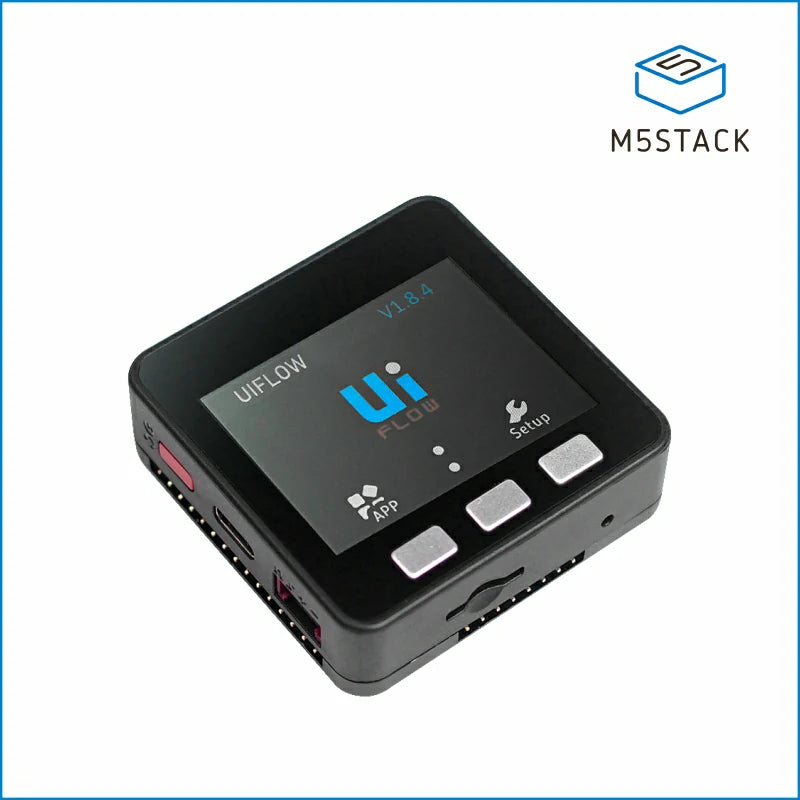

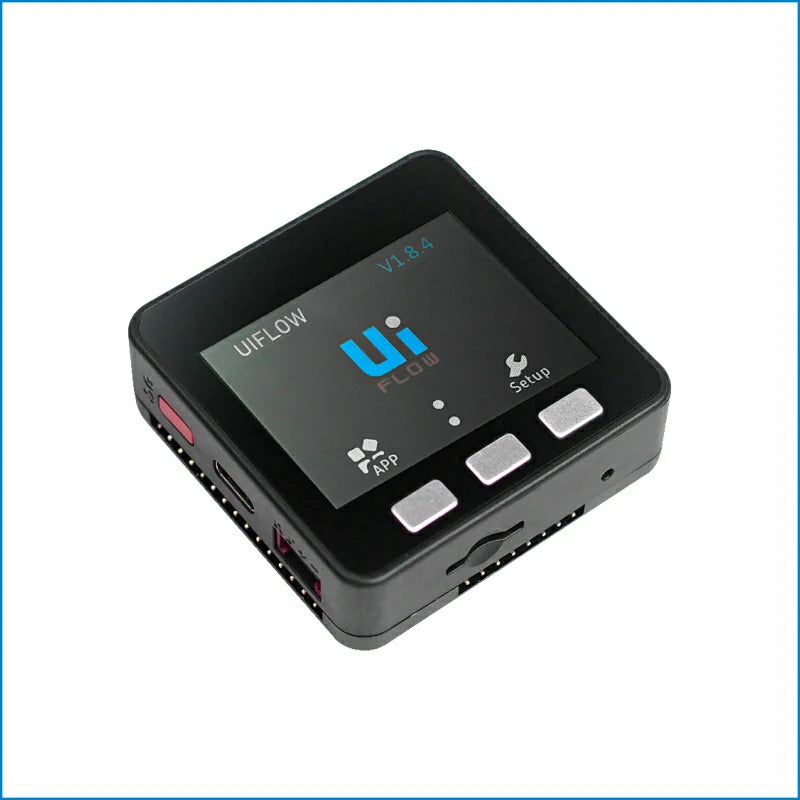

BASIC is a cost-effective entry-level main controller for IoT applications. Powered by the Espressif ESP32 chipset, BASIC features two low-power Xtensa® 32-bit LX6 microprocessors with a main frequency of up to 240MHz. It comes equipped with 16M FLASH memory and a range of integrated peripherals, including a 2.0-inch full-color HD IPS display panel, speaker, TFCard slot, and more.

Designed with a full-coverage housing, BASIC ensures reliable circuit stability, even in complex industrial environments. It offers a variety of interface resources, such as ADC, DAC, I2C, UART, SPI, and 15x IO pins at the bottom, providing extensive development possibilities. Whether you're working on product prototyping, industrial control, or intelligent building applications, BASIC offers an ideal solution.

Experience the convenience of BASIC's low-code development environment. It supports UIFlow, a graphical programming platform that eliminates the need for scripting and enables seamless cloud integration. BASIC is also fully compatible with popular development platforms like Arduino and ESP32-IDF. Additionally, it supports FreeRTOS, allowing efficient multitasking and program optimization.

With its 2.0-inch IPS display panel, built-in speaker, and TFCard slot, BASIC offers high integration for a compact and versatile solution. It includes a built-in lithium battery with integrated power management and supports the TypeC interface for convenient connectivity. The RF circuit is finely tuned to ensure stable and reliable wireless communication. Furthermore, BASIC provides expandability through its 15x IO pins, enabling easy integration with M5Stack's hardware and software ecosystem.

Power on/off operation:
Power on: Click the red power button on the left
Shutdown: Quickly double-click the red power button on the left
*USB power supply *: By default, when USB is powered, it cannot be shut down

Product Features

      • Based on ESP32 development
      • 16M FLASH
      • Integrated full-color high-definition IPS display panel and a variety of hardware peripherals
      • Rich resources interface, compatible with M5Stack stacking modules and sensors, highly expandable.

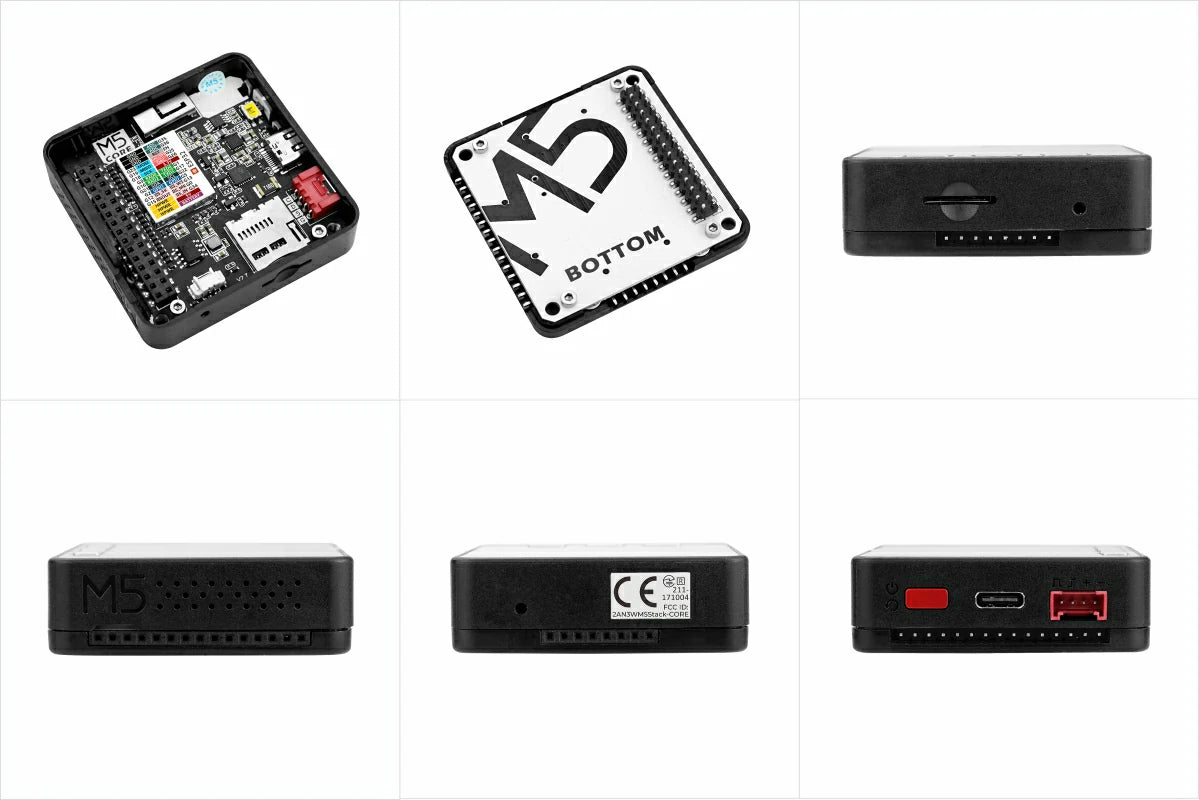

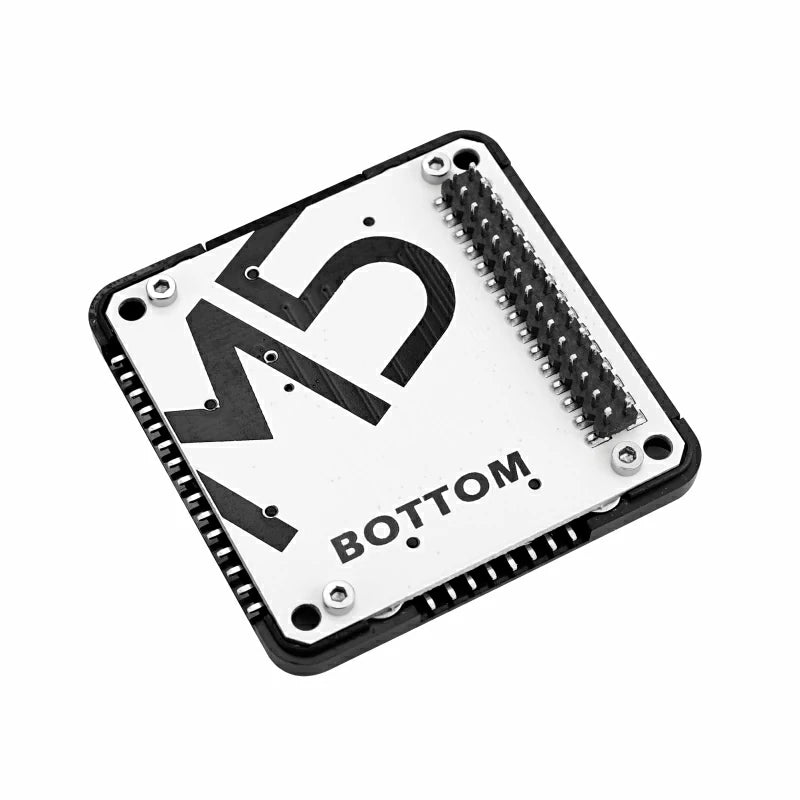

      • Use M5CORE BOTTOM base built-in lithium battery, 15x IO leads.
      • Compatible with multi-platform development:

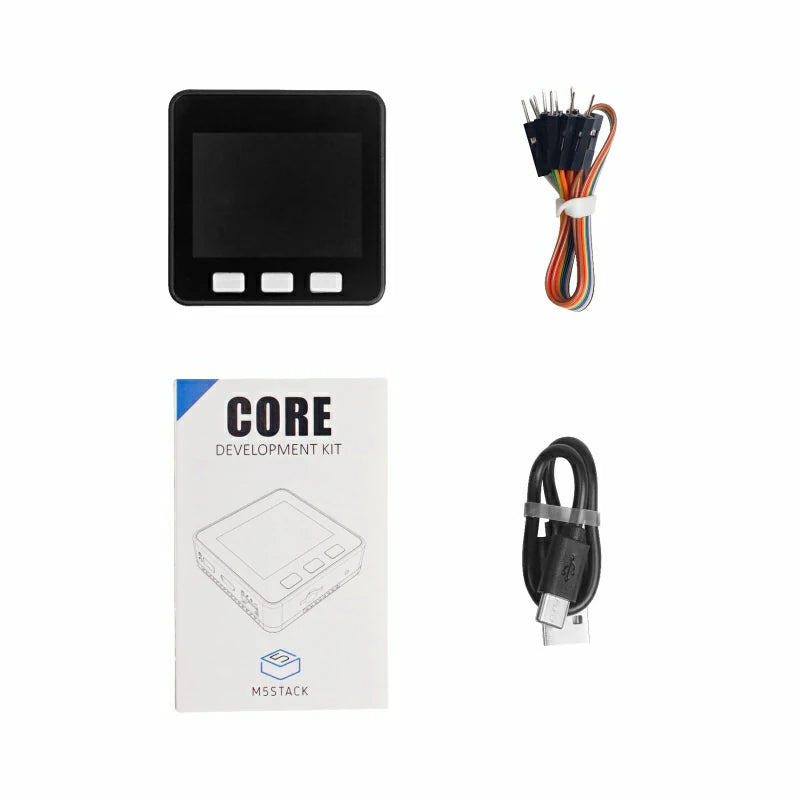

Included

      • 1x BASIC
      • 10x Dupont line
      • 1x Type-C USB(20cm)
      • 1x manual
      • 1x sticker

Application

      • IoT Controller
      • DIY creator works
      • Smart home control

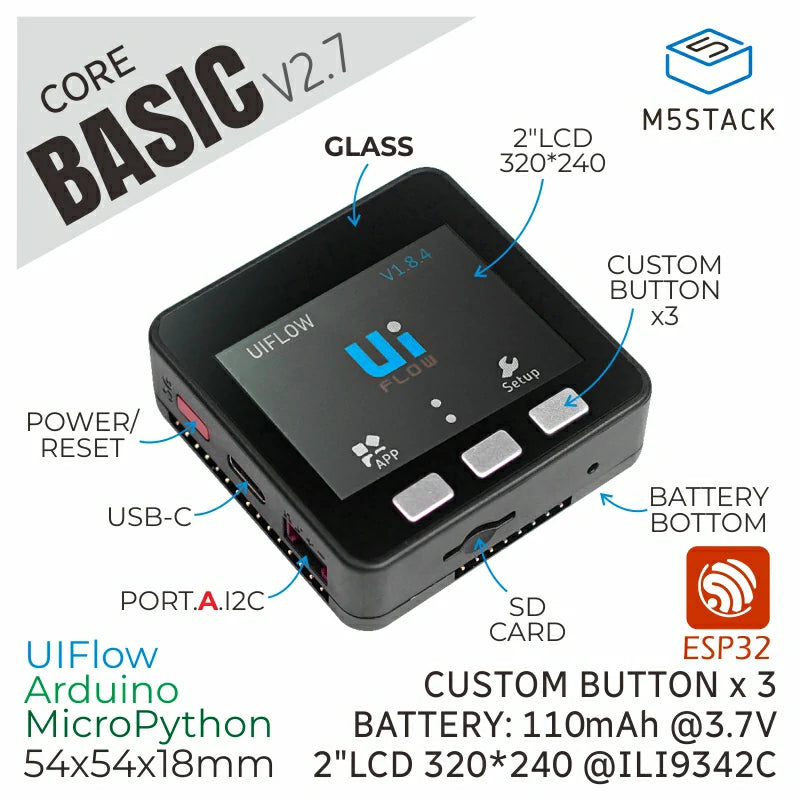

Specifications

Specifications Parameters
ESP32-D0WDQ6-V3 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash 16MB
Input power 5V @ 500mA
Interface TypeC x1, I2C x1

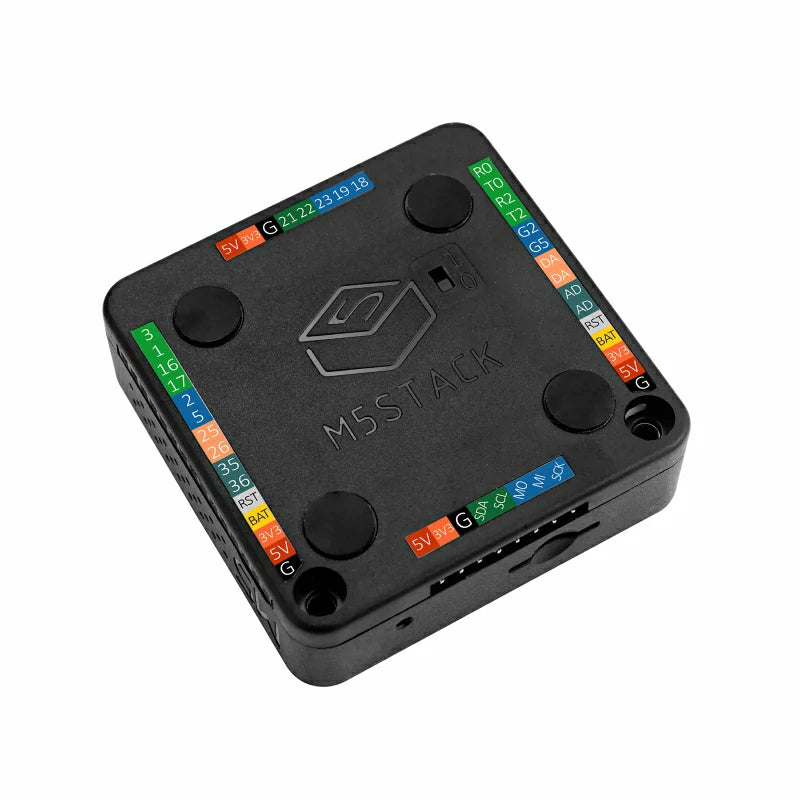

IO G21, G22, G23, G19, G18, G3, G1, G16, G17, G2, G5, G25, G26, G35, G36
Button Physical button x 3
LCD screen 2.0"@320*240 ILI9342C IPS panel, maximum brightness 853nit
Speaker 1W-0928
USB chip CH9102F
Antenna 2.4G 3D Antenna
Battery 110mAh @ 3.7V
Net weight 47.2g
Gross weight 93g

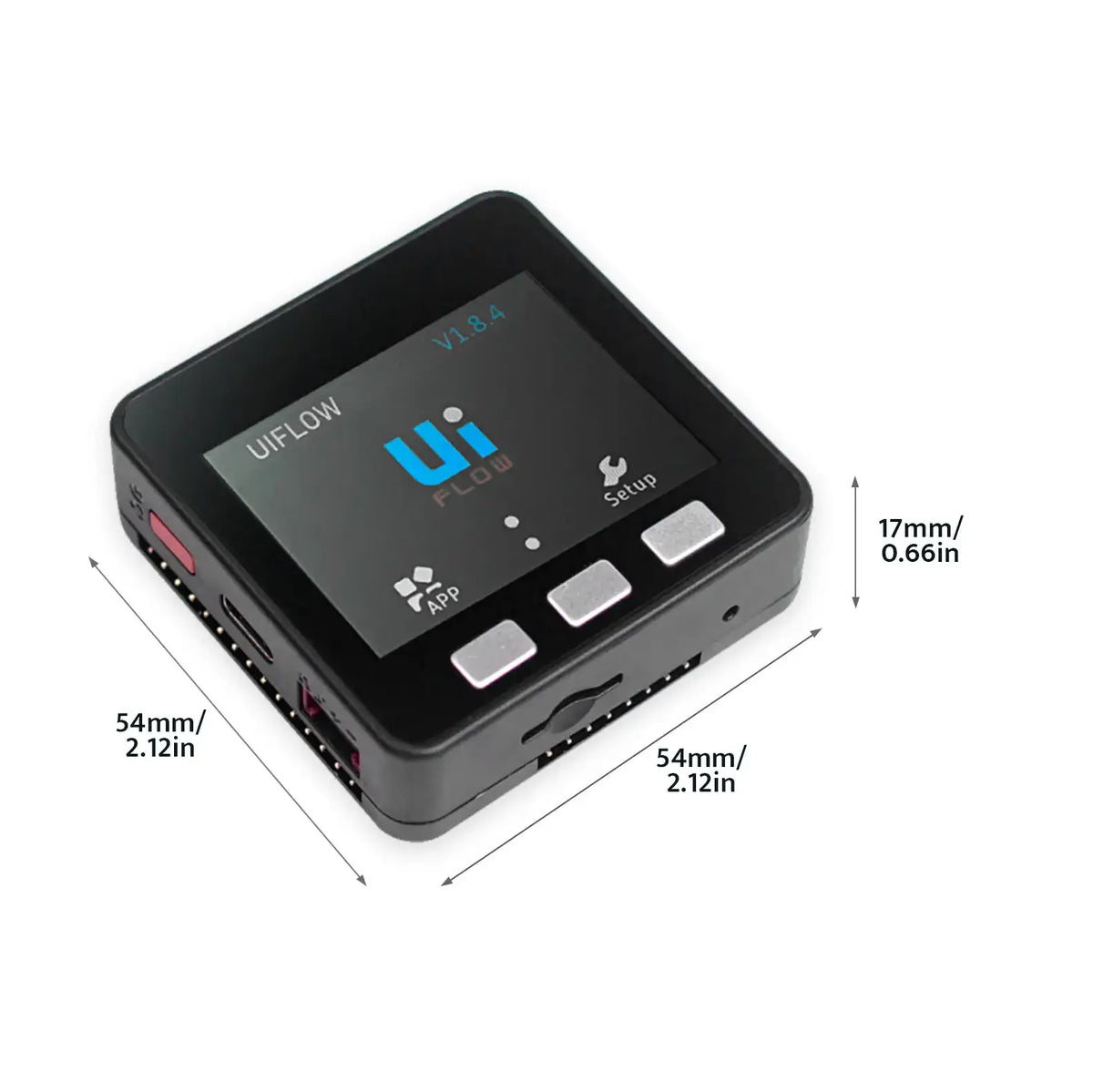

Product size 54mm x 54mm x 18mm
Packing size 95 x 65 x 25mm
Cover Material Plastic ( PC )

LEARN AND DOCUMENTS

  • DOCUMENTS
  • Customer Reviews

    Based on 4 reviews
    75%
    (3)
    0%
    (0)
    0%
    (0)
    25%
    (1)
    0%
    (0)
    j
    james vansickle
    Great device!

    Bought this to upgrade a tool I use at work. It is working as expected when the programming was done.

    A
    Anonymous
    Topp IOT Platform

    Everything simply worked after unpacking! Thanks a lot for the great kit!

    L
    Luisa Pineda Micasillero

    excellent productos, good quality

    R
    Romain Terranova
    Too much noises dued to the buck power supply and the speaker

    In low-power situations (on battery or 5v usb) the buck converter (or any power converter you used) makes noises around 1800Hz (disturbing to hear during long period of time).
    The frequency and the intensity varies depending on the load. It happens when the ESP32 goes into light sleep or deep sleep.
    Moreover the speaker is always active, you cannot disable it via software.
    Finally, we cannot know if the battery is disconnected or not (there is a switch at the back).

    Which one of your M5 core products doesn't have these issues ? Did you use a linear regulator in one of them (it doesn't make audible noise) ? Can the core 2 or core S3 disable their speaker ?

    Otherwise it is a good product, I enjoyed it !
    Have a very nice day ;)
