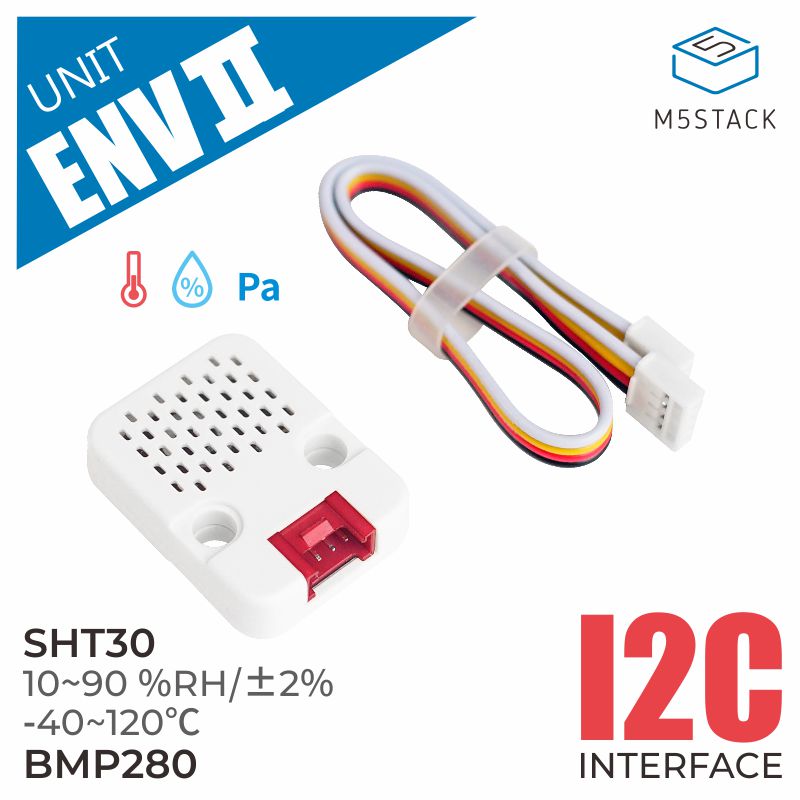

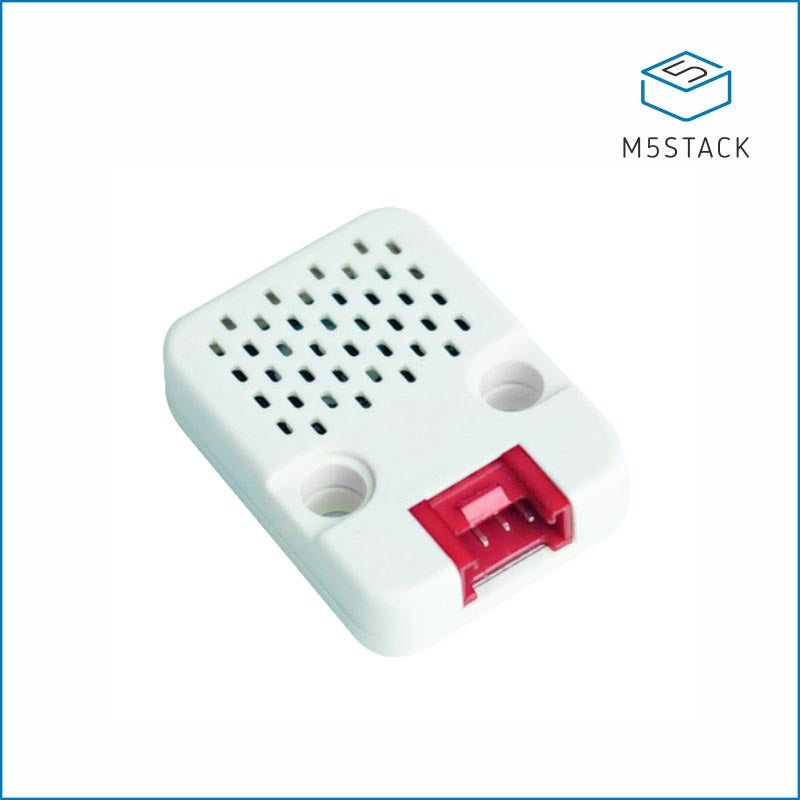

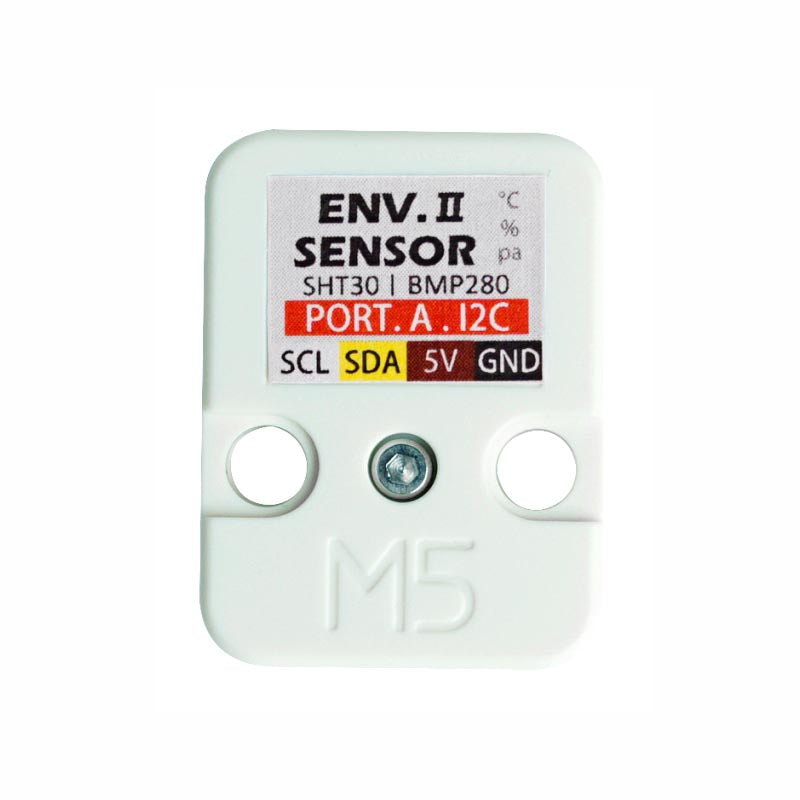

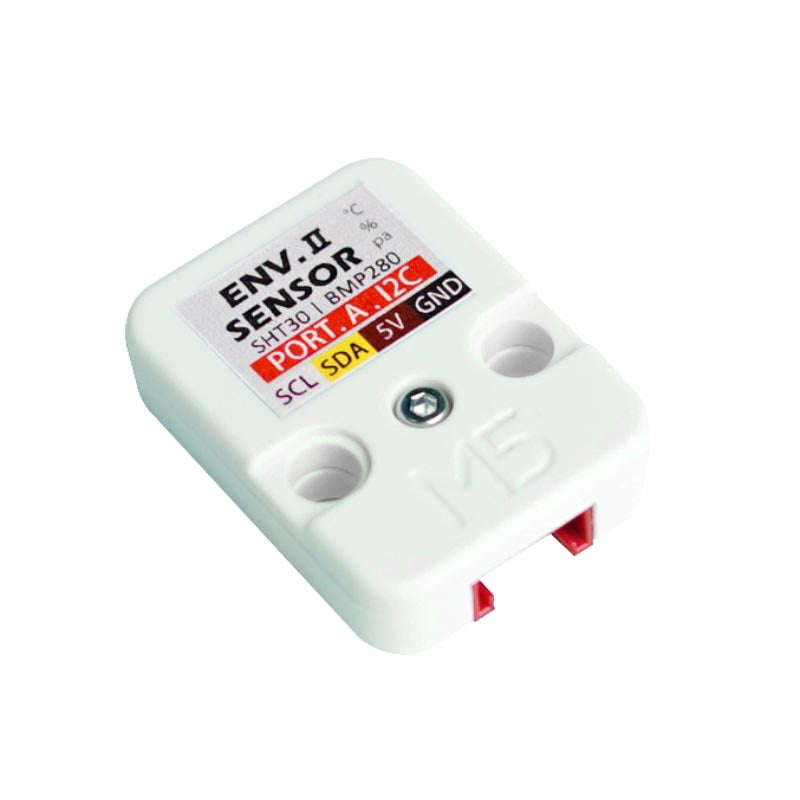

ENV II Unit with Temperature Humidity Environment Sensor (SHT30+BMP280)

SKU:U001-B

Regular price $6.95
Shipping calculated at checkout.

EOL

Description

ENV II is an environmental sensor which can sense temperature, humidity and atmospheric pressure. It integrates the SHT30 and BMP280 sensors and is programmed over the I2C protocol(SHT30:0x44, BMP280:0x76).

SHT30 is a digital temperature and humidity sensor with high precision and low power consumption.

BMP280 is an absolute barometric pressure sensor which is especially designed for mobile applications. It offers the highest flexibility to optimize the device regarding power consumption, resolution and filter performance.

This product is EOL now, we've released the updated version ENV III Unit with Temperature Humidity Air Pressure Sensor (SHT30+QMP6988) which is fully compatible with this product.

Product Features

  • High-precision
  • Support I2C
  • GROVE interface, support UIFlow and Arduino
  • Two Lego installation holes

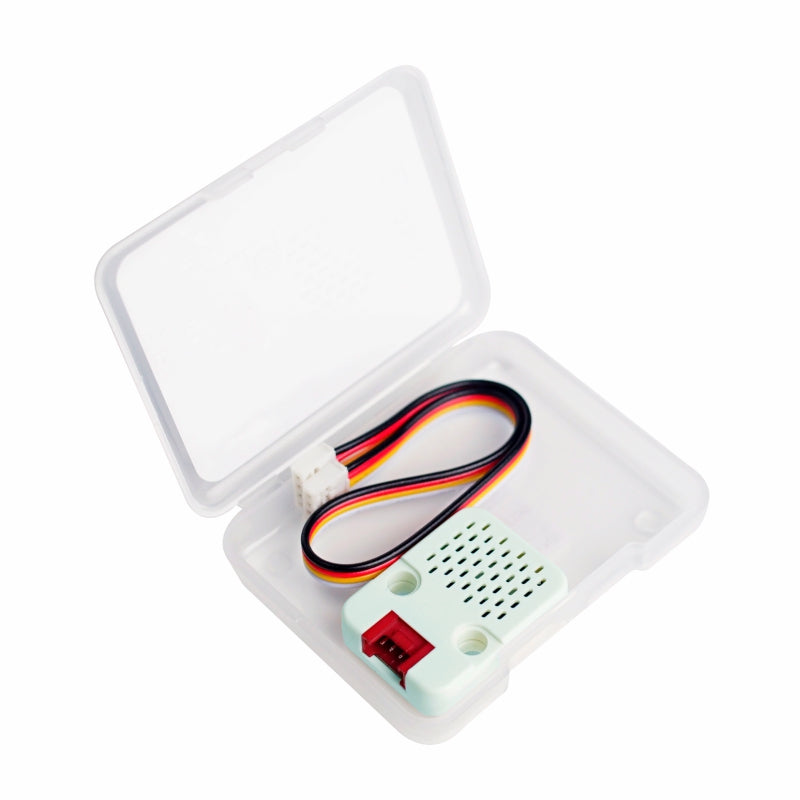

Includes

  • 1x ENV II Unit
  • 1x Grove Cable

Specification

Specification Parameter
Max temperature measuring range -40 ~ 120 ℃
Typical temperature tolerance 0 ~ 60 ℃/±0.2℃
Humidity measuring range 10 ~ 90 %RH / ±2%
Air pressure measuring range 300 ~ 1100hPa / ±1hPa
Communication protocol I2C:SHT30(0x44),BMP280(0x76)
Operating temperature range 0°C to 60°C
Net weight 5g
Gross weight 17g
Product Size 24.2*32.2*8.1mm
Package Size 67*53*12mm
Case material Plastic ( PC )
