This product is EOL.
Description

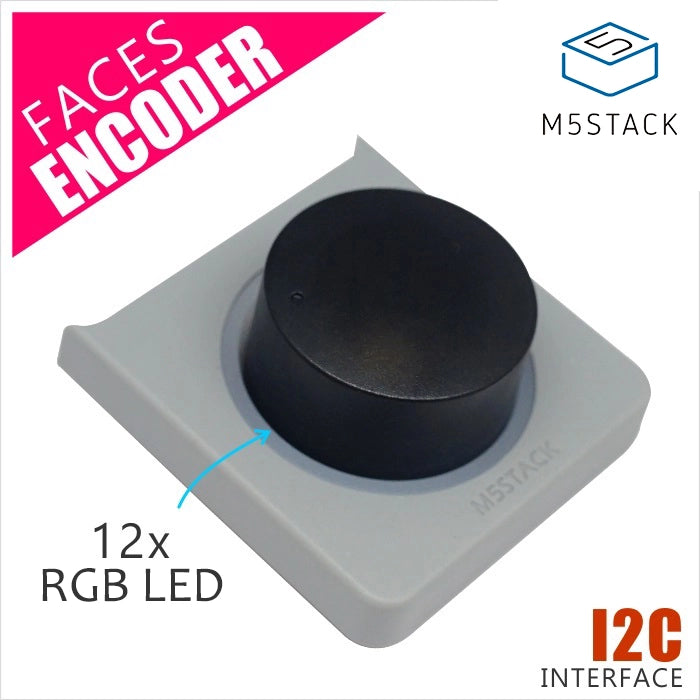

Faces Encoder is a knob control panel compatible with the FACE kit. Designed specifically for rotary encoder control, it integrates a Mega328 microprocessor internally and features a ring of 12 LEDs around the knob. The serial communication protocol between M5Core and Faces Encoder is I2C (address: 0x5E).
Features
- RGB LED display
- I2C communication
- Simple API interface
- Built-in Mega328
- Encoder detection
Includes
- 1 x Faces Encoder
Specifications
| Specification | Parameter |
|---|---|
| RGB LED | x12 |
| Interface | I2C @0x5E |
| Material | Plastic (PC) |
| Product Size | 58.2 x 54.2 x 28.0mm |
| Product Weight | 27.0g |
| Package Size | 95.0 x 65.0 x 25.0mm |
| Gross Weight | 47.0g |
