Encoder Panel For FACES Kit (Mega328)

SKU:A006

$7.95

EOL

Shipping calculated at checkout.

Description

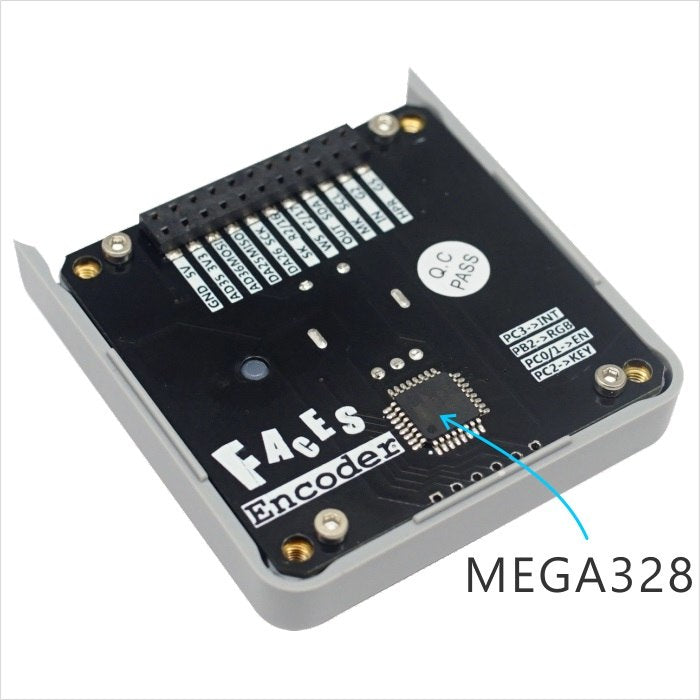

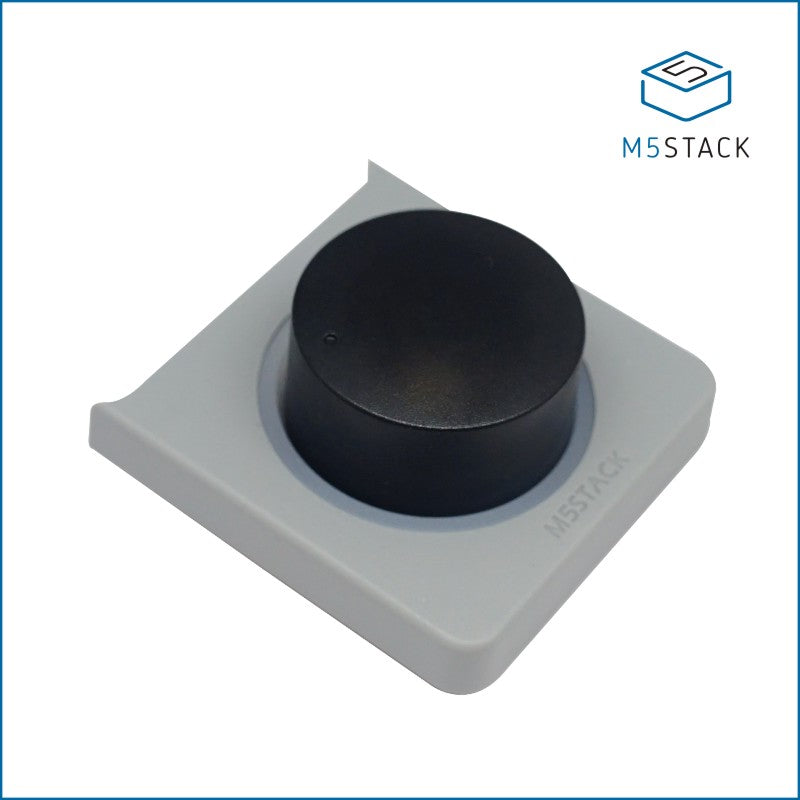

ENCODER is compatible with FACE Kit. You can have it replace the key-card panel inside the FACE kit. It is designed for rotary encoder control, integrated Mega328 microprocessor inside and LEDs around the encoder.

The series communication protocol between M5 core and ENCODER is I2C (The default I2c address is: 0x5E)

This product is EOL now.

Product Features

  • 12 RGB Led
  • I2C communication
  • Simple API for programming
  • Mega328 inside
  • Encoder detection

Include

  • 1x M5Stack ENCODER Module

Specification

Resources Parameter
RGB LED x12
Net weight 27g
Gross weight 47g
Product Size 58.2*54.2*28mm
Package Size 95*65*25mm
Material Plastic(PC)
