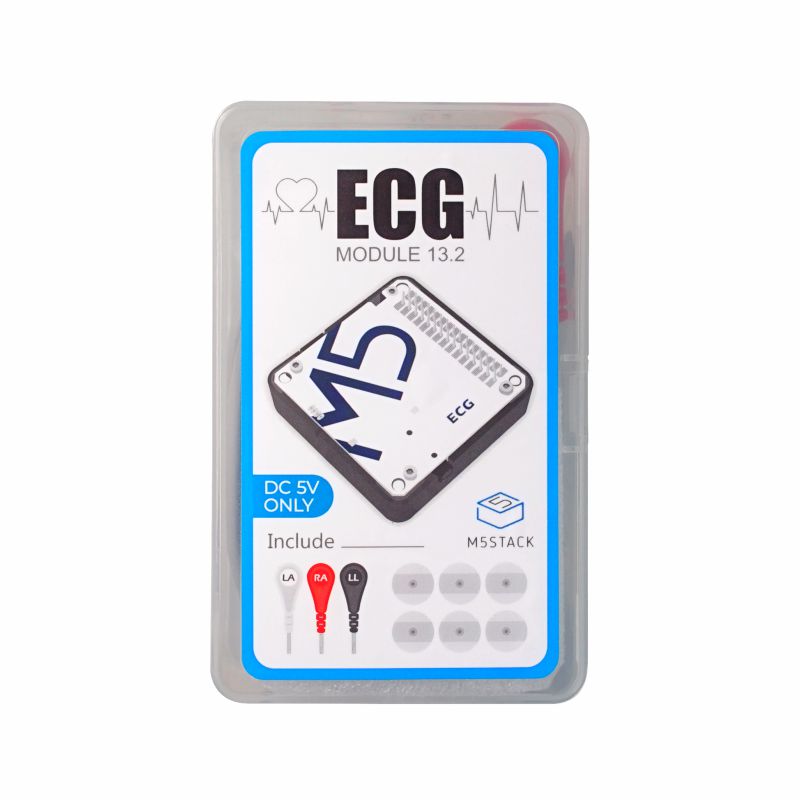

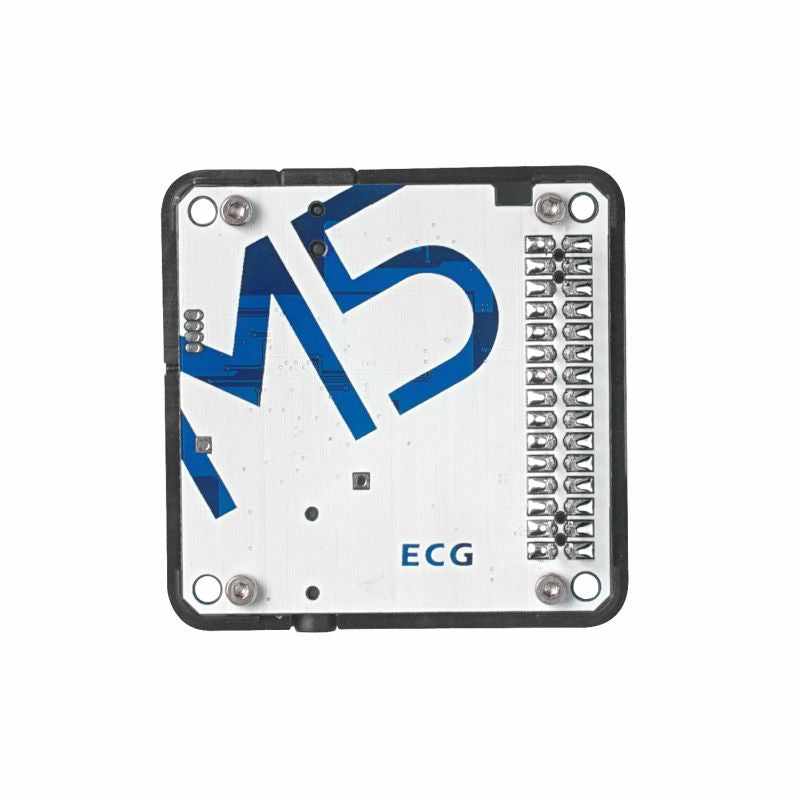

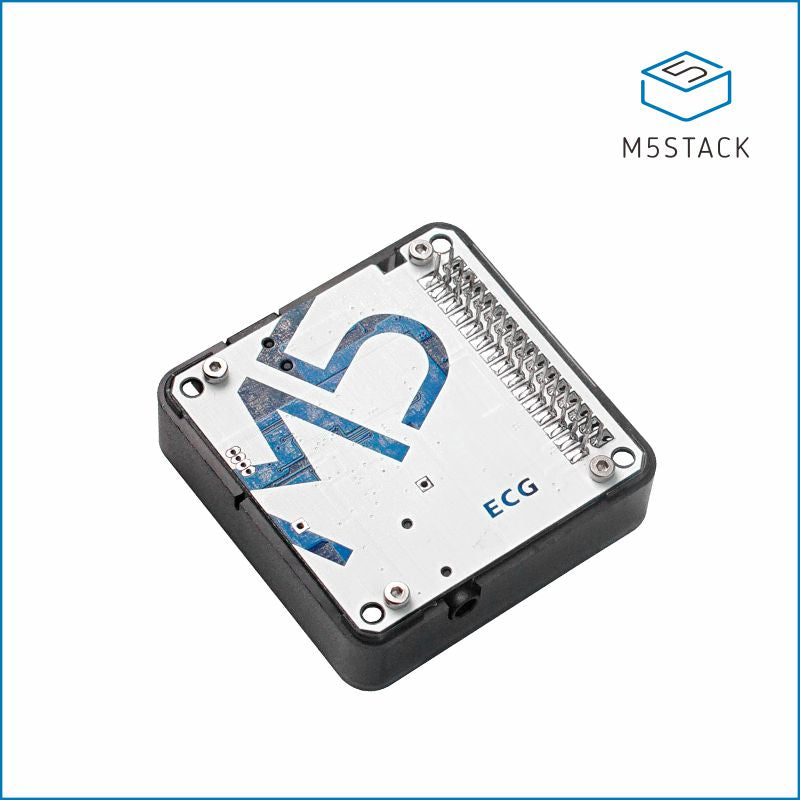

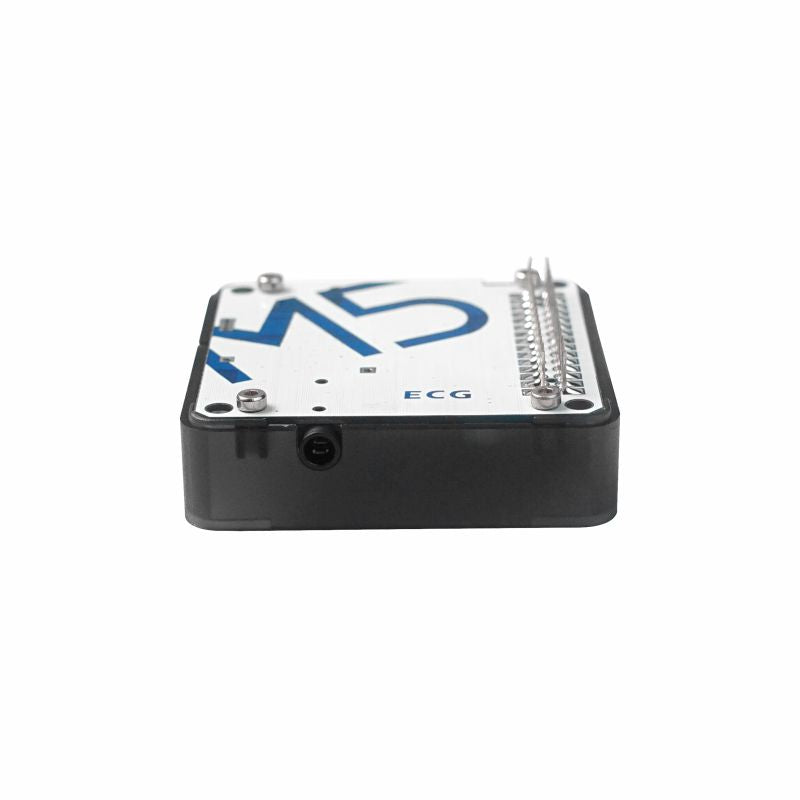

ECG Module13.2 (AD8232) with cables and pads


Regular price $45.90
Shipping calculated at checkout.

10+ In Stock


ECG is a heart rate monitor (electrocardiogram) unit,it can detect the heart rate and output a cardiogram signal. Electrocardiogram (ECG) is a technology that uses an electrocardiograph to record the changes in the electrical activity of the heart during each cardiac cycle.

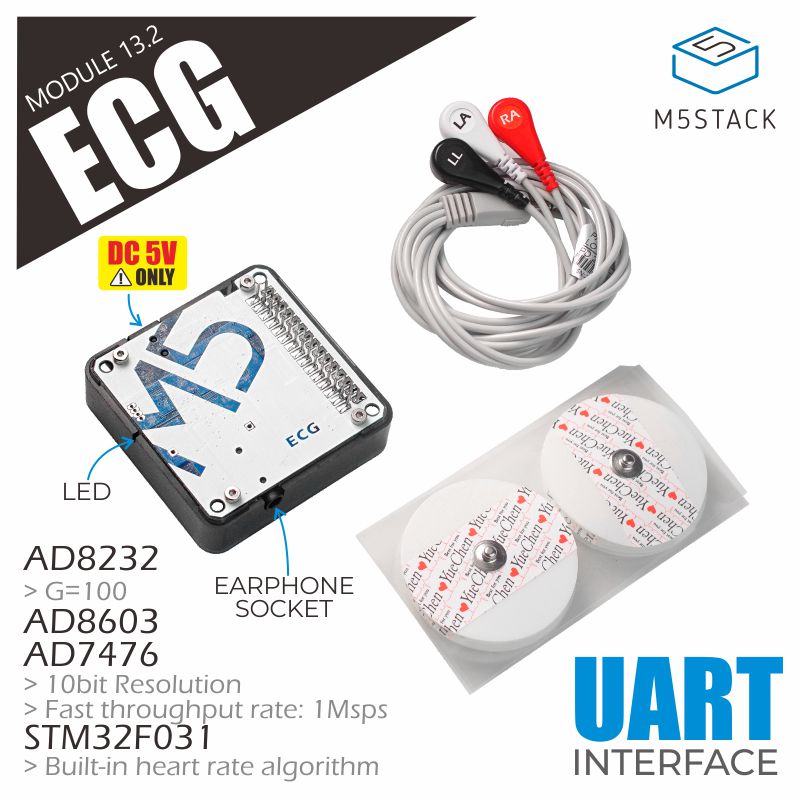

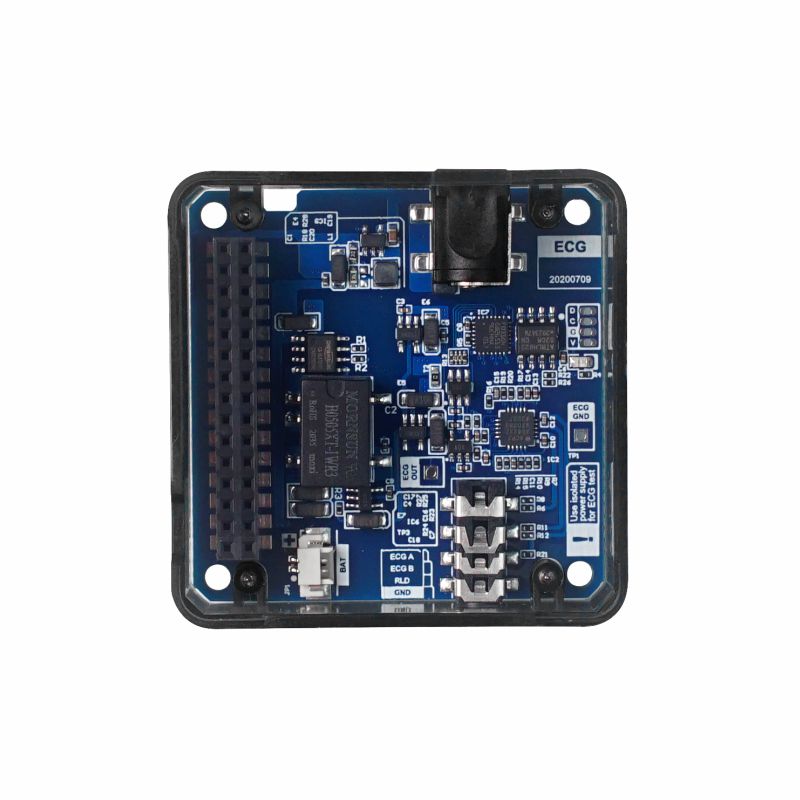

At the signal acquisition end, this ECG module integrates the AD8232 single-lead heart rate monitoring at the front end, the collected ECG signal is processed by the AD8603 low-pass filter, and the 10bit-ADC (AD7476) performs analog/digital signal input to STM32 (built-in heart rate statistics) Algorithm) for signal analysis.

Finally, the processing results are output in the form of serial communication to facilitate the acquisition and display of the main control device. In terms of signal output, it adopts front-end/digital full isolation design to enhance equipment stability and safety.

Caution: This product only allows the use of 5V power input. Please strictly abide by the power input standard when using this product to avoid damage to the equipment or injury.

Product Features

  • ADI front end integration (high signal gain G=100, with DC blocking capability)
  • Serial Data input
  • Heart Rate Statistics monitoring
  • Front end/digital fully isolated design
  • Ultra Precision Op Amp

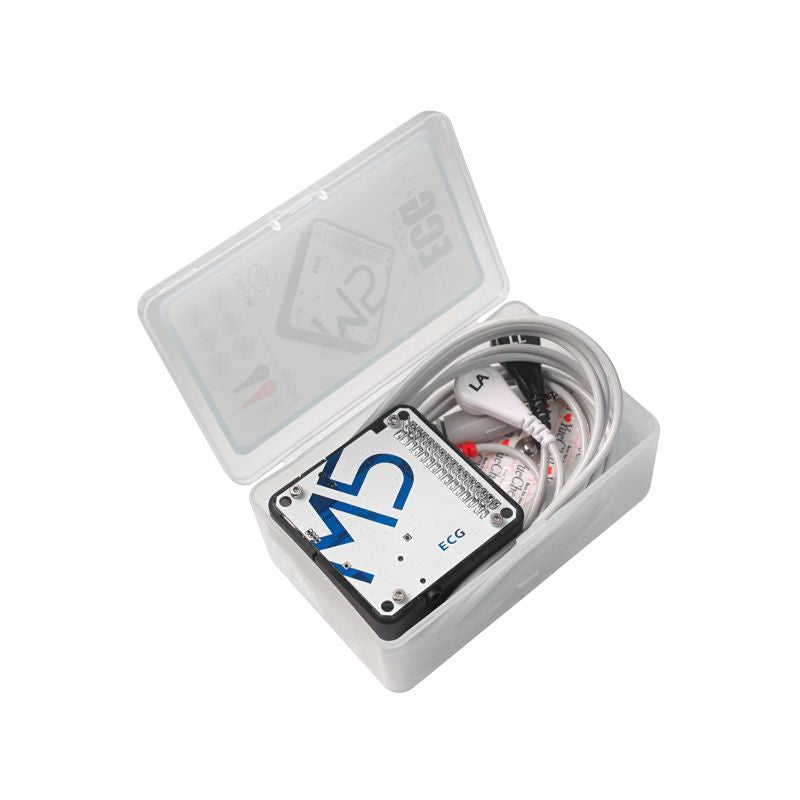

  • 1x ECG Module
  • 3x ECG electrodes
  • 6x Adhesive Pads


  • Bioelectric signal acquisition
  • Portable ECG
  • Exercise Tracker


Resources Parameter
Commuincation Method UART 115200bps
AD8232 High signal gain G=100 | With DC blocking capability | Common mode rejection ratio: 80 dB (DC to 60 Hz)
AD7476 10bit-ADC | SPI Interface | Fast throughput rate: 1 MSPS | vref 2.8v
Net weight 18g
Gross weight 101g
Product Dimension 54*54*13.2mm
Package Dimension 105*65*40mm
