DMX-Base is a functional base specially designed for
DMX-512 data transmission scenarios, communicating and enabling control with
M5 host through
serial port, equipped with

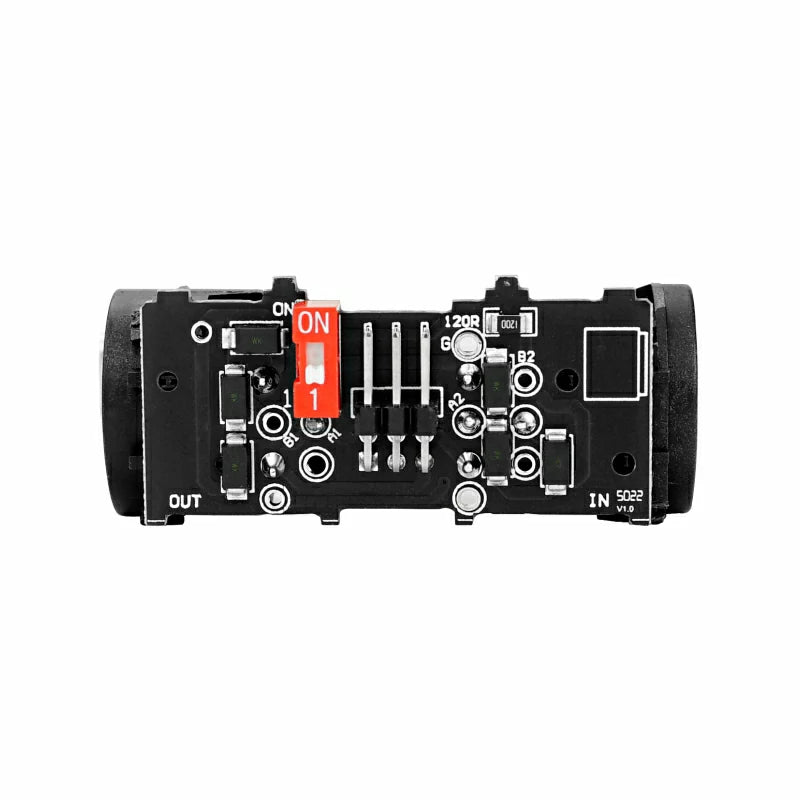

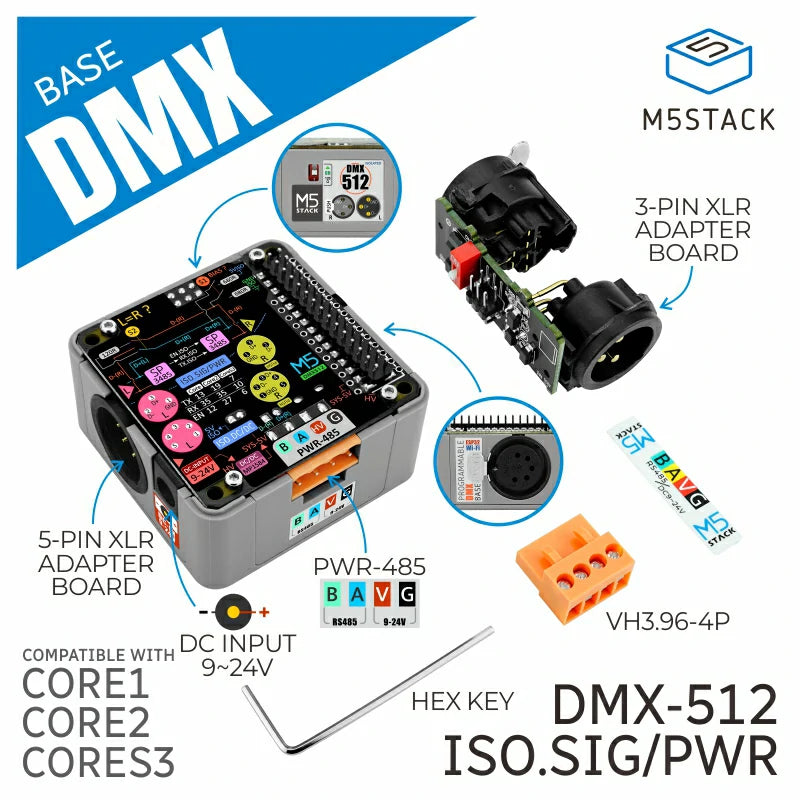

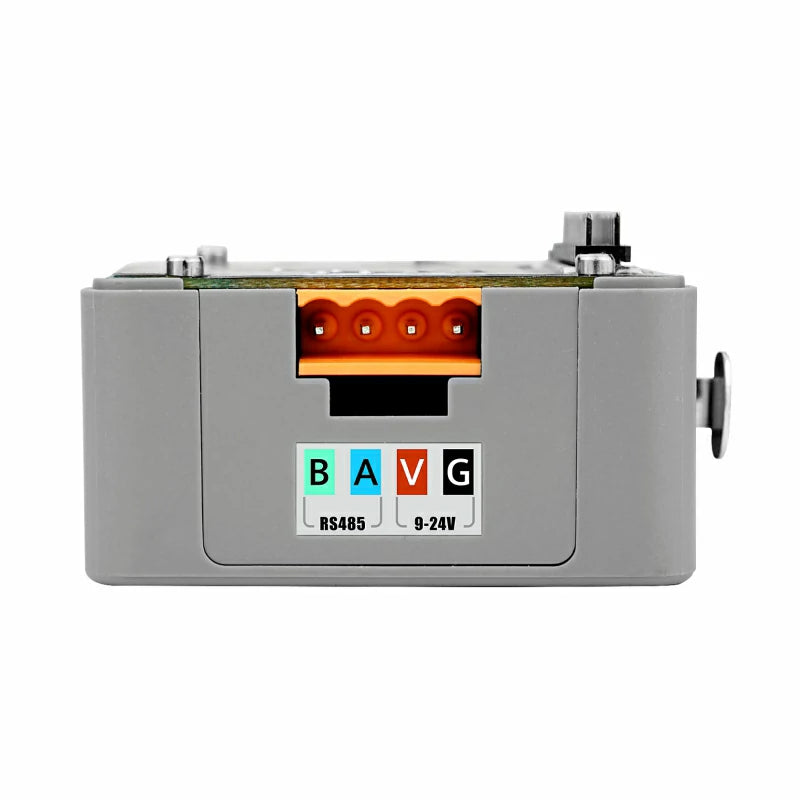

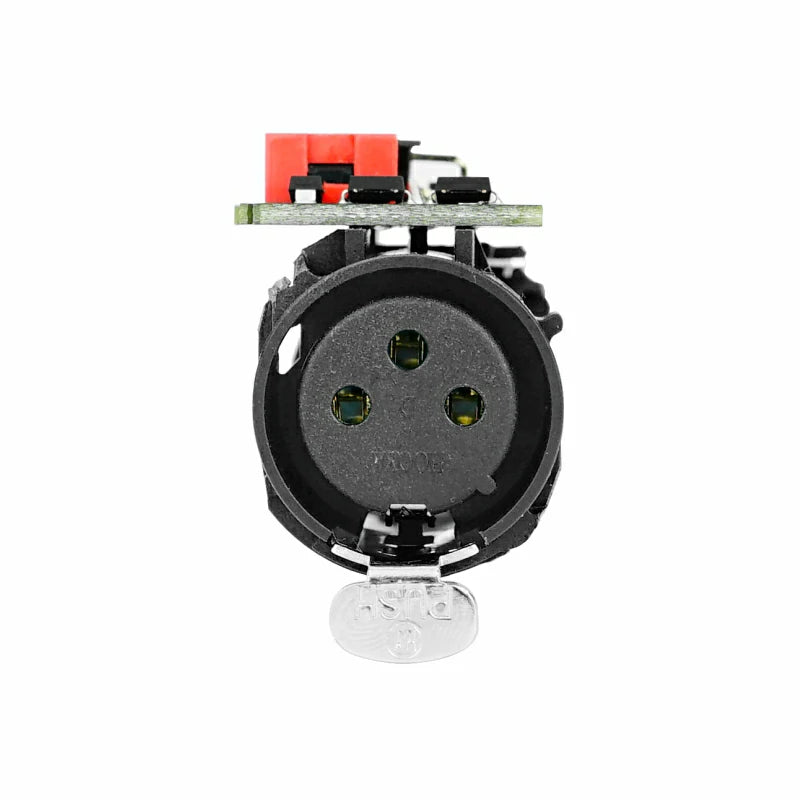

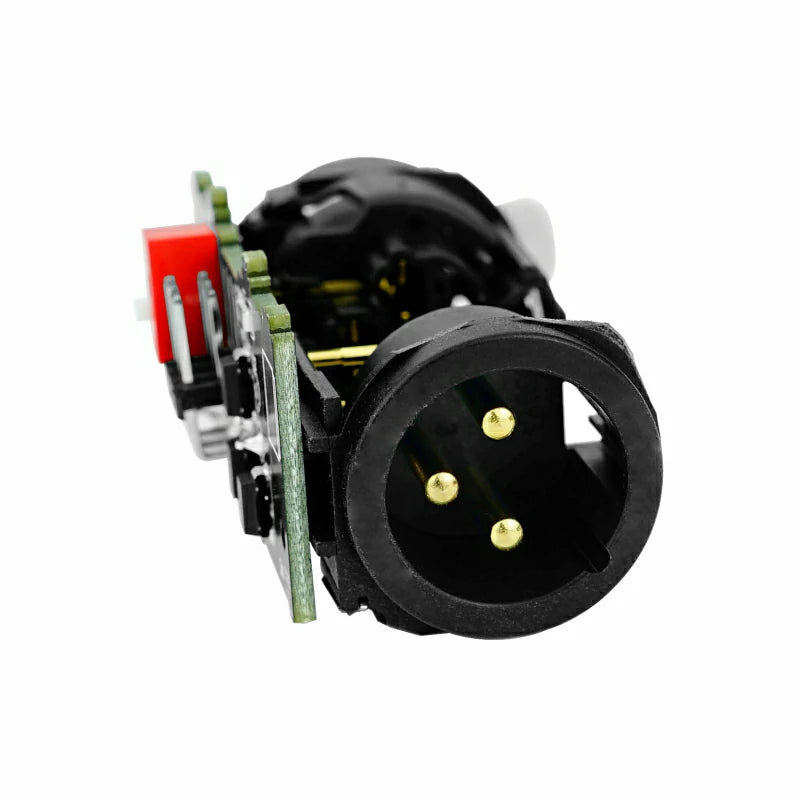

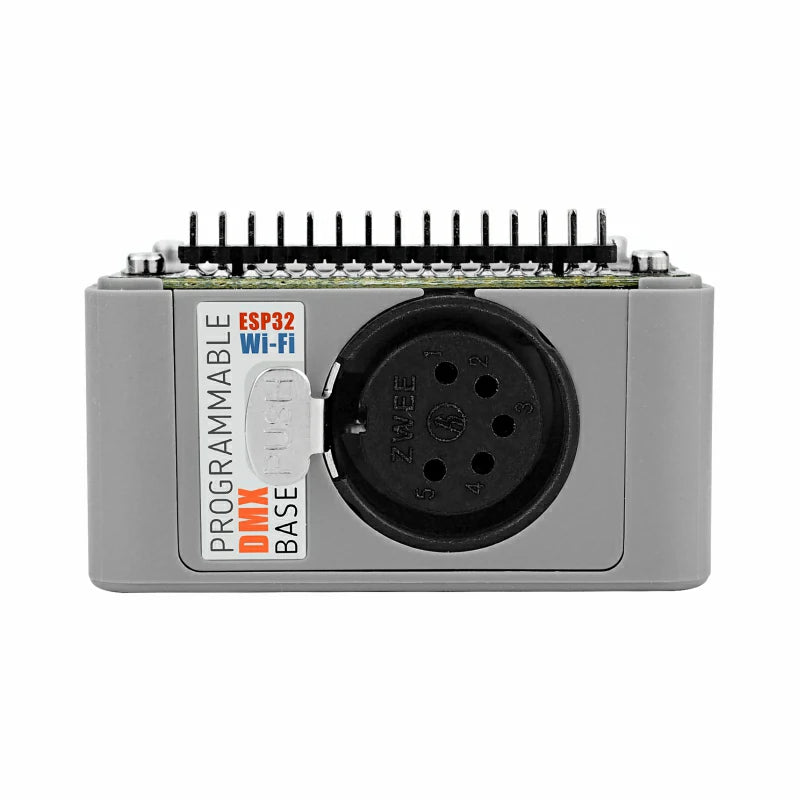

XLR-5 and XLR-3 male and female interfaces, convenient for users to connect DMX devices with different interfaces, in addition, the module has HT3.96 pitch 485 interface to facilitate connection to
Expansion 485 devices. The communication signal adopts
high-speed optocoupler isolation, and the power supply adopts a special
isolated power module;

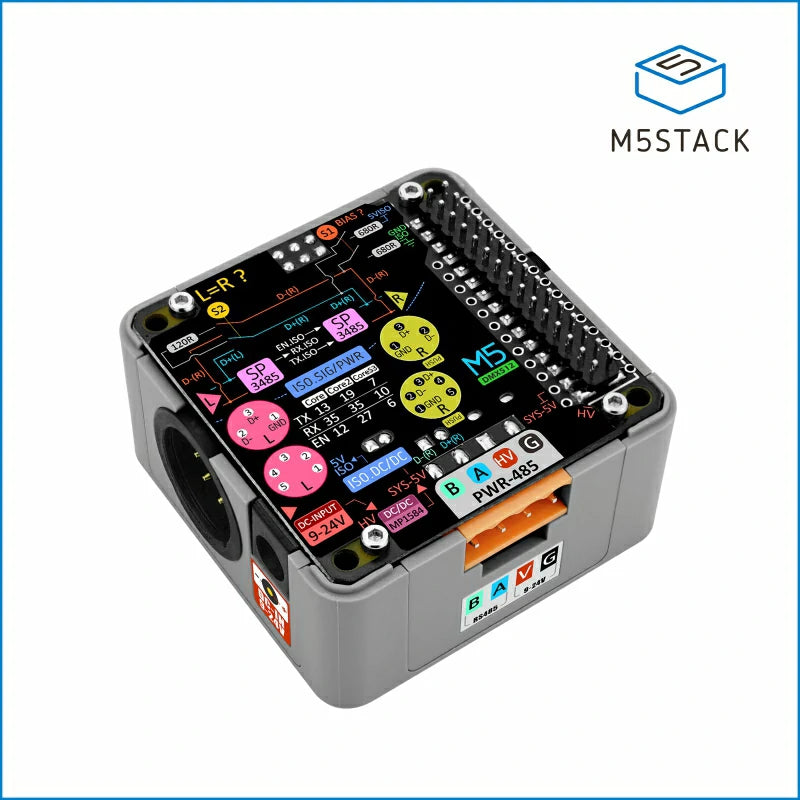

Two independent RS-485circuits can be used to transmit and receive DMX data, and two independent or parallel operation can be selected through the internal

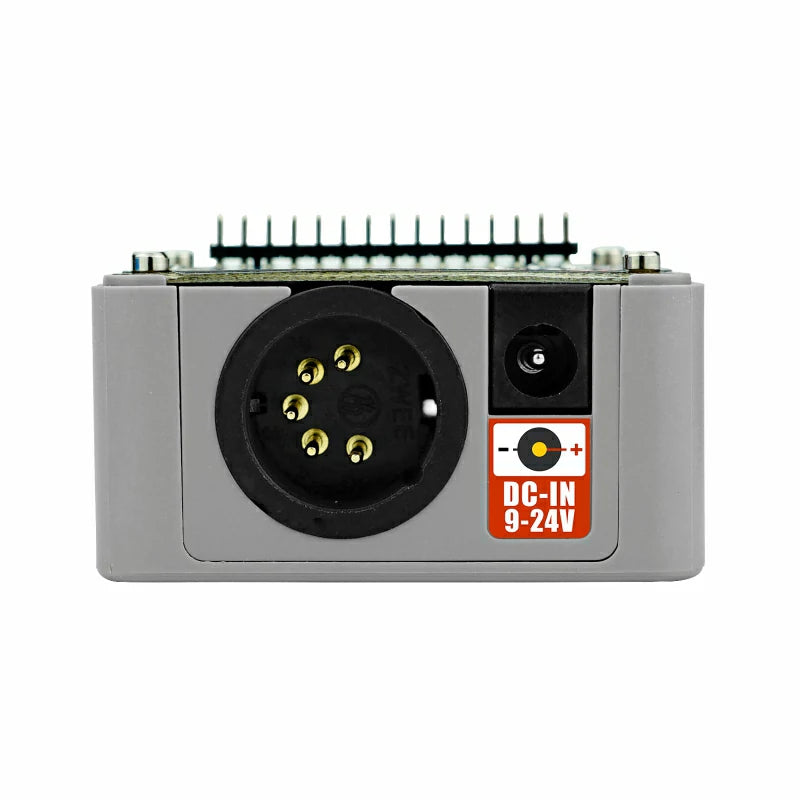

double-throw switch, and the DC-JACK interface and the corresponding
DC-DC circuit can provide power to the entire equipment.
This product is suitable for stage lighting control, sound equipment control, landscape lighting control and color lighting control.
- XLR-5 and XLR-3 male and female connectors for easy connection of DMX devices
- Support communication and enable control with M5 host through serial port
- Built-in two double-throw switches allow users to control the connection mode and transmission path
- The power supply DCDC isolation method is adopted to improve stability and consistency
- Programming platform: Arduino, UIFlow
- 1x M2 Hex Key
- 1x 3.96-4P terminal
- Stage lighting control
- Sound device control
- Landscape lighting control
- Colored light control
|DMX interface||XLR-5, XLR-3 male and female connectors|
|485 interface||HT3.96 interface|
|Power output||DC 5V/3.3V|
|Operating temperature range||0-40°C|
|DMX signals are supported||DMX512|
|Package Size||147 * 90 * 40mm|
- DMX Init
- DMX deinit
- DMX write byte
- DMX clear data buffer
- DMX read byte
