Description
Module13.2 Display is an expansion module designed for high-definition audio and video. It uses the Gowin GW1NR series FPGA chip to output Display signals and the LT8618S chip for signal conditioning, enabling 24-bit color depth Display signals and up to 8-channel audio signals with a resolution of up to 1080P. The FPGA internally implements the I2S audio generation function, and the module includes a DC power input socket and corresponding DC-DC circuits for powering the entire device. This product is suitable for various programmable high-definition audio and video output applications.
Features
- Supports 24-bit RGB input
- Resolution up to 1080P
- Supports up to 8-channel audio input
- Includes 9-24V to 5V, 3.3V, and 1.2V DC-DC circuits and 5V to 1.8V LDO circuit
- High-definition audio and video interface, JTAG download interface
- 9-24V DC power interface
- Power switch
Includes

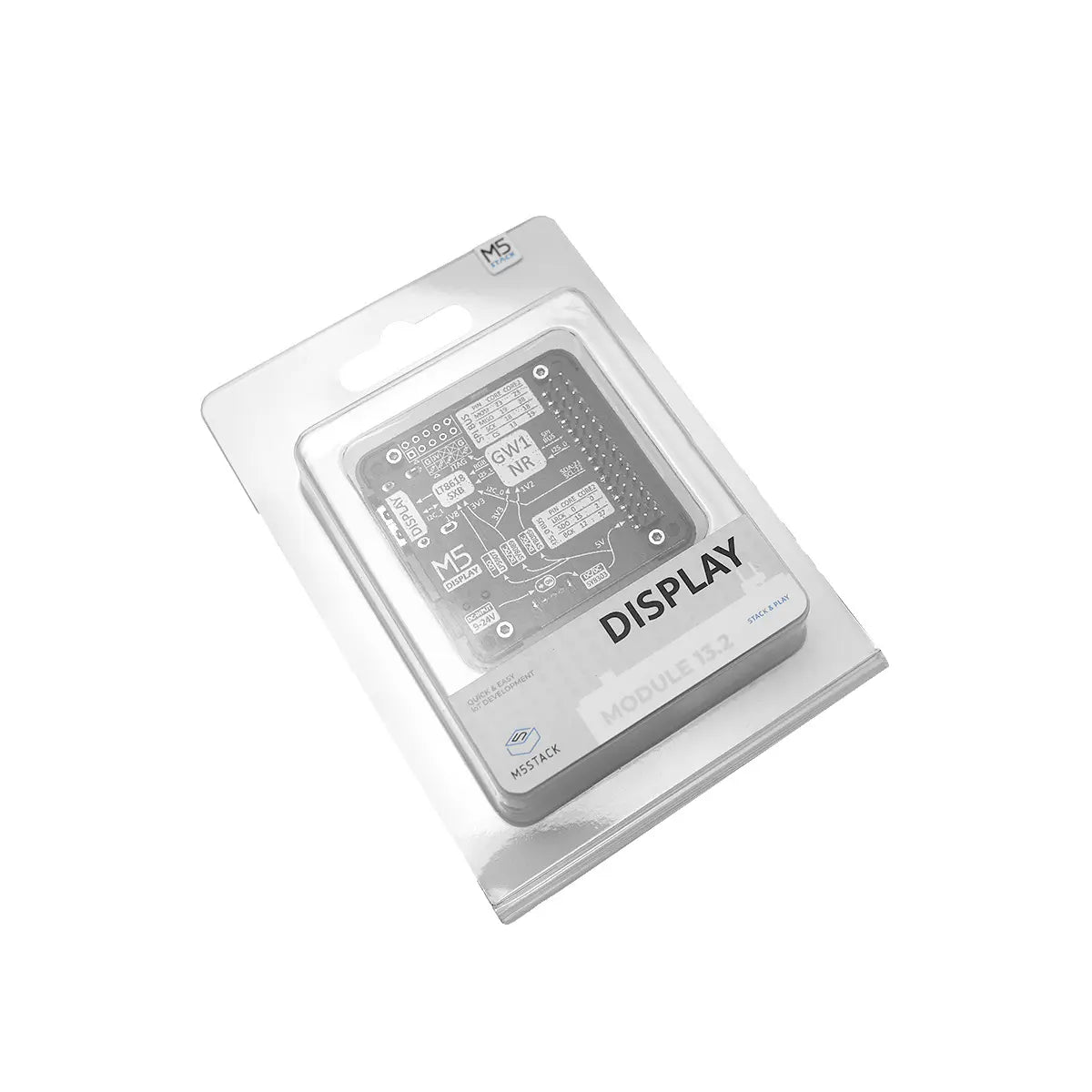

- 1 x Module13.2 Display
Applications
- Output high-definition audio and video signals
- Human-machine interaction
Specifications
| Specification | Parameter |
|---|---|
| Audio/Video Signal Acquisition Chip | GW1NR-LV9QN88C6-I5 FPGA |
| Audio/Video Signal Processing Chip | LT8616SXB @ 0x39 |
| 9-24V to 5V DC-DC Buck Chip | SY8303 |
| 5V to 3.3V and 1.2V DC-DC Buck Chip | SY8089 |
| 5V to 1.8V LDO Buck Chip | LP5907 |
| Resolution | Up to 1080P (1920x1080) |
| Power Input | 9 ~ 24V |
| Product Size | 54.0 x 54.0 x 19.8mm |
| Product Weight | 21.6g |
| Package Size | 134.0 x 95.0 x 20.2mm |
| Gross Weight | 41.2g |
