Display Module 13.2

SKU:M126

Regular price $26.90

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

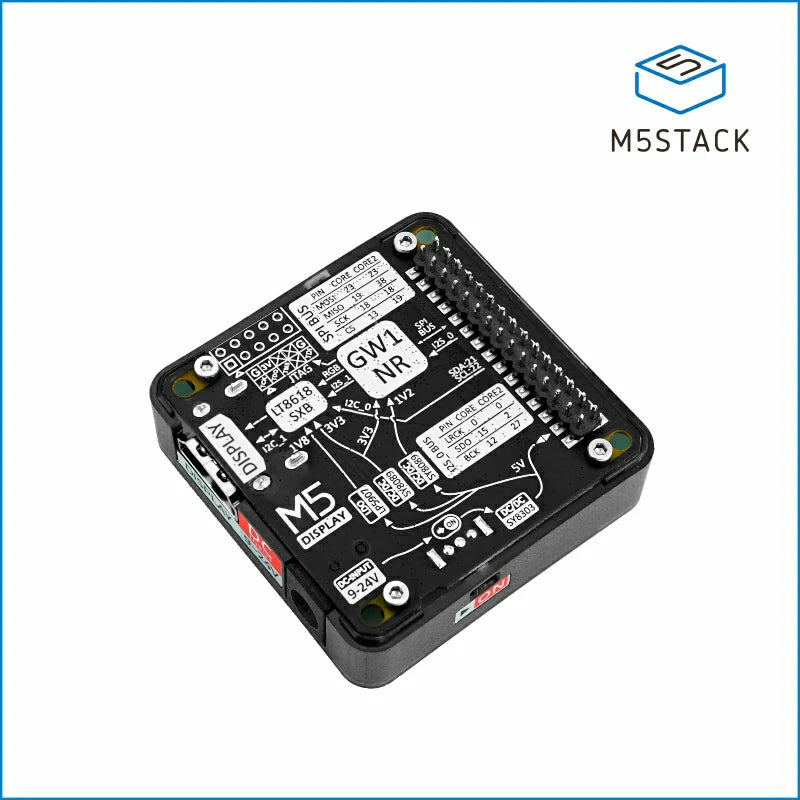

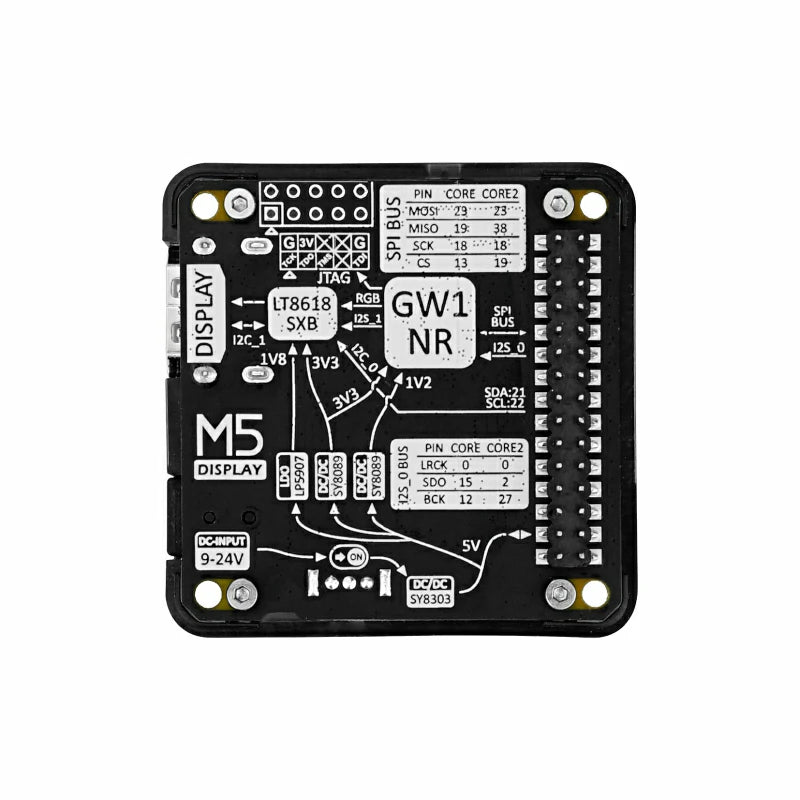

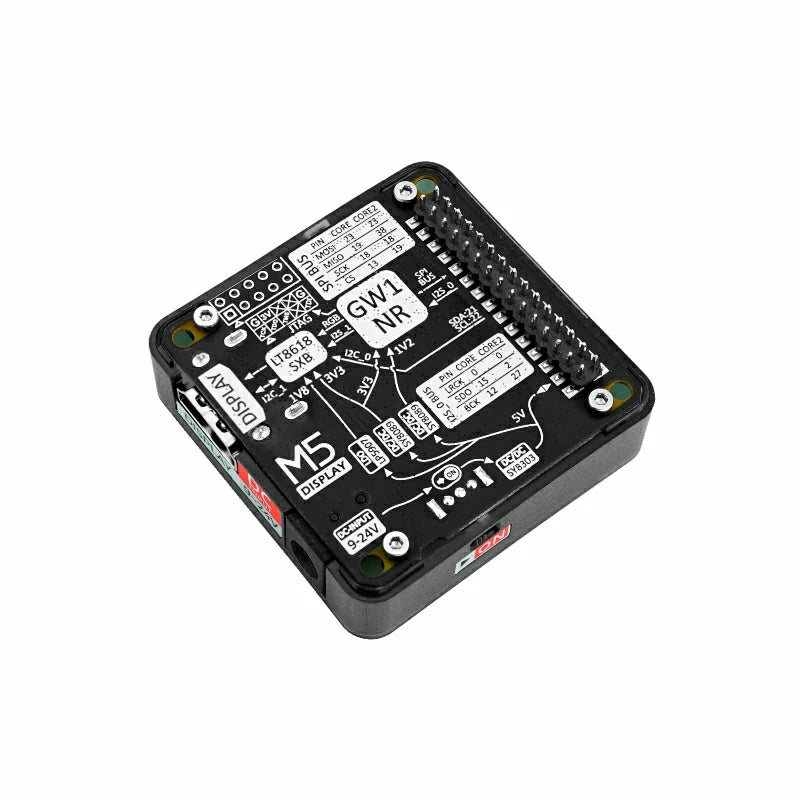

Display Module 13.2is an expansion module forHD audio and video, using GAOYUN GW1NR series FPGA chipto outputDisplay signal, and usingLT8618S chipas signal output conditioning, which can achieve24-bit color depth Display signalandup to 8-channel audio signaloutput, resolution up to 1080P, of which FPGA internally realizes I2S audio generation function. The module contains DC power input socketand correspondingDC-DC circuit, which can realize the power supply of the whole machine. This product is suitable for various programmable HD AV outputand other occasions.

Features

  • Supports 24-bit RGB input
  • Resolution up to 1080P
  • Supports up to 8 channels of audio input
  • Includes 9-24V to 5V, 3.3V and 1.2V DCDC circuits and 5V to 1.8V LDO circuits

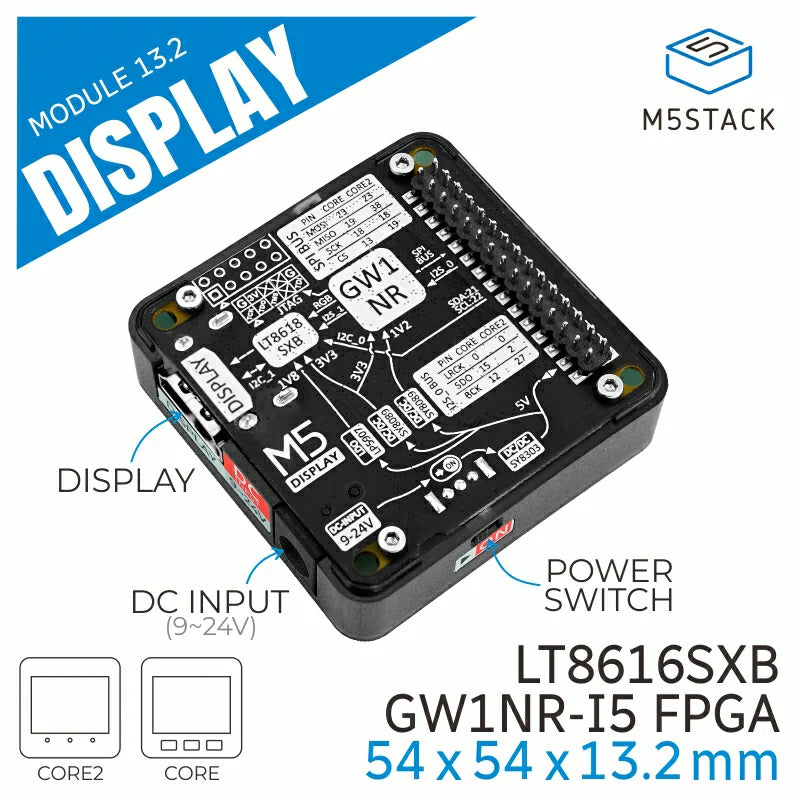

  • HD audio and video interface, JTAG download interface
  • 9-24V DC power interface
  • Power switch

Includes

  • 1x Display Module 13.2

Applications

  • Output HD audio and video signals
  • Human-machine interaction

Specification

Resources Parameters

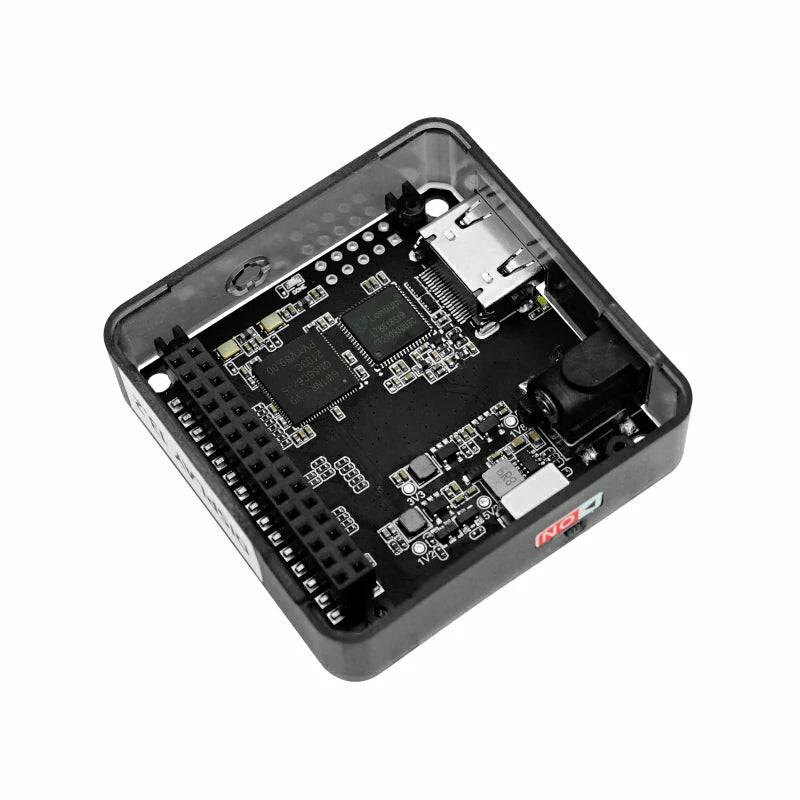

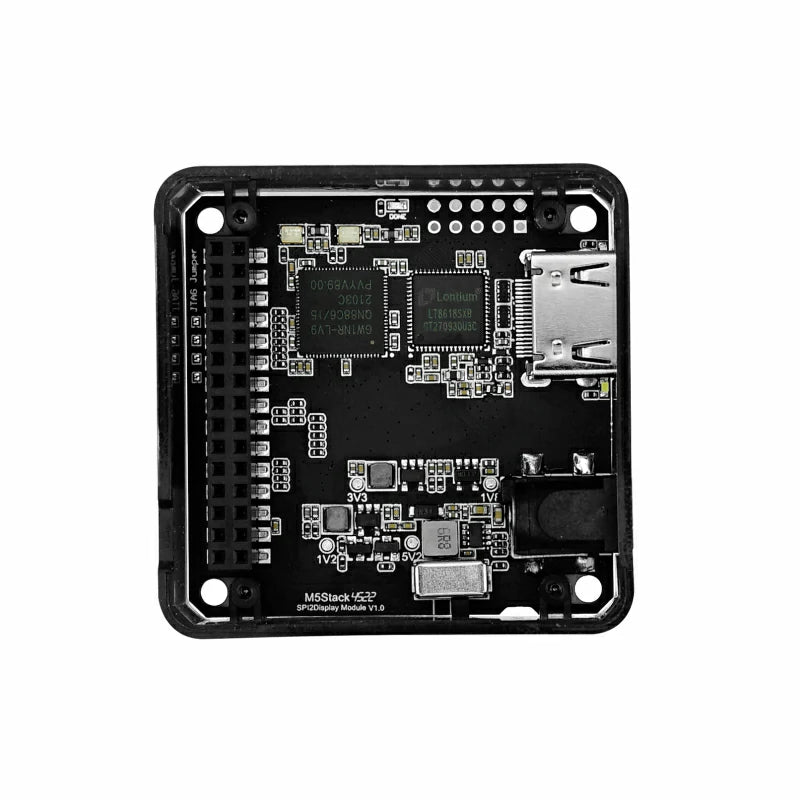

Audio and video signal acquisition chip GW1NR-LV9QN88C6-I5 FPGA
Audio and video signal processing chip LT8616SXB
9-24V to 5V DCDC buck chip SY8303
5V to 3.3V and 1.2V DCDC buck chips SY8089
5V to 1.8V LDO buck chip LP5907
Resolution MAXIMUM 1080P (1920x1080)
The power supply 9-24V
Product Size 54mm × 54mm × 14.2mm
Package Size 93mm × 63mm × 25mm
Product Weight 21.6g
Package Weight 41.2g
