Description

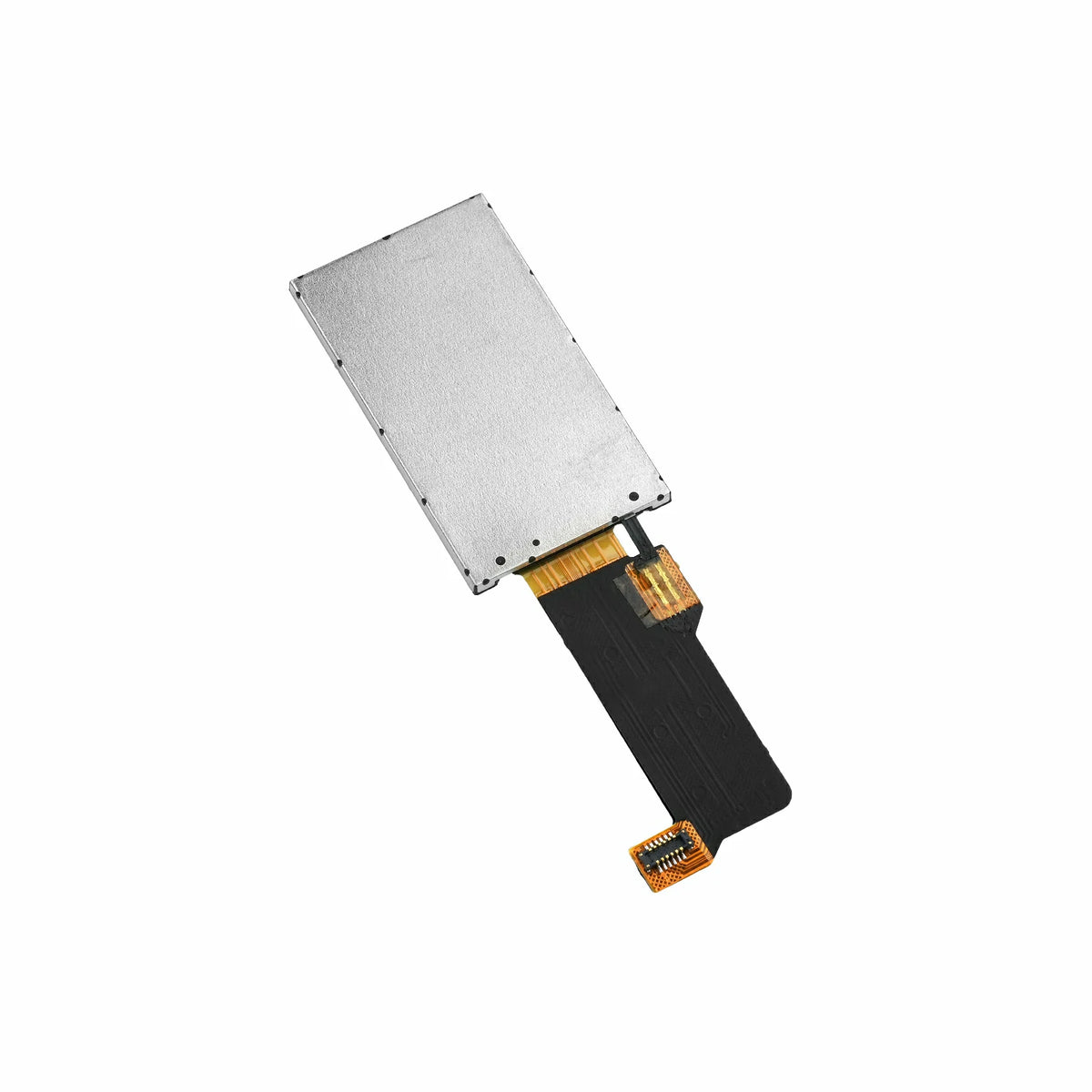

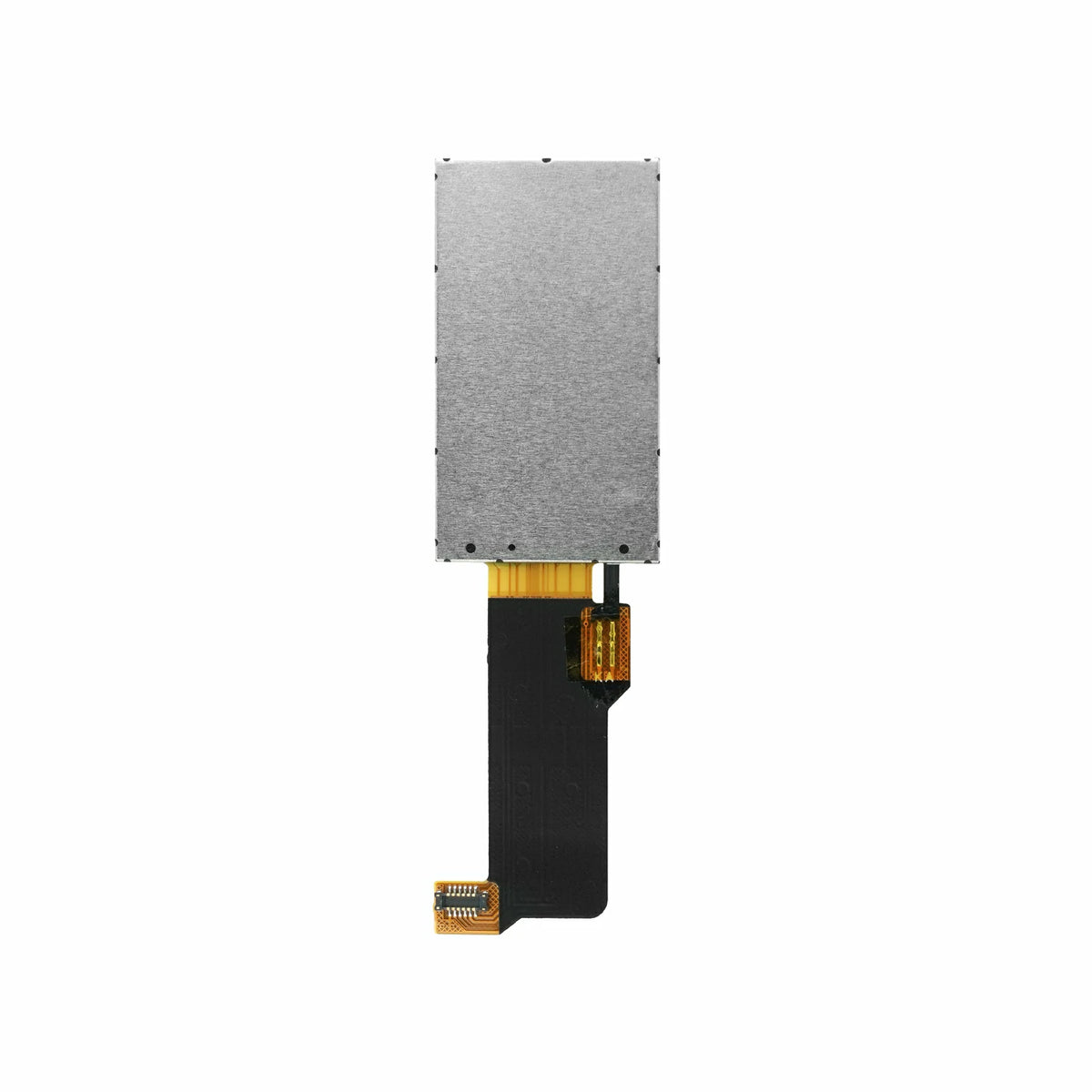

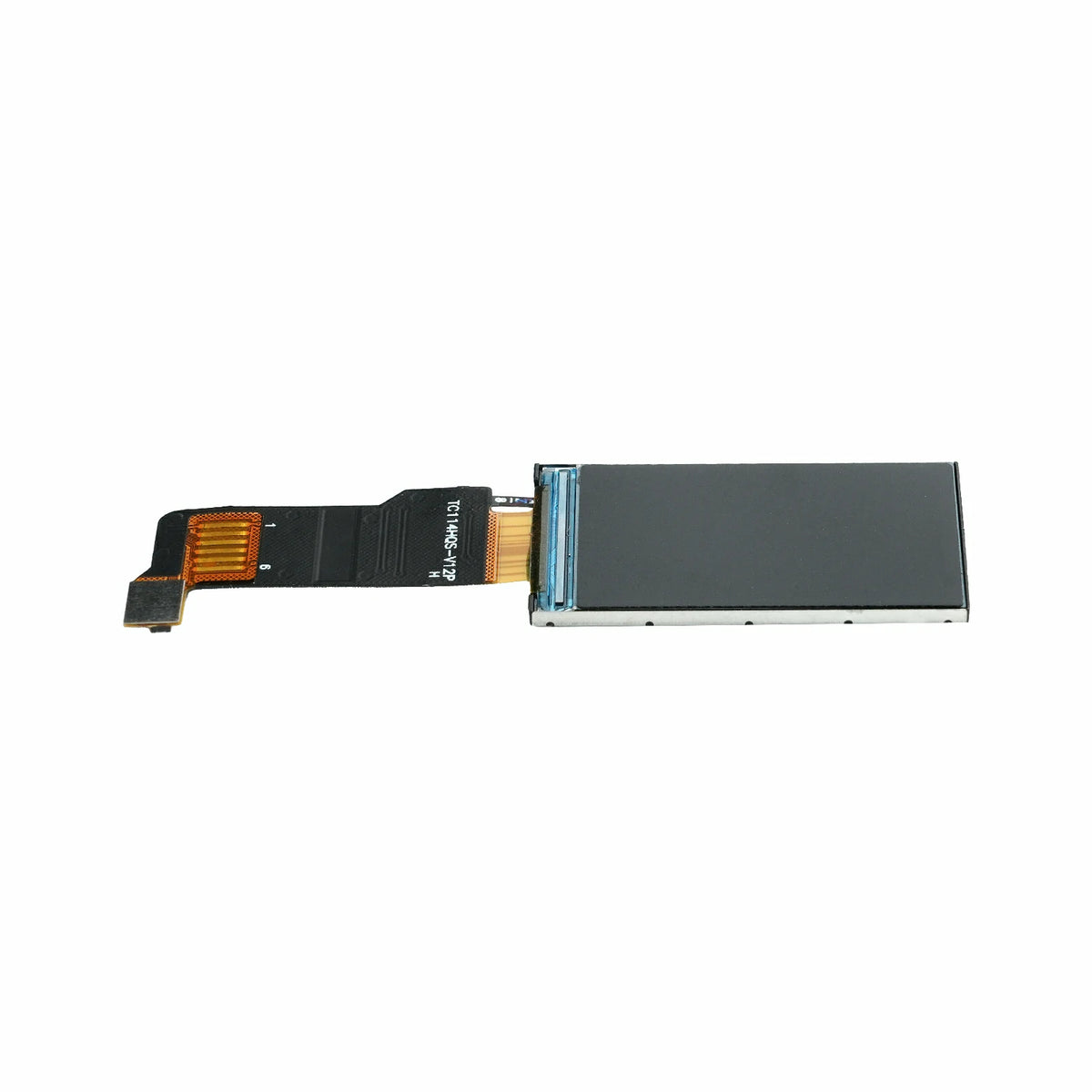

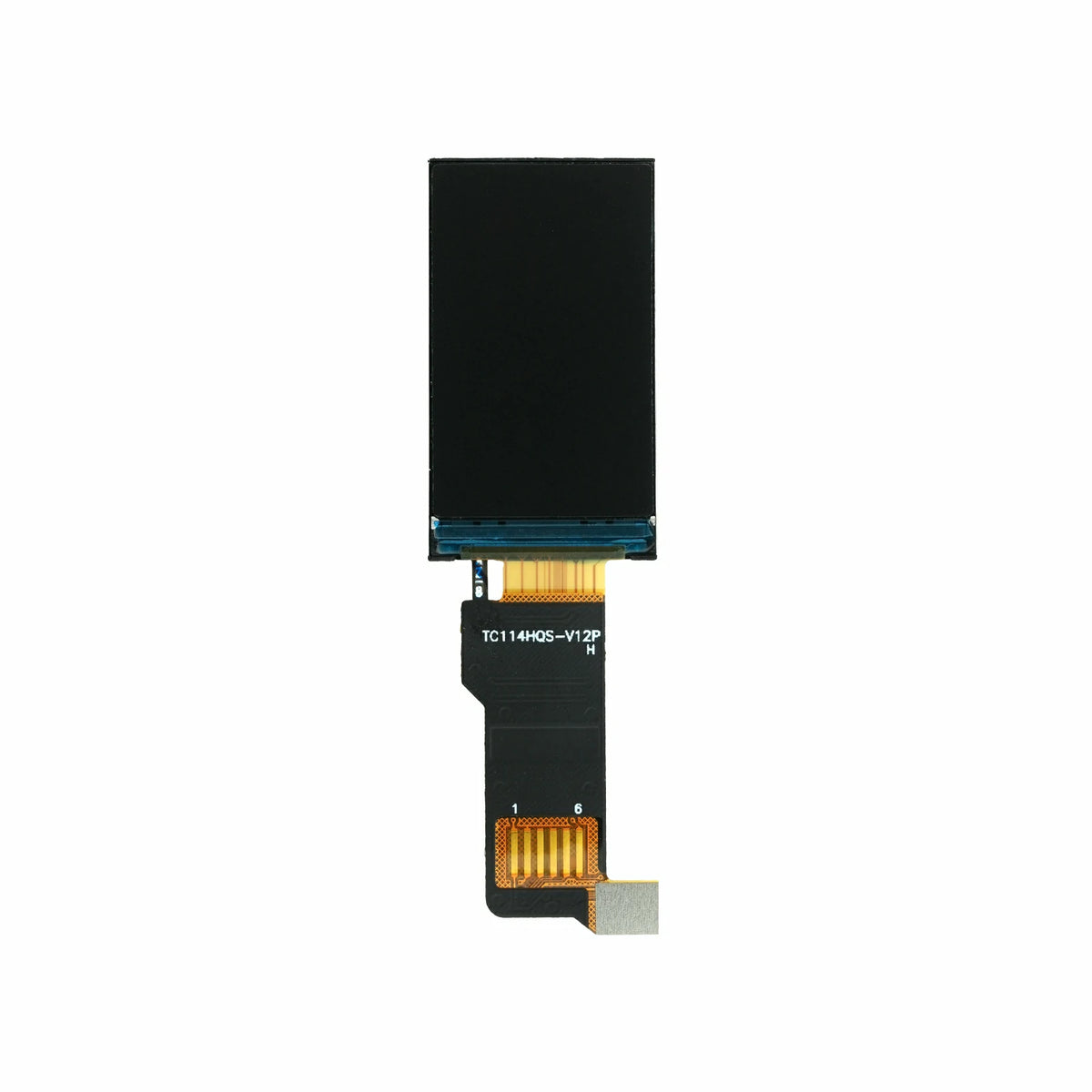

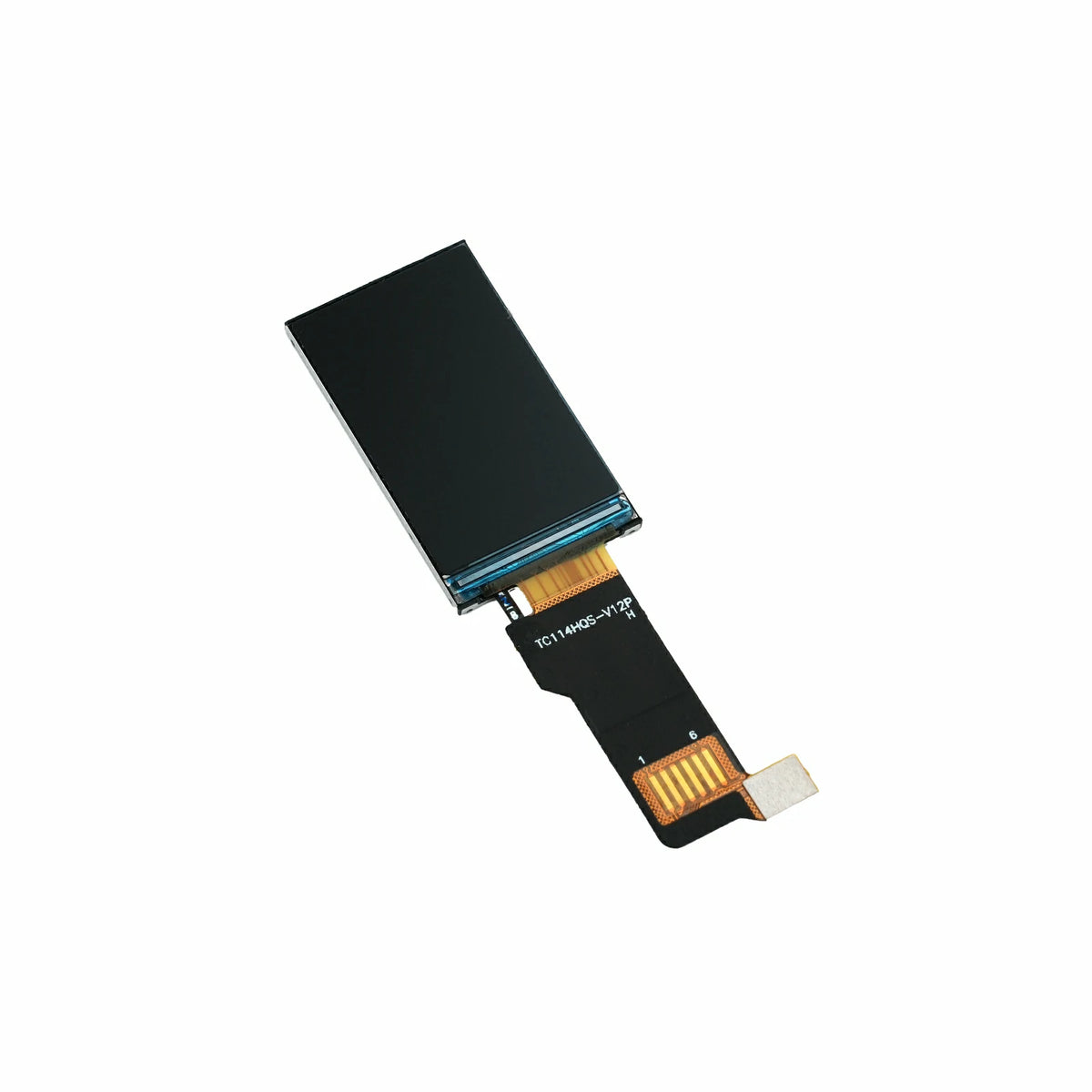

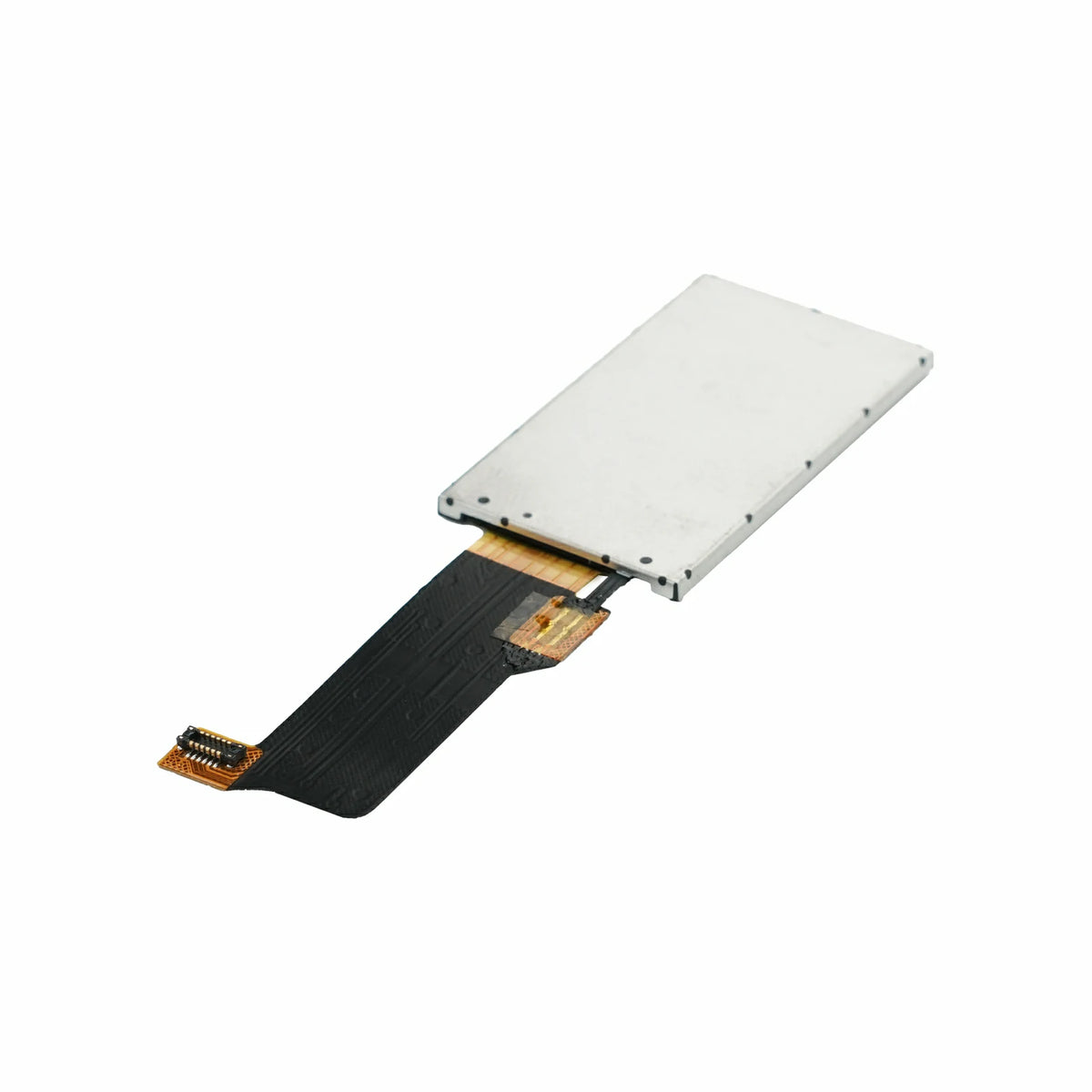

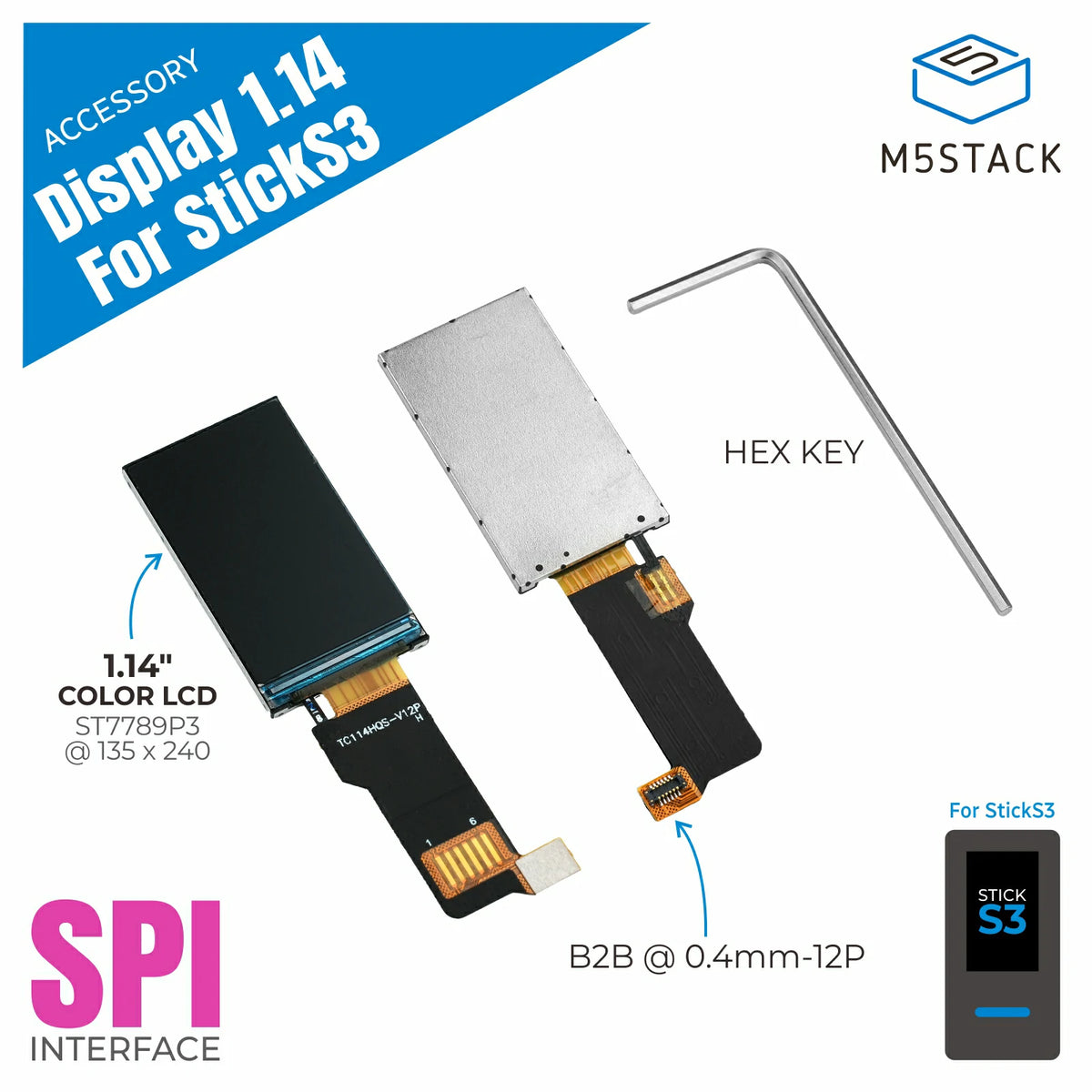

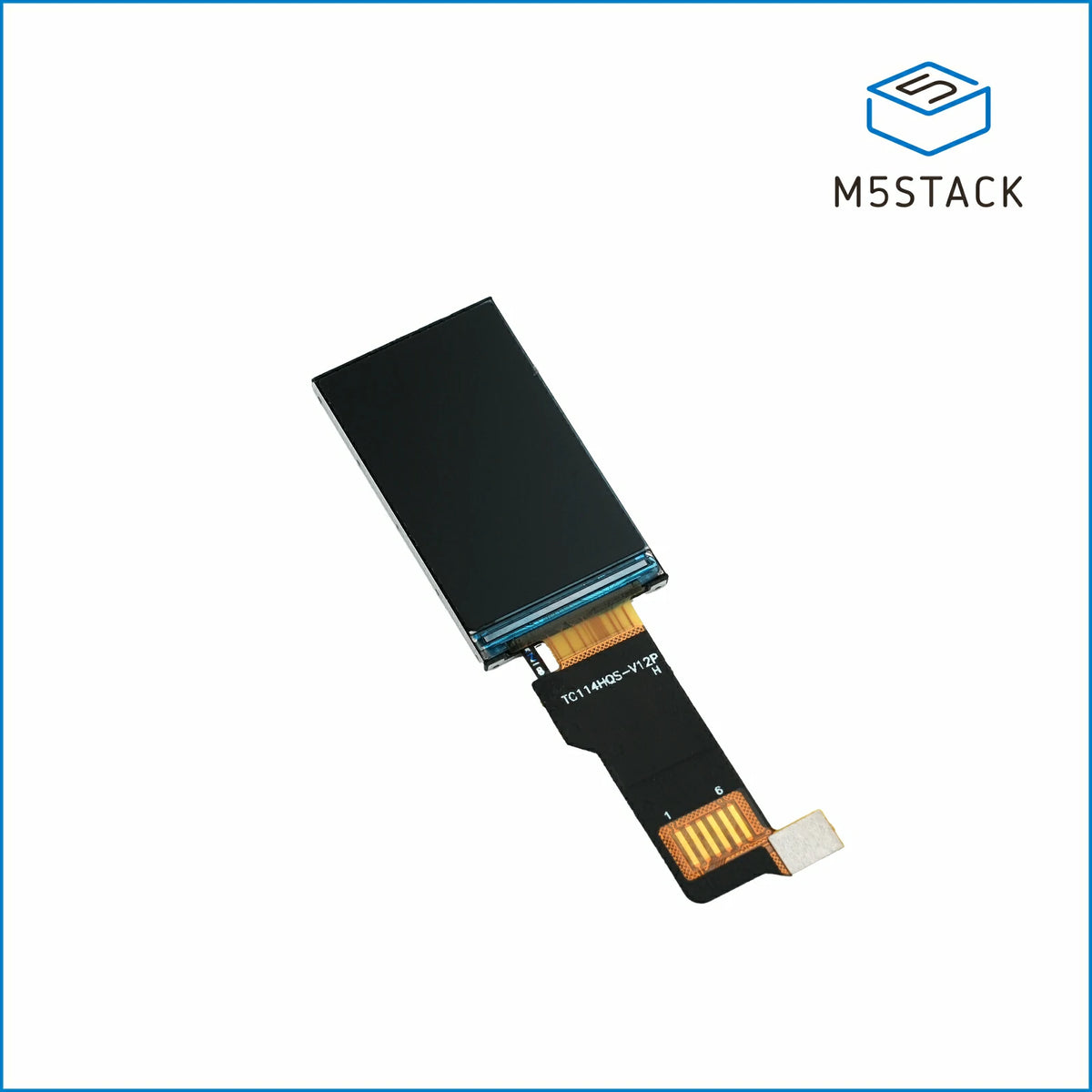

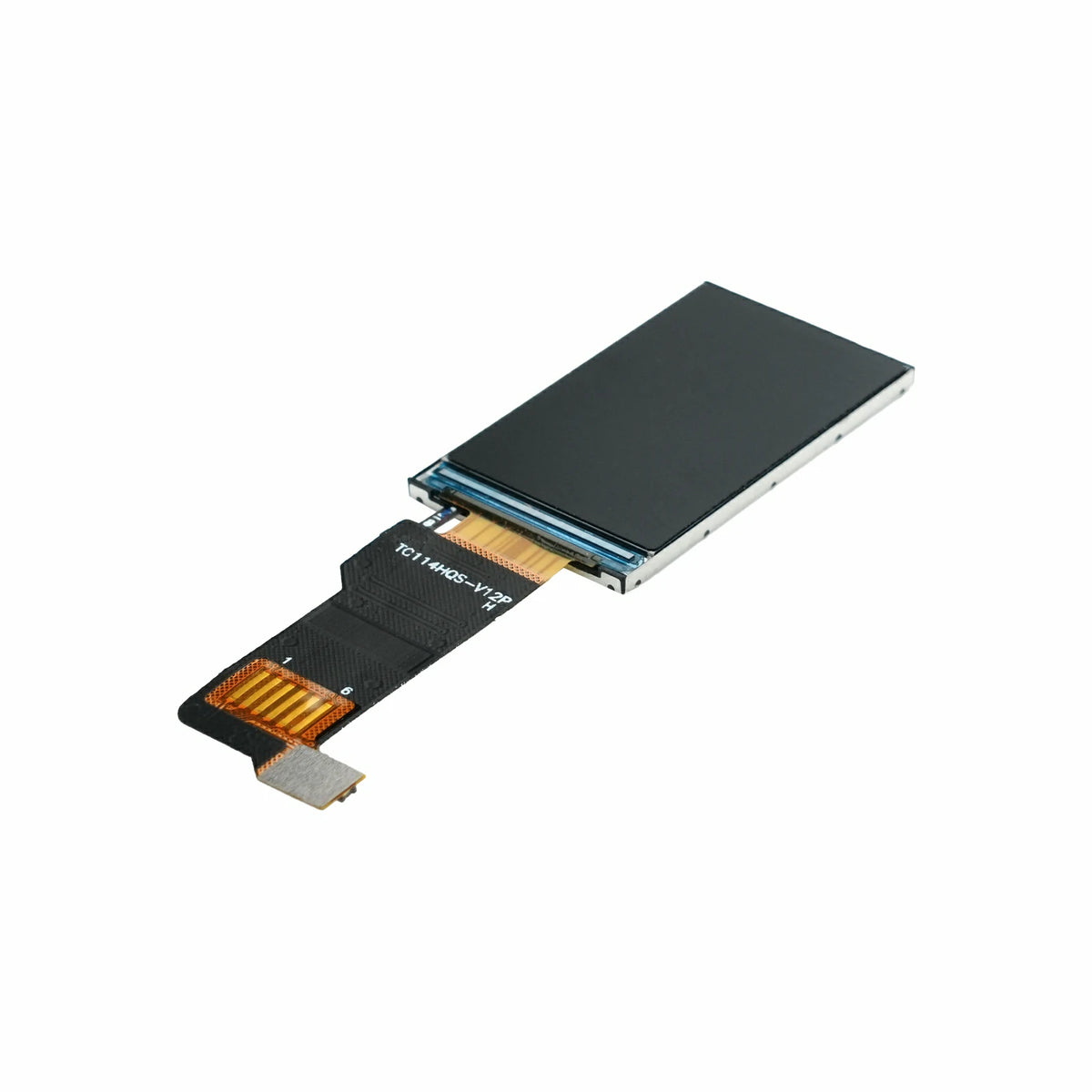

Display 1.14 For StickS3 is a 1.14-inch color IPS TFT LCD display module with a compact form factor and structure, connected to the mainboard via a 0.4mm-12P board-to-board connector. The module adopts a transmissive display solution and is equipped with the ST7789P3 driver chip. It features a resolution of 135 x 240, supports 262K color display, and offers full viewing angle visibility. It can serve as an original replacement screen for the StickS3, used for device screen repair and replacement, and is also suitable for scenarios such as instrument and meter data display and electronic DIY development.
Features
- Equipped with ST7789P3 driver chip
- 1.14-inch TFT color LCD display (transmissive)
- 135 × 240 resolution
- 262K color display
- Full viewing angle
- 0.4mm-12P board-to-board connector

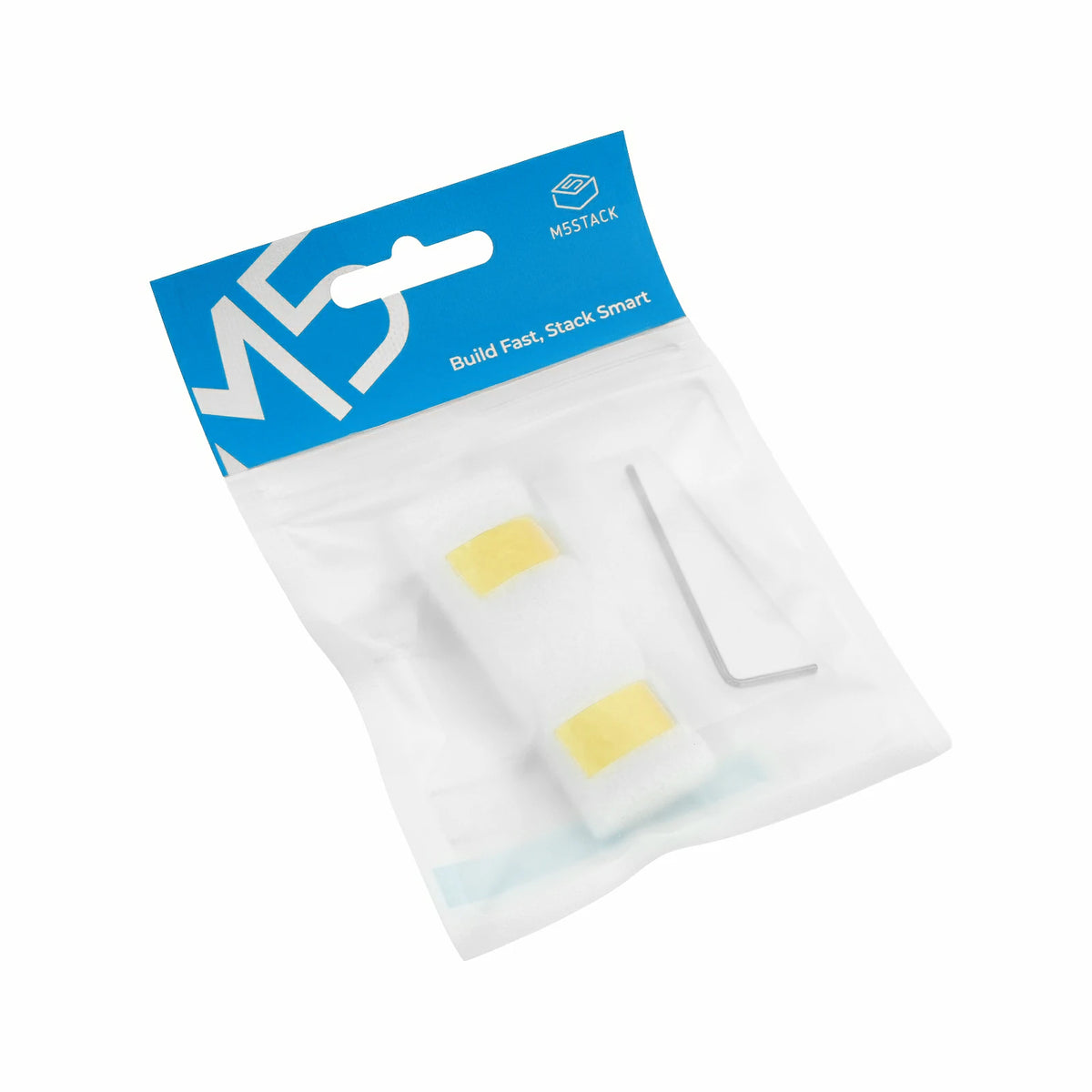

Includes
- 1 x Display 1.14 For StickS3
- 1 x Hex Key L-Shape 1.5mm (For M2 Screw)
Applications
- StickS3 screen repair and replacement
- Instrument and meter data display
- Electronic DIY development
Specifications
| Specification | Parameter |
|---|---|
| Screen Type | 1.14-inch transmissive TFT |
| Driver Chip | ST7789P3 |
| Resolution | 135 x 240 |
| Display Color | 262K colors |
| Active Display Area | 14.864 × 24.912mm |
| Connection | 0.4mm-12P B2B connector |
| Viewing Direction | Full viewing angle |
| Operating Temperature | 0 ~ 40°C |
| Power Voltage | DC 3.3V |
| Product Size | 60.0 x 17.6 x 1.6mm |
| Product Weight | 1.8g |
| Package Size | 138.0 x 93.0 x 13.0mm |
| Gross Weight | 5.6g |
