Description

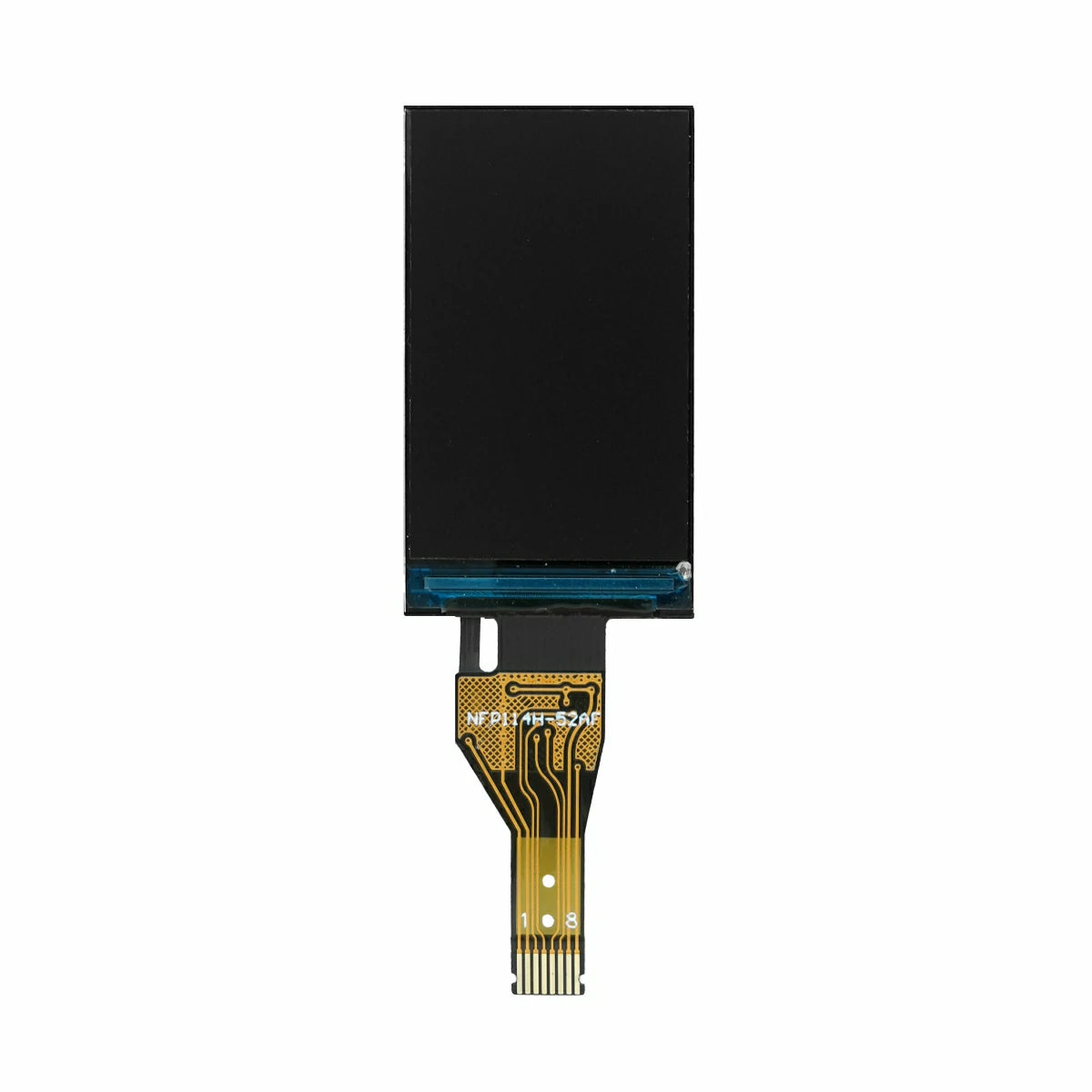

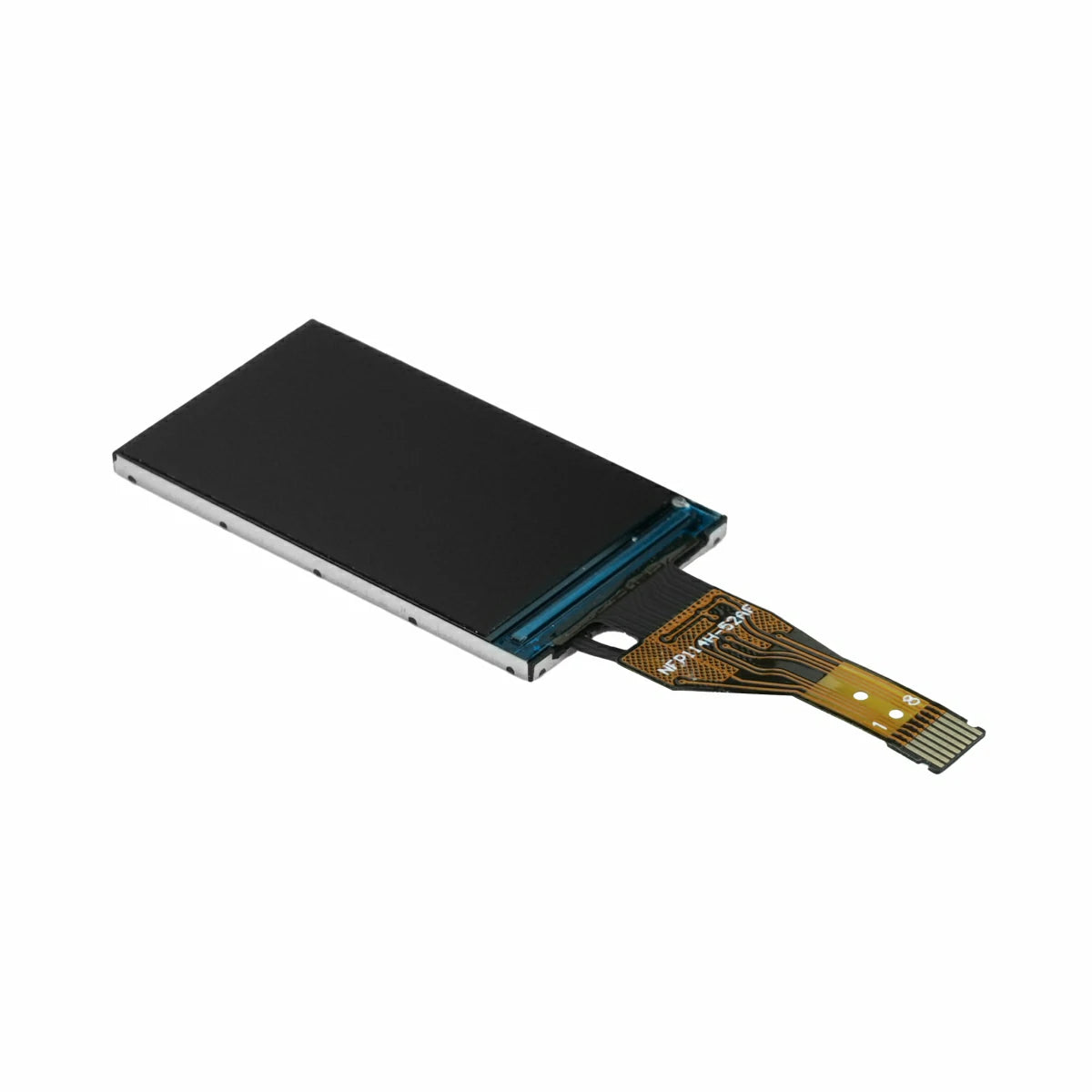

Display 1.14 Inch is a 1.14-inch color TFT LCD display module used across multiple M5Stack products, and can serve as an OEM-spec replacement part for device repair and screen replacement. The module features a compact and slim form factor that enables easy integration into embedded devices. In addition to M5Stack compatibility, it is also well-suited for display development in various small smart devices, portable terminals, and embedded systems. The module adopts a transmissive display design driven by the ST7789V2 IC, supports a 4-wire SPI communication interface, delivers a resolution of 135×240 with 262K-color output, and provides full viewing angle visibility. An onboard electromagnetic shielding film ensures strong noise immunity, while an integrated single LED backlight with independent power supply meets the display requirements of a wide range of compact applications.
Features
- ST7789V2 driver IC
- 1.14-inch transmissive TFT display
- 135×240 resolution
- 262K-color display
- 4-wire SPI interface support
- Integrated LED backlight × 1 (independent power supply)
- Full viewing angle

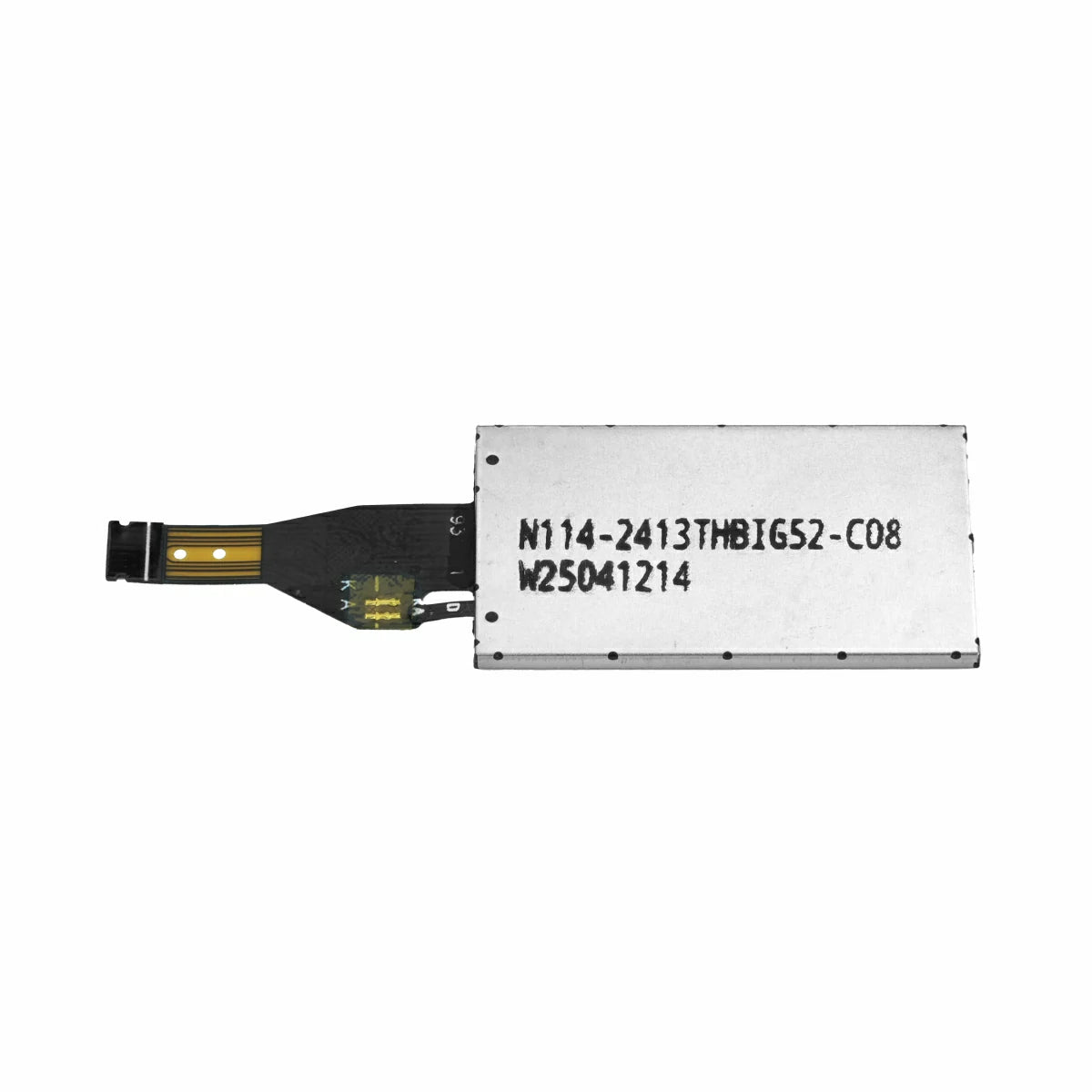

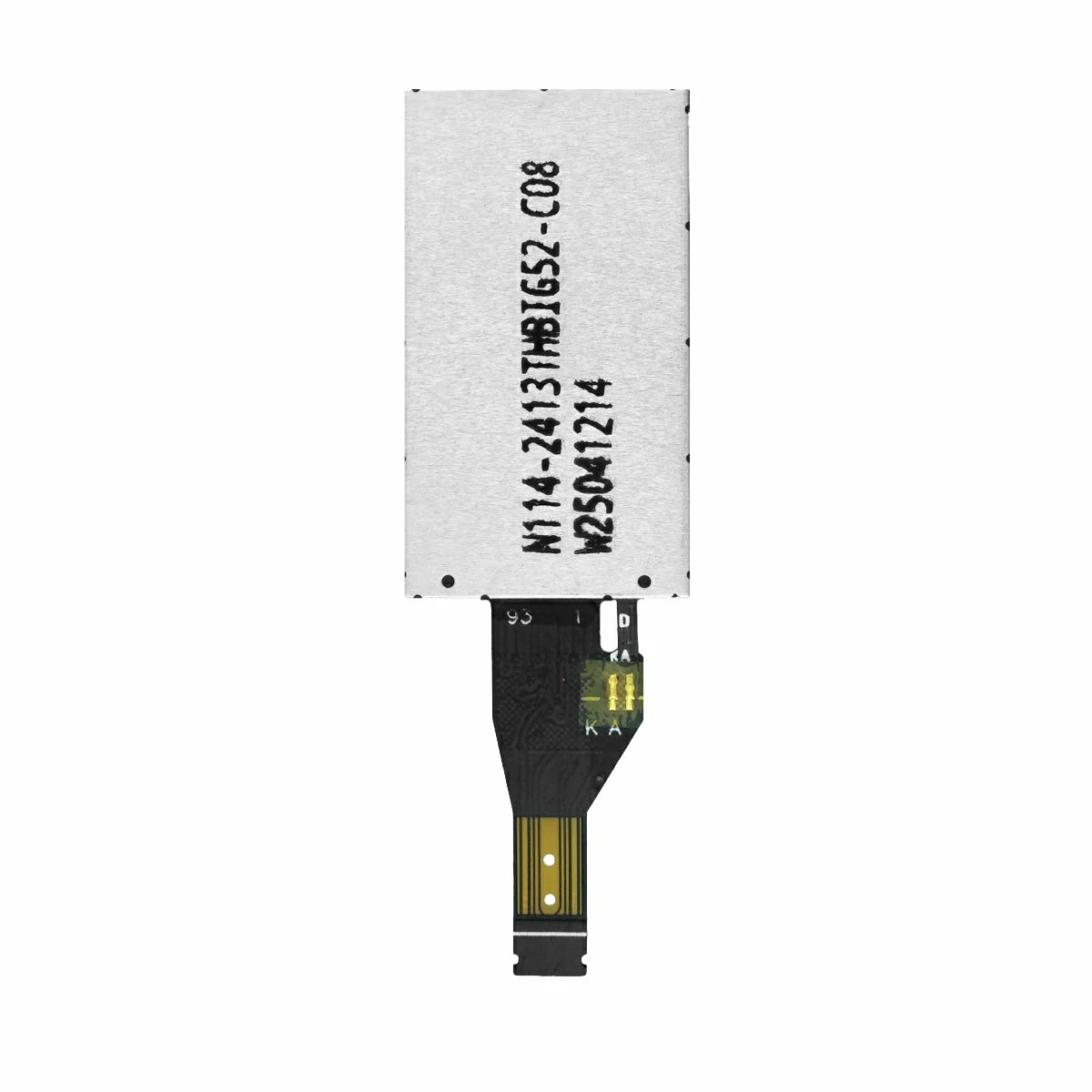

- Onboard electromagnetic shielding film for strong noise immunity
- Compact form factor for easy embedded device integration

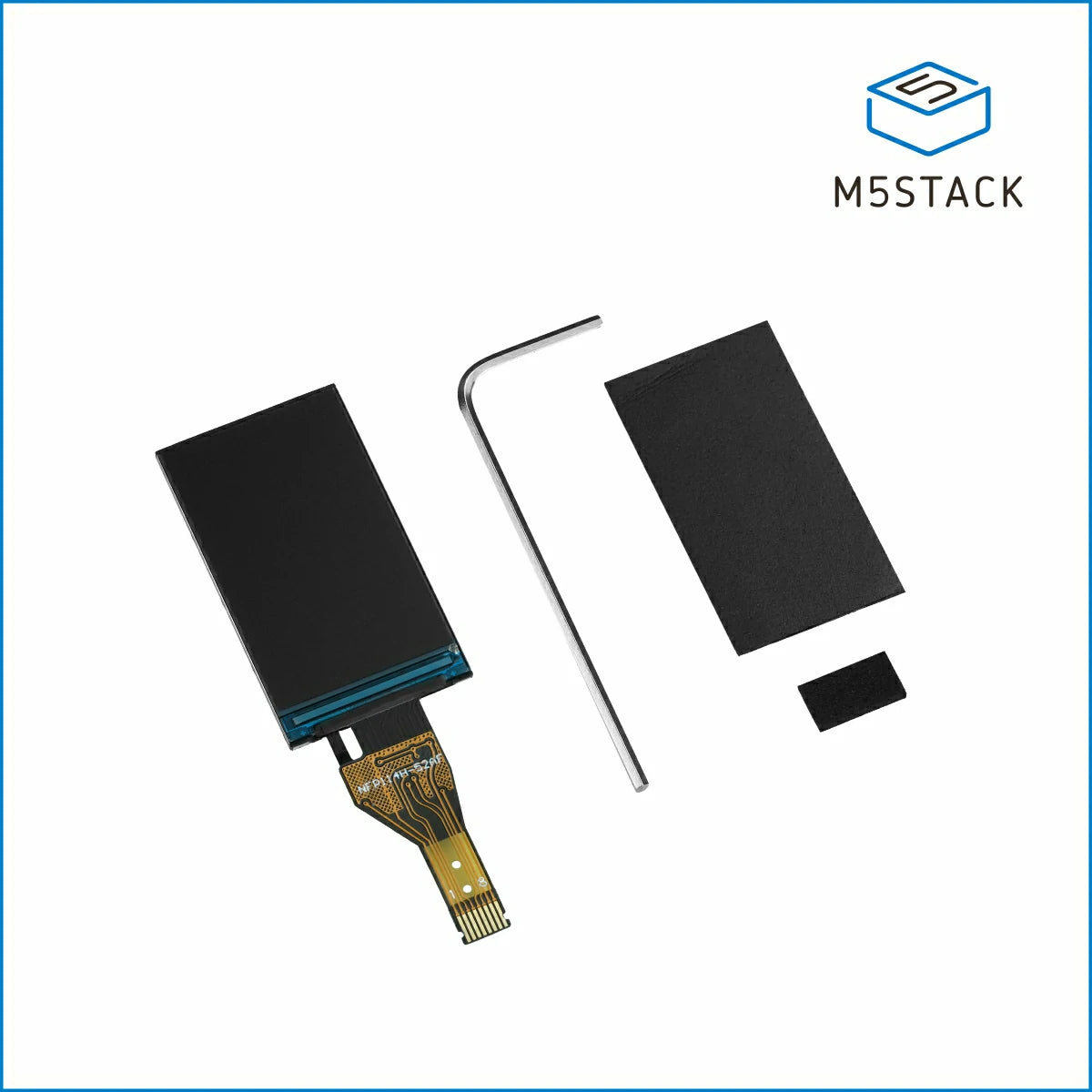

Includes
- 1 x Display 1.14 Inch
- 1 x Hex Key L-Shape 1.5mm (For M2 Screw)
- 1 x EVA Foam
- 1 x Sponge Pad
Applications
- Portable smart inspection devices and handheld terminal displays
- Embedded industrial control modules and small sensor node displays
- Smart wearable devices and IoT terminal displays
- Smart home control panel displays
Specifications
| Specification | Parameter |
|---|---|
| Display Type | 1.14-inch Transmissive TFT |
| Driver IC | ST7789V2 |
| Resolution | 135 × 240 |
| Display Color | 262K Colors |
| Active Display Area | 14.864 × 24.912mm |
| Communication Interface | 4-wire SPI |
| Interface Spec | 0.5mm Pitch / 8Pin |
| Viewing Angle | Full Angle |
| Backlight Type | LED × 1 (Independent Power) |
| Operating Temperature | -20℃ ~ 70℃ (No Condensation) |
| Supply Voltage | 2.4V ~ 3.3V |
| Product Size | 17.6 x 31.0 x 1.6mm |
| Product Weight | 1.5g |
| Package Size | 138.0 x 93.0 x 9.0mm |
| Gross Weight | 5.6g |
Compatible Products
Display 1.14 Inch is compatible with the following M5Stack products for screen replacement:
| Product Name | SKU |
|---|---|
| StickC-Plus Watch Kit | K016-H |
| StickC-Plus2 Watch Kit | K016-H2 |
| StickC-Plus | K016-P |
| StickC-Plus2 | K016-P2 |
| StickT2 | K016-T2 |
| BugC2 | K033-C |
| BalaC-Plus | K038-B |
| T-Lite | K126 |
| Unit LCD | U120 |
