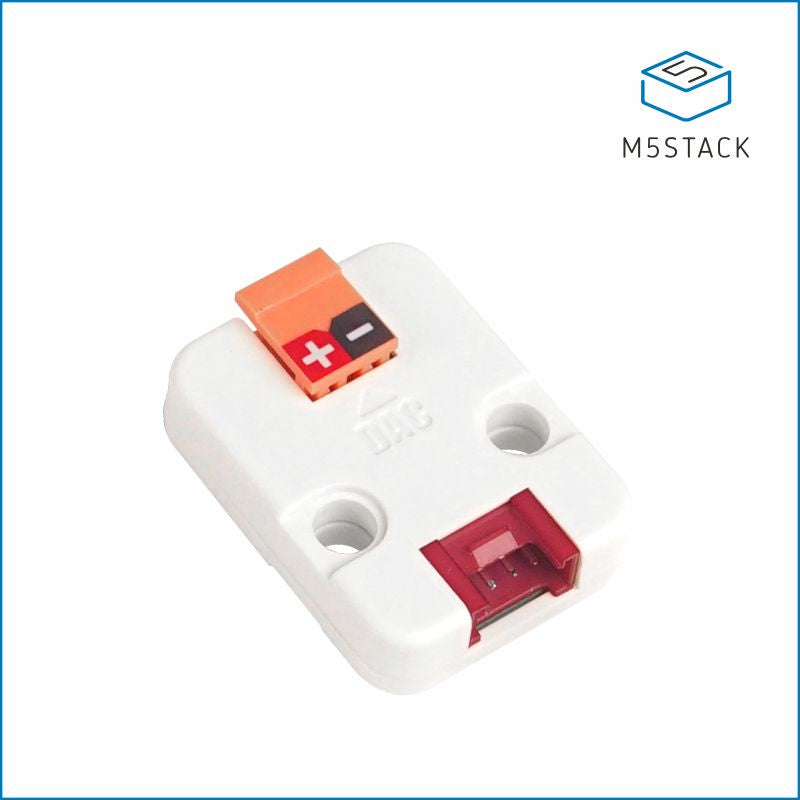

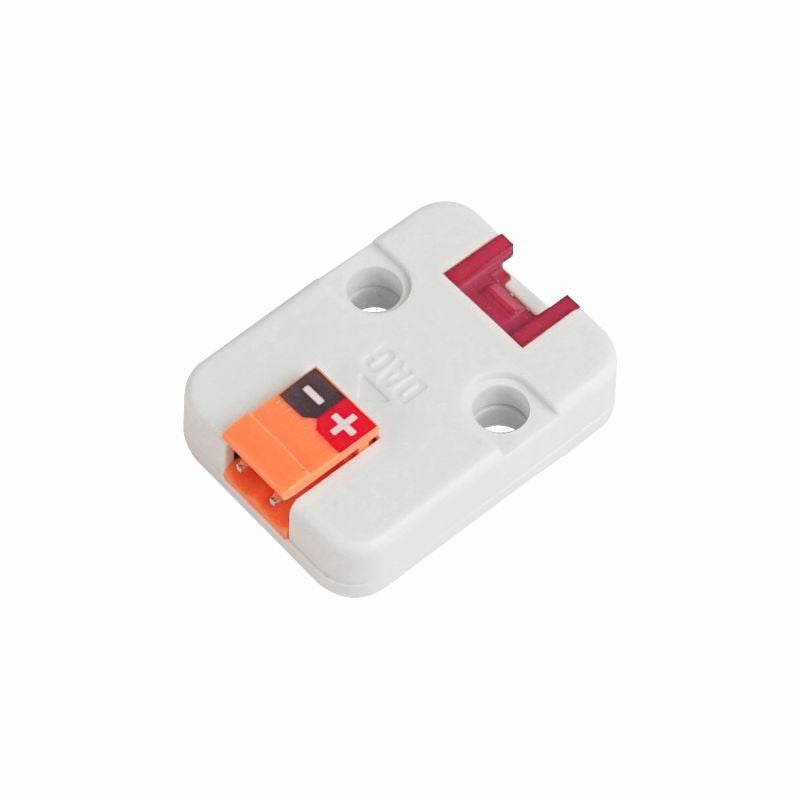

DAC Converter Digital to Analog I2C Unit (MCP4725)

SKU:U012

Regular price $3.95

10+ In Stock

Shipping calculated at checkout.

Description

DAC, is a unit with the ability to convert digital signal to analog signal (voltage waveform signal) with support for audio waveform and more. It integrates a 12-bit high resolution DAC chip named MCP4725 which has an on-board non-volatile memory (EEPROM). The unit communicates with the M5Core using the I2C protocol.

The DAC input and configuration data can be programmed to the EEPROM in order for the data to be saved after reboot or system shutdown.

The device I2C address is 0x60 by default unless changed manually.

Product Features

  • Up to 12 bits of resolution
  • Output 0~3.3V voltage GROVE interface, support UIFlow and Arduino
  • Two Lego-compatible holes

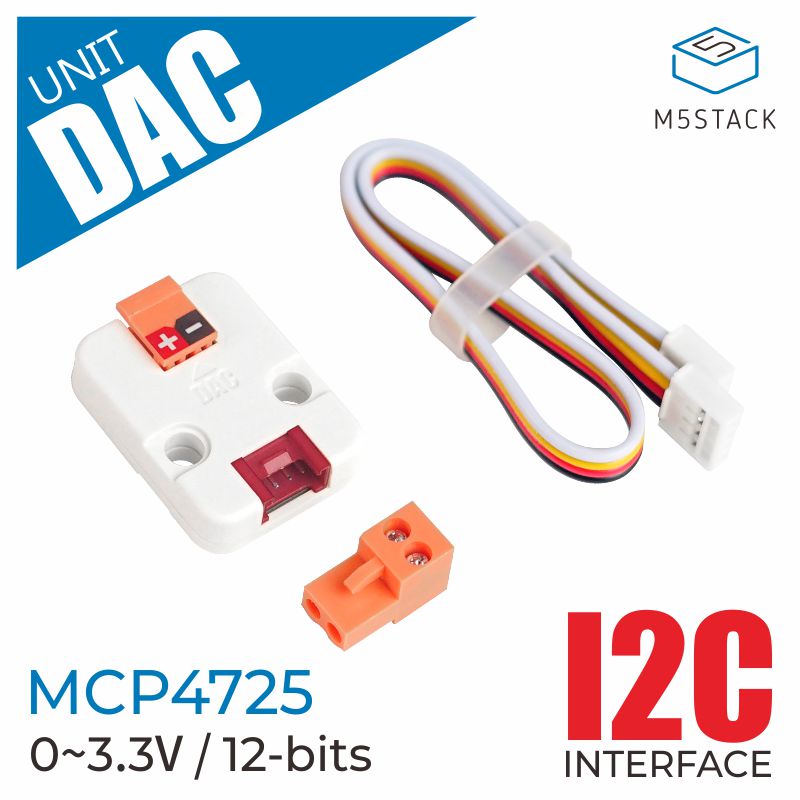

Include

  • 1x DAC Unit
  • 1x Grove Cable

Applications

  • MP3 Audio Player
  • mini Oscilloscope

Specification

Resources Parameter
Resolution 12 bit
voltage range 0-3.3V
Communication protocol I2C: 0x60
Net weight 4g
Gross weight 19g

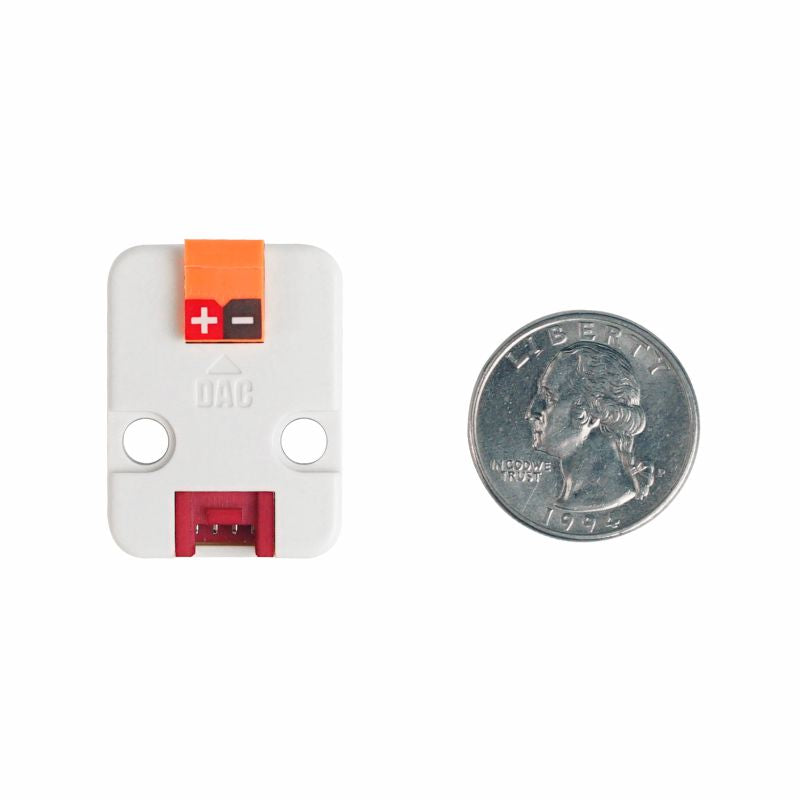

Product Size 32.2*24.2*10.3mm
Package Size 67*53*12mm
