COM.PROTO-MEAS Module-13.2

SKU:M033

Regular price $14.95

10+ In Stock

Shipping calculated at checkout.
PRODUCT DETAILS

Description

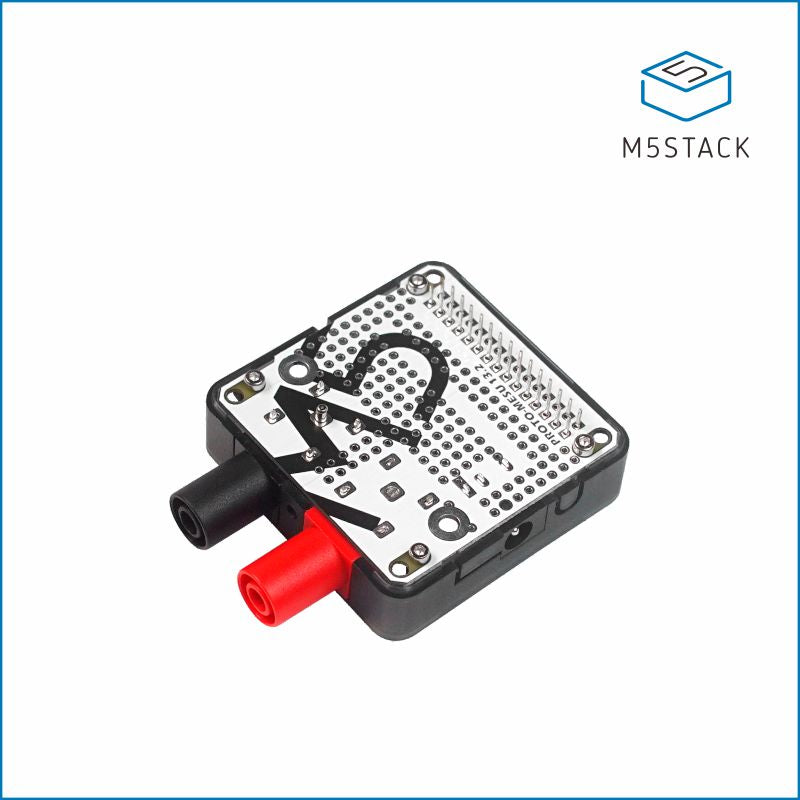

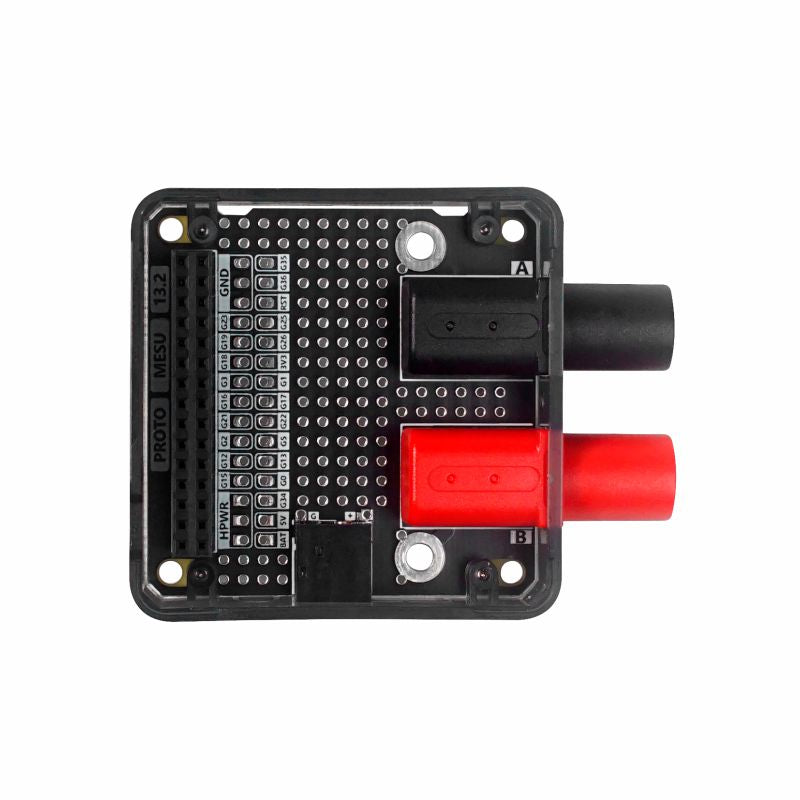

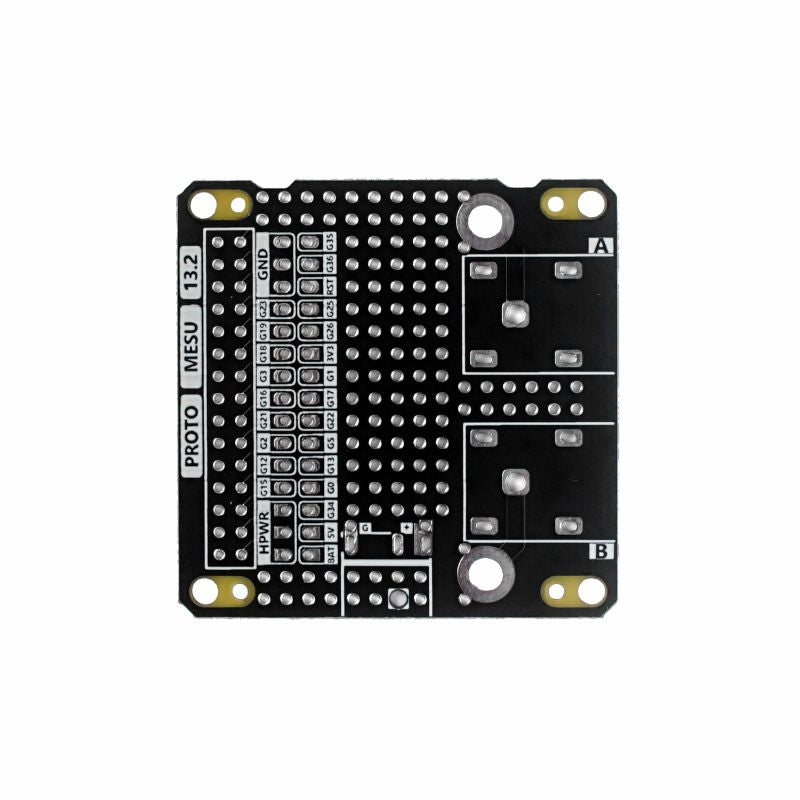

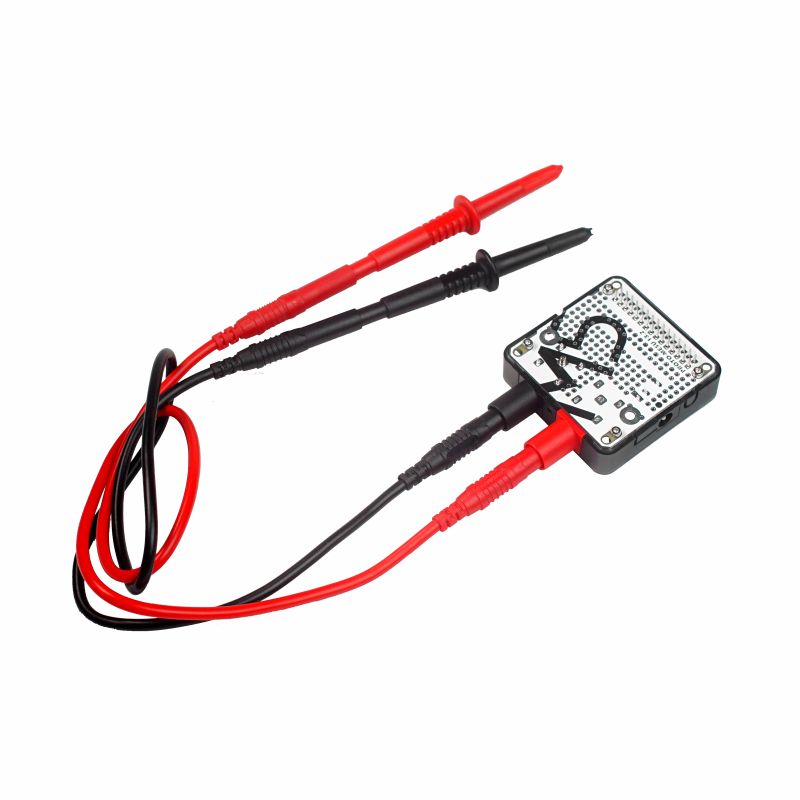

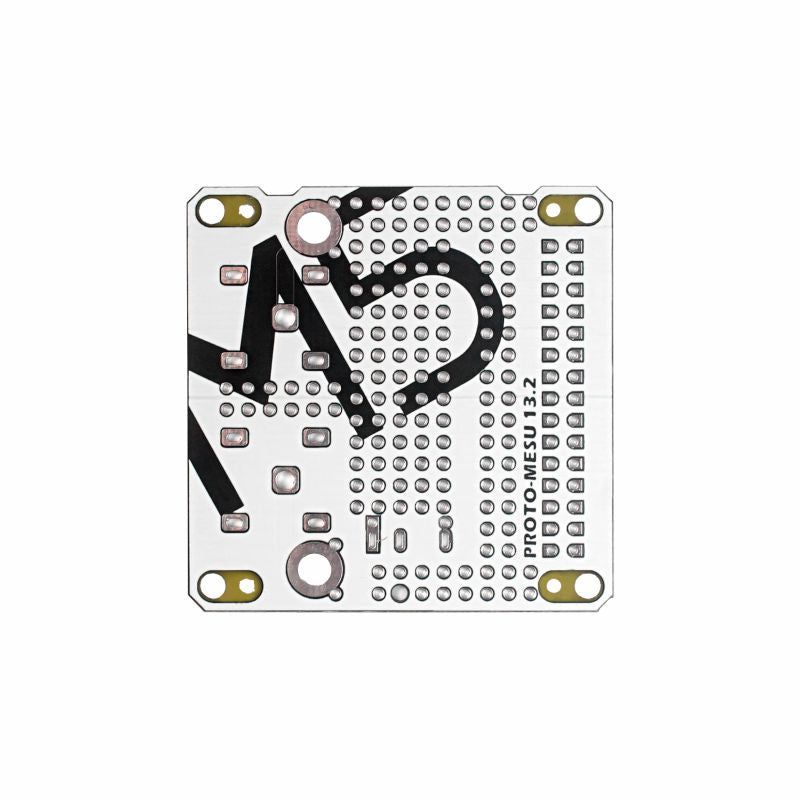

PROTO-MEAS 13.2 is a stackable DIY proto module for measuring current and voltage, with Multimeter probe and matching base, which is convenient for users to make a simple multimeter. The height of the module is 13.2mm, and a DC power jack is included on the board for external power.

Product Features

  • Stackable design
  • Main hole size: 0.039 "1mm (CNC drilling)
  • Hole spacing: 2.54 mm
  • Dedicated DC power port and probe socket

Include

  • 1x PROTO 13.2 module
  • 2x Wire
  • 1x M-bus

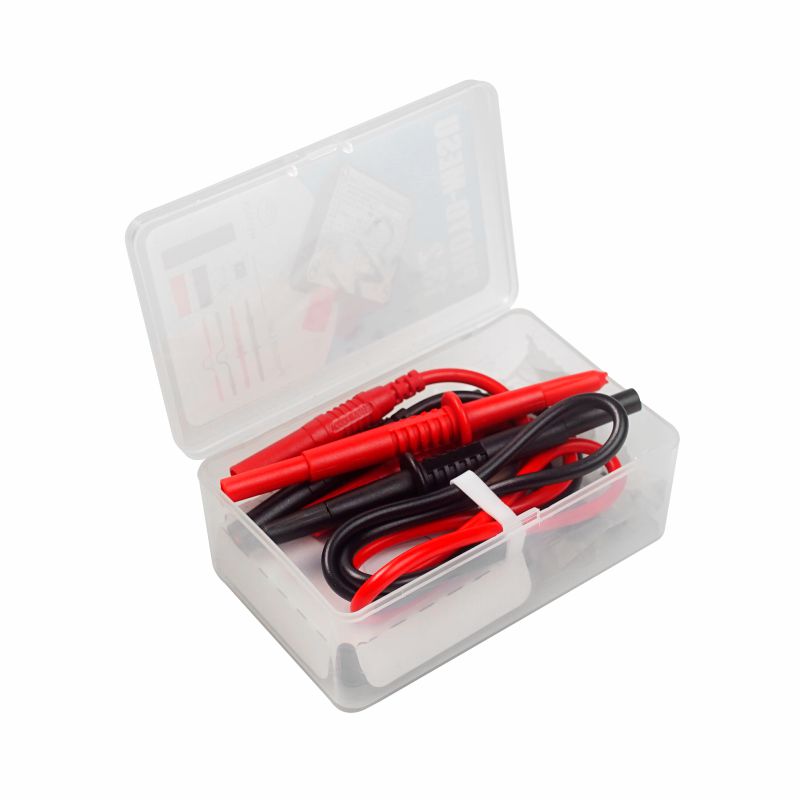

  • 1x Black probe and socket
  • 1x Red probe and socket
  • 1x DC 5V Power supply socket
  • 4x M2*5mm Self tapping screw
  • 1x M2 Hex Key

Application

  • Multimeter DIY

Specification

Resources Parameter
Net Weight 85g
Gross Weight 123g
Product Size 54 x 54 x 13.2mm
Package Size 105 x 65 x 40mm
Case material Plastic ( PC )

LEARN AND DOCUMENTS

  • DOCUMENTS
  • Customer Reviews

    Based on 1 review
    100%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    R
    Roger Williams
    Excellent accessory for the M5stack family

    I used my M5stack in combination with a HX711 breakout board to make a microvolt meter. This is a useful thing in my industry where we work with wheatstone bridge instrumentation and sometimes have to tell what a device is doing with a small input. With the M5stack core basic and proto-meas module I quickly had a little portable meter that can be taken in the field, works on battery power, and can help me diagnose scale load cells and thermocouples with a minimum of hardware hacking.
