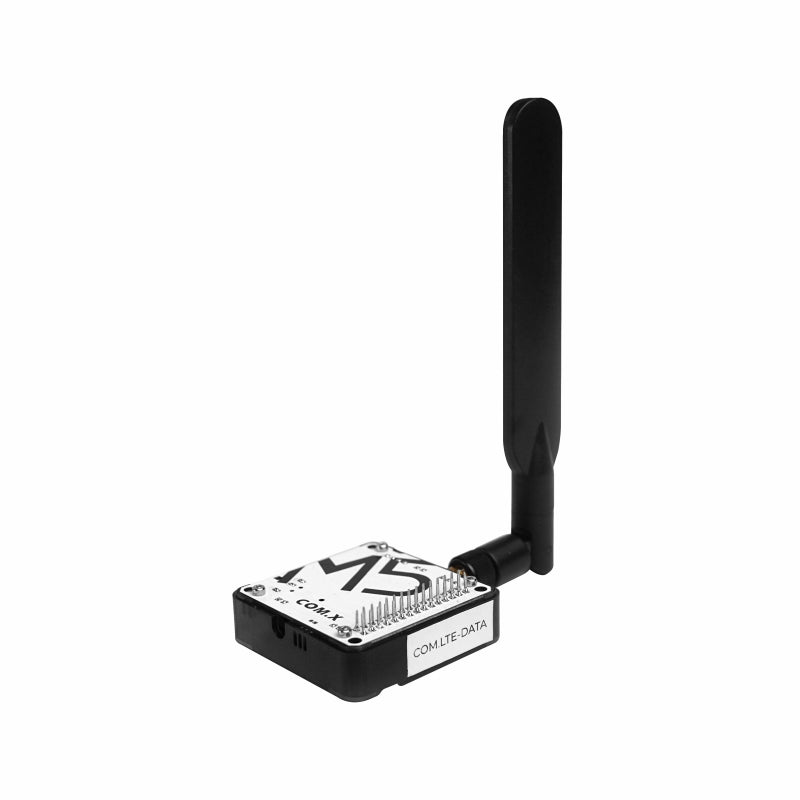

COM.LTE Data Module(A7600C1)

SKU:M031-E

Regular price $34.90

Out Of Stock

Shipping calculated at checkout.

Description

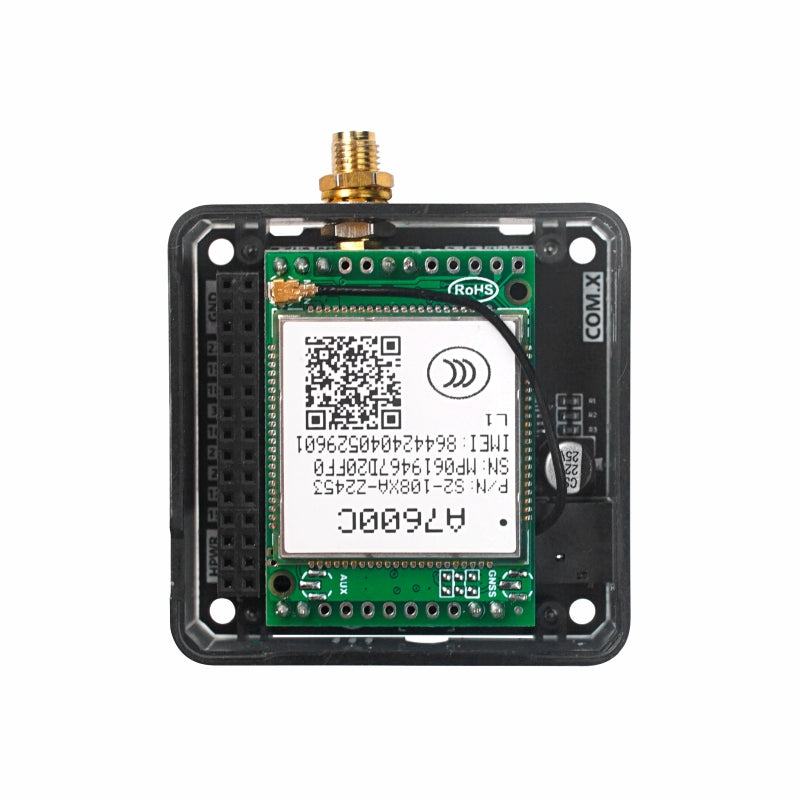

COM.LTE-DATA is a stackable multifunctional LTE communication module with built-in LTE communication module A7600C1, supporting LTE-TDD/LTE-FDD/EDGE/GPRS and GSM frequency bands, and the transmission rate is LTE.CAT1 standard.

Its performance is stable, the appearance is small and well designed, the cost performance is high and can transmit data with low power consumption. The module has a DC power input and can provide 5V-12V power supply through an external power supply.

In order to facilitate the user to configure the pin, the DIP switch is used to set the pin. This module is especially suitable for remote meter reading, smart phones, smart wearables, smart parking, municipal management and other IoT industries with low power consumption and compact size as the core requirements.

Notice

When used with the FIRE main control, due to the PSRAM pin conflict, please switch the DIP switch pins of the module base to TX(0/13), RX(5/15), and the device can use USB/ External DC is used for power supply.

When used with Core2 series main control, due to the different order of the base pin array, COM.X base pins TX(16), RX(17) correspond to the actual pins TX(14), RX of the Core2 main control (13) The equipment needs to use external DC for power supply.

Note: When using the CORE2 or CORE2-FOR-AWS main control to drive the module, please use the DC power input of the base and set the power mode to input mode (refer to the code below), otherwise it will not start normally

//mbus_mode_t:
//kMBusModeOutput: Use USB or battery power
//kMBusModeInput: Use external power supply 5V, or DC interface

M5.begin(true, true, true, false, kMBusModeInput);

//Initialize Serial according to the actual connected pins
Serial2.begin(115200, SERIAL_8N1, 13, 14);

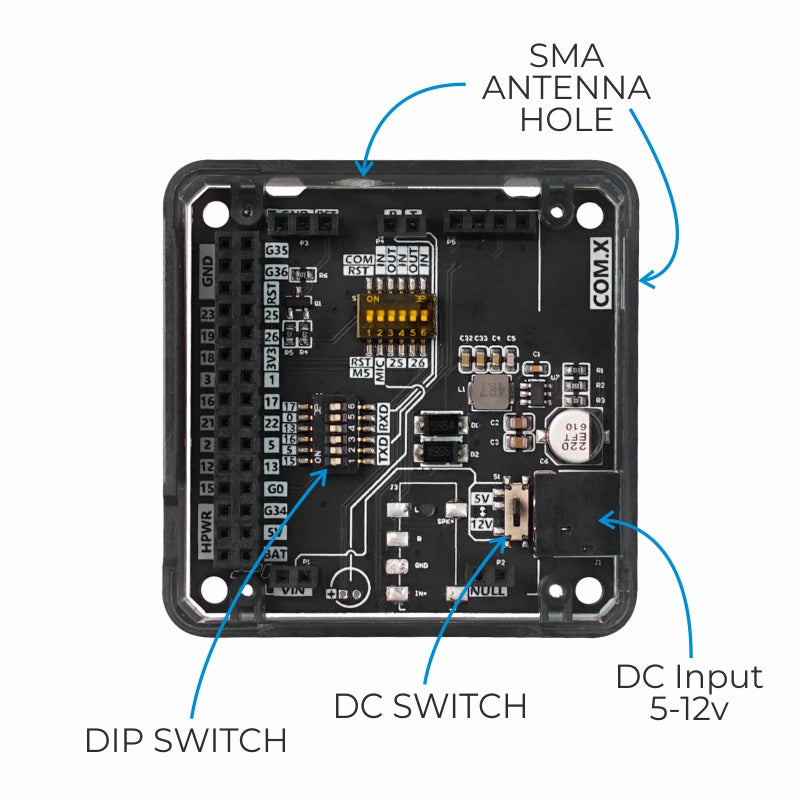

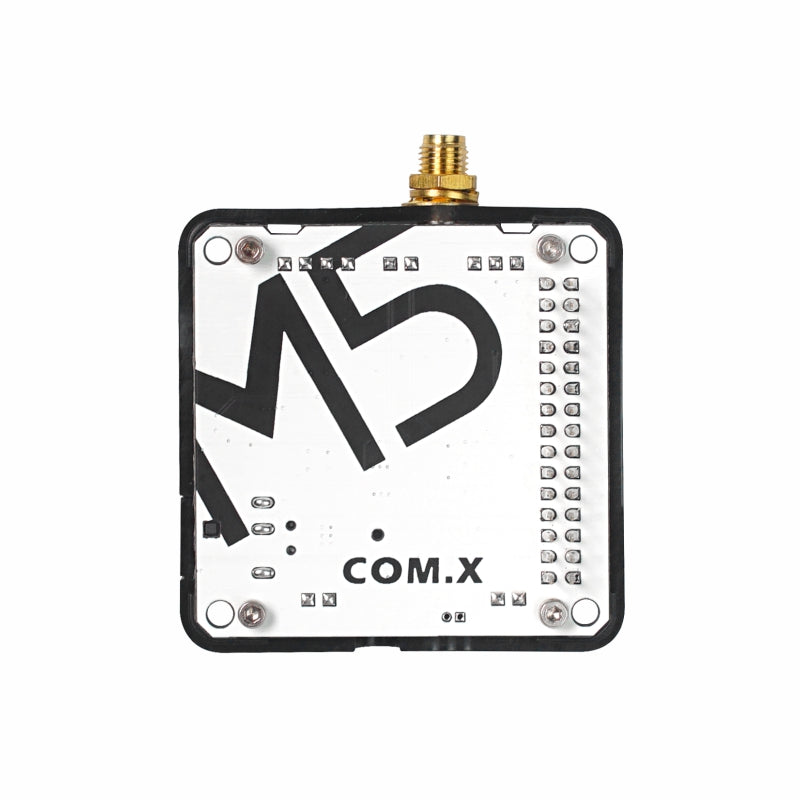

The module base has a DC power input interface. Please strictly follow the input range (5-12V) to prevent damage to the module when using this interface to connect to the power supply. The internal power DIP switch can adjust the voltage level of the internal terminal VIN to adapt to different modules.

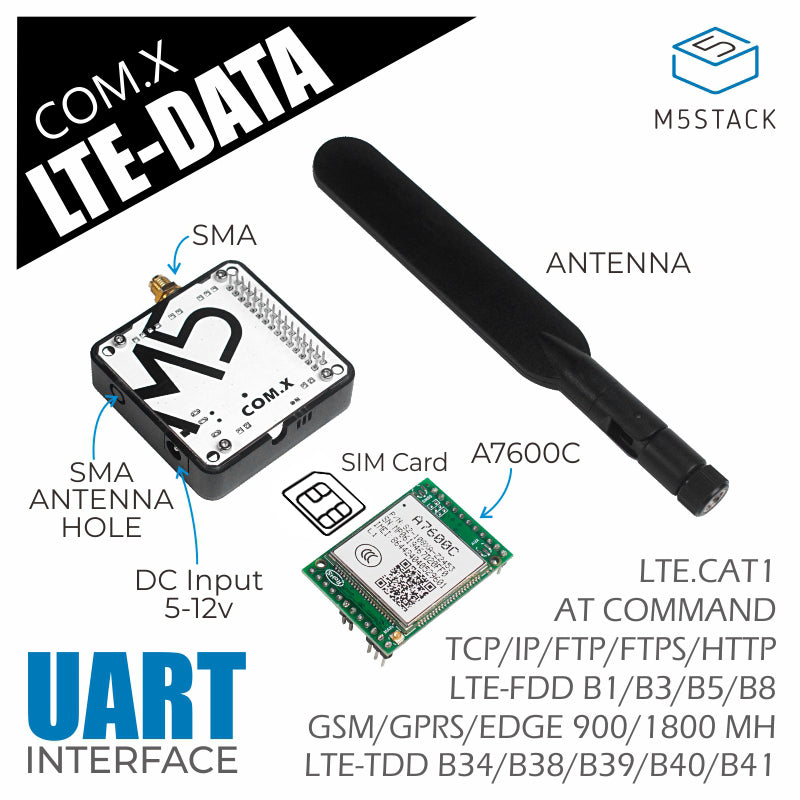

Product Features

  • Stackable design
  • Independent external power supply
  • AT command control
  • SIM card type: MicroSIM
  • Status signal: two LED indicators
  • External antenna: SMA antenna
  • Serial communication: UART 115200bps
  • Frequency band:

    • LTE-TDD B34/B38/B39/B40/B41
    • LTE-FDD B1/B3/B5/B8
    • GSM/GPRS/EDGE 900/1800 MHz*
  • Data transmission speed:

    • LTE Cat 1
      • (UL) 5Mbps
      • (DL) 10Mbps
    • EDGE
      • UL/DL 236.8Kbps
    • GPRS
      • UL/DL 85.6Kbps
  • Protocol

    • TCP/IP/IPV4/IPV6/MultiPDP/FTP/FTPS/HTTP/HTTPS/DNS
    • RNDIS/PPP/ECM
    • SSL

Include

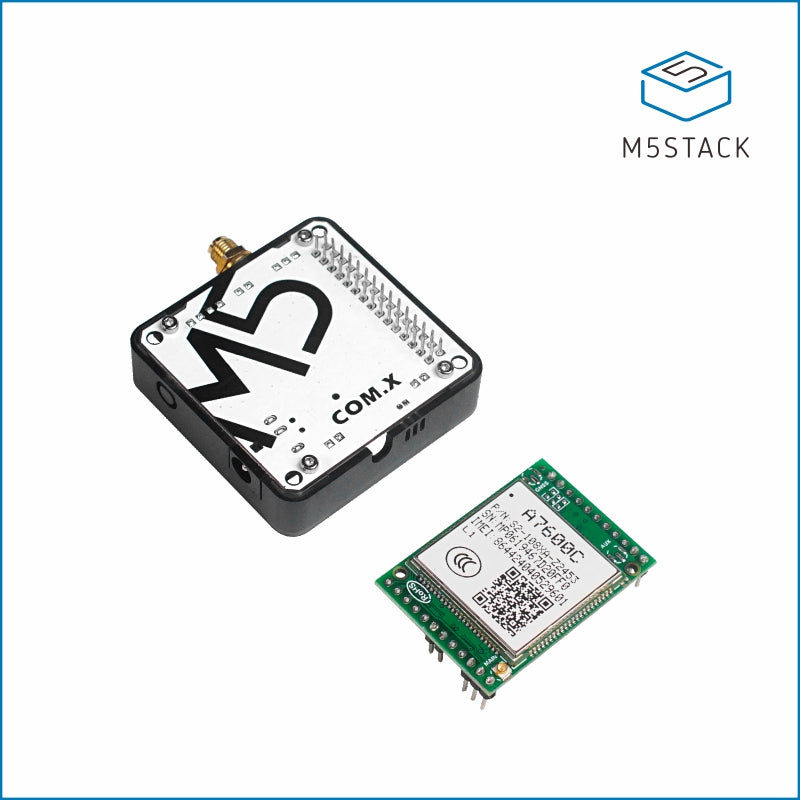

  • 1x COM.LTE-DATA module
  • 1x SMA antenna

Applications

  • Smart meter
  • Smart parking
  • Municipal management

Specification

Resources Parameter
Frequency band LTE-FDD/LTE-TDD/WCDMA/GSM
Network protocol TTCP/IP/IPV4/IPV6/ Multi-PDP/FTP/FTPS/HTTP/ HTTPS/DNS etc.
Communication UART 115200bps
DC interface specifications 5.5mm
Net Weight 54g
Gross Weight 89g
Product Size 54.2*54.2*13.2mm
Package Size 165*60*36mm
