COM.LoRaWAN Module 868MHz V2.0 (ASR6501)

SKU:M031-C4

Regular price $26.90

Out Of Stock

Shipping calculated at checkout.

Description

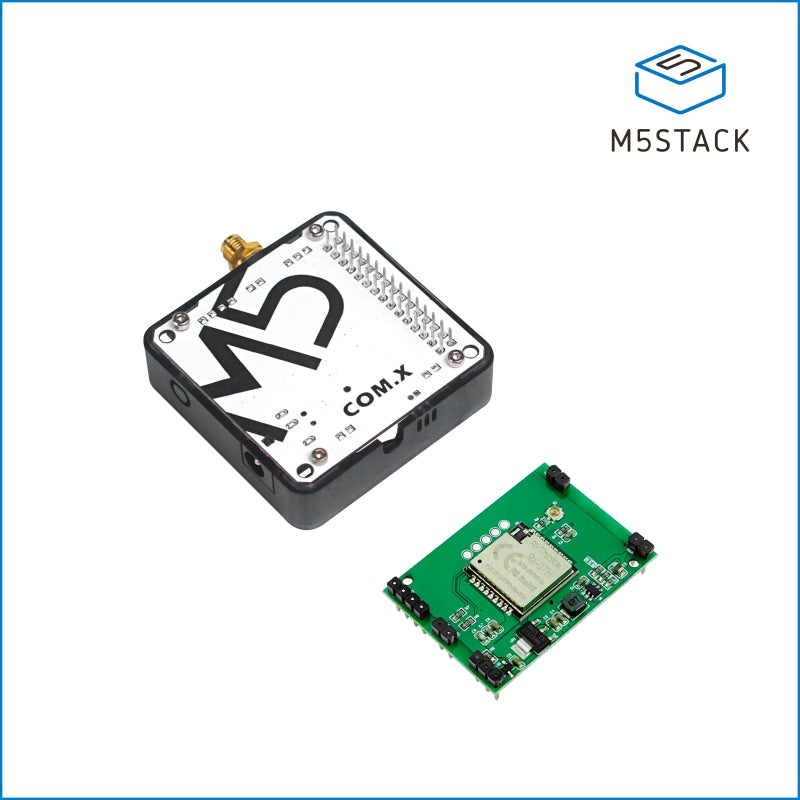

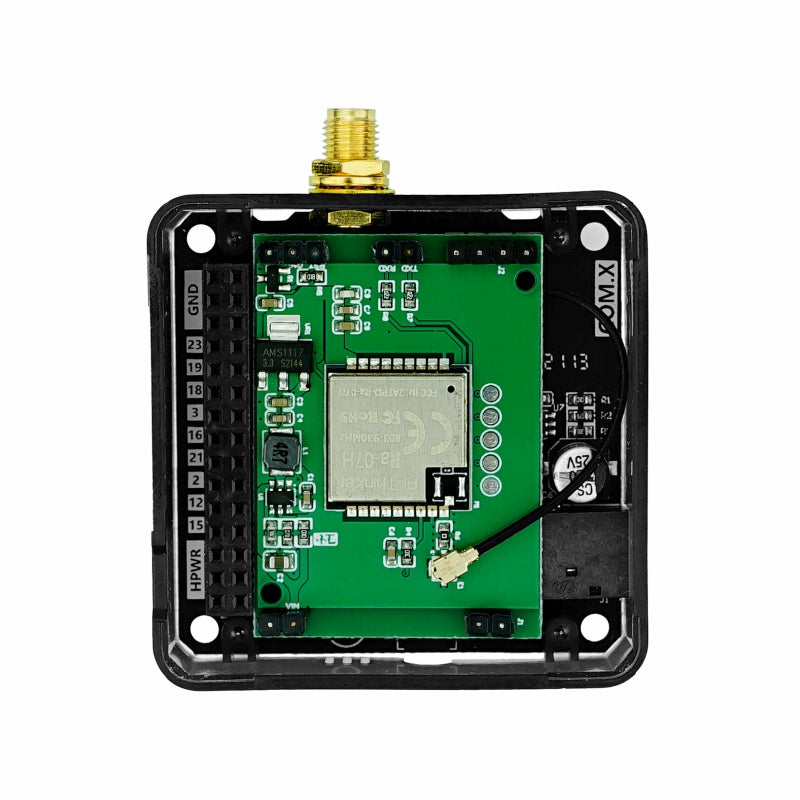

COM.LoRaWAN868 v2.0 is a LoRaWAN communication module suitable for 868MHz frequency launched by M5Stack. The module adopts the ASR6501 scheme, which supports long-distance communication and has high sensitivity characteristics. The module integrates the LoRaWAN protocol stack, adopts the serial communication interface (using AT command set for control), and can be used as a collection node for a large number of access gateways for data collection management. This module is suitable for long-distance low-power IoT communication applications, such as the deployment of environmental monitoring nodes.

Notice

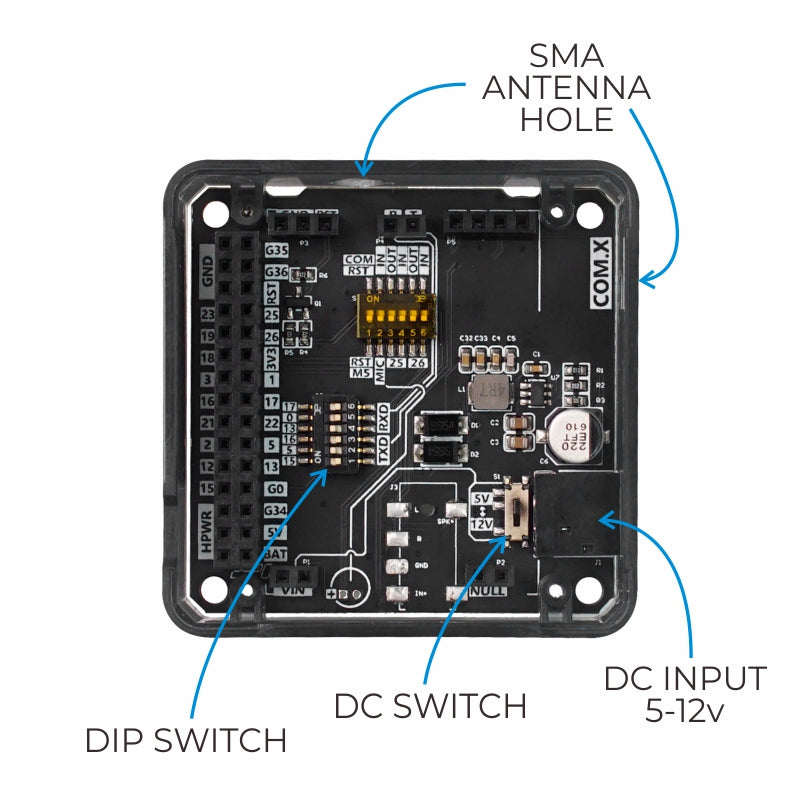

When used with the FIRE main control, due to the PSRAM pin conflict, please switch the DIP switch pins of the module base to TX(0/13), RX(5/15), and the device can use USB/ External DC is used for power supply.

When used with Core2 series main control, due to the different order of the base pin array, COM.X base pins TX(16), RX(17) correspond to the actual pins TX(14), RX of the Core2 main control (13) The equipment needs to use external DC for power supply.

The module base has a DC power input interface. Please strictly follow the input range (5-12V) to prevent damage to the module when using this interface to connect to the power supply. The internal power DIP switch can adjust the voltage level of the internal terminal VIN to adapt to different modules.

Product Features

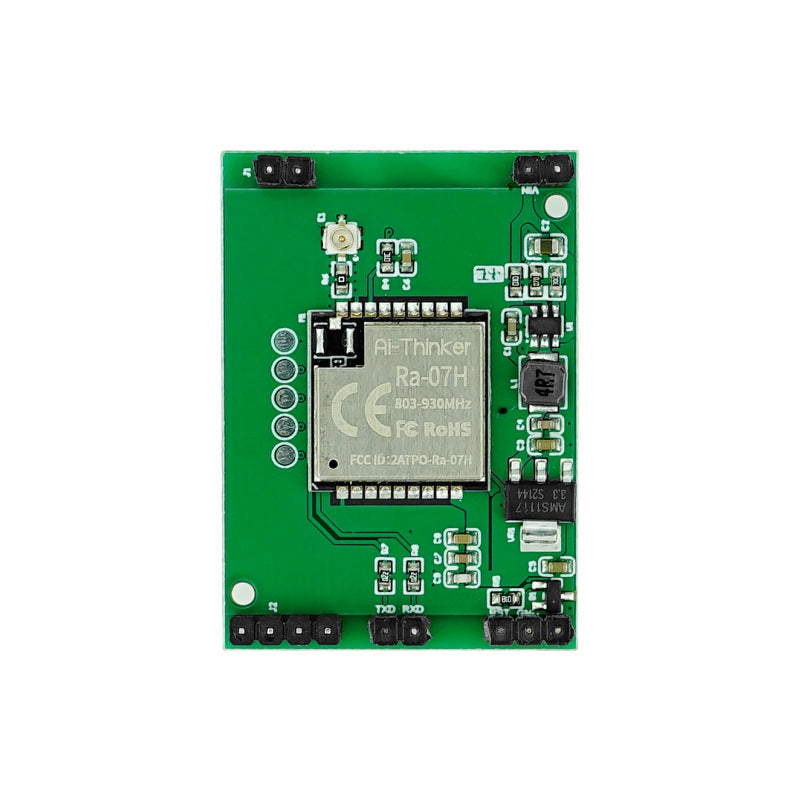

  • ASR6501
  • Operating frequency: 868MHz

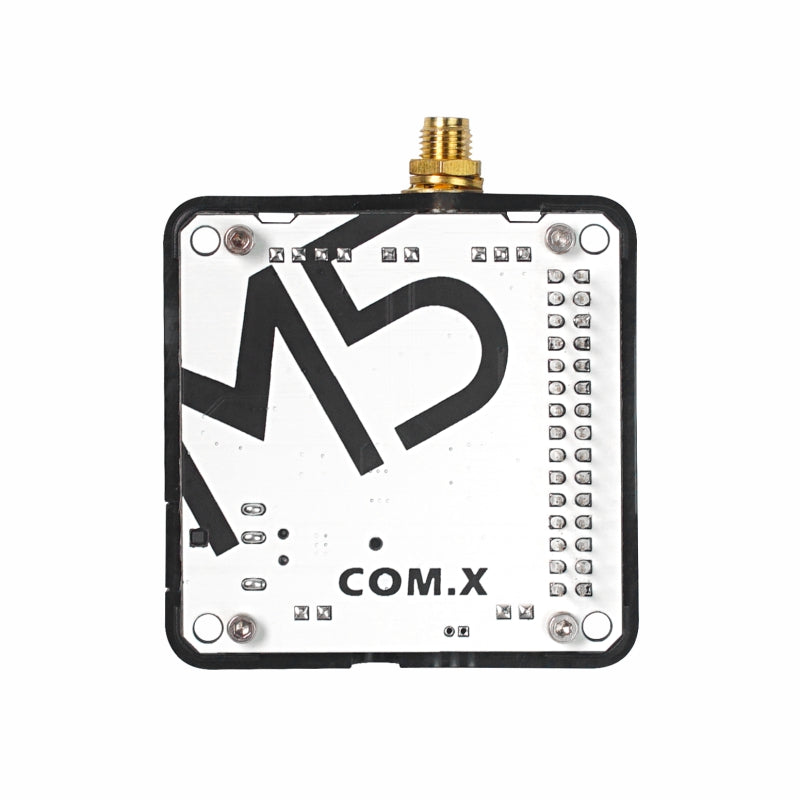

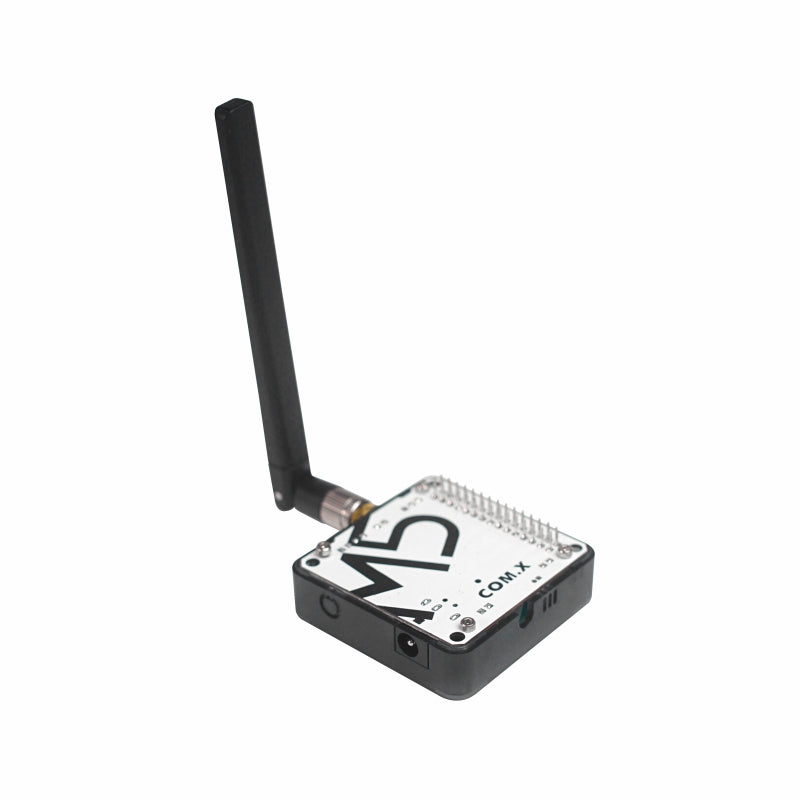

  • SMA antenna
  • Communication interface: UART
  • Command protocol: AT command

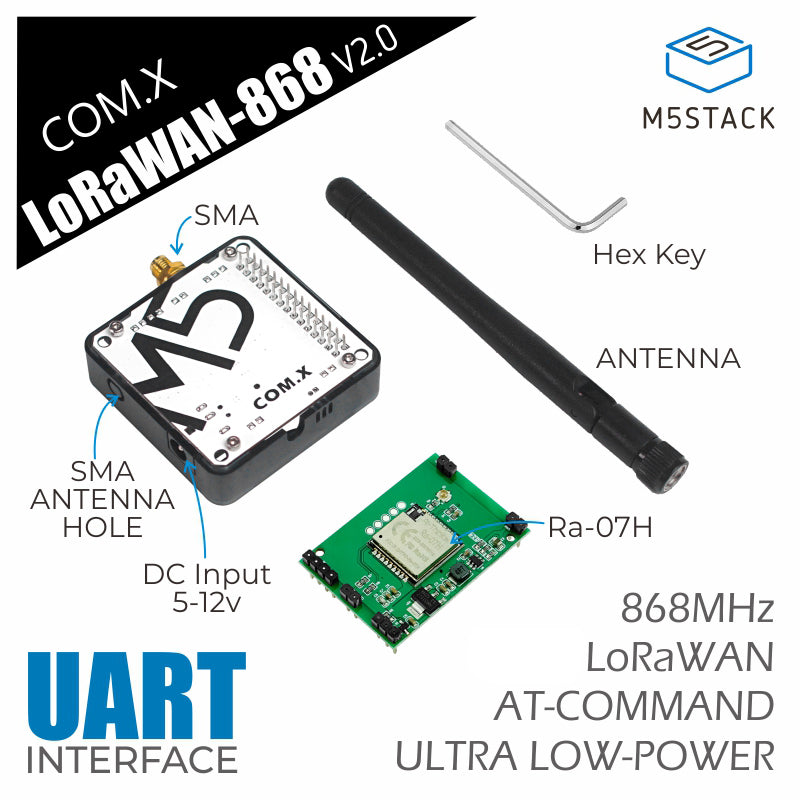

Includes

  • 1x COM.LoRaWAN868 v2.0
  • 1x SMA Antenna

Application

  • Automatic remote meter reading
  • Intelligent traffic intelligent parking lot
  • Remote irrigation and environmental monitoring

868MHz supported countries

Albania/Andorra/Armenia/Austria/Bahrain/Bangladesh/Belarus/Belgium/Myanmar/Bosnia and Herzegovina/Brunei Darussalam/Bulgaria/Cambodia/Cambodia/Croatia/Cyprus/Denmark/Egypt/Estonia/ Finland/France/Germany/Germany Guatemala/Hungary/Iceland/Iran/Ireland/Italy/Laos/Latvia/Lebanon/Liechtenstein/Lithuania/Luxembourg/Macedonia, the former Federal Republic of Yugoslavia/Malta/Moldova/Montenegro/Morocco/Netherlands/Netherlands/New Zealand/Nigeria/Norway/Oman/Pakistan/Poland/Portugal/Qatar/Romania/Saudi Arabia/Serbia/Singapore/Slovenia/South Africa/Spain/Sweden/Switzerland/Tunisia/Turkey/Ukraine/UAE/UK/Vietnam

Specifications

Resources Parameter
Communication chip ASR6501
Operating frequency 868MHz
LoRaWAN Version v1.0.1
Minimum receiving sensitivity -137dBm (SF=12/BW=125KHz)
Maximum transmit power +21dBm
communication UART 115200bps
Net weight 27.4g
Gross weight 70.4g
Product Size 54.2*54.2*13.2mm
Package Size 165*60*36mm
