[EOL] COM.LoRaWAN Module 868MHz (ASR6501)

SKU:M031-C

Regular price $26.90

EOL

Shipping calculated at checkout.

Description

COM.LoRaWAN is a LoRaWAN communication module in the M5Stack stackable module series, supporting node-to-node or LoRaWAN communication. The LoRaWAN module based on ASR6501 encapsulates the PSoC4000 and SX1262 chips, supports the 868MHz frequency band, is based on an ultra-low power design, and consumes very low current (3.5μA) in deep sleep mode. In order to facilitate the user to configure the pins, the DIP switch is used to set the hardware serial port pins.

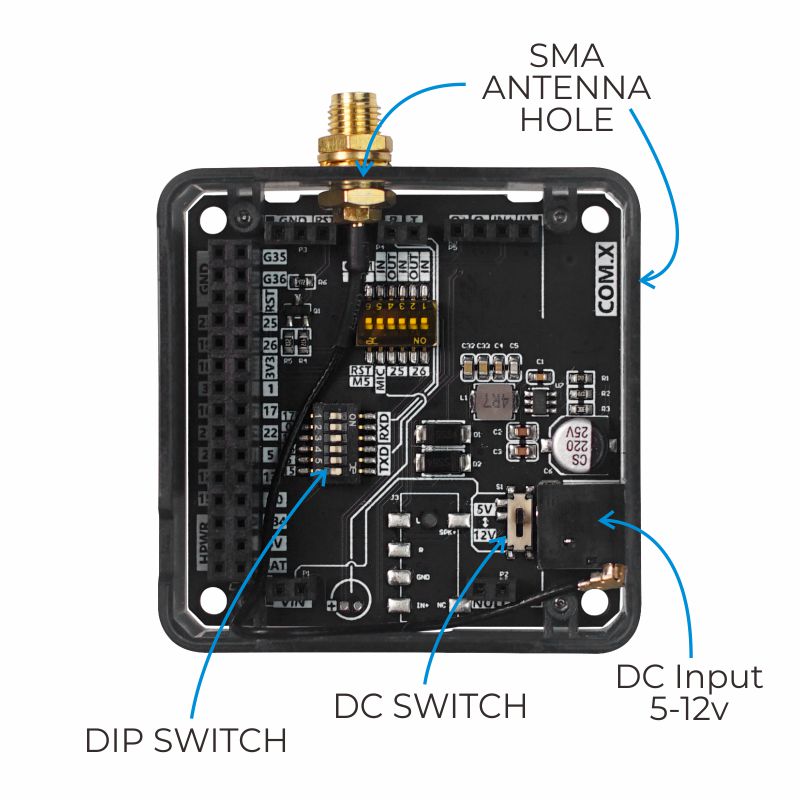

The user only needs to switch the corresponding pins to ON as needed and specify the pins in the program. A DC power socket is designed under the module, which can be powered by an external power supply, and an external antenna can be used to obtain better signal quality. This module is especially suitable for remote low-power transmission application scenarios with ultra-low power consumption and ultra-small size as the core requirements. Since LoRa defines the lower physical layer, the upper networking layers were lacking.

LoRaWAN was developed to define the upper layers of the network. LoRaWAN is a media access control (MAC) layer protocol but acts mainly as a network layer protocol for managing communication between LPWAN gateways and end-node devices as a routing protocol, maintained by the LoRa Alliance.You can upgrade your work with a LoRa / LoRaWAN radio, so it can communicate over very long distances and extremely low power consuming.

COM LoRaWAN serial port settings baud rate: 115200, stop bit: 1, data bit: 8, parity bit: none, terminator: none

This product is EOL now.

Notice

When used with the FIRE main control, due to the PSRAM pin conflict, please switch the DIP switch pins of the module base to TX(0/13), RX(5/15), and the device can use USB/ External DC is used for power supply.

When used with Core2 series main control, due to the different order of the base pin array, COM.X base pins TX(16), RX(17) correspond to the actual pins TX(14), RX of the Core2 main control (13) The equipment needs to use external DC for power supply.

Product Features

  • Stackable design
  • Support LoRa/LoRaWAN
  • Module: Based on ASR6501
  • Frequency Baud:868MHz(EU868)
  • Radio IC: SX1262
  • MasterChip:PSoC® 4000 series MCU (ARM® Cortex® M0+ Core)
  • Interface: UART
  • Protocol:AT Command
  • Compatible with Arduino IDE
  • Ultra-low power design

Include

  • 1x LoRaWAN Module
  • 1x SMA antenna

Applications

  • Automatic meter reading
  • Home building automation
  • Remote irrigation system

Specification

Specification Parameter
Frequency Baud 868MHz
Communication UART
Protocol AT Command
DC interface specifications 5.5mm
Net weight 40g
Gross weight 75g
Product Size 54.2*54.2*13.2mm
Package Size 165*60*36mm
