COM.GPS module (NEO-M8N) with Antenna

SKU:M031-G

Regular price $34.90

10+ In Stock

Shipping calculated at checkout.

Description

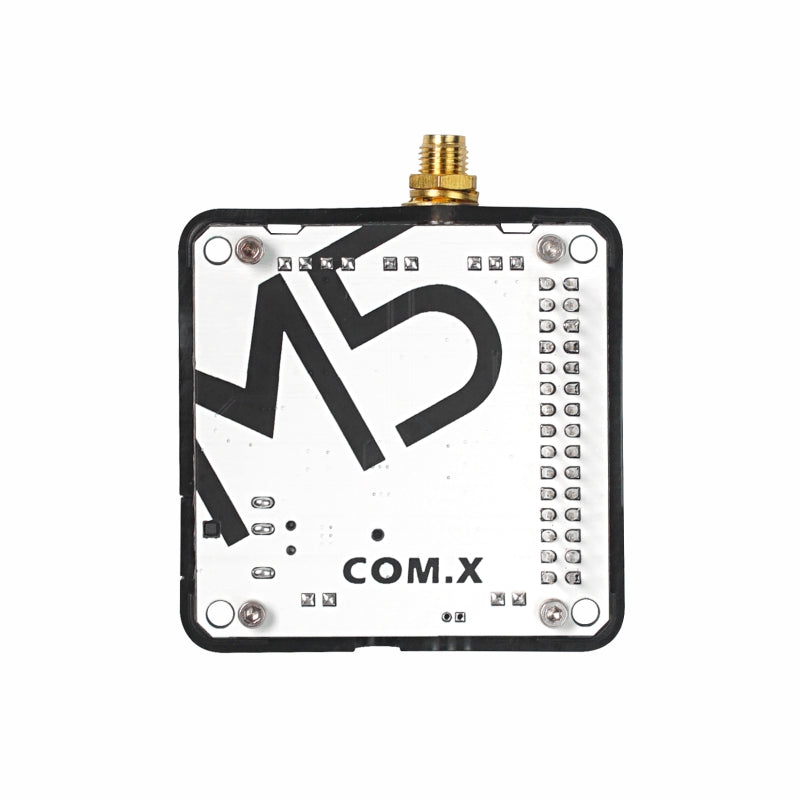

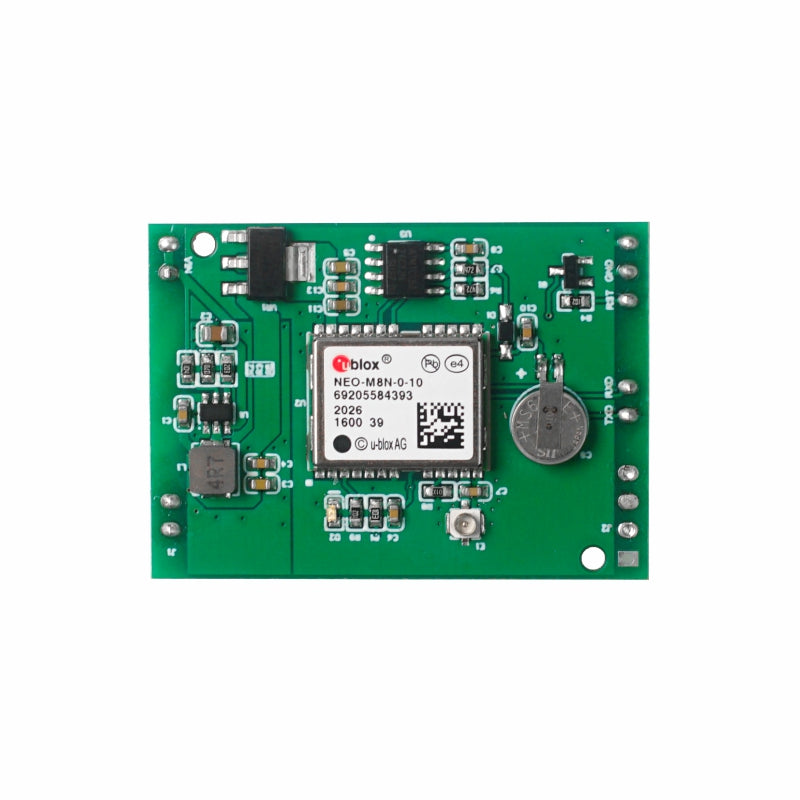

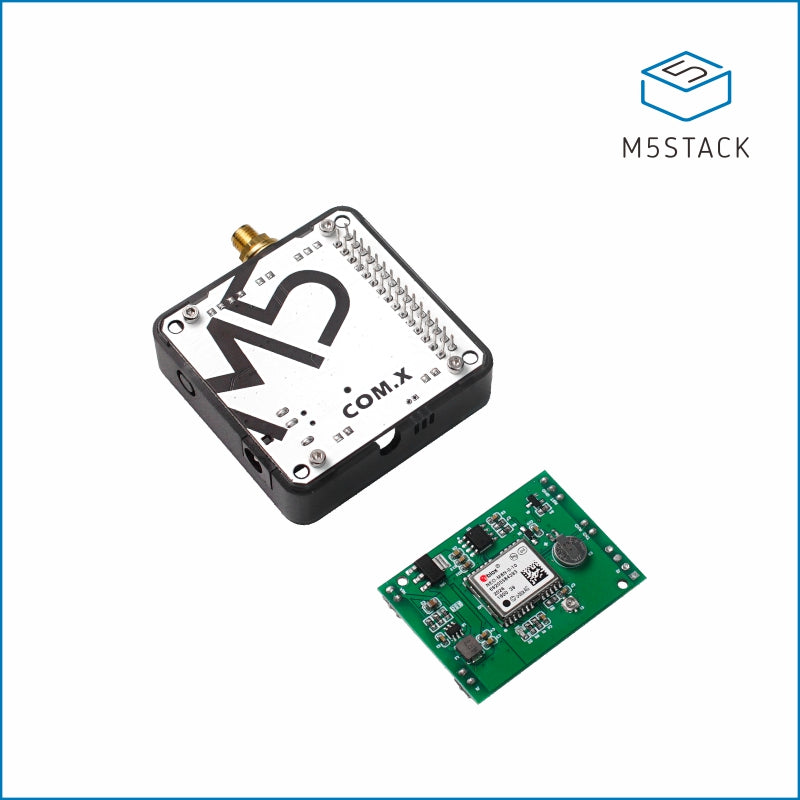

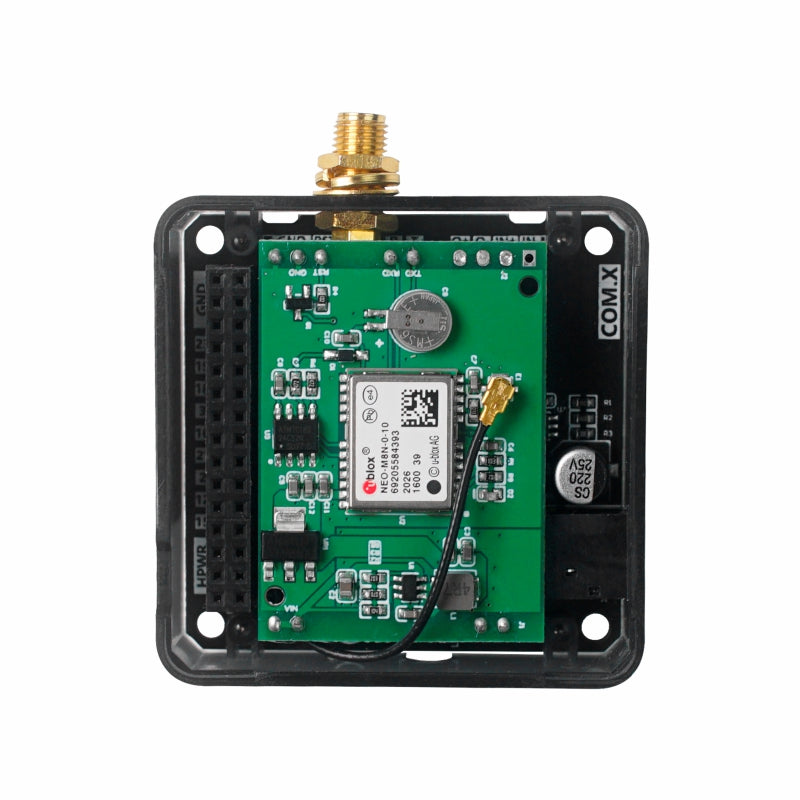

COM.GPS is a satellite positioning module in the M5Stack stacking module series. It is developed based on the NEO-M8N module and is equipped with an active antenna. The NEO-M8 can spend a small amount of time, conduct high-sensitivity acquisition, and keep the system low power consumption. NEO-M8N integrates the 72-channel u-blox M8 GNSS engine, supports multiple GNSS systems: BeiDou, Galileo, GLONASS, GPS / QZSS, allowing simultaneous reception 3 Data from a GNSS system. Programmable FLASH is integrated inside the module, which can read and write data. The module's high sensitivity, small static drift, low power consumption and compact size are very suitable for applications in vehicles, handheld devices such as PDAs, vehicle monitoring, mobile phones, cameras and other mobile positioning systems. The UART communication protocol is used between the M5Core and the GPS module, and the serial port connection pins can be modified through the dial switch on the back.

If you want to change the serial port baud rate, please click ( u-center-just-for-Windows ).

Note: In order to get a good signal from the GPS module, please place the module outdoors when using it.

UART protocol: baud rate (default is 9600bps), data bit (8 bits), start bit (1 bit), stop bit (1 bit), check bit (none).

Notice

When used with the FIRE main control, due to the PSRAM pin conflict, please switch the DIP switch pins of the module base to TX(0/13), RX(5/15), and the device can use USB/ External DC is used for power supply.

When used with Core2 series main control, due to the different order of the base pin array, COM.X base pins TX(16), RX(17) correspond to the actual pins TX(14), RX of the Core2 main control (13) The equipment needs to use external DC for power supply.

Note: When using the CORE2 or CORE2-FOR-AWS main control to drive the module, please use the DC power input of the base and set the power mode to input mode (refer to the code below), otherwise it will not start normally

//mbus_mode_t:
//kMBusModeOutput: Use USB or battery power
//kMBusModeInput: Use external power supply 5V, or DC interface

M5.begin(true, true, true, false, kMBusModeInput);

//Initialize Serial according to the actual connected pins
Serial2.begin(115200, SERIAL_8N1, 13, 14);

The module base has a DC power input interface. Please strictly follow the input range (5-12V) to prevent damage to the module when using this interface to connect to the power supply. The internal power DIP switch can adjust the voltage level of the internal terminal VIN to adapt to different modules.

Product Features

  • Antenna type: external GPS antenna
  • External antenna port: SMA
  • Can receive data from 3 GNSS systems at the same time
  • Horizontal position accuracy: minimum 2.5m
  • GPS module (NEO-M8N) built-in flash memory, through u-center-just-for-Windows upgrade firmware
  • Protocol: NMEA, UBX, RTCM
  • Industry leading -167dBm sensitivity
  • Backward compatible with NEO‑7 and NEO‑6 series

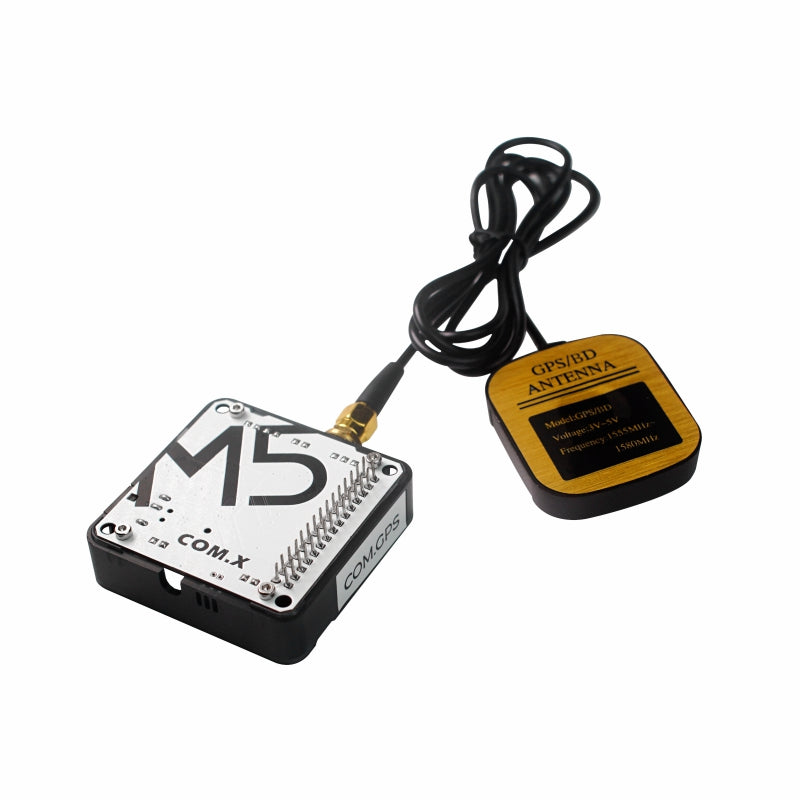

Includes

  • 1x COM.GPS Module
  • 1x External antenna(length: 1 m)

Application

  • GPS-based logistics tracking management
  • Driverless car positioning

Specification

Resources Parameter
Receiver type GPS:L1C/A SBAS:L1C/A QZSS:L1C/A GLONASS:L1OF BediDou:B1 Galileo:E1B/C
Positioning time Cold start:26S Hot start:1.5S
Sensitivity -167 dBm
Update rate Separate GNSS 10Hz,Parallel GNSS 5Hz
Rate accuracy 0.05m/s
Speed limit 500m/s
Working voltage 2.7 ~ 3.6
Working temperature -40 ~ 80°C
DC interface specifications 5.5mm
Net Weight 28g
Gross Weight 99g
Product Size 54*54*13.2mm
Package Size 165*60*36mm
