Description

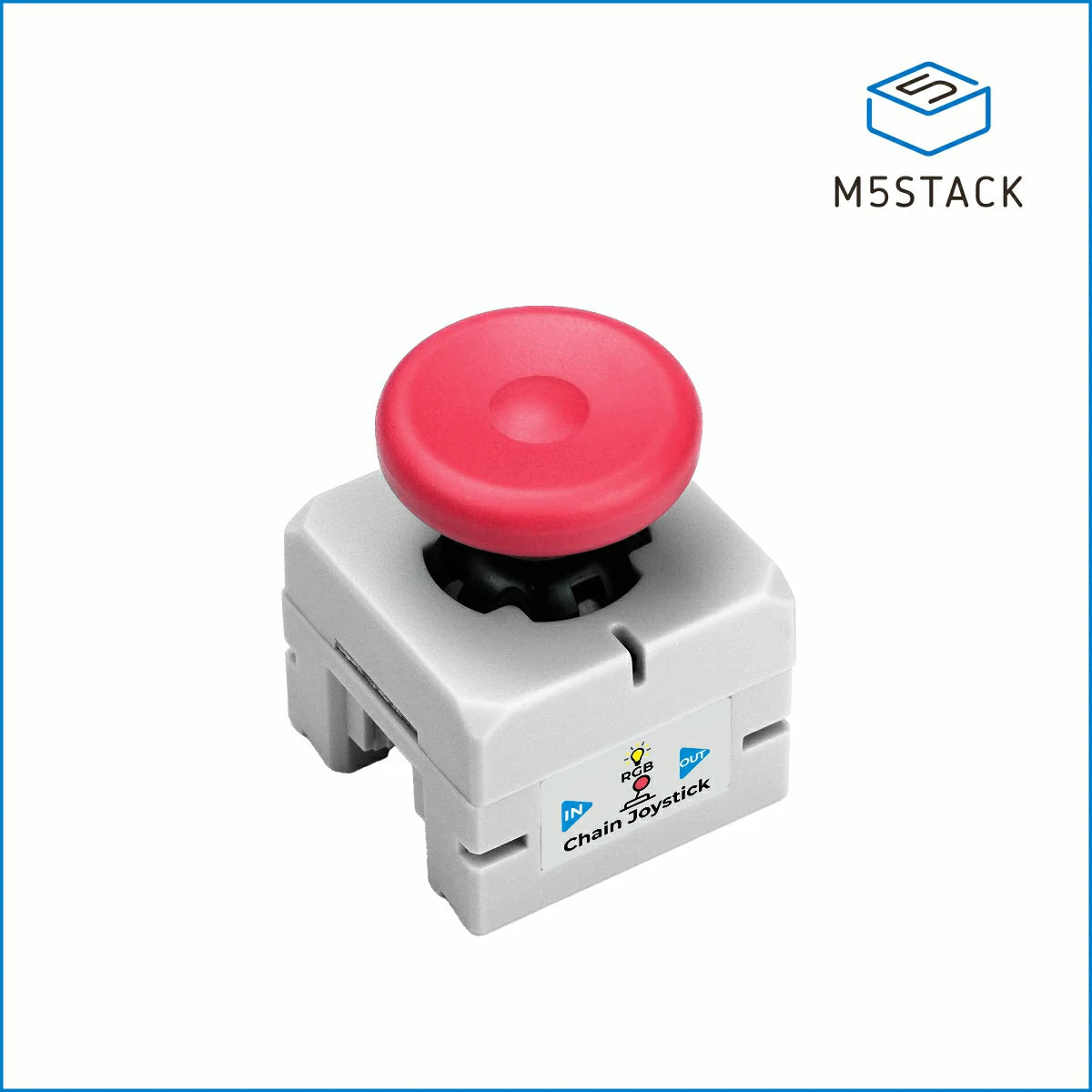

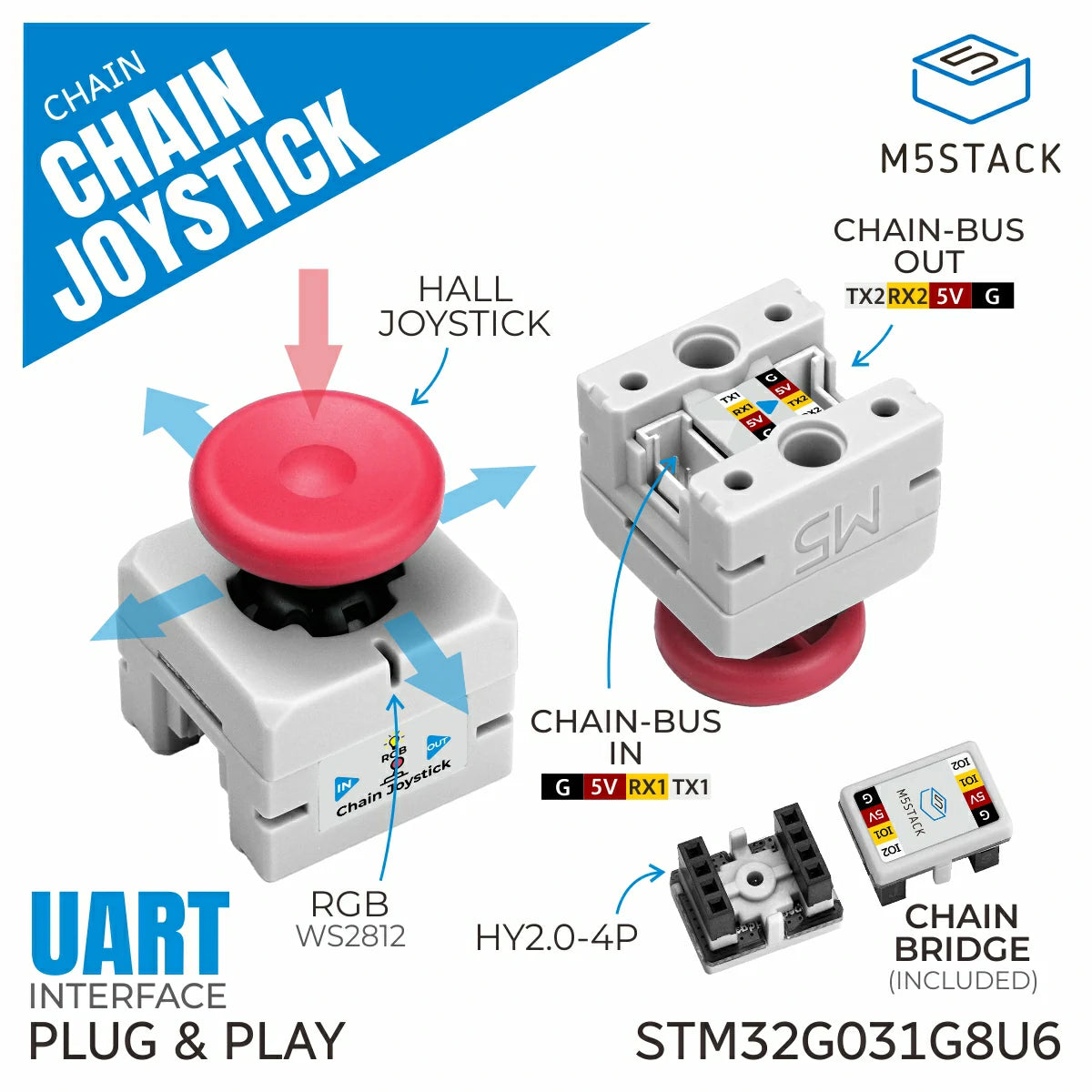

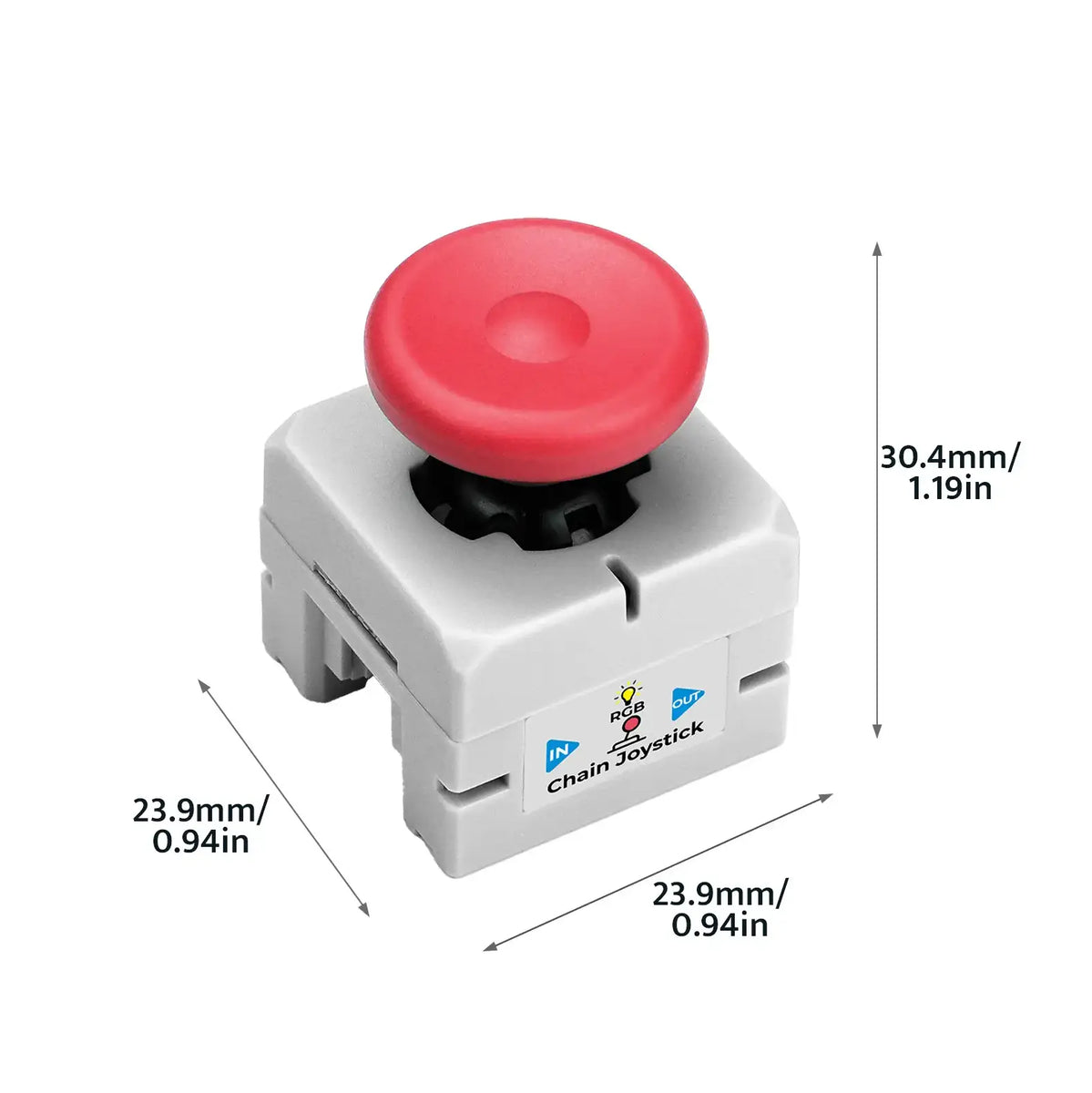

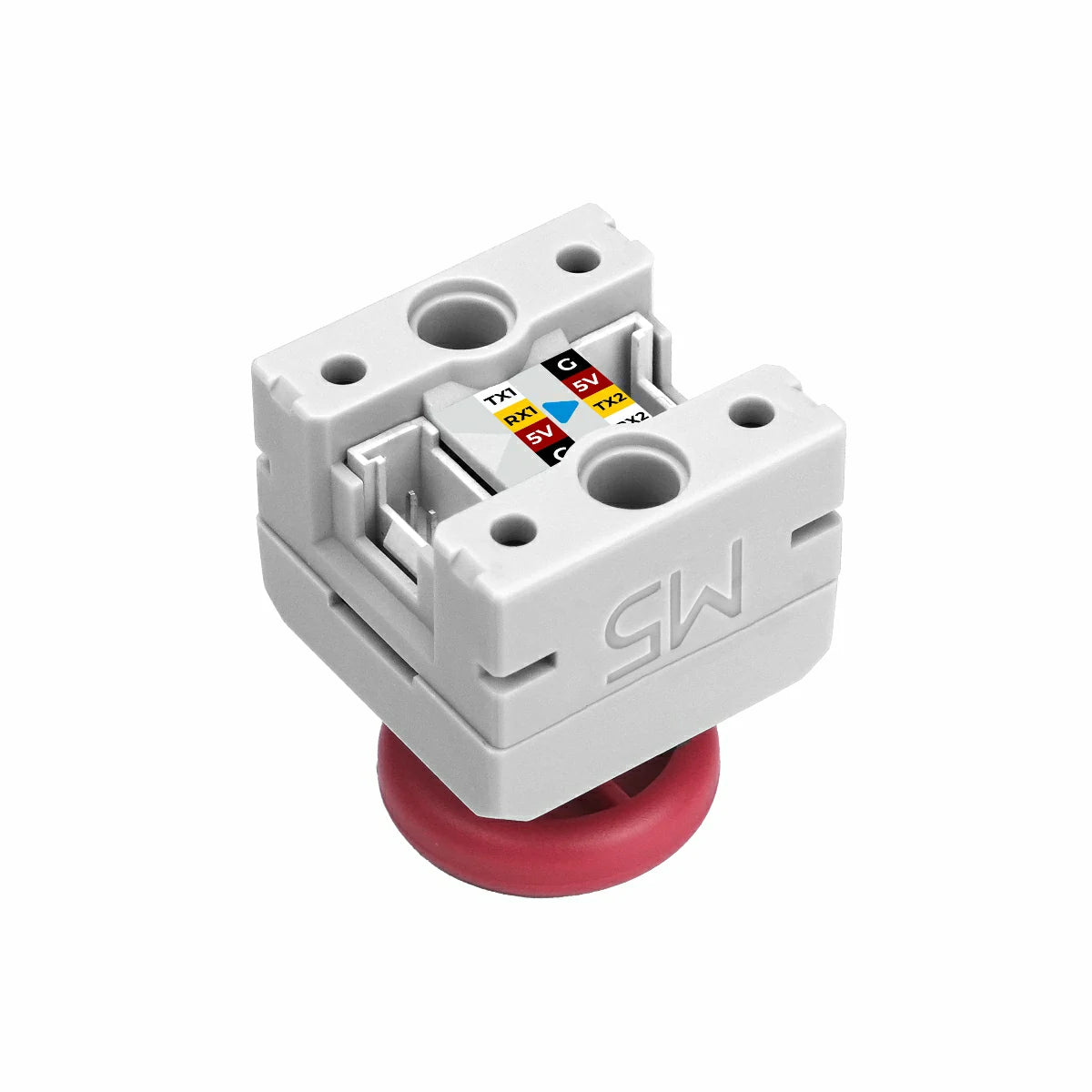

Chain Joystick is a high-precision Hall effect joystick input node in the M5Stack Chain series. It supports three-axis control signal input, including analog input for X/Y axes and digital key input for the Z-axis. The device uses a Hall effect joystick that achieves high-precision control by detecting magnetic field changes. It features non-contact operation, wear resistance, high accuracy, and strong anti-interference capability, ensuring product stability and long lifespan. It also integrates a programmable RGB LED for status indication and interactive display. It is suitable for human-machine interaction, robot control, and other application scenarios.

The Chain Joystick series integrates the STM32G031G8U6 core controller and adopts a UART serial cascading communication protocol. With two HY2.0-4P expansion interfaces, more Chain series devices can be connected to build richer interactive applications.

Features

• M5Stack Chain series
• High-precision Hall effect joystick
• STM32G031G8U6 core controller
• X/Y/Z three-axis input
• 1x RGB LED
• UART serial cascading communication protocol

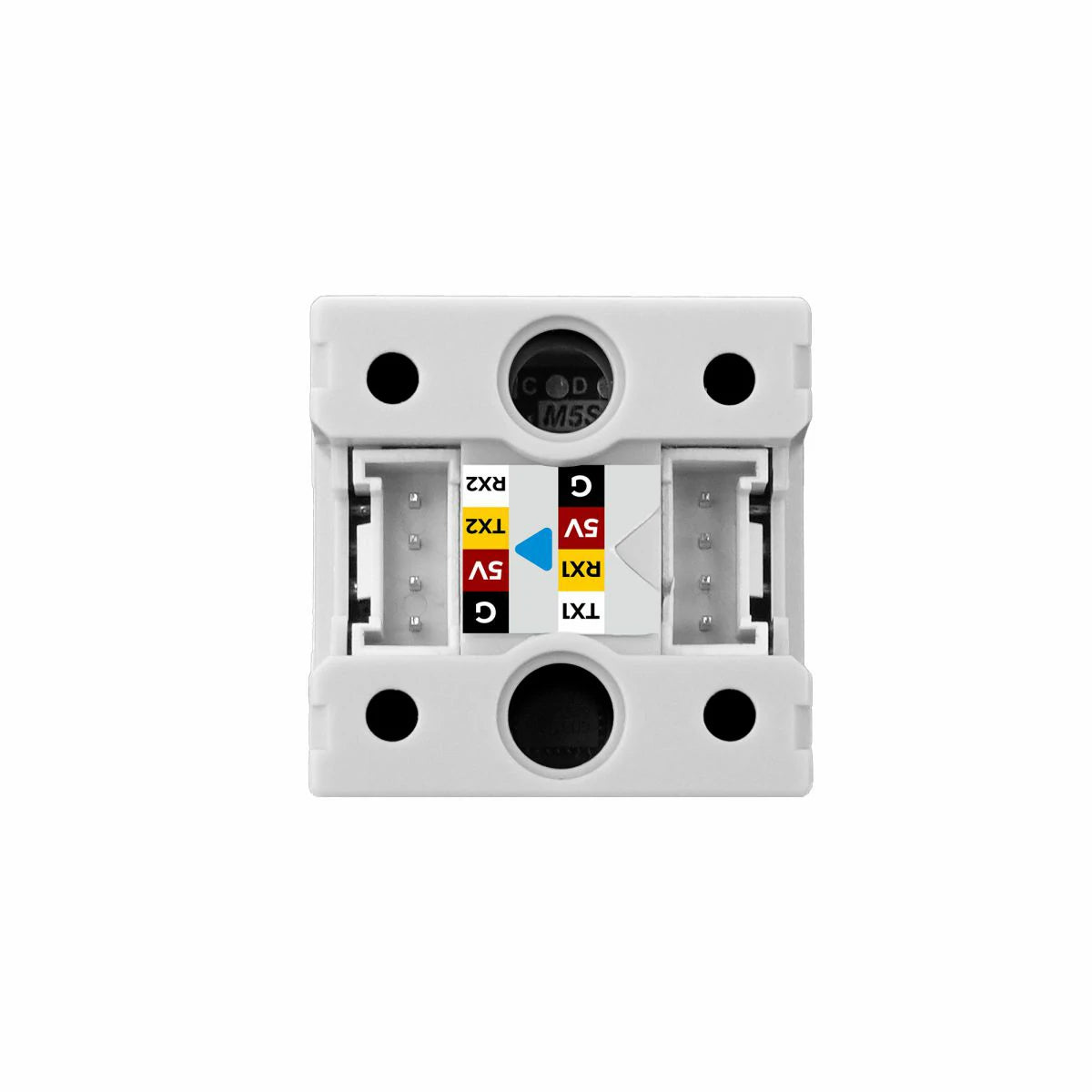

• 2x HY2.0-4P expansion interfaces supporting Chain series extensions

Includes

• 1 x Chain Joystick

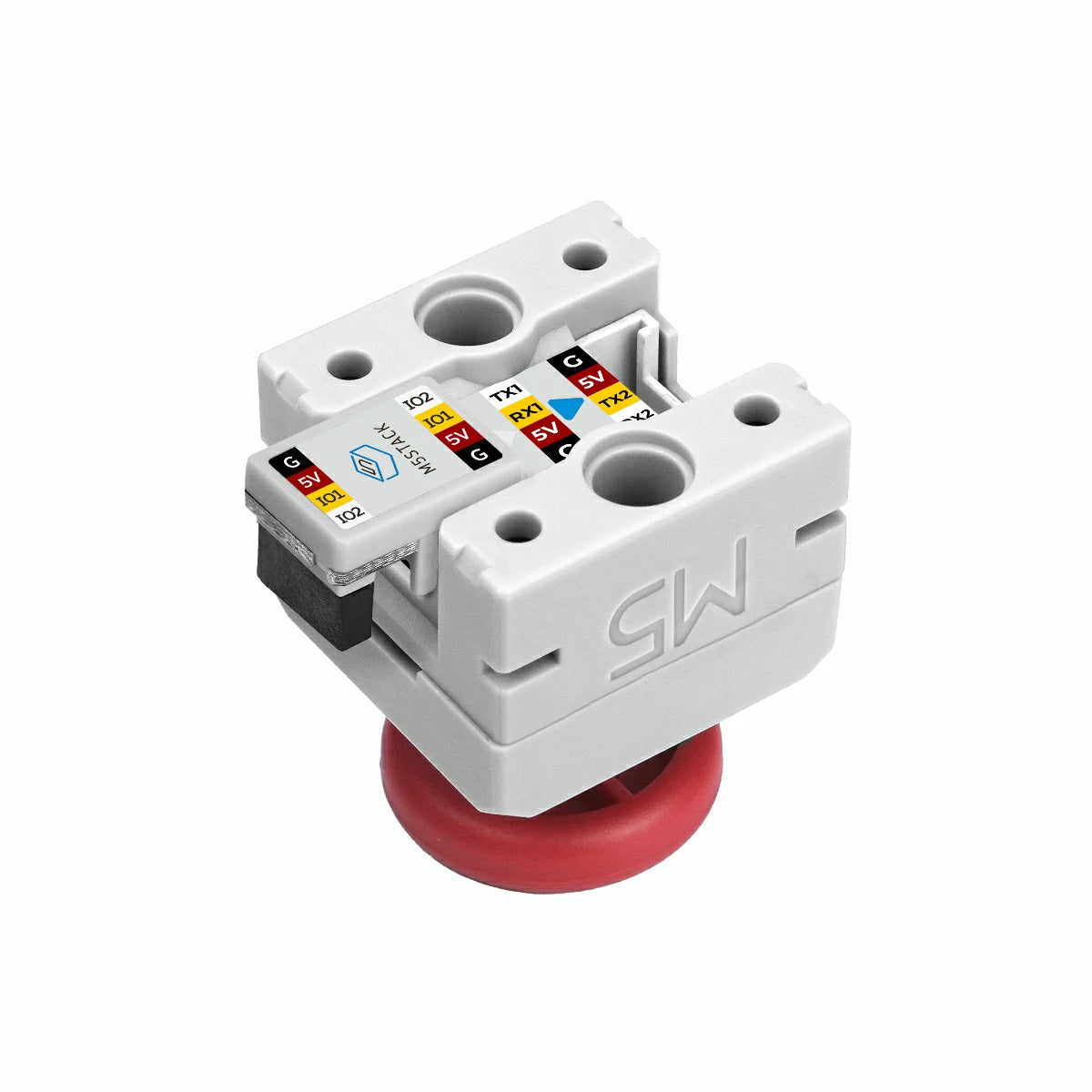

• 1 x Chain Bridge

Applications

• Robot control
• Human-machine interaction

Specifications

LEARN AND DOCUMENTS

• DOCUMENTS
