Description

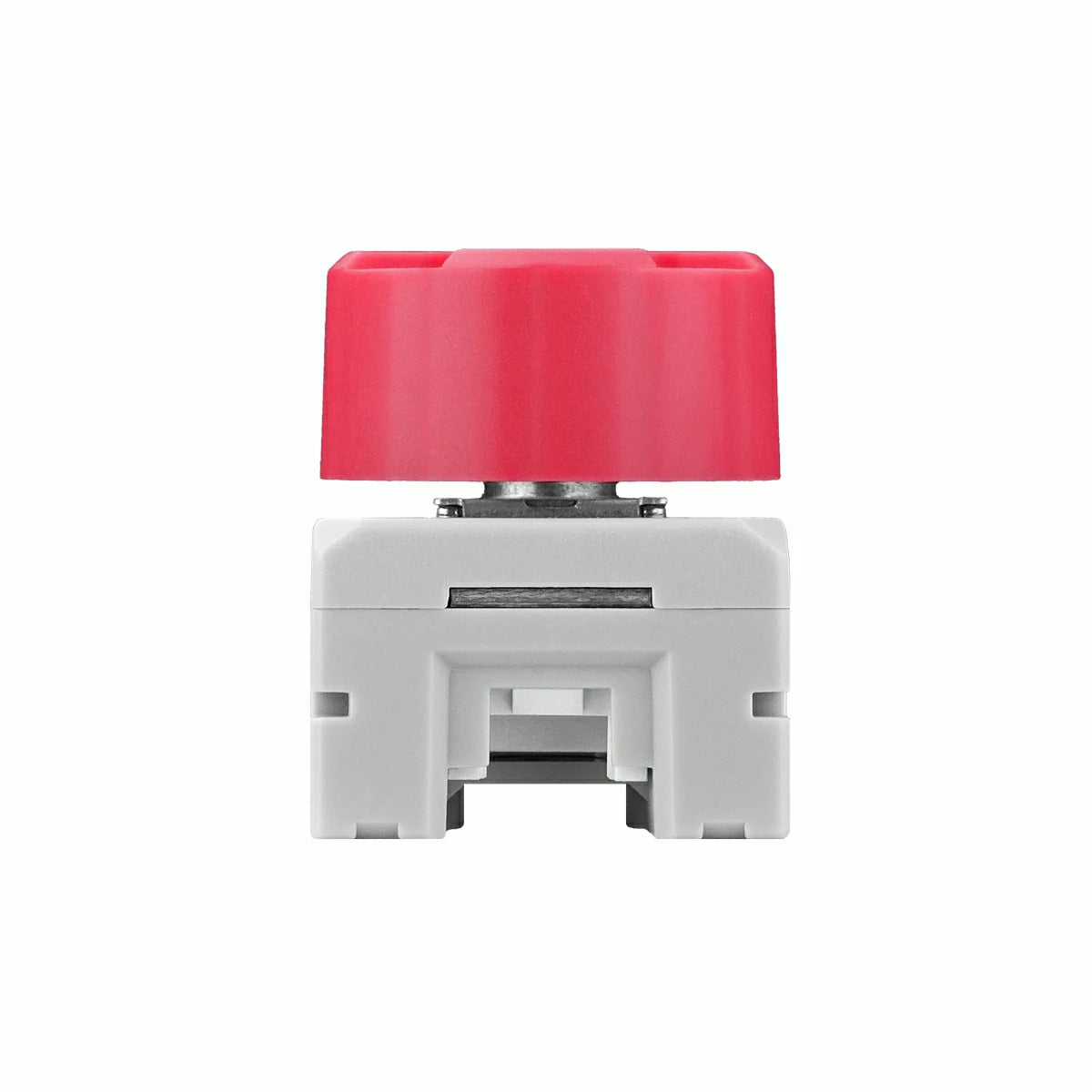

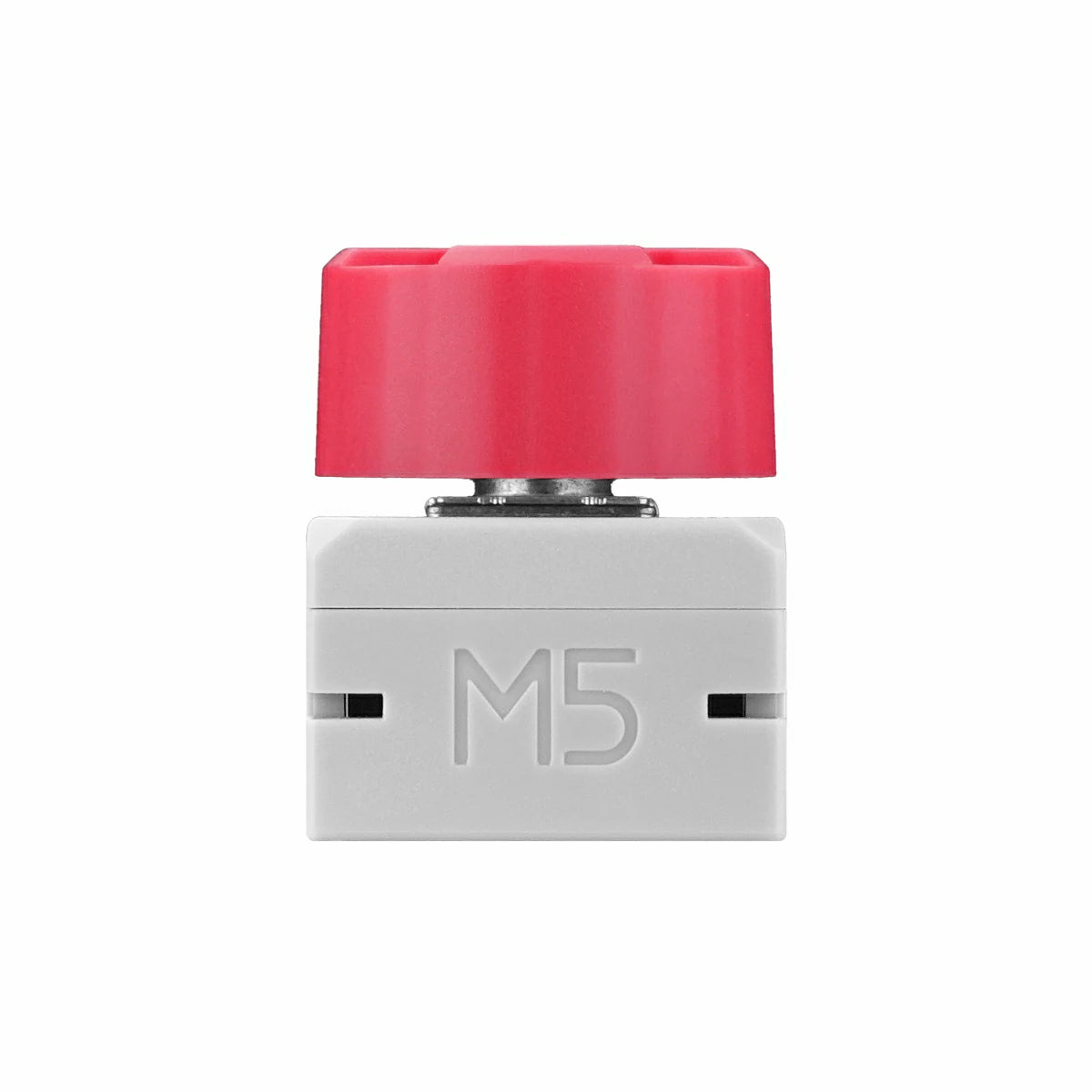

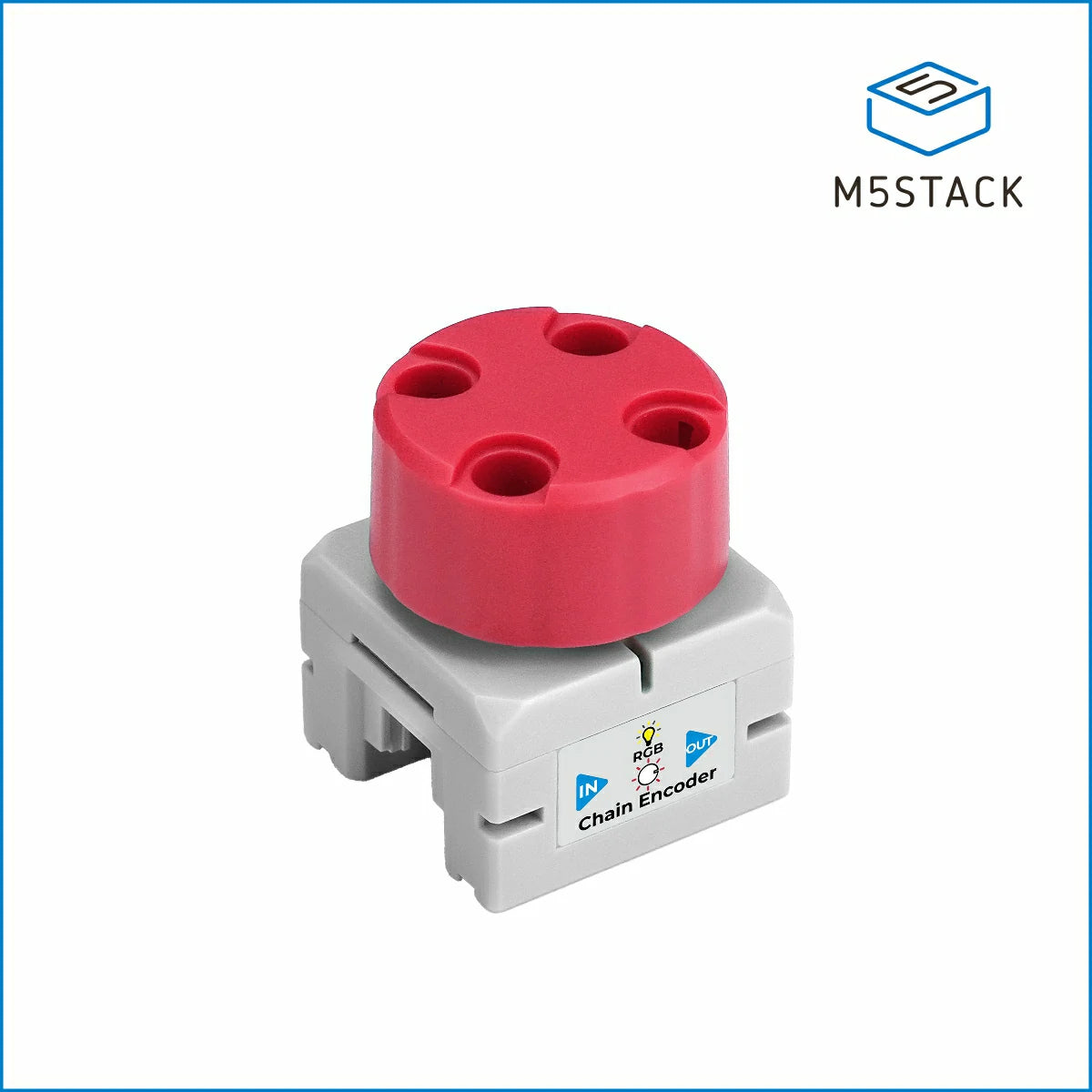

Chain Encoder is a rotary encoder input node in the M5Stack Chain series. It integrates an AB rotary encoder internally, supporting rotation direction detection and pulse counting, and the center of the knob supports button input. It also integrates a programmable RGB LED for status indication and interactive display. The encoder cap features LEGO-compatible mounting holes, enabling more creative structural connections. It is suitable for applications such as human–machine interaction and smart home control.
Chain Encoder integrates the STM32G031G8U6 core controller and adopts a UART serial daisy-chain communication protocol. Through two HY2.0-4P expansion interfaces, it can expand additional Chain series devices to build richer interactive applications.
Features
- M5Stack Chain series
- AB rotary encoder
- Button input
- STM32G031G8U6 core controller
- 1 x RGB LED
- LEGO-compatible mounting structure
- Uses UART serial daisy-chain communication protocol

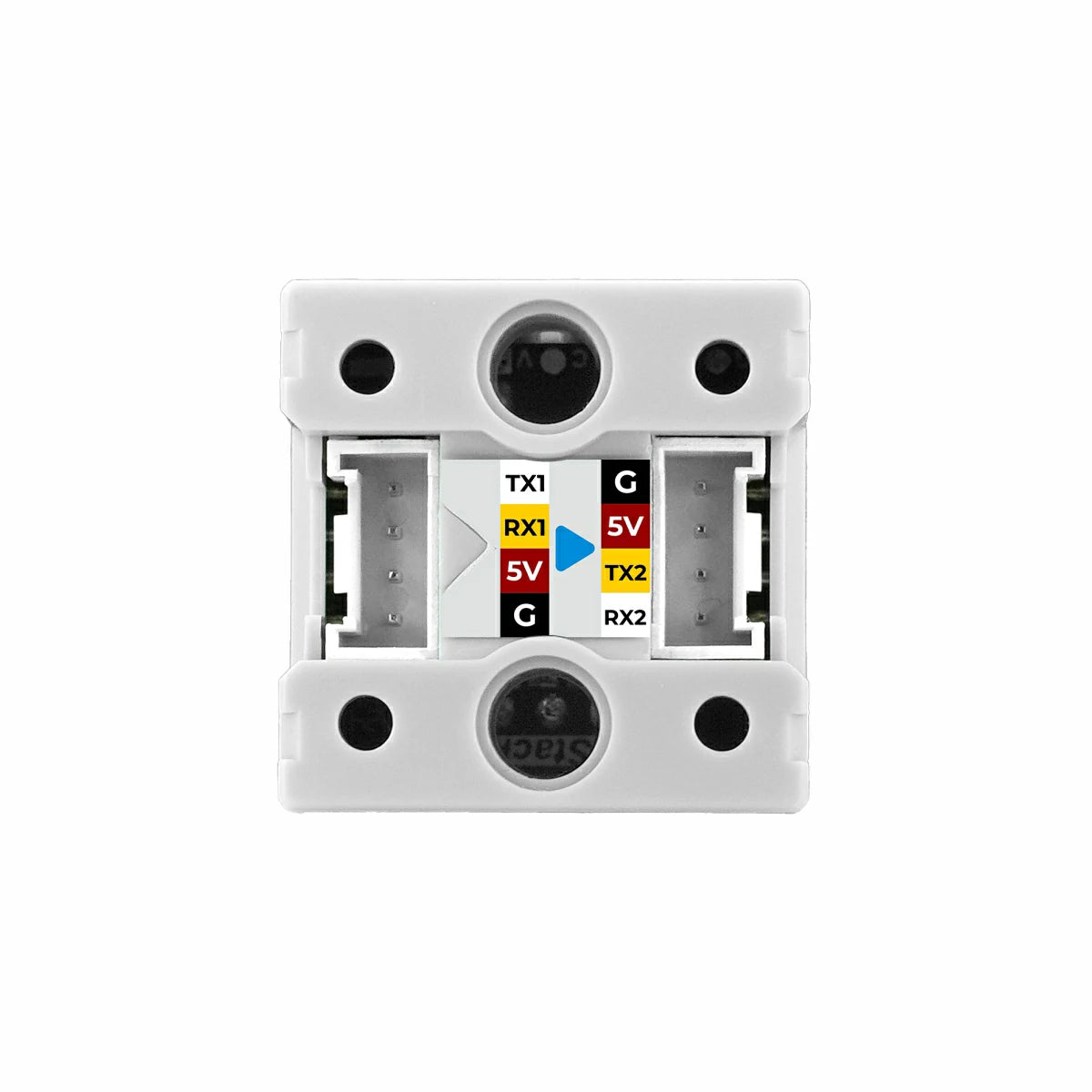

- 2 x HY2.0-4P expansion interfaces for Chain series device expansion

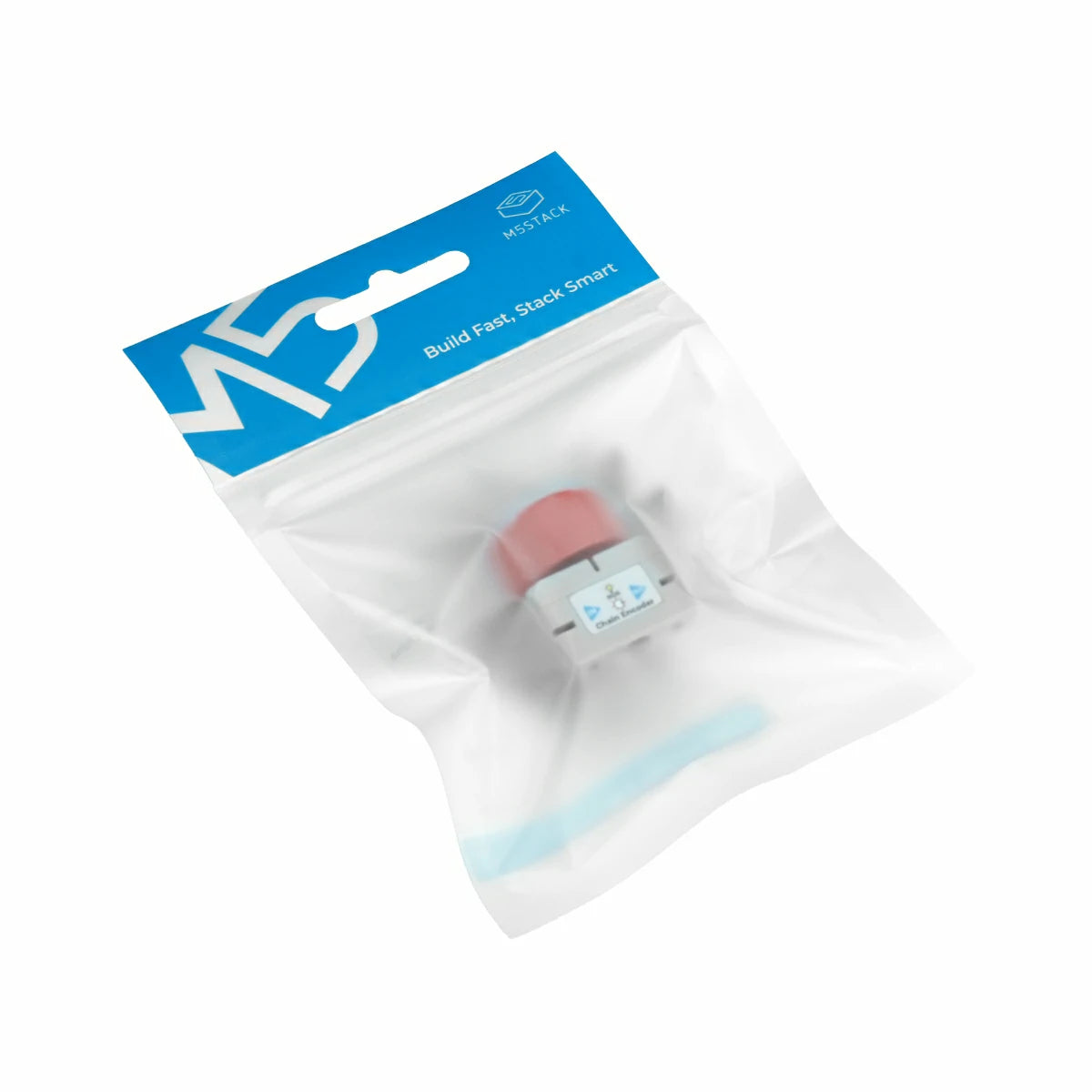

Includes
- 1 x Chain Encoder
- 1 x Chain Bridge
Applications
- Smart home control
- Human–machine interaction
Specifications
| Specification | Parameter |
|---|---|
| MCU | STM32G031G8U6 |
| Input Power | DC 5V |
| Communication | UART 115200bps@8N1 |
| Interface | 2 x HY2.0-4P |
| RGB LED | 1 x WS2812B |
| RGB On Power | 22.51mA |
| Operating Temp | 0 ~ 40°C |
| Product Size | 23.9 x 23.9 x 29.8mm |
| Product Weight | 10.0g |
| Package Size | 138.0 x 93.0 x 26.0mm |
| Gross Weight | 13.7g |
Learn
Use the Chain Bridge connector to connect the main controller Chain DualKey and various Chain series input devices. Pay attention to the direction when connecting; the triangular arrow should point from the main controller Chain DualKey outward, as shown in the figure:
