Description

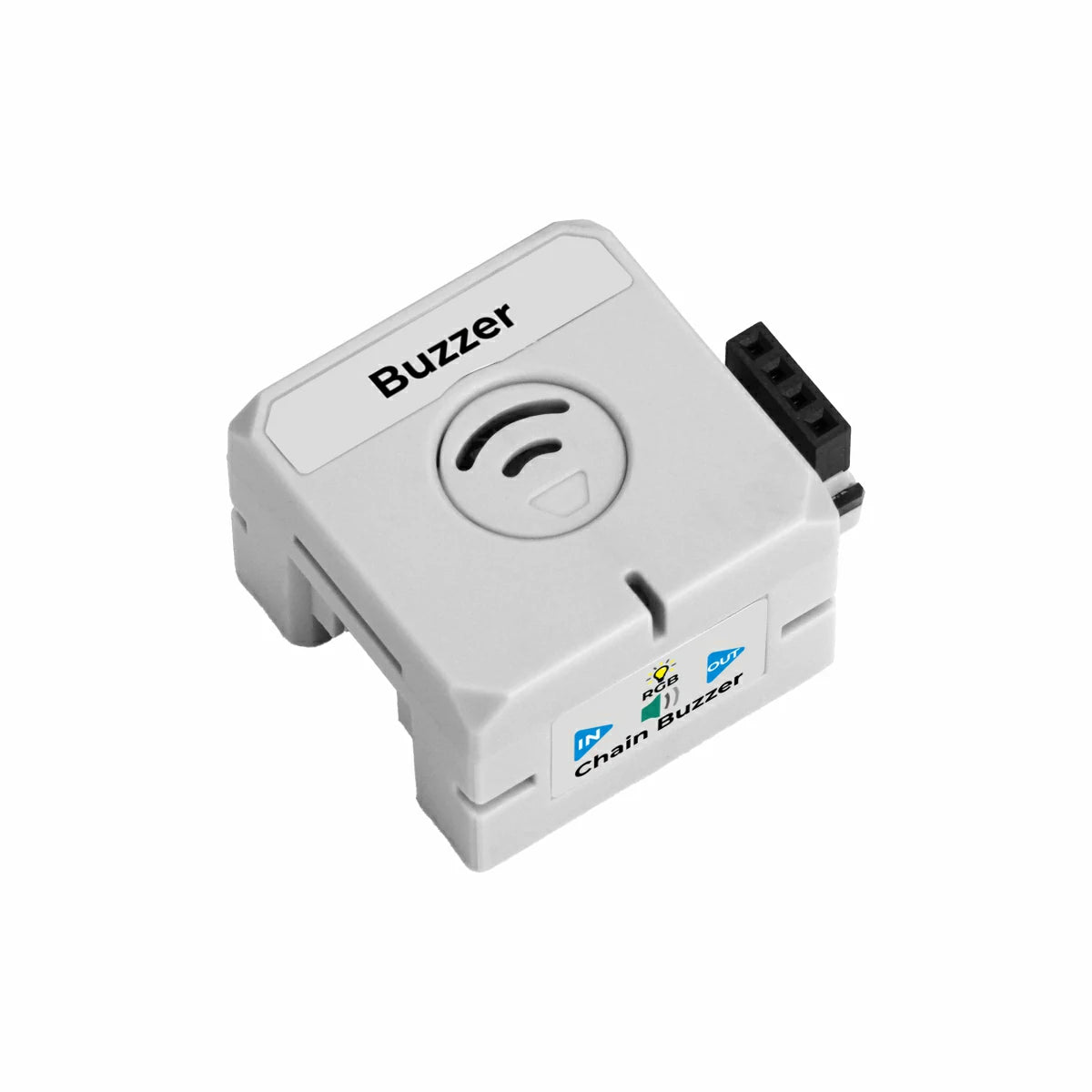

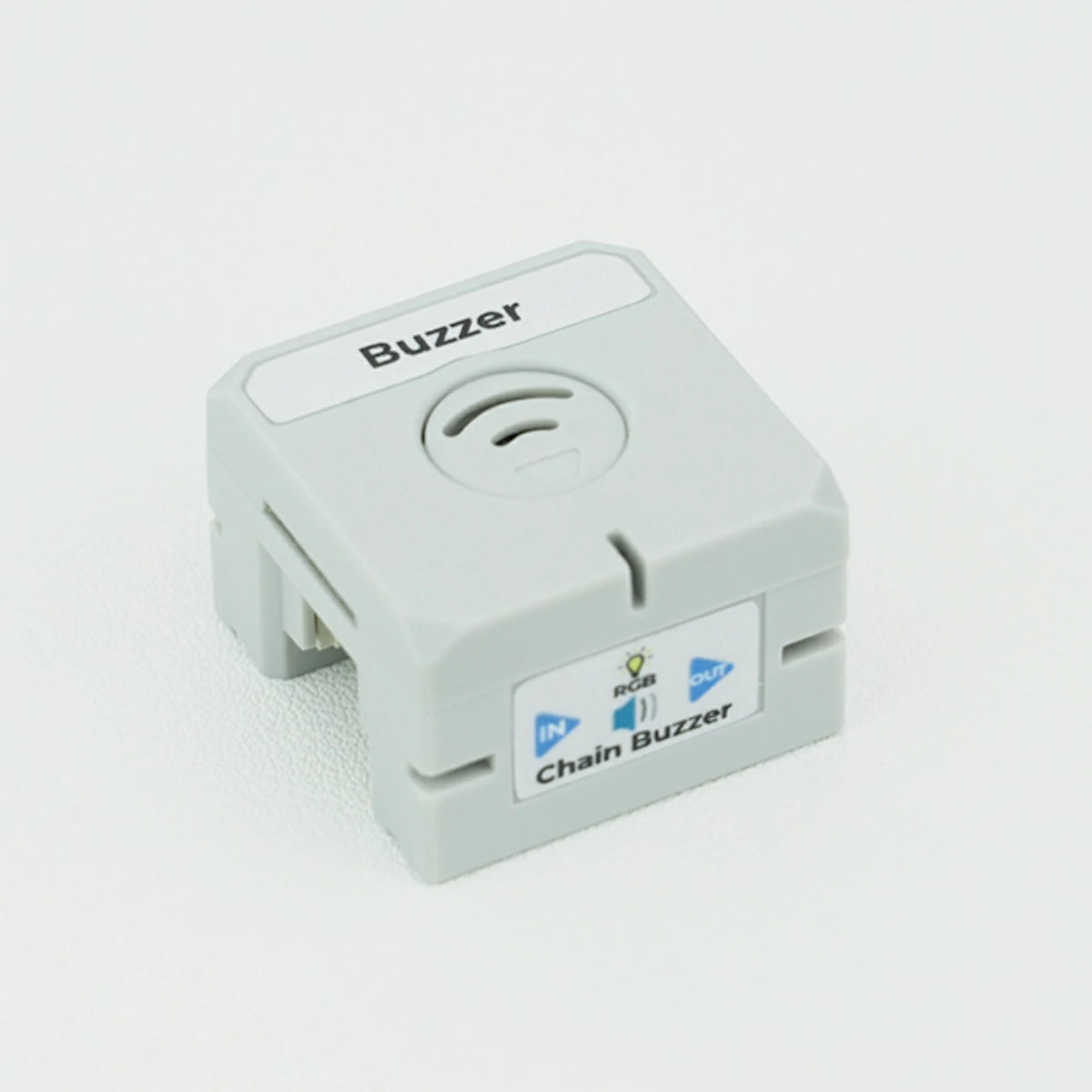

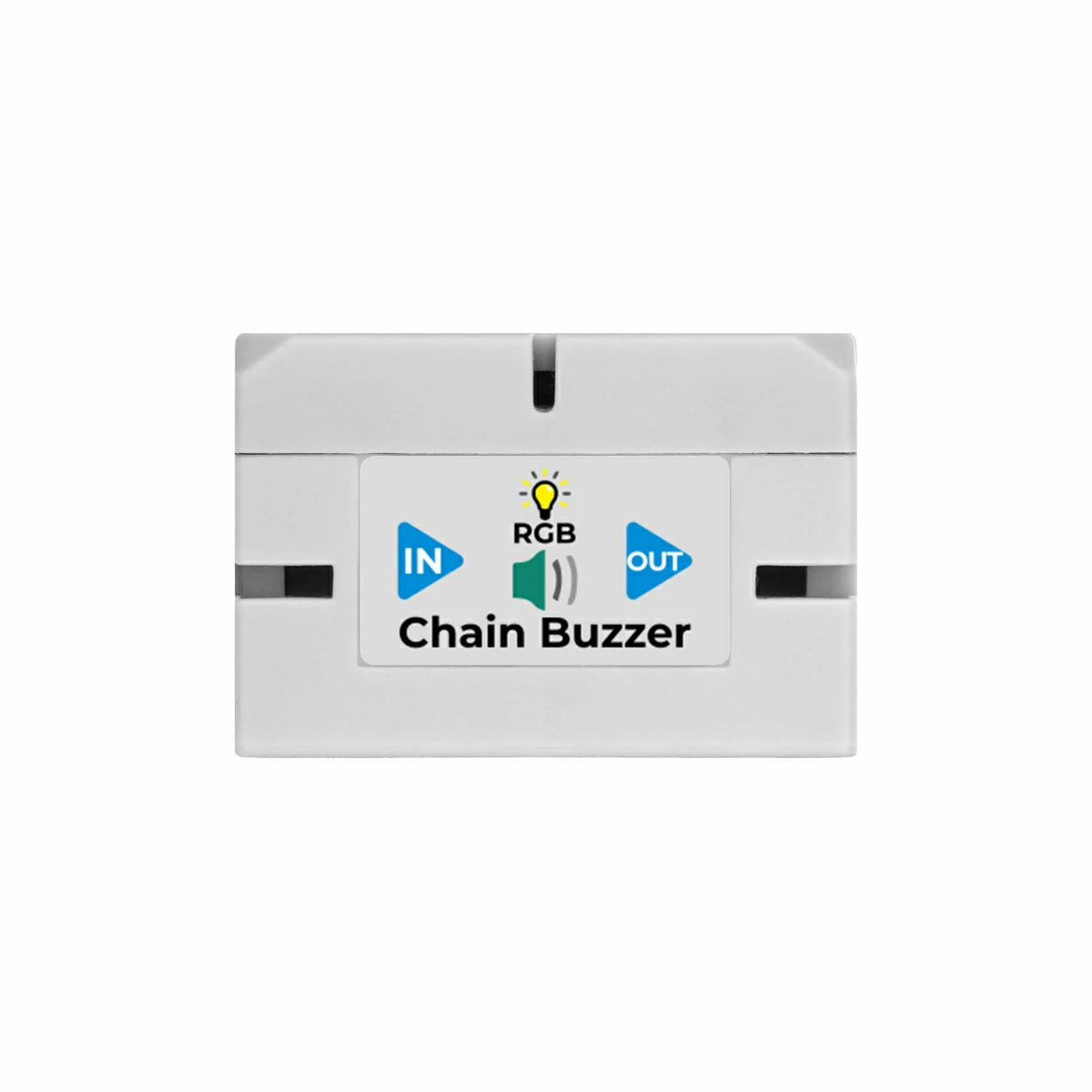

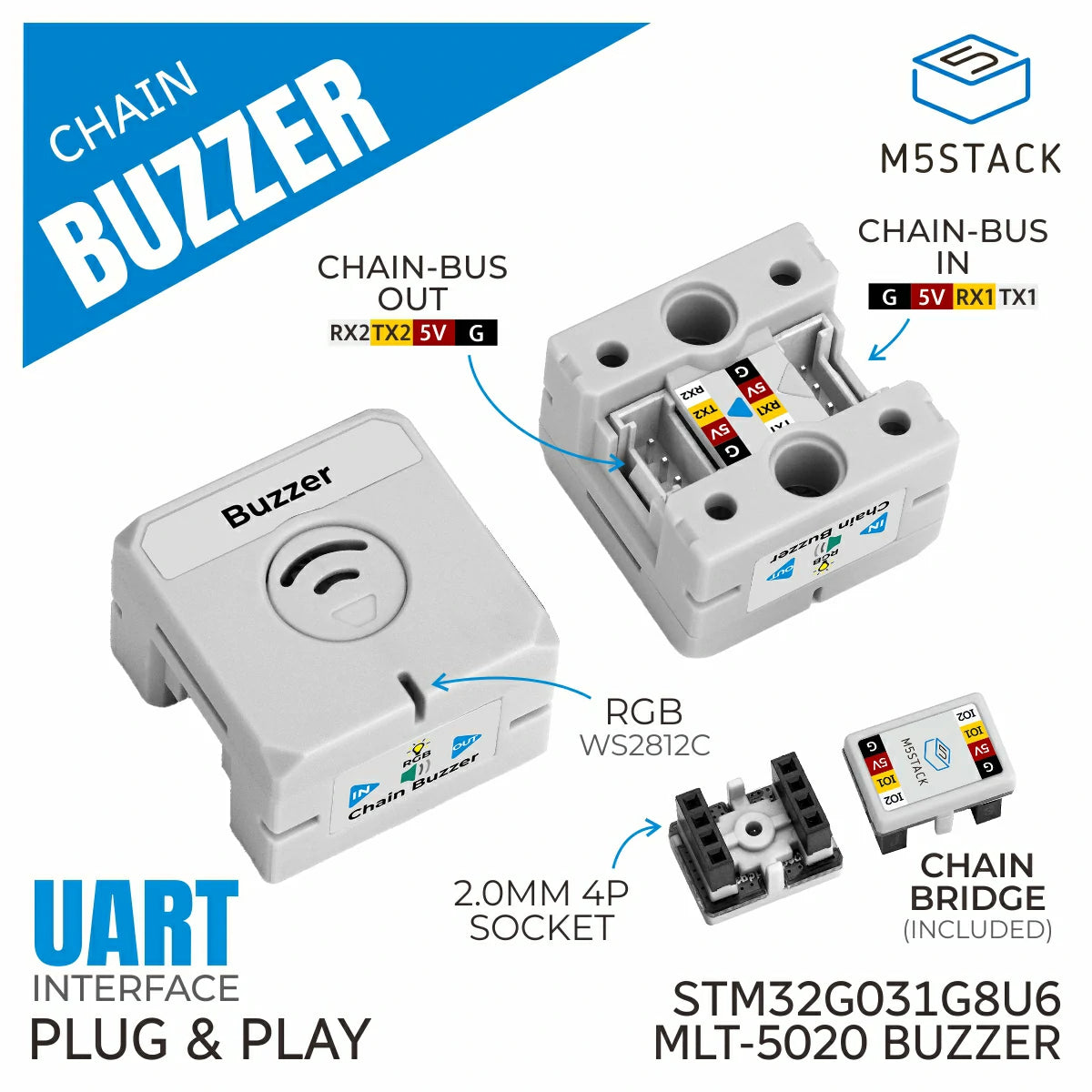

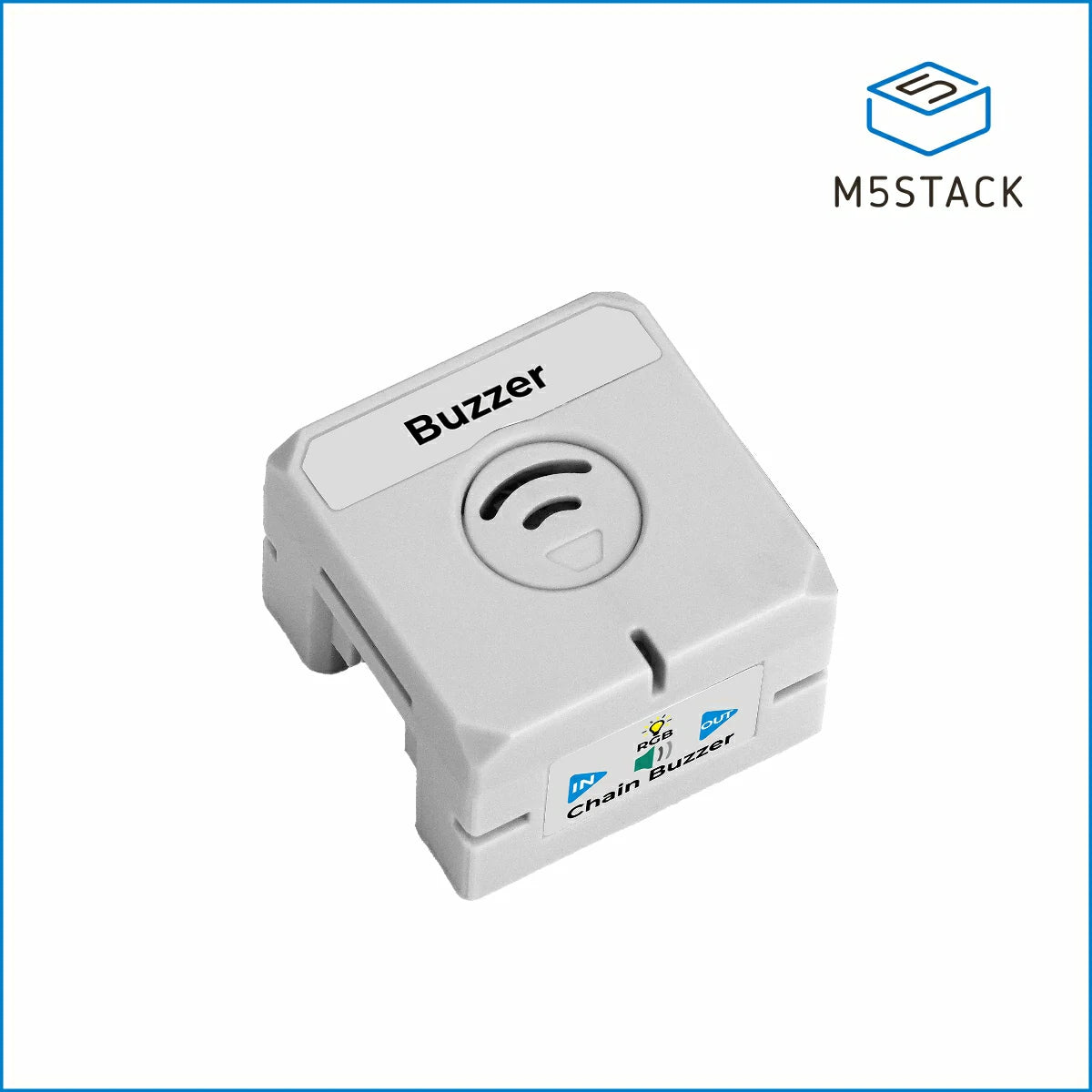

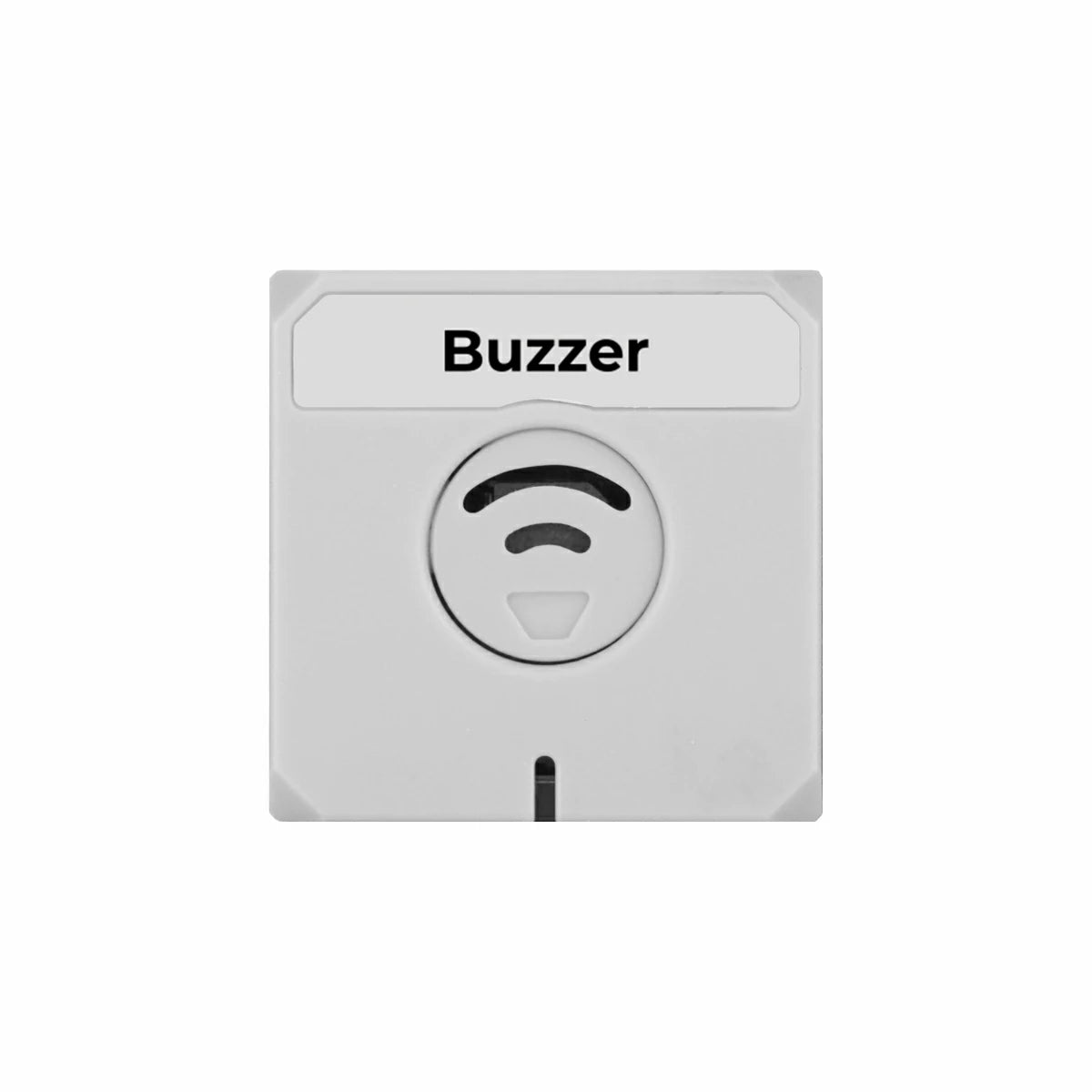

Chain Buzzer is a buzzer output node in the M5Stack Chain series. It features a built-in buzzer and programmable RGB LED, making it suitable for audible notifications, status alerts, smart home alarms, and other applications. It integrates an STM32G031G8U6 core MCU and uses a UART serial daisy-chain communication protocol. Two HY2.0-4P expansion ports allow additional Chain series devices to be connected, enabling richer audio-visual interactive applications.
Features
- M5Stack Chain series
- Buzzer audio output
- STM32G031G8U6 core MCU
- 1 x RGB LED
- UART serial daisy-chain communication protocol

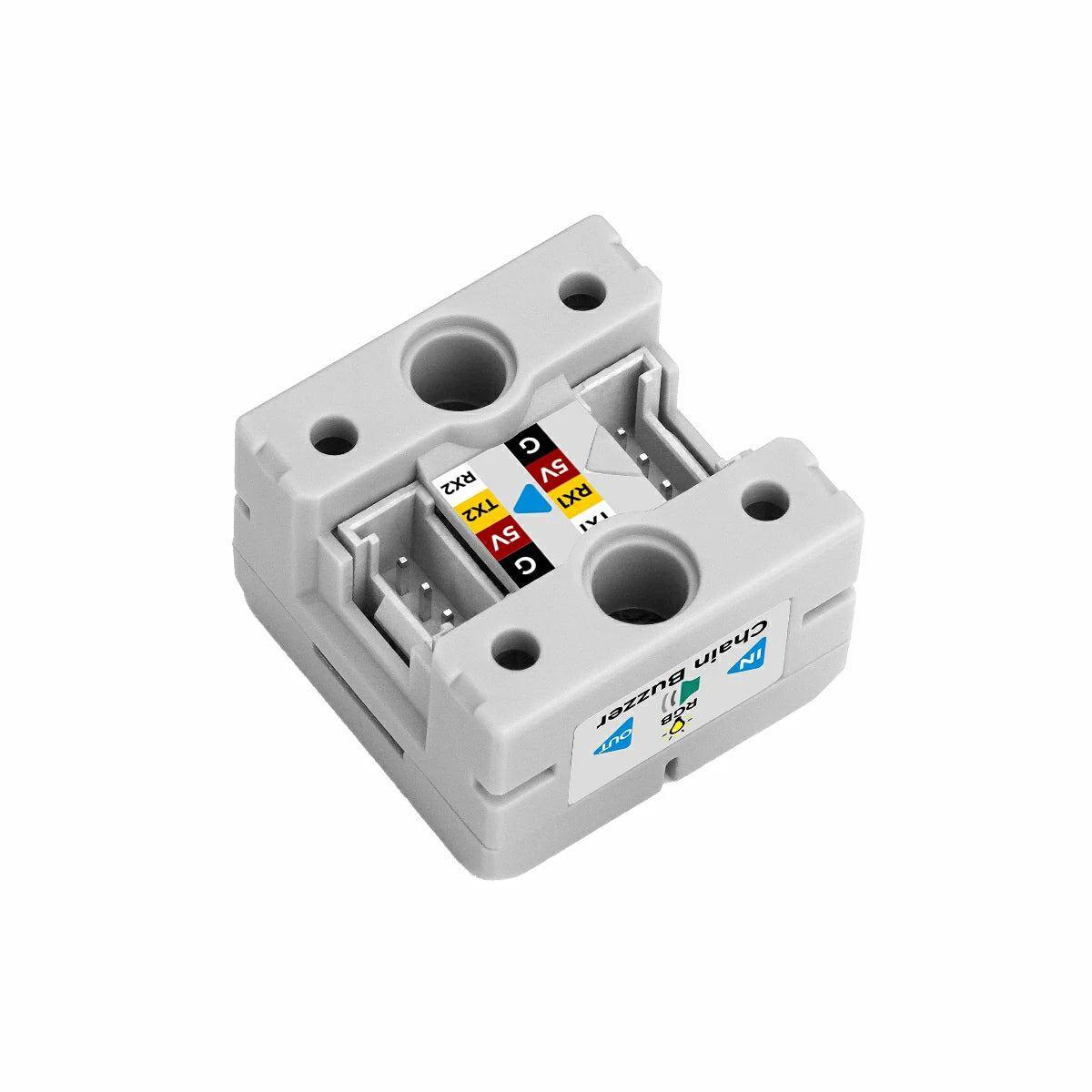

- 2 x HY2.0-4P expansion ports for connecting Chain series devices
Includes
- 1 x Chain Buzzer

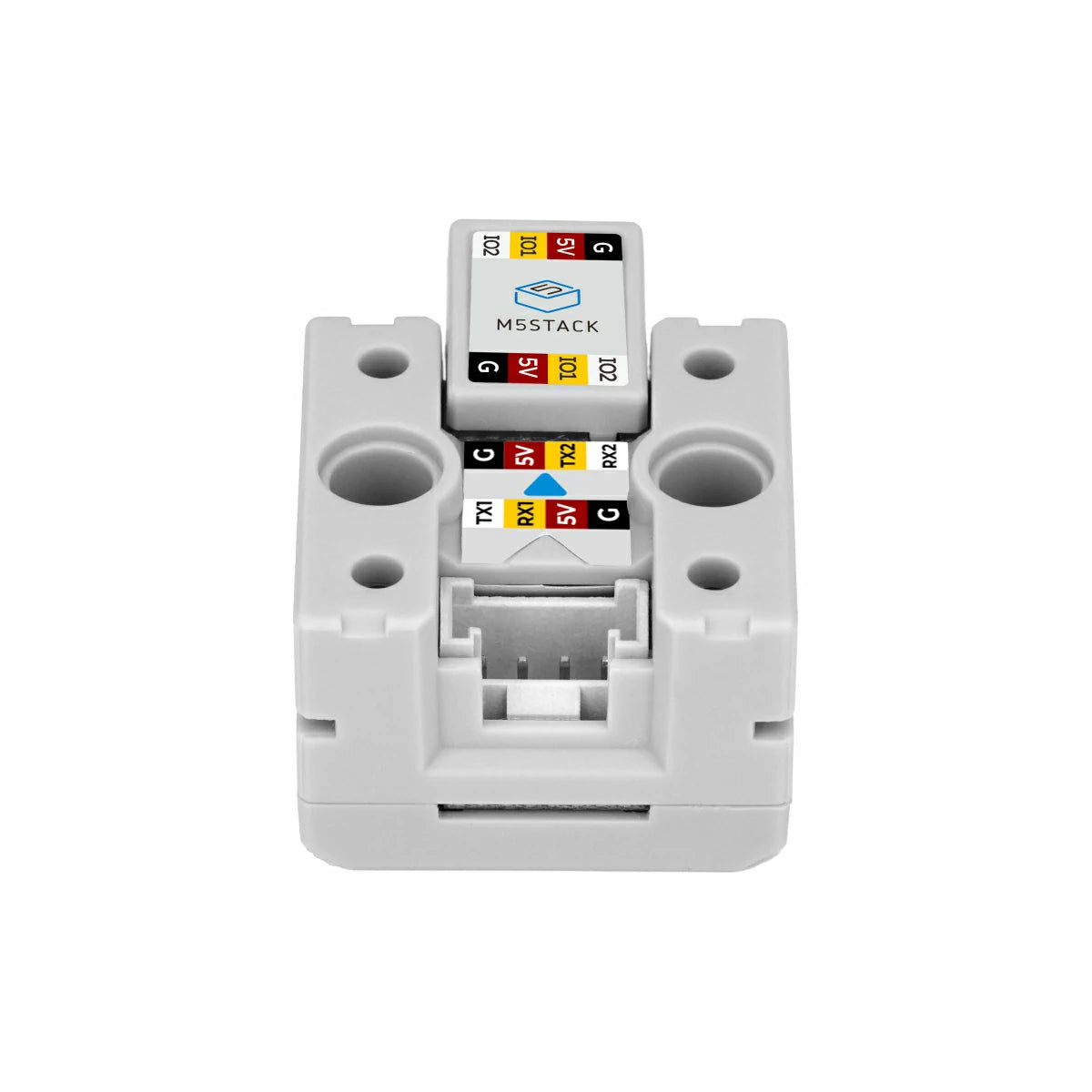

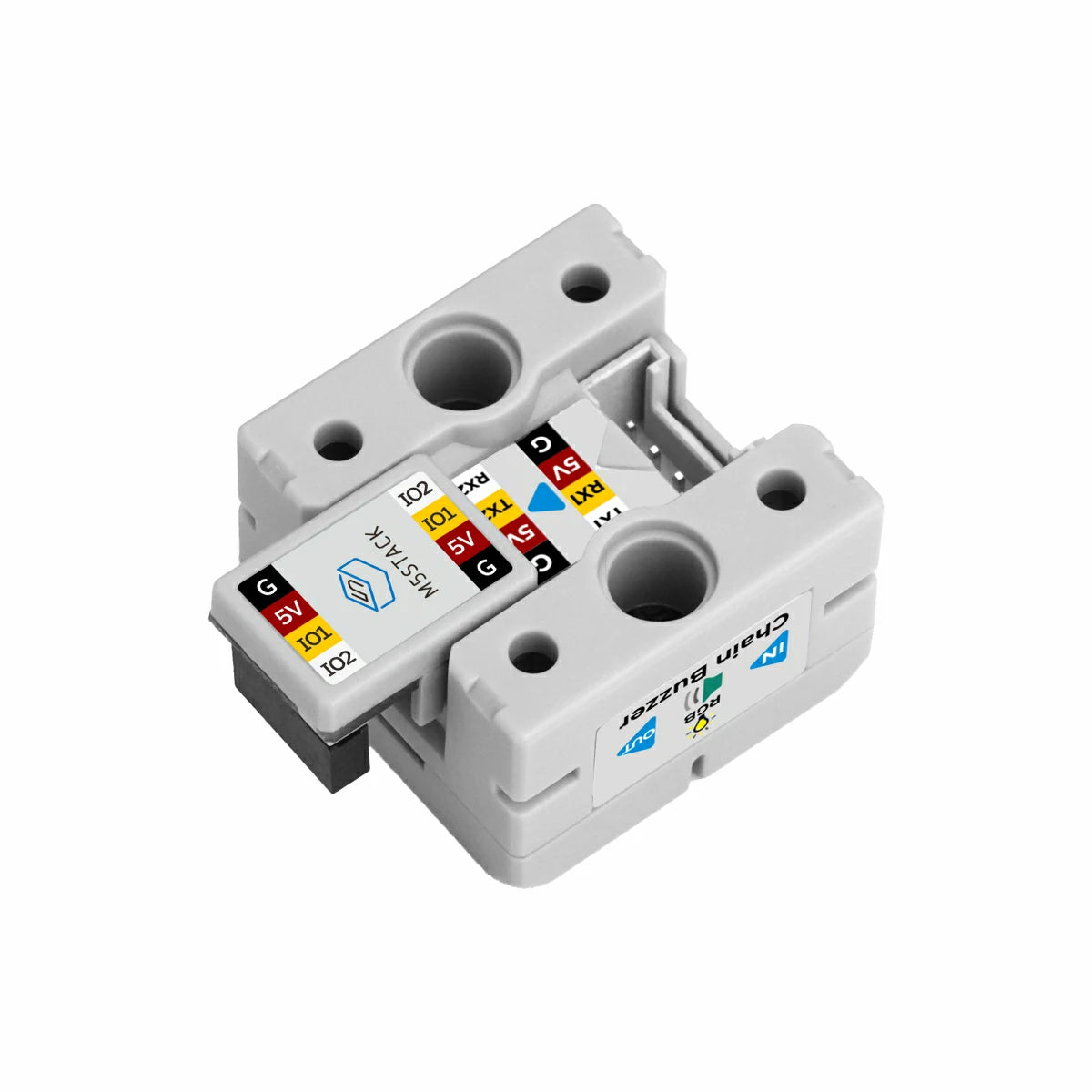

- 1 x Chain Bridge
Applications
- Audible notifications
- Device status alerts
- Smart home alarms
Specifications
| Specification | Parameter |
|---|---|
| MCU | STM32G031G8U6 |
| Input Power | DC 5V |
| Communication | UART 115200bps@8N1 |

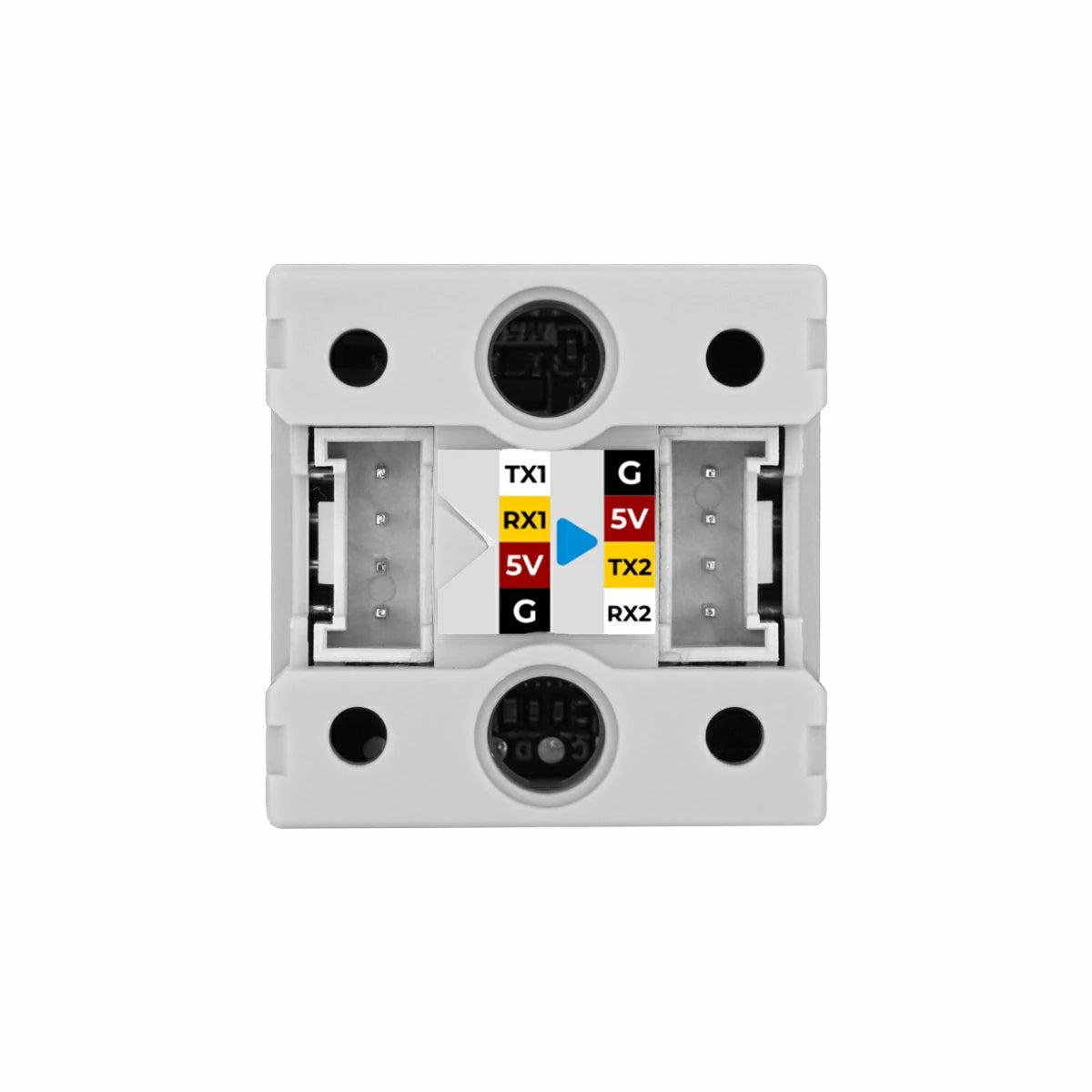

| Interface | 2 x HY2.0-4P |
| Buzzer | MLT-5020 |
| RGB LED | 1 x WS2812C |
| Working Power | 5V@198.3mA (buzzer duty cycle 50%, frequency 9.9kHz) |
| Working Temp | 0 ~ 40°C |
| Product Size | 23.9 x 23.9 x 16.0mm |
| Product Weight | 5.9g |

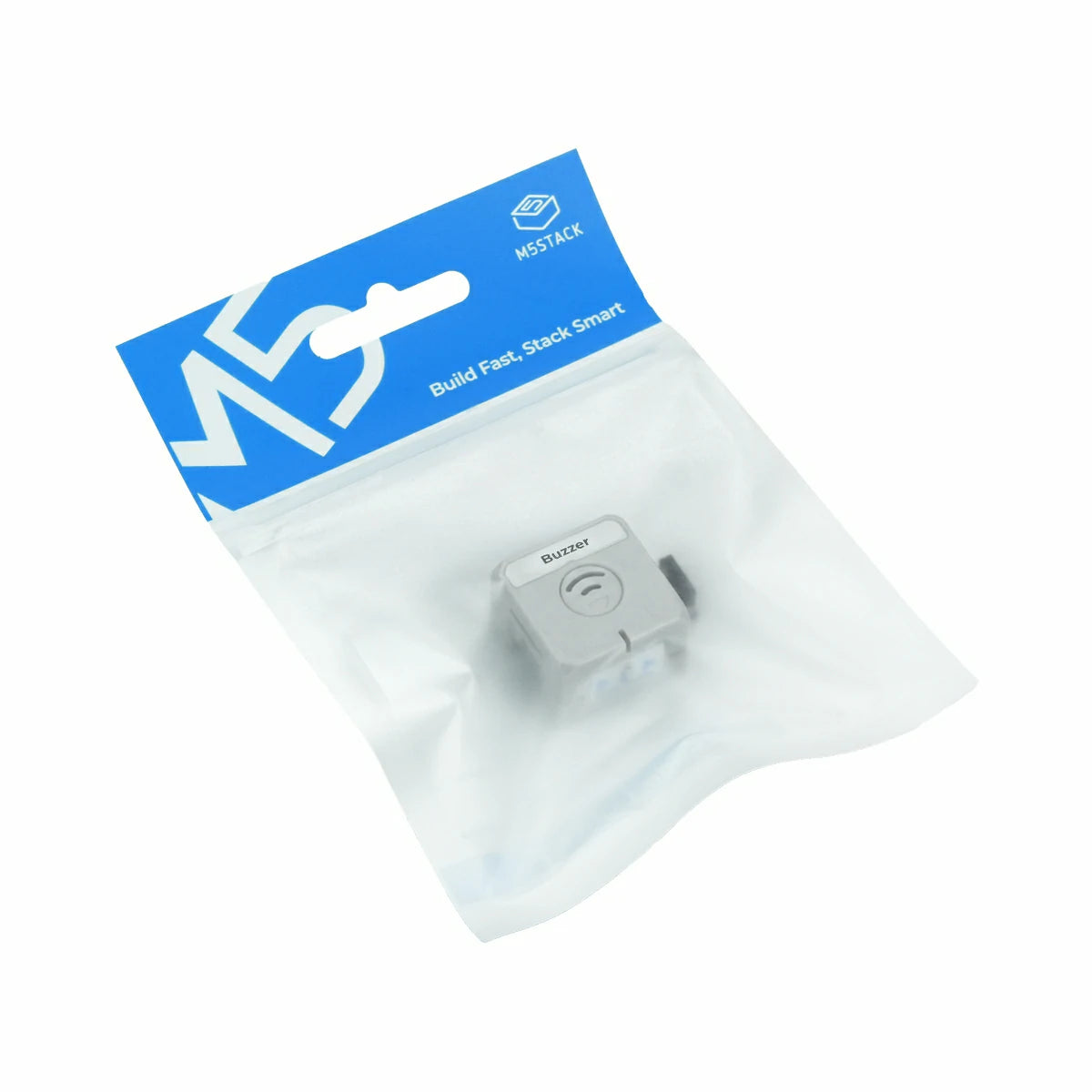

| Package Size | 138.0 x 93.0 x 17.0mm |
| Gross Weight | 9.2g |
