Description

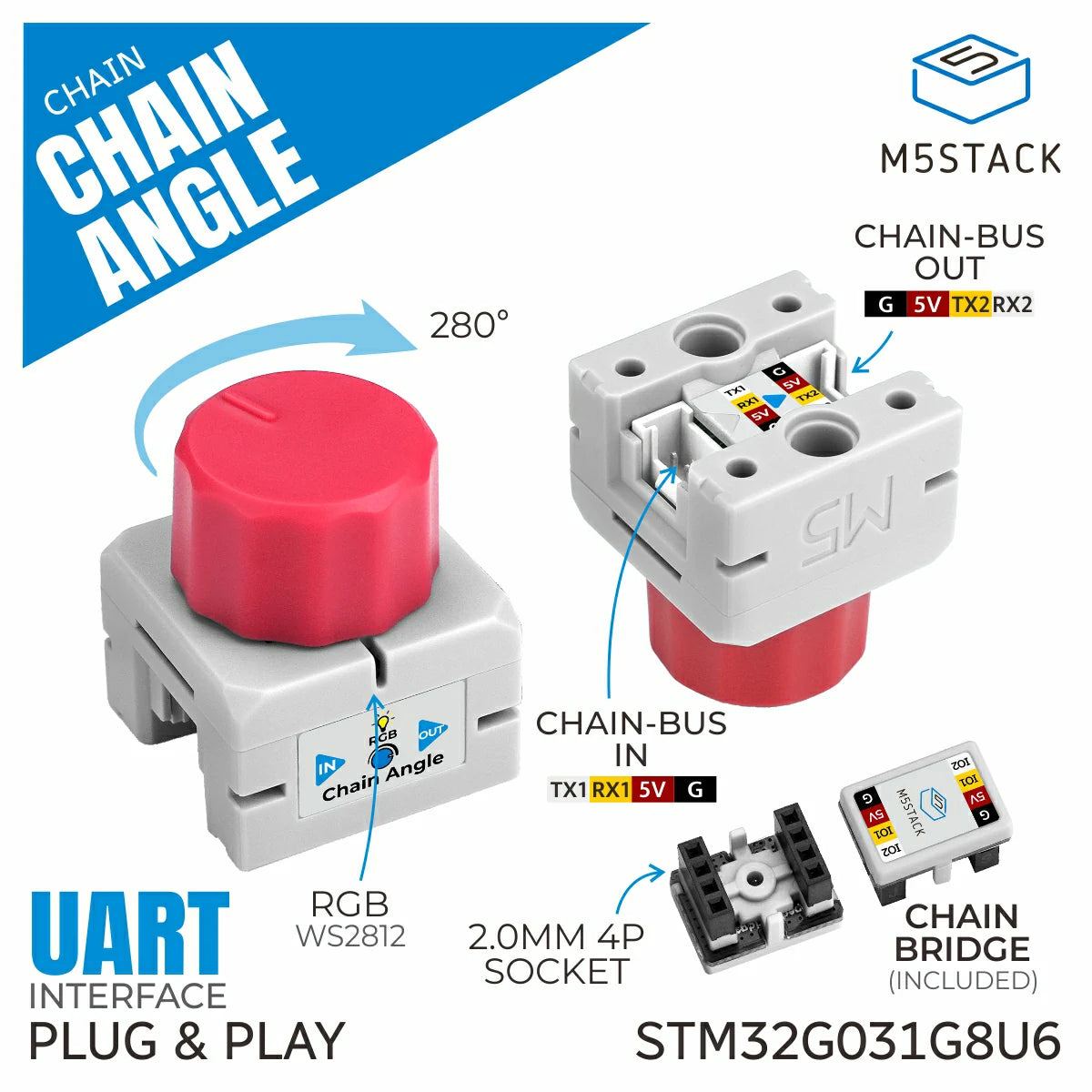

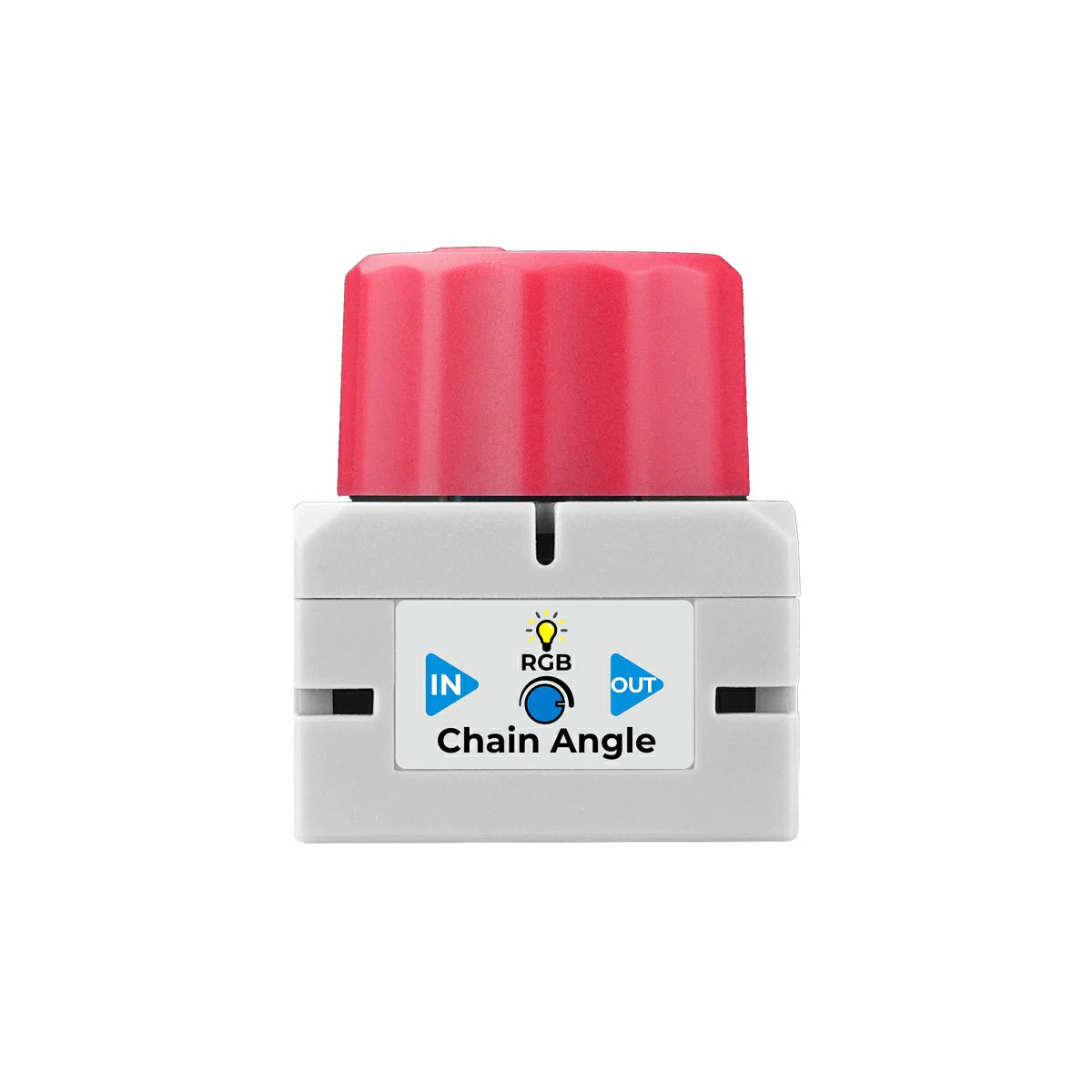

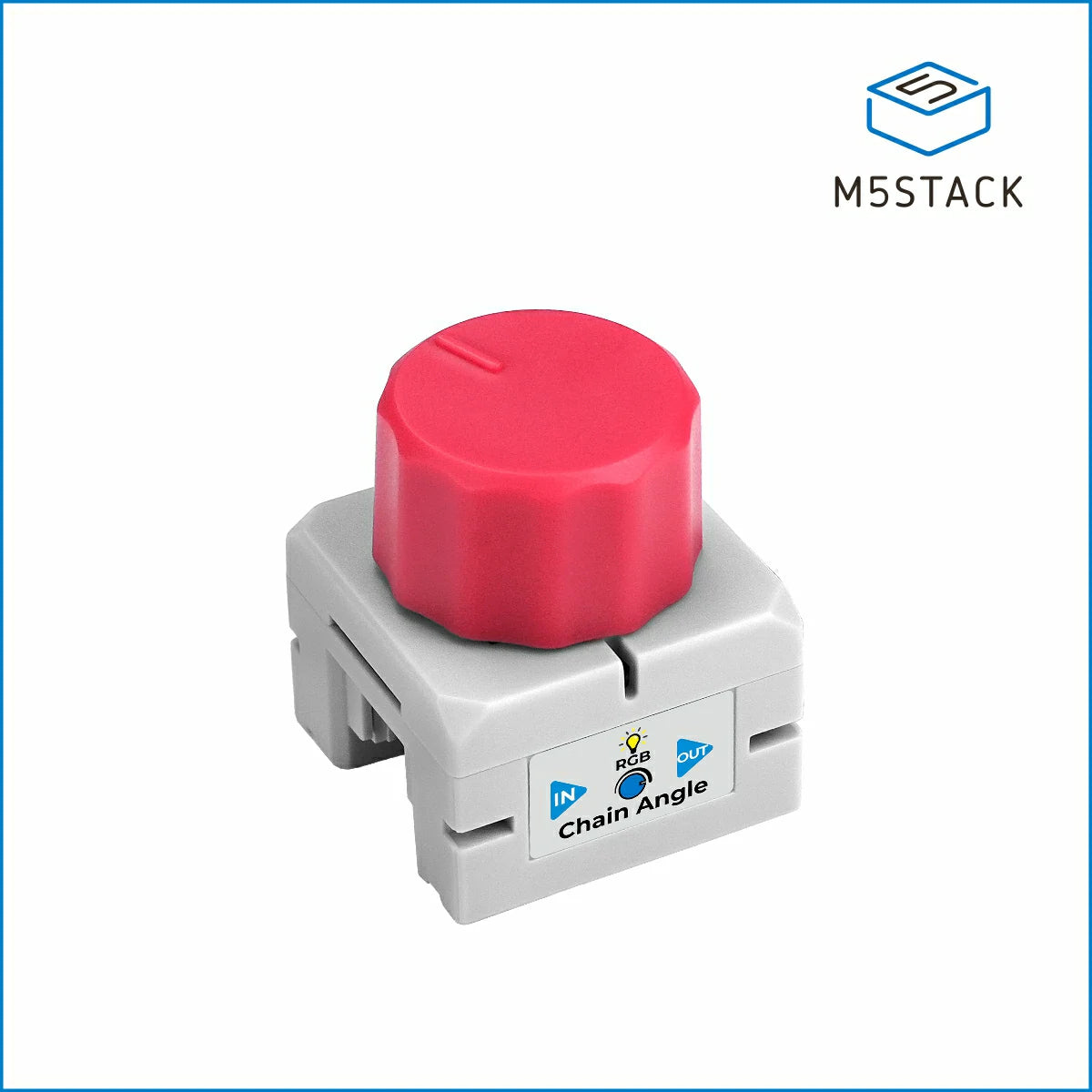

Chain Angle is a potentiometer knob input node in the M5Stack Chain series. As the potentiometer knob rotates, the voltage value at the sampling terminal varies within a fixed range. After ADC conversion by the built-in MCU, a signal value with up to 12-bit resolution is output. It also integrates a programmable RGB LED for status indication and interactive display. It is suitable for applications such as human-machine interfaces, smart home systems, and motor speed control.
Chain Angle integrates an STM32G031G8U6 core MCU and uses a UART serial cascade communication protocol. Through two HY2.0-4P expansion interfaces, more Chain series devices can be connected to build richer interactive applications.
Features
- M5Stack Chain series
- Potentiometer knob input
- STM32G031G8U6 core MCU
- 1x RGB LED
- Uses UART serial cascade communication protocol
- 2x HY2.0-4P expansion interfaces for extending Chain series devices
Includes
- 1 x Chain Angle
- 1 x Chain Bridge
Applications
- Smart home control
- Human-machine interface
- Volume control
- Motor speed control
Specifications
| Specification | Parameter |
|---|---|
| MCU | STM32G031G8U6 |
| Input Power | DC 5V |
| Communication | UART 115200bps@8N1 |

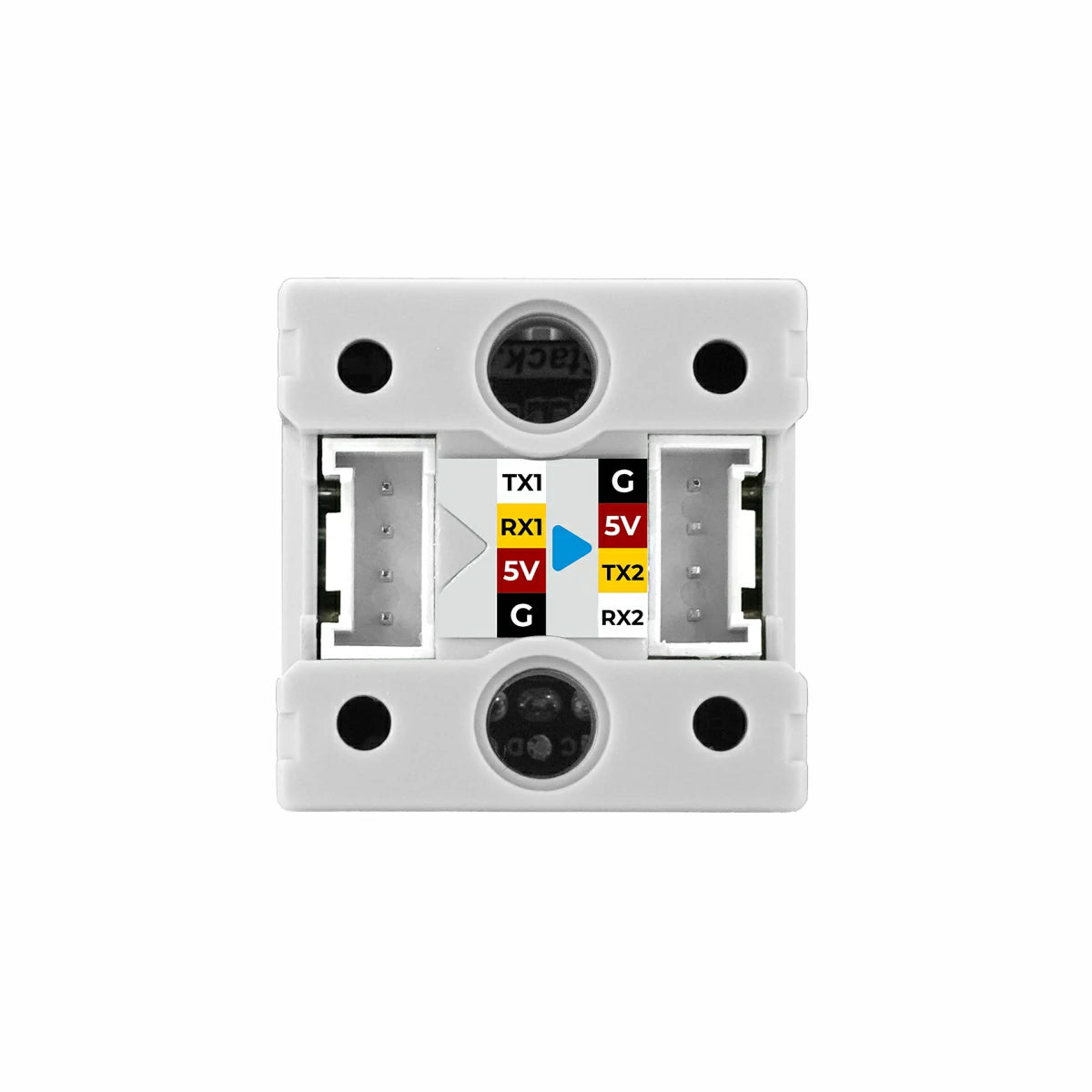

| Interface | 2x HY2.0-4P |
| RGB LED | 1x WS2812C |
| RGB Power On Consumption | 21.13mA |
| Rotation Angle | 280° ±10° |
| Operating Temperature | 0 ~ 40°C |
| Product Size | 23.9 x 23.9 x 28.2mm |
| Product Weight | 8.4g |
| Package Size | 138.0 x 93.0 x 26.0mm |
| Gross Weight | 11.7g |
Learn
Use the Chain Bridge connector to connect the main controller Chain DualKey and various Chain series input devices. When connecting, pay attention to the direction. The triangular arrow should point from the main controller Chain DualKey outward, as shown in the figure below:
