CardKB Mini Keyboard Programmable Unit V1.1 (MEGA8A)

SKU:U035-B

$7.95

10+ In Stock

Shipping calculated at checkout.

Description

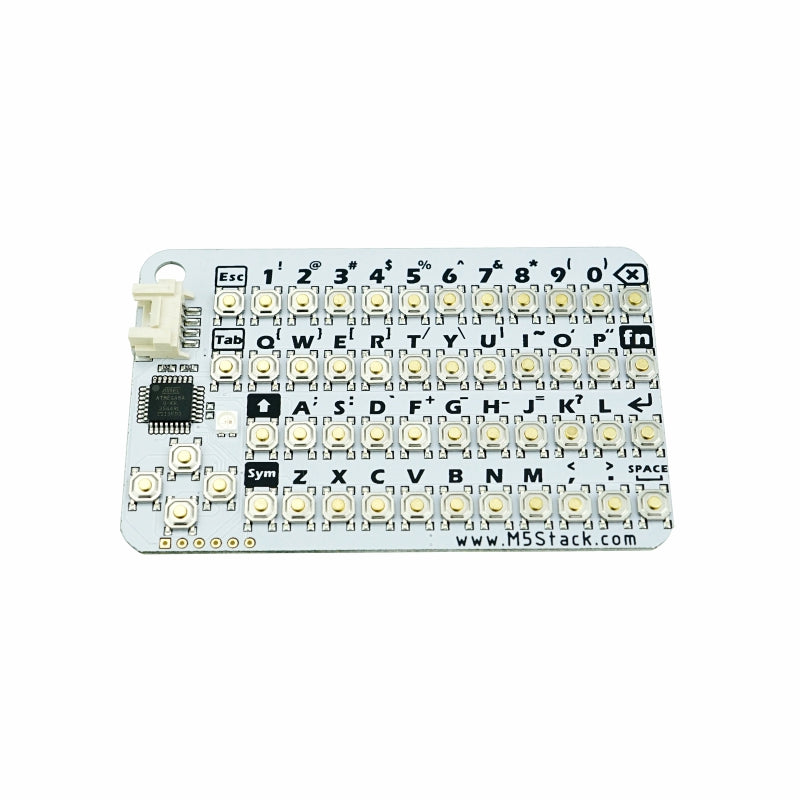

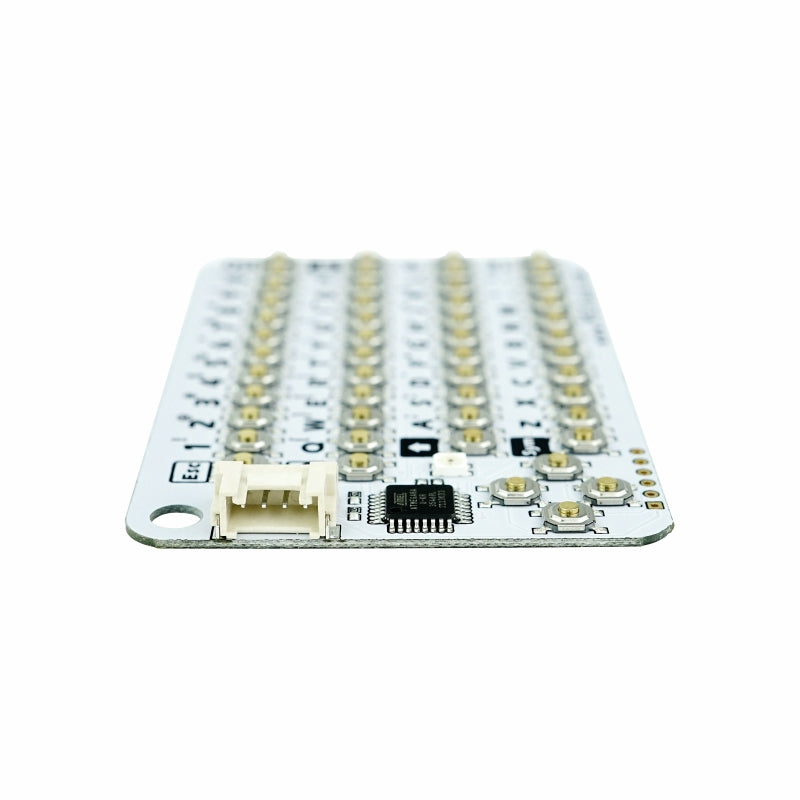

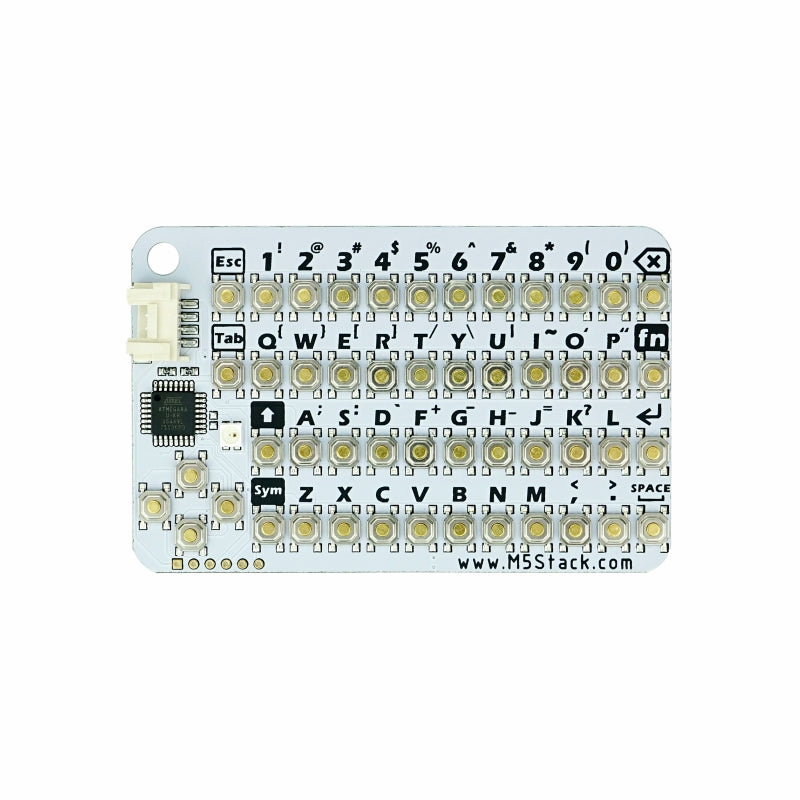

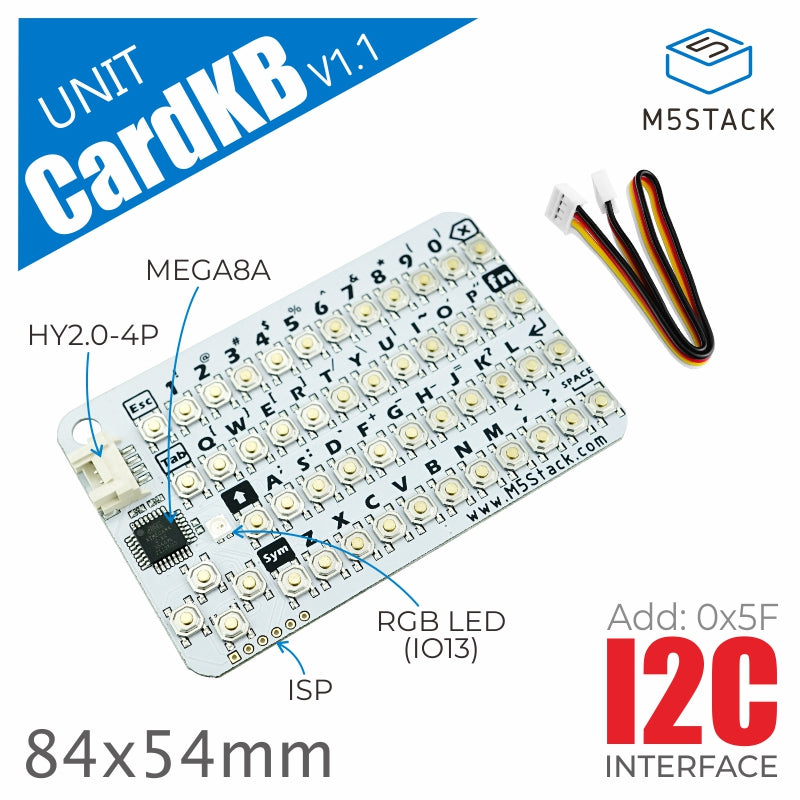

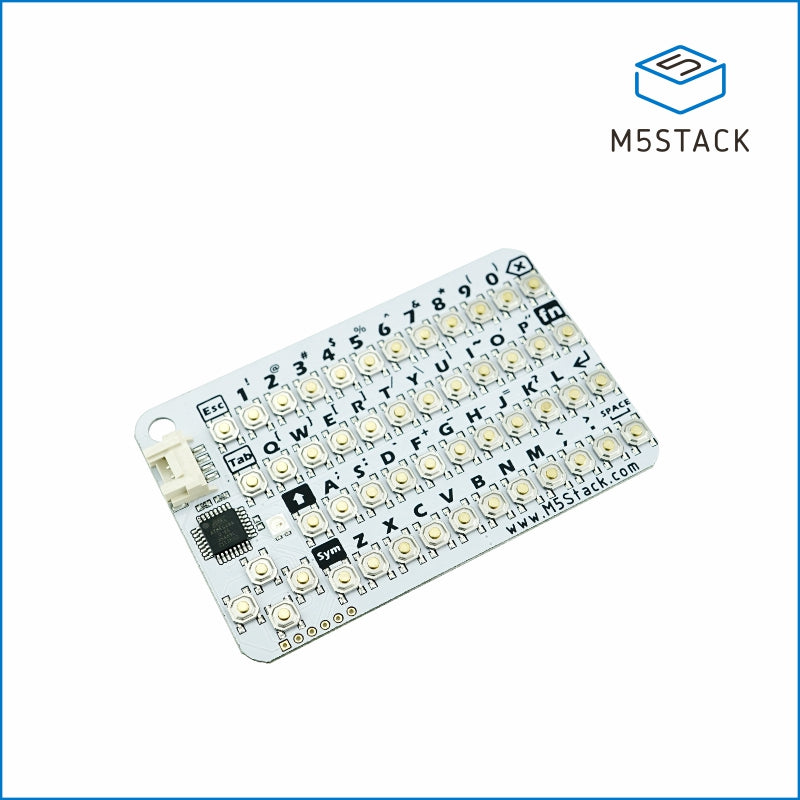

Unit CardKB v1.1 is a card-sized QWERTY 50-key PCB matrix keyboard that uses ATMega8A as the encoding MCU, with an output interface of I2C. It has one onboard RGB-LED to indicate keyboard status.

Features

  • Full keyboard input with multiple key combinations.
  • HY2.0-4P interface, supports UIFlow and Arduino.

Includes

  • 1 x Unit CardKB v1.1
  • 1 x HY2.0-4P Grove connection cable (20cm)

Applications

  • Keyboard peripheral for M5Stack Core

Specifications

Specification Parameter
MCU ATMega8A
Number of Keys 50
RGB LED 1 pc
Communication Interface I2C Communication @0x5F
Product Size 88.0 x 54.0 x 5.0mm
Product Weight 14.3g
Package Size 170.0 x 120.0 x 7.0mm
Gross Weight 18.0g

LEARN AND DOCUMENTS

Customer Reviews

Based on 9 reviews
78%
(7)
22%
(2)
0%
(0)
0%
(0)
0%
(0)
M
Mohammed Aldaraji
CardKB Mini Keyboard

As always great quality and attention to details as it best...

P
Pavel Kraskov

CardKB Mini Keyboard Programmable Unit V1.1 (MEGA8A)

M
Matt Trask
Very nice device. But …

The Grove connector is a nice feature for people who are using Grove. Those of us who are 3D-printing cases for Meshtastic radios have to unsolder the Grove connector to fit the keyboard inside a case. If you sold it with either configuration (two separate products) I suspect you might sell more without the connector. Thanks

J
Jean Michel Sellier

CardKB Mini Keyboard Programmable Unit V1.1 (MEGA8A)

M
Massimo Caiani
It's ok , but non for rugged use

The keyboard works very fine , the button are slim but it's easy to press , the body has thin measure but the button have a border very delicate , and the protection for use in a bag with other device it's very appreciated , globally it's fantastic.
