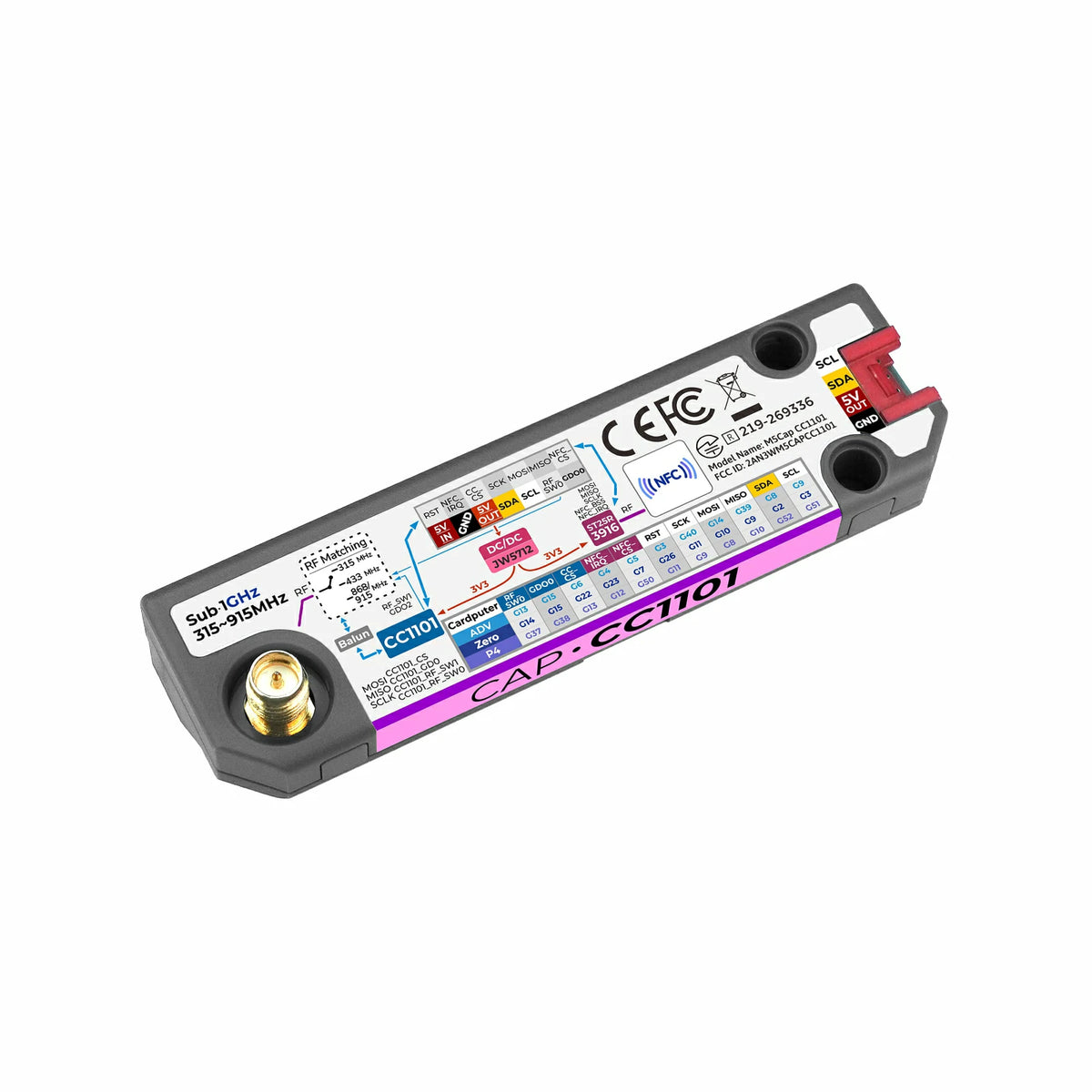

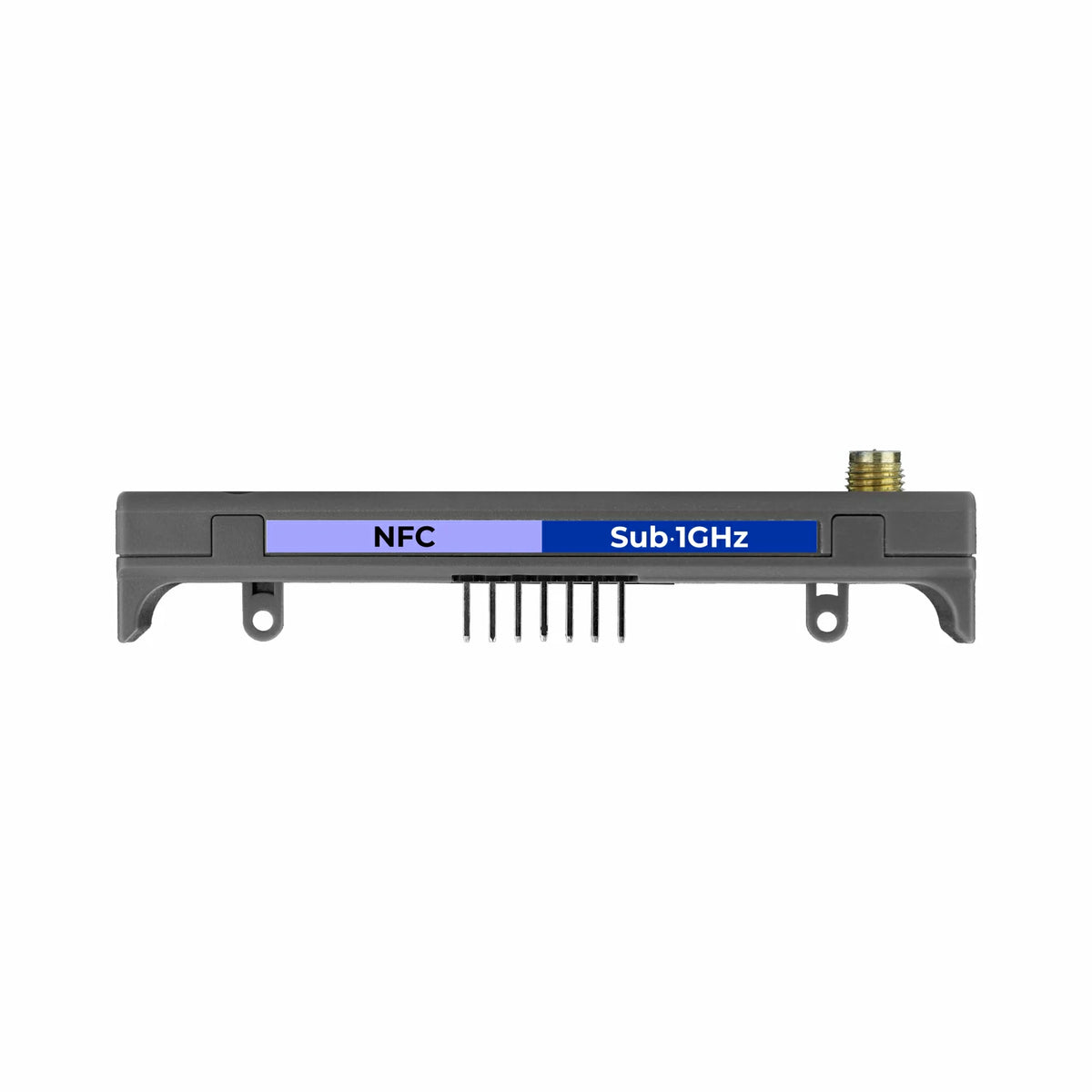

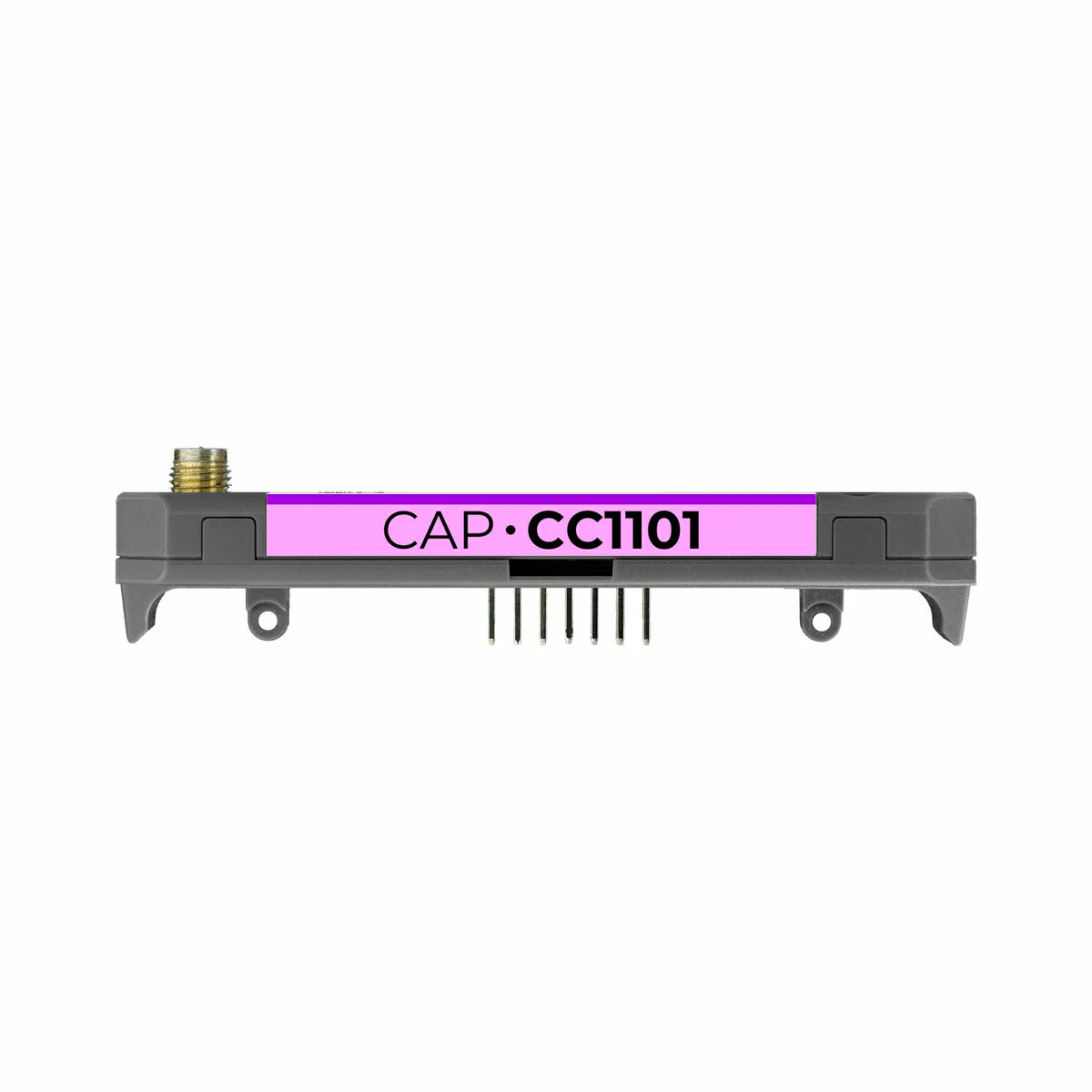

Cap CC1101 & NFC for Cardputer Adv

Description

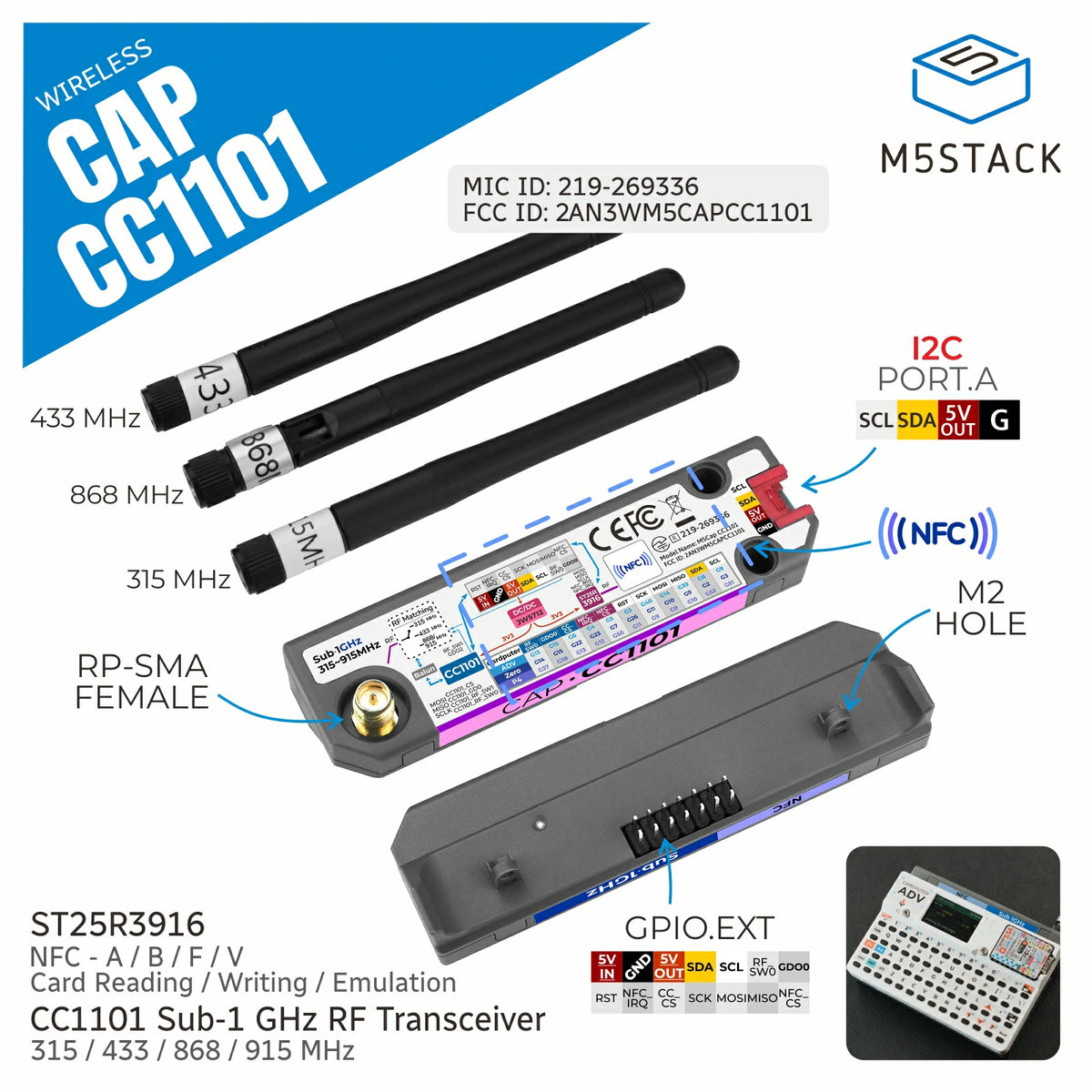

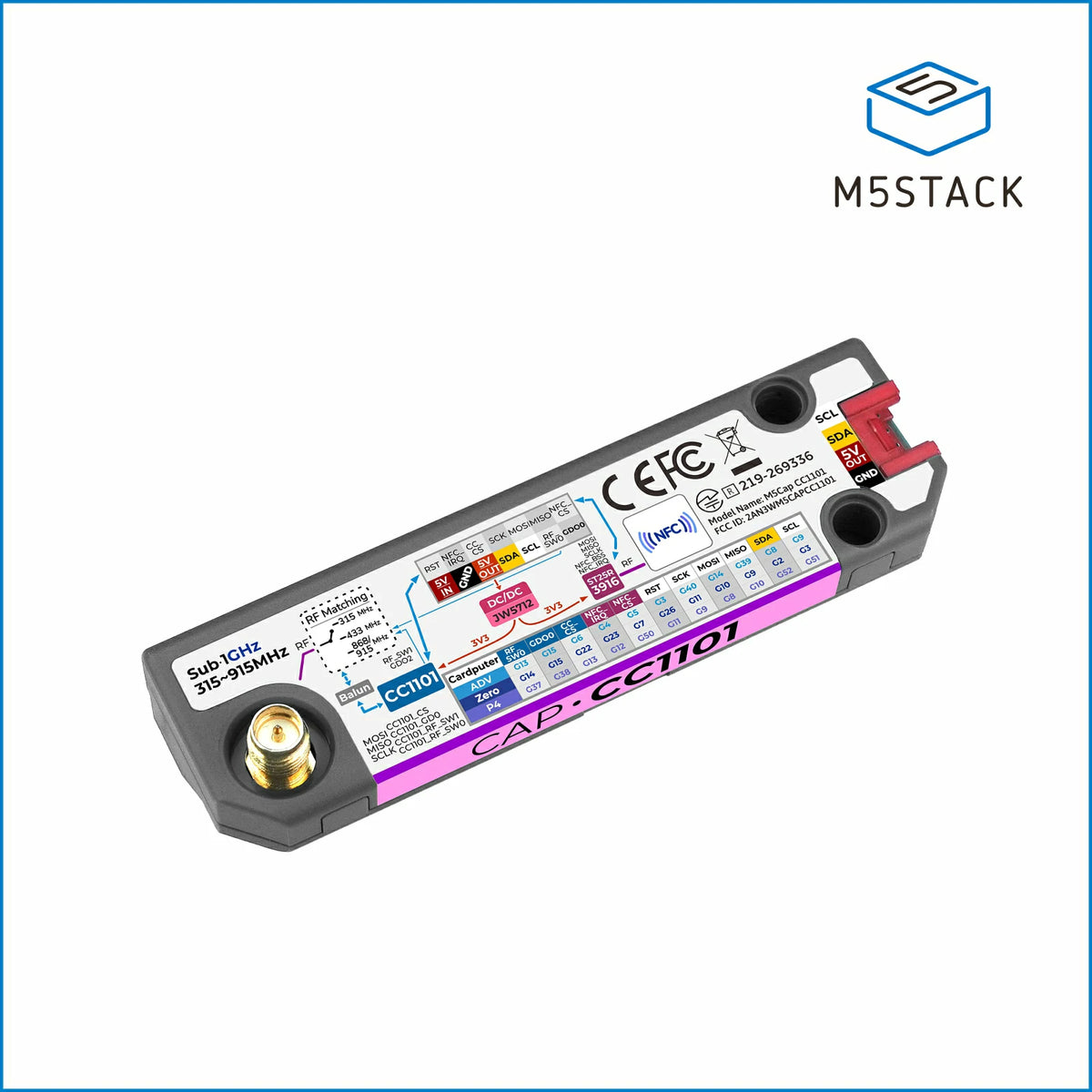

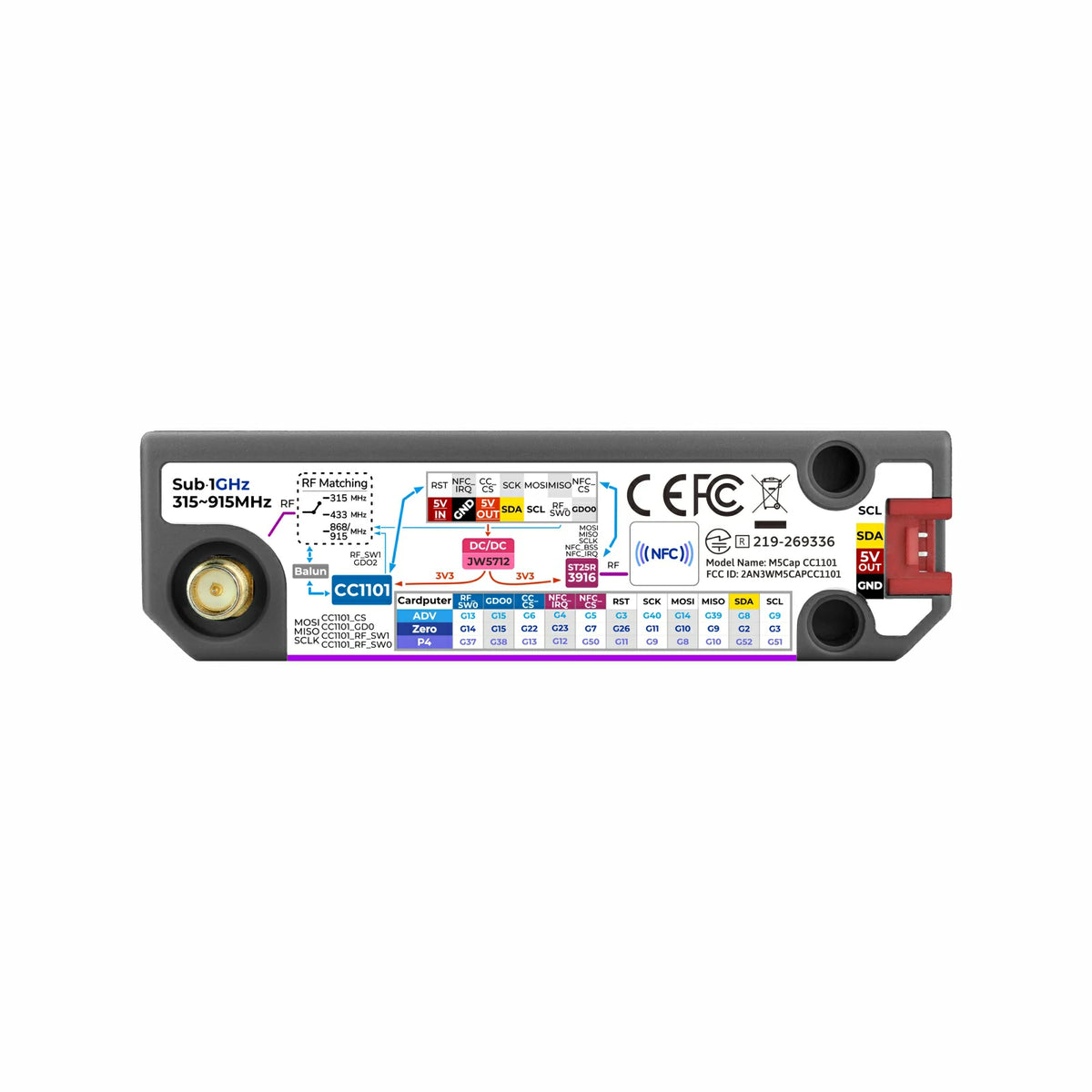

Cap CC1101 is a wireless expansion module integrating Sub-1 GHz RF and NFC functions, compatible with Cardputer-Adv and CardputerZero. The RF section is based on the TI CC1101 transceiver. Built-in dual single-pole triple-throw (SP3T) RF switches and multi-band RF matching circuits multiplex the 315MHz, 433MHz, 868MHz/915MHz bands to one RP-SMA antenna interface, supporting 2-FSK, 4-FSK, GFSK, MSK, ASK, OOK, and other modulation schemes.

The NFC section uses the ST25R3916 chip and supports ISO14443A/B, FeliCa™, and ISO15693 protocols. It can operate in reader/writer and card emulation modes. The module communicates via SPI, includes an onboard DC-DC buck circuit, and provides a standard HY2.0-4P Grove interface for easy sensor expansion. It is suitable for wireless remote control, access-control identification, device communication, and IoT prototyping.

Features

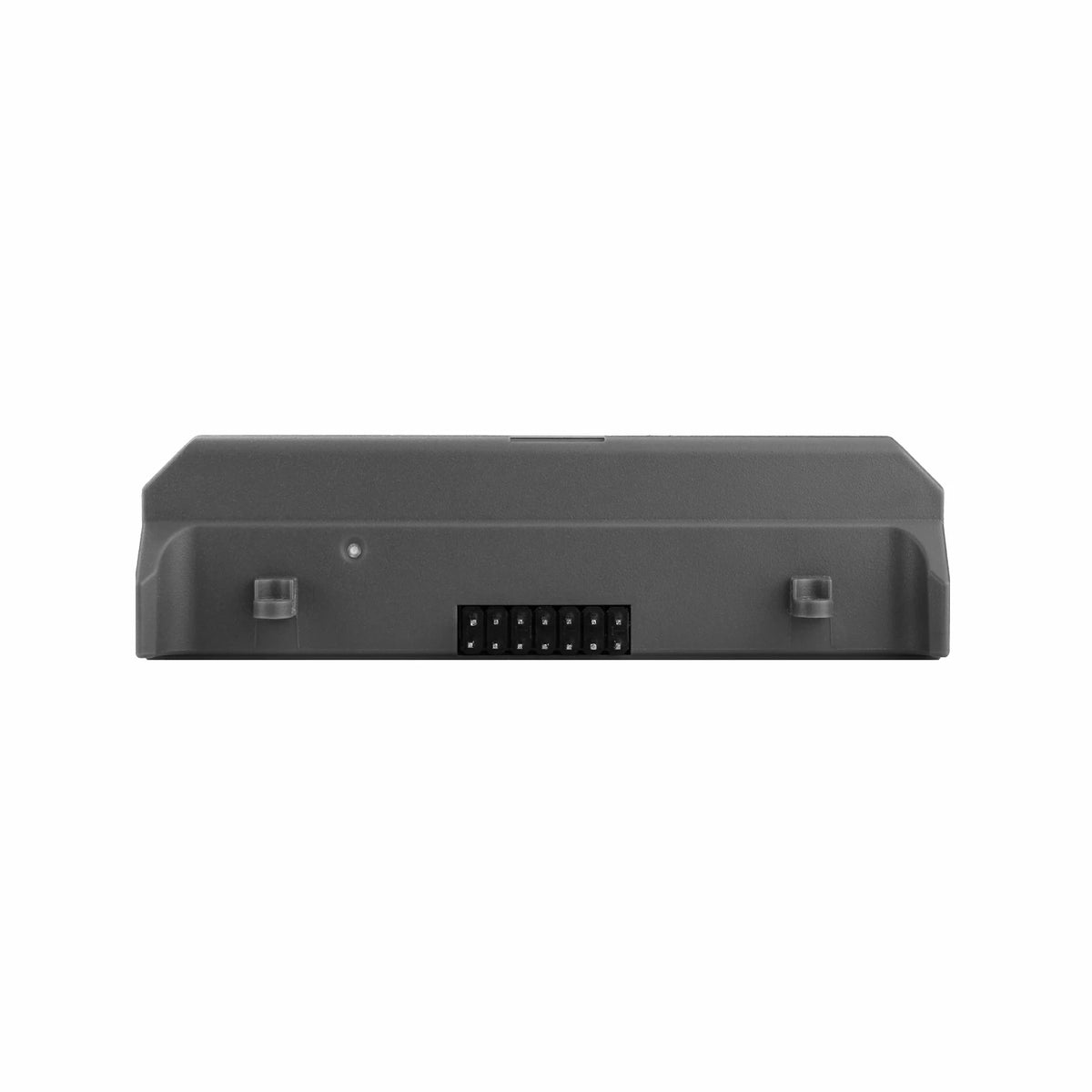

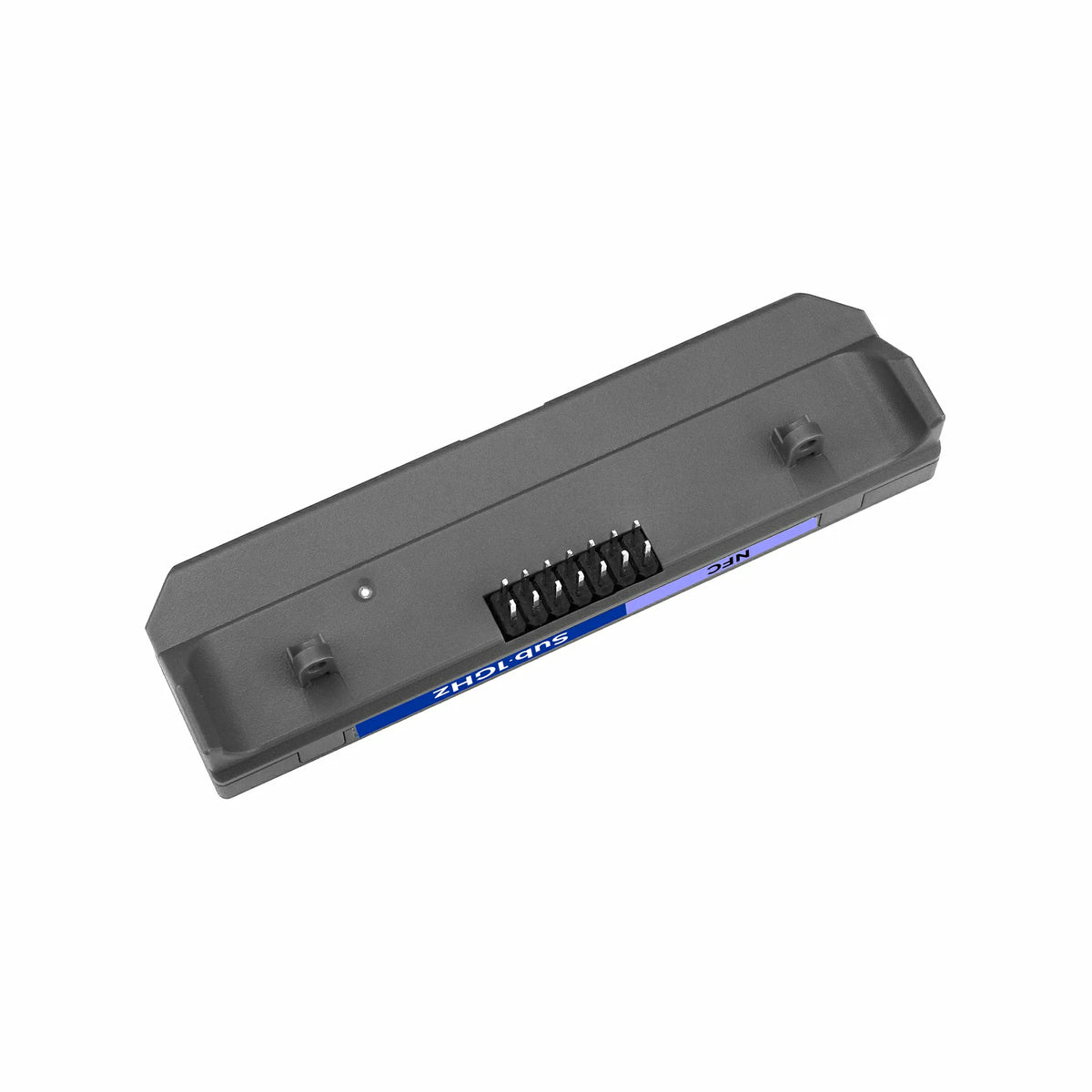

• SPI serial communication protocol
• CC1101 low-power Sub-1 GHz RF transceiver
  • Operating frequency: 315/433/868/915 MHz
  • Supports 2-FSK, 4-FSK, GFSK, MSK, ASK, and OOK modulation schemes
  • Independent 64-byte RF RX FIFO and TX FIFO
  • Built-in dual SP3T RF switches and multi-band RF matching network for dynamic band switching

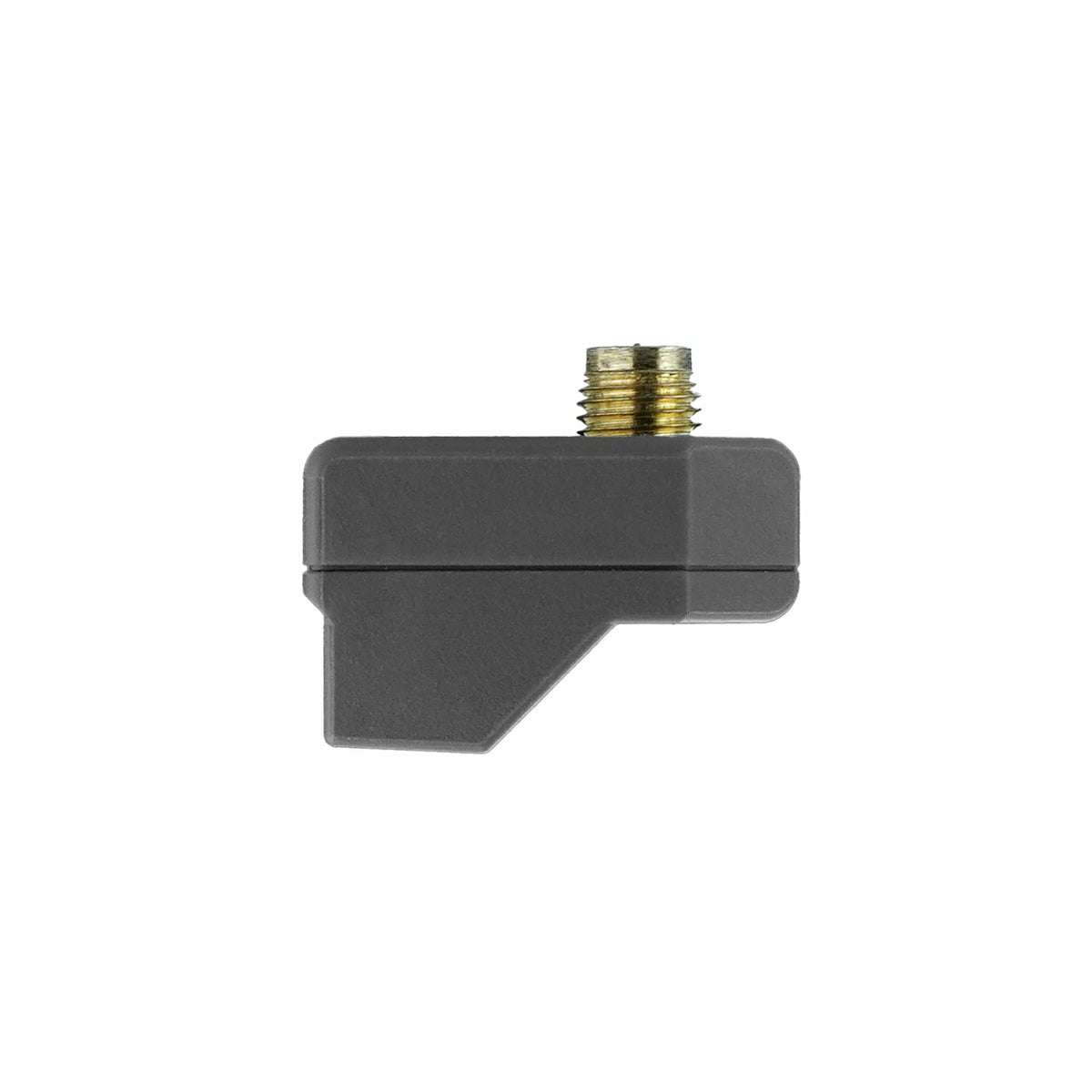

  • External RP-SMA antenna interface
• ST25R3916 high-performance NFC front end
  • Supports reader/writer mode and card emulation mode
  • Compatible with NFC-A, NFC-B, NFC-F, and NFC-V standards
  • 512-byte NFC FIFO

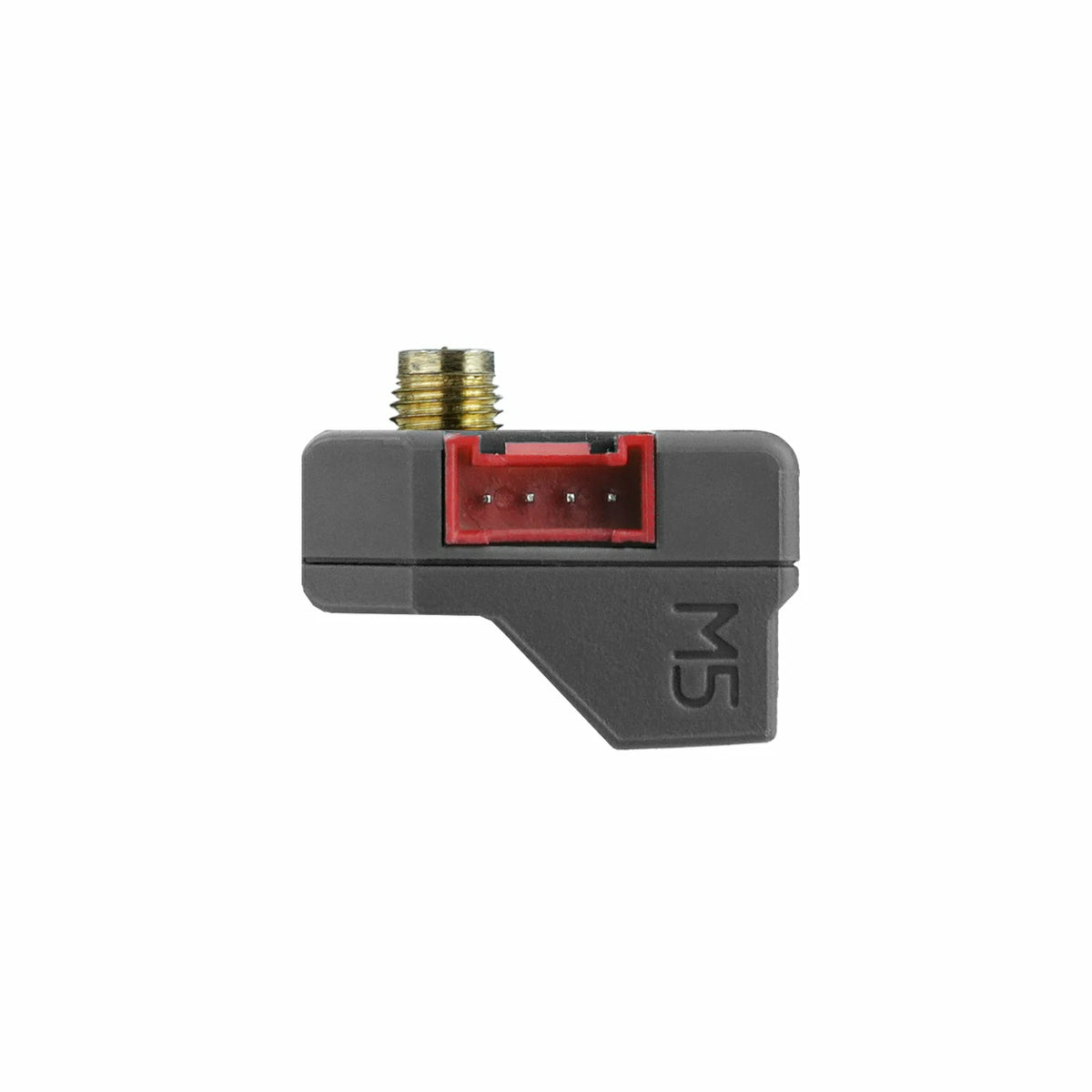

• HY2.0-4P Grove expansion interface
  • Supports sensor module expansion
• Development Platform:
  • Arduino
  • UiFlow2

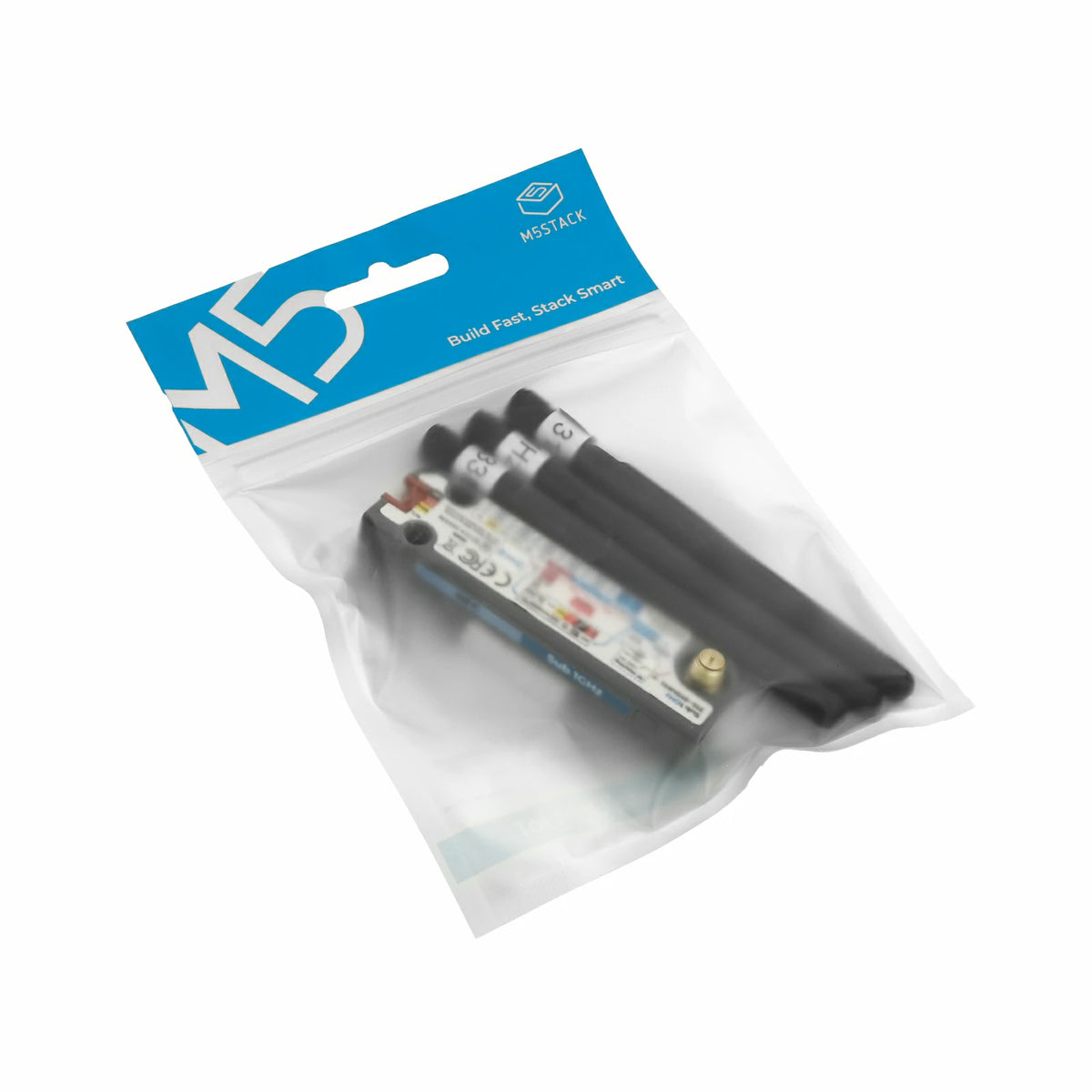

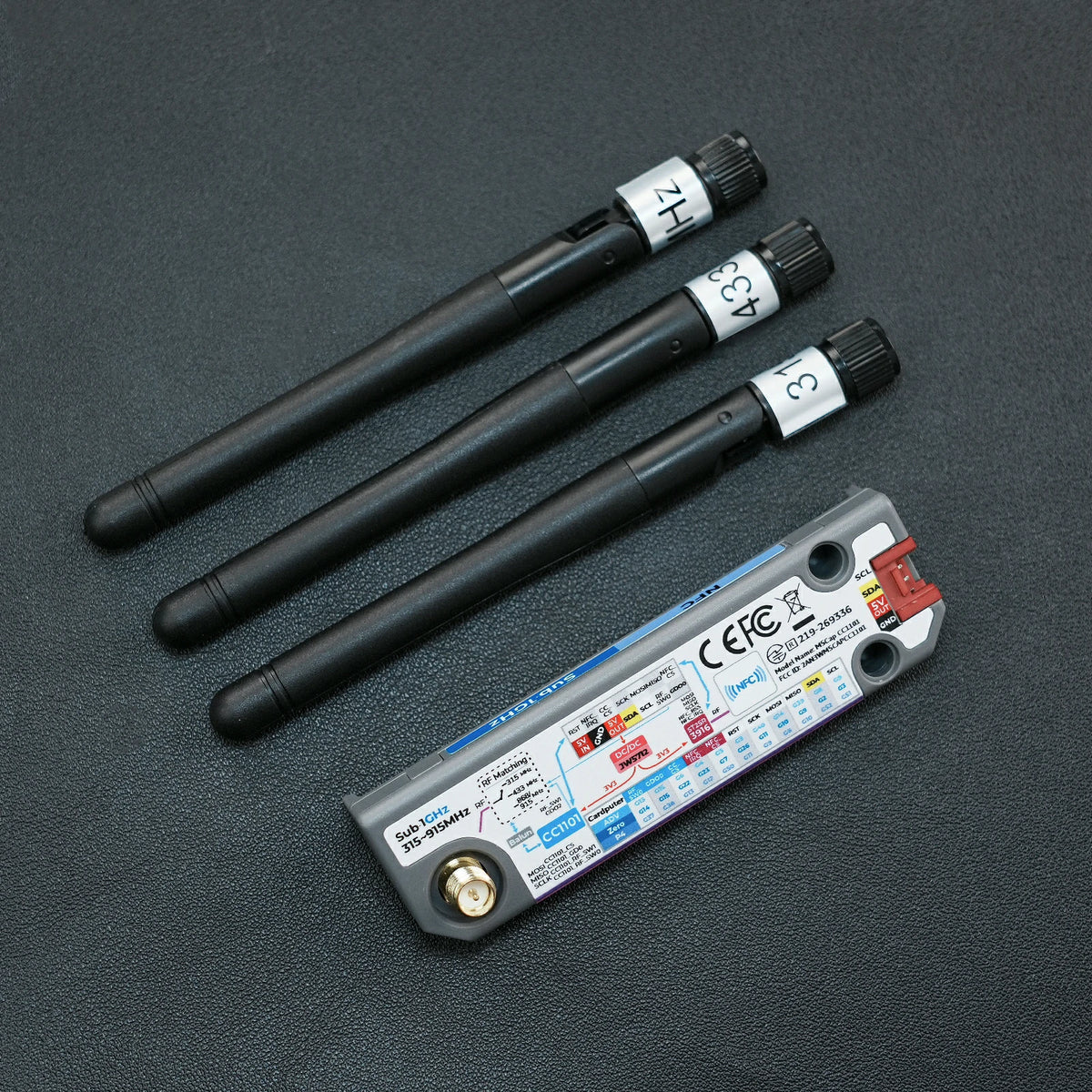

Includes

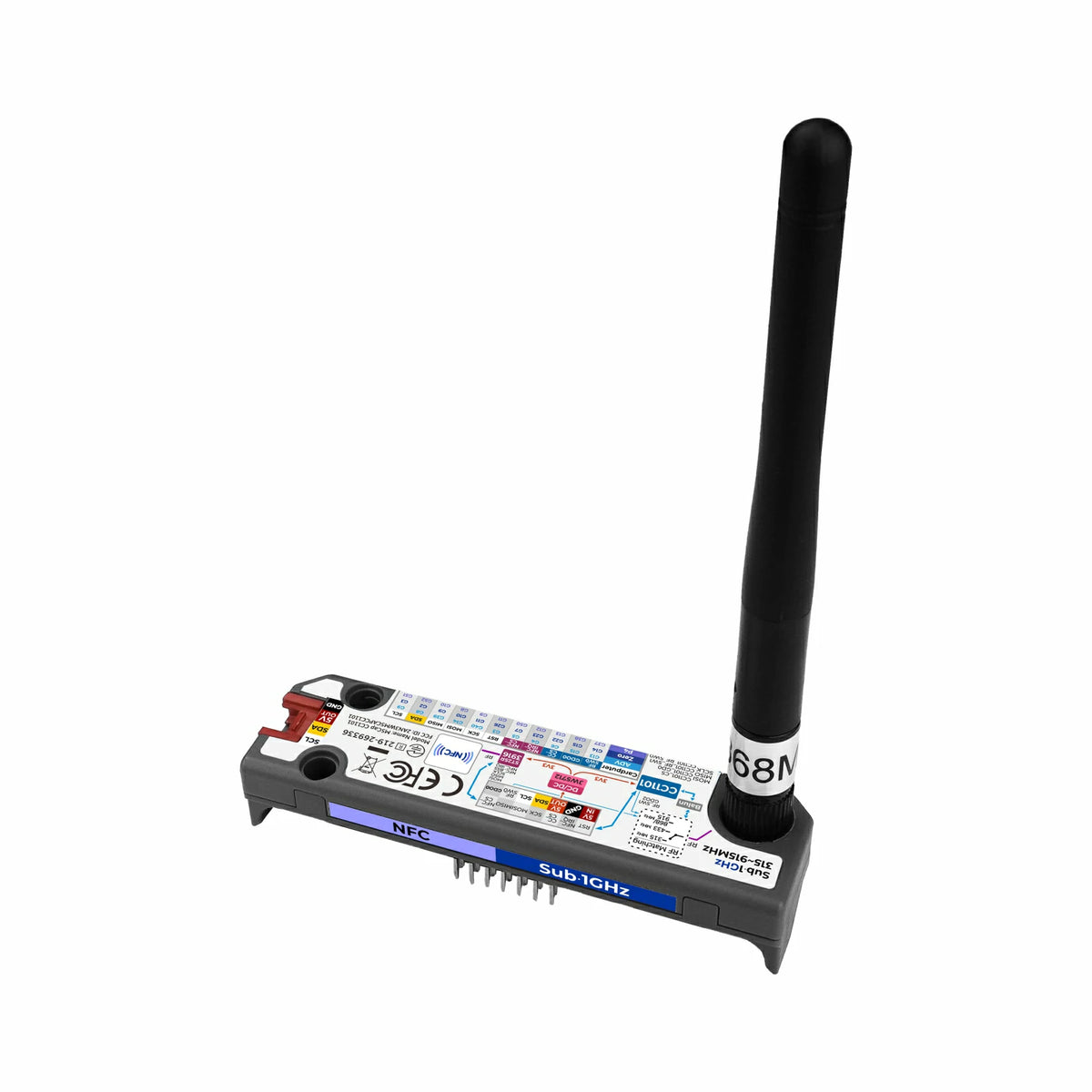

• 1 x Cap CC1101
• 1 x 315 MHz RP-SMA rubber antenna
• 1 x 433 MHz RP-SMA rubber antenna
• 1 x 868 MHz RP-SMA rubber antenna (for 868MHz and 915MHz bands)

Applications

• Wireless remote control
• Access-control identification
• Device communication
• IoT prototyping
